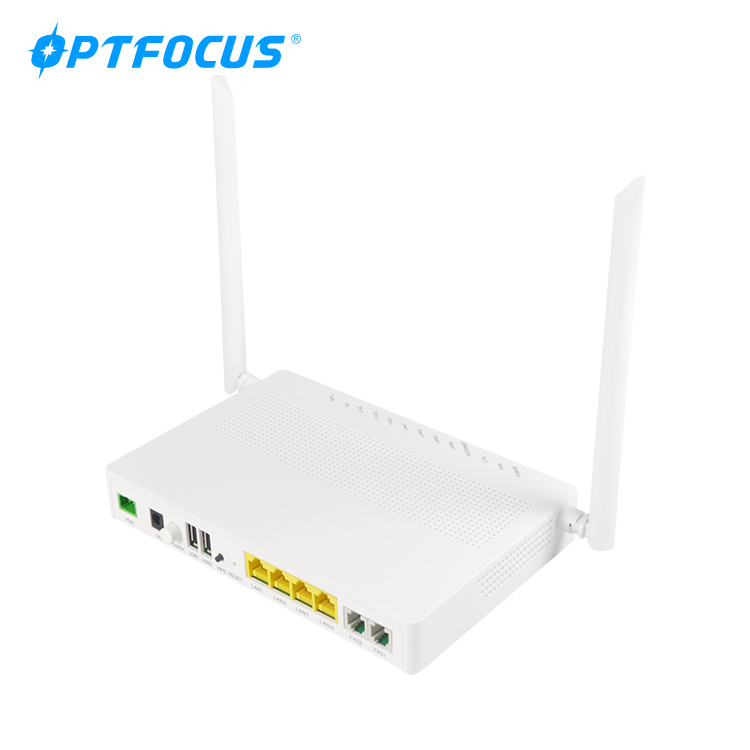

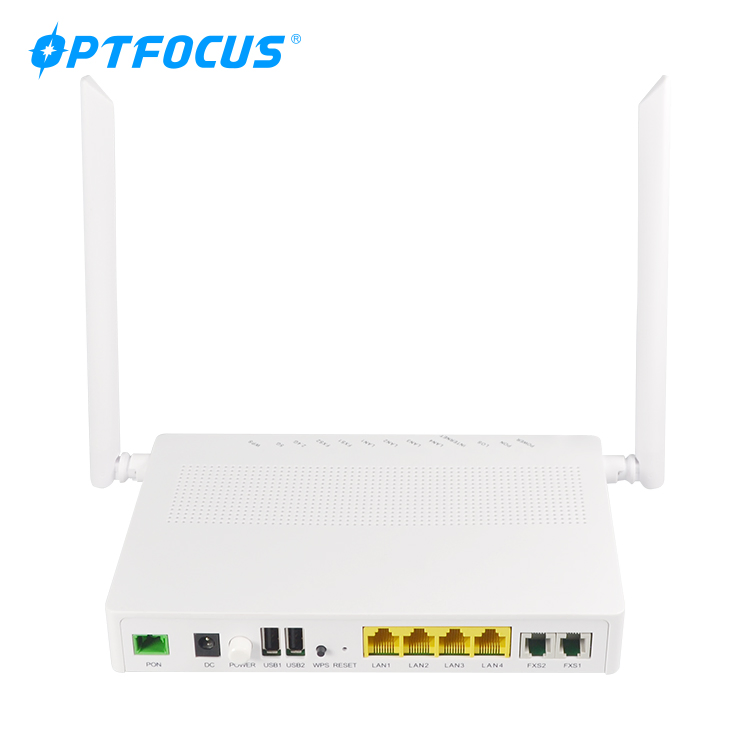

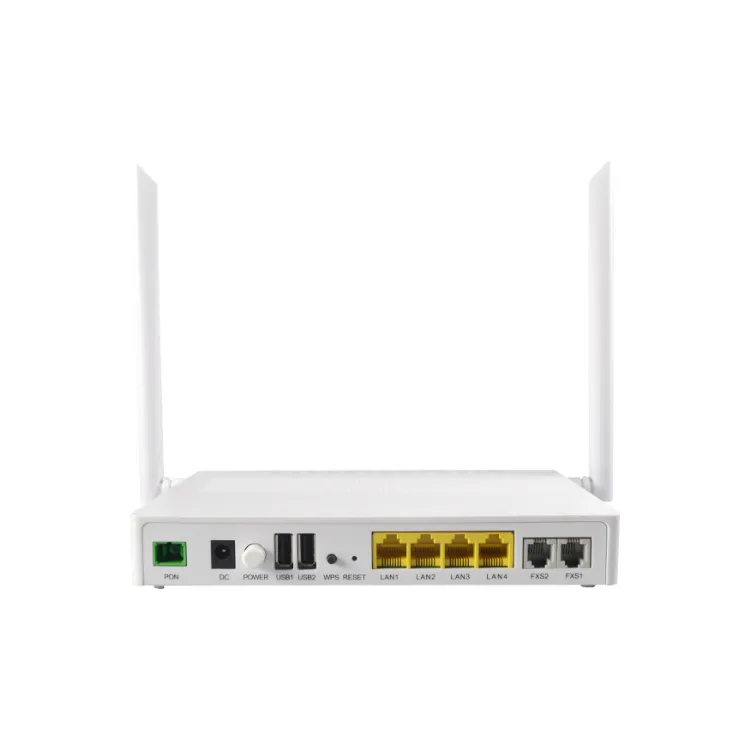

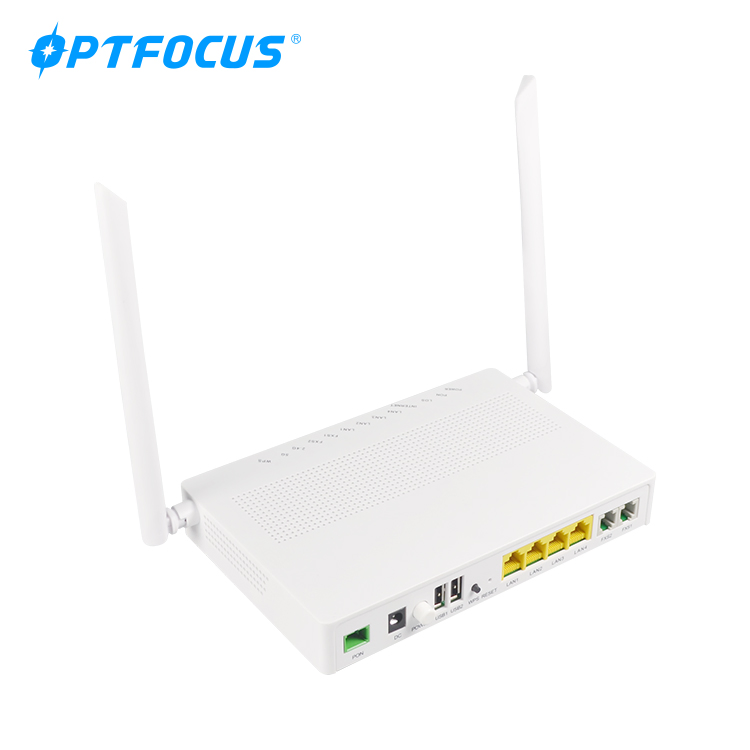

4 Port AC WiFi ONU Huawei Eg8145V5 Same 4ge 2pots WiFi Dual Band 2USB Xpon Ont OEM Factory
4 port AC wifi ONU HUAWEI EG8145V5 same 4GE 2POTS WIFI dual band 2USB XPON ONT OEM factoryOverviewTo deliver triple-play services to the subscriber in Fiber-to-the-Home or Fiber-to-the-Premises application, the OFSX614-2VD2U XPON ONT incorporates interoperability, key customers' specific require......
Send Inquiry
Product Description
4 port AC wifi ONU HUAWEI EG8145V5 same 4GE 2POTS WIFI dual band 2USB XPON ONT OEM factory
Overview
To deliver triple-play services to the subscriber in Fiber-to-the-Home or Fiber-to-the-Premises application, the OFSX614-2VD2U XPON ONT incorporates interoperability, key customers' specific requirements and cost-efficiency.
Equipped with ITU-T G.984 compliant 2.5G Downstream and 1.25G Upstream XPON interface, the XPON ONT supports the full of services including voice ,video, and high speed internet access.
Compliant with standard OMCI definition, OFSX614-2VD2U XPON ONT is manageable at remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance.
Service
Data
The OFSX614-2VD2U ONT is delivered with 4 10/100/1000 Base-T interface, supporting:
1. Auto-negotiation and MDI/MDIX auto-sensing
2. Built-in layer-2 switch
3. Advanced data features such as VLAN tag manipulation, classification, and filtering
4. Built-in layer-3 routing and residential gateway
5. 2.4GHz 300Mbps + 5GHz 867Mbps WLAN interface
6. USB 2.0 storage
Video
The OFSX614-2VD2U ONT supports video contents delivered in the form of data (by multicast or unicast).
Voice
The OFSX614-2VD2U ONT can optionally be delivered with two POTS interface port for carrier-grade voice services, supporting:
1. Multiple voice codec
2. Echo Cancelling, VAD, CNG
3. Supporting static or dynamic jitter buffer
4. Various CLASS services - Caller ID, Call Waiting, Call Forwarding, Call Transfer, etc.SIP (RFC3261)
5. MEGACO v2 (H.248)
To enable VoIP access, the OFSX614-2VD2U ONT also supports interfacing external IAD box or Home Router with voice capability through the Ethernet Interface.
Specification
WiFi
1. 2.4G 300Mbps+5G 867Mbps
2. 802.11 b/g/n/ac
3. Internal Antenna
Power Supply
1. +12V / 1.5A (feed via external AC/DC adapter)
2. 2-PIN power adaptor input
3. Dying Gasp support
4. Power switch
5. Power Consumption: less than 12W
GPON Interface
1. Compliant with ITU-T G.984 GPON standards
2. BoSA on board optical solution
3. 1.244 Gbps Burst Mode Upstream Transmitter
4. 2.488 Gbps Downstream Receiver
5. Compliant with ITU-T G.984.2 Amd1, Class B+
6. Wavelengths: US 1310nm, DS 1490nm
7. Multiple T-CONTs per device
8. Multiple GEM Ports per device
9. Flexible mapping between GEM Ports and T-CONT
10. Activation with automatic discovered SN and password in conformance with ITU-T G.984.3
11. AES-128 Decryption with key generation and switching
12. FEC (Forward Error Correction) in both directions
13. DBA reporting by piggyback reports in the DBRu (mode 0 and mode 1)
14. Mapping of GEM Ports into a T-CONT with priority queues based scheduling
15. Support Multicast GEM port and incidental broadcast GEM port.
Ethernet Interface
1. 4GE
2. Ethernet port auto negotiation or manual configuration
3. MDI/MDIX automatically sense
4. Virtual switch based on 802.1Q VLAN
5. VLAN tagging/detagging per Ethernet port
OAM
1. Standard compliant OMCI (the embedded operations channel) interface as defined by ITU-T G.988
2. Alarming and performance monitoring
3. Remotely software image download over OMCI, as well as activation and rebooting
4. Hold two software sets with software image integrity checking and automatic rollback
Overview
To deliver triple-play services to the subscriber in Fiber-to-the-Home or Fiber-to-the-Premises application, the OFSX614-2VD2U XPON ONT incorporates interoperability, key customers' specific requirements and cost-efficiency.
Equipped with ITU-T G.984 compliant 2.5G Downstream and 1.25G Upstream XPON interface, the XPON ONT supports the full of services including voice ,video, and high speed internet access.
Compliant with standard OMCI definition, OFSX614-2VD2U XPON ONT is manageable at remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance.
Service
Data
The OFSX614-2VD2U ONT is delivered with 4 10/100/1000 Base-T interface, supporting:
1. Auto-negotiation and MDI/MDIX auto-sensing
2. Built-in layer-2 switch
3. Advanced data features such as VLAN tag manipulation, classification, and filtering
4. Built-in layer-3 routing and residential gateway
5. 2.4GHz 300Mbps + 5GHz 867Mbps WLAN interface
6. USB 2.0 storage
Video
The OFSX614-2VD2U ONT supports video contents delivered in the form of data (by multicast or unicast).
Voice
The OFSX614-2VD2U ONT can optionally be delivered with two POTS interface port for carrier-grade voice services, supporting:
1. Multiple voice codec
2. Echo Cancelling, VAD, CNG
3. Supporting static or dynamic jitter buffer
4. Various CLASS services - Caller ID, Call Waiting, Call Forwarding, Call Transfer, etc.SIP (RFC3261)
5. MEGACO v2 (H.248)
To enable VoIP access, the OFSX614-2VD2U ONT also supports interfacing external IAD box or Home Router with voice capability through the Ethernet Interface.
Specification
| Optical SPEC | Working wavelength | nm | PON:TX1310,RX1490; |
| The light emitting power | dBm | 1 ~ +4 | |
| The light receiving sensitivity | dBm | ≥ -27 | |
| Optical fiber connector | / | PON:SC/UPC (Optional SC/APC) | |
| Port | The user side Ethernet ports | / | 4GE |
| USB | / | 2 | |
| POTS | / | 2 | |
| WiFi | 2.4G WiFi | / | 300Mbps |
| 5G WiFi | / | 867Mbps | |
| Other | The power supply | V/A | AC110~255V→DC12V 1.5A |
| Work temperature | ºC | -5~45 |
WiFi
1. 2.4G 300Mbps+5G 867Mbps
2. 802.11 b/g/n/ac
3. Internal Antenna
Power Supply
1. +12V / 1.5A (feed via external AC/DC adapter)
2. 2-PIN power adaptor input
3. Dying Gasp support
4. Power switch
5. Power Consumption: less than 12W
GPON Interface
1. Compliant with ITU-T G.984 GPON standards
2. BoSA on board optical solution
3. 1.244 Gbps Burst Mode Upstream Transmitter
4. 2.488 Gbps Downstream Receiver
5. Compliant with ITU-T G.984.2 Amd1, Class B+
6. Wavelengths: US 1310nm, DS 1490nm
7. Multiple T-CONTs per device
8. Multiple GEM Ports per device
9. Flexible mapping between GEM Ports and T-CONT
10. Activation with automatic discovered SN and password in conformance with ITU-T G.984.3
11. AES-128 Decryption with key generation and switching
12. FEC (Forward Error Correction) in both directions
13. DBA reporting by piggyback reports in the DBRu (mode 0 and mode 1)
14. Mapping of GEM Ports into a T-CONT with priority queues based scheduling
15. Support Multicast GEM port and incidental broadcast GEM port.
Ethernet Interface
1. 4GE
2. Ethernet port auto negotiation or manual configuration
3. MDI/MDIX automatically sense
4. Virtual switch based on 802.1Q VLAN
5. VLAN tagging/detagging per Ethernet port
OAM
1. Standard compliant OMCI (the embedded operations channel) interface as defined by ITU-T G.988
2. Alarming and performance monitoring
3. Remotely software image download over OMCI, as well as activation and rebooting
4. Hold two software sets with software image integrity checking and automatic rollback
