4+1CH Mux+Demux Optical DWDM

Product Description

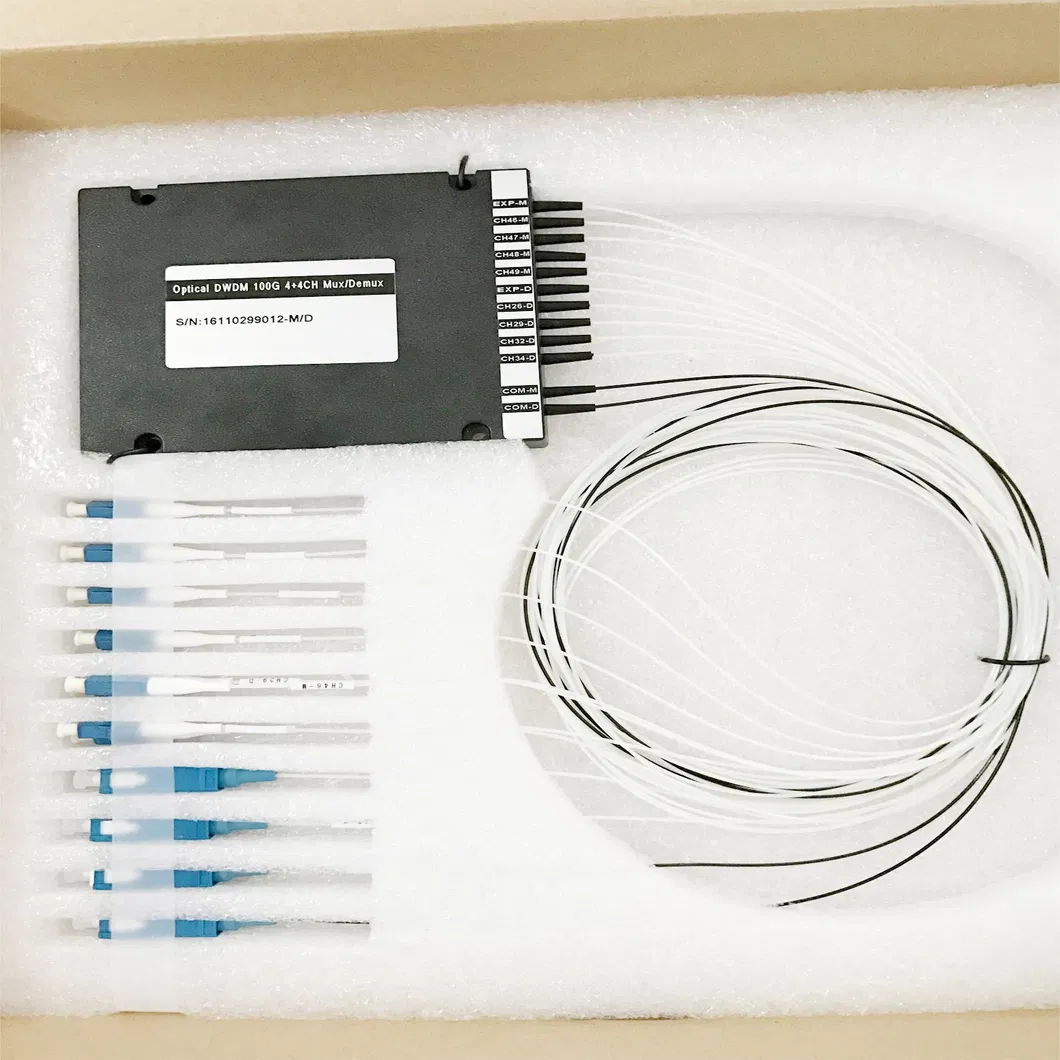

4+1CH Mux+Demux Optical DWDM

DWDM(Dense Wavelength Division Multiplexing)is a Technology That Puts Data Different Sources Together on an Optical Fiber,with Each Signal Carried at the Same Time on Its Own Separate Light Wavelength

Features:
Low insertion loss, low PDL
High Isolation
Compact Design
Good channel-to-channel uniformity
High Reliability and Stability

Application:
Channel Add/Drop
DWDM Network
Wavelength Routing
CATV Fiber Optical System

Optical Specifications:

Parameter			Value
Channels Number			2	4	8	16	32	40
Central Wavelength(nm)			ITU-T Grid
Channel Spacing(GHZ)			100/200
Bandwidth(nm)			ITU-T ±0.11/ ITU-T ±0.25
I.L(dB)		Typ.	1.2	1.6	2.2	3.2	3.8	5.2
		MAX.	1.4	1.8	2.8	5.0	5.6	6.0
Ripple(dB)			≤0.5
PDL(dB)			≤0.10	≤0.15	≤0.20	≤0.25	≤0.30	≤0.30
Isolation(dB)	Adjacent Channel		≥25
	Non-adjacent Channel		≥45
Directivity(dB)			≥50
R.L(dB)			≥45
Operating Temperature(ºC)			-5~+75
Storage Temperature(ºC)			-40~85
Note: All the data above does not include connectors

Order Information:

Type	Channel Passband	Upgrade Port	Port	First Channel	Pigtail	Fiber	Length	Connector (Input-Output)	Package
M=Mux D=Demux M+D=Mux+ Demux	1=100GHz 2=200GHz	U= Yes 0= No	1002=1X2 1004=1X4 1008=1X8 1016=1X16 XX=other	C21 C22 C23 (Refer to ITU Channel Table)	L=900um loose tube 2=2.0mm 3=3.0mm B= baare fiber A= Adaptor	S1=G652D S2=G657A1 X= other	0.5M=0.5M 1M=1M X=other	SU=SC/UPC SA=SC/APC FU=FC/UPC FA=FC/APC ST=ST/UPC LA=LC/APC LU=LC/UPC 00=NONE XX= Other	01,02, 03,04,05 H,L,U,G, X

Packing Information:

1CH	2/4CH	8CH	16/18/40/48CH
05	01/L/G/U	02/L/G/U	03/L/H/G/U
04

Package Dimension:

No.	Dimension	No.	Dimension
05	Φ5.5×L38 Stainless steel tube	02	120× 80× 18 Plastic box
04	90 X 20 X 9.5 Plastic box	L	150 × 115 × 18 Aluminum box
01	100 × 80 × 10 Plastic box	W	150X65X16
H	150 × 115 × 18 Plastic box	Y	127X70X11
B	Φ5.0×L38 Stainless steel tube	U	19''x=1,2,3,4 U rack mount
G	LGX box : 1G, 2G, 3G, 4G	X	Customized package
03	141× 115 × 18 Plastic box
