              2CH+2CH Optical DWDM OADM with LC/Upc Connector
              • 2CH+2CH Optical DWDM OADM with LC/Upc Connector2CH+2CH Optical DWDM OADM with LC/Upc Connector
              • 2CH+2CH Optical DWDM OADM with LC/Upc Connector2CH+2CH Optical DWDM OADM with LC/Upc Connector
              • 2CH+2CH Optical DWDM OADM with LC/Upc Connector2CH+2CH Optical DWDM OADM with LC/Upc Connector
              • 2CH+2CH Optical DWDM OADM with LC/Upc Connector2CH+2CH Optical DWDM OADM with LC/Upc Connector

              2CH+2CH Optical DWDM OADM with LC/Upc Connector

              2CH+2CH Optical DWDM OADMDWDM OADM is configurated as both an DWDM OADM and a terminal multiplexer and demultiplexer tosupport abroad range of architectures ranging from scalable point-to-point links to four-fiber protected rings. Features:Low insertion loss, low PDLHigh IsolationCompact DesignGoo......

              Send Inquiry

              Product Description

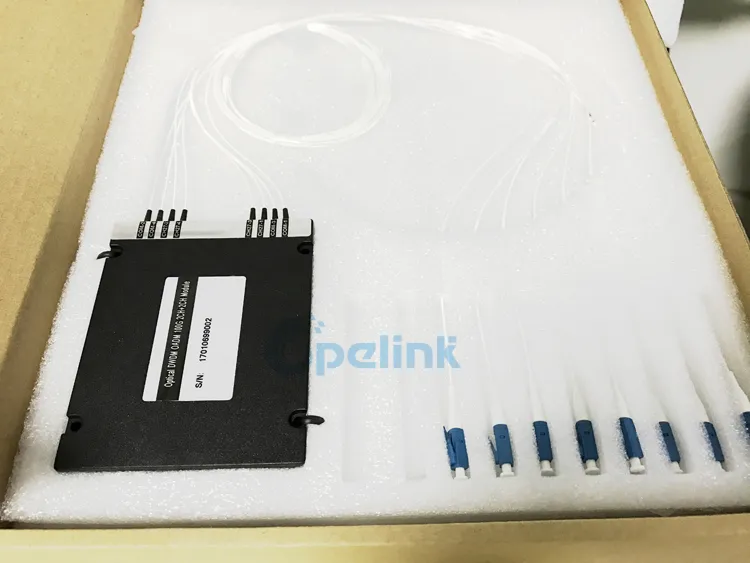

                                            2CH+2CH Optical DWDM OADM
              DWDM OADM is configurated as both an DWDM OADM and a terminal multiplexer and demultiplexer to
              support abroad range of architectures ranging from scalable point-to-point links to four-fiber protected rings.

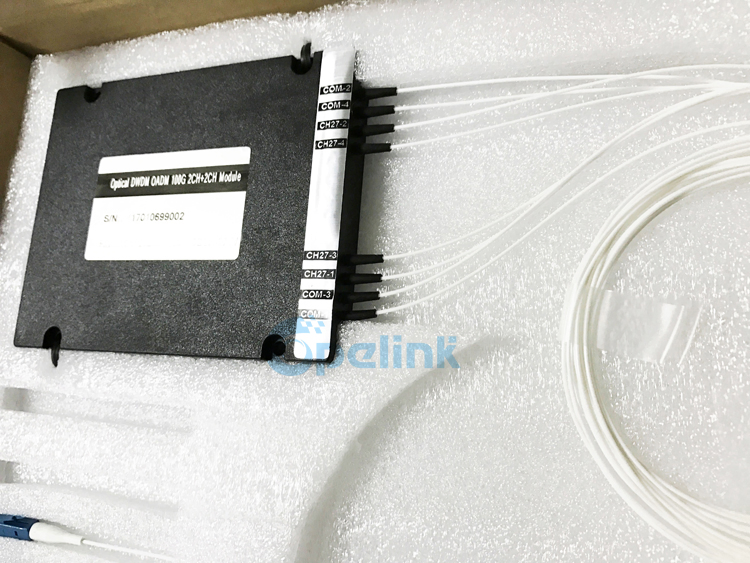

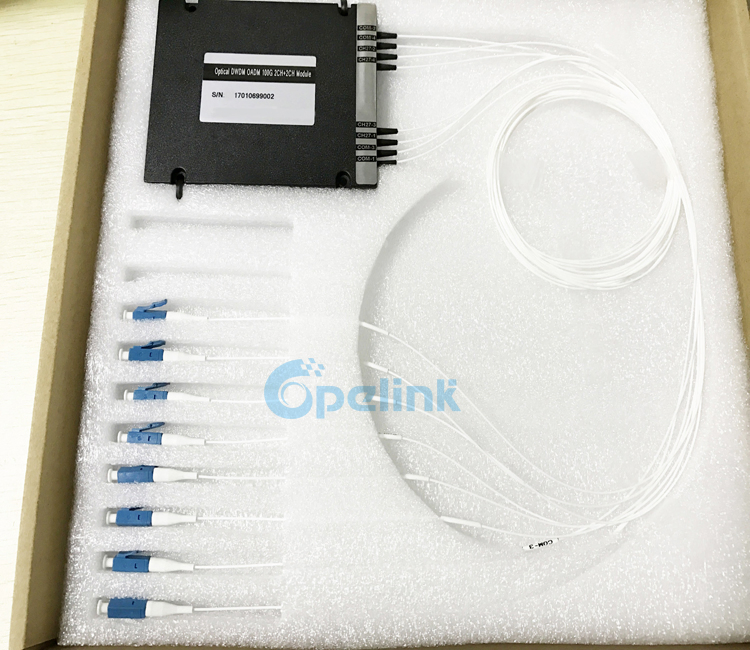

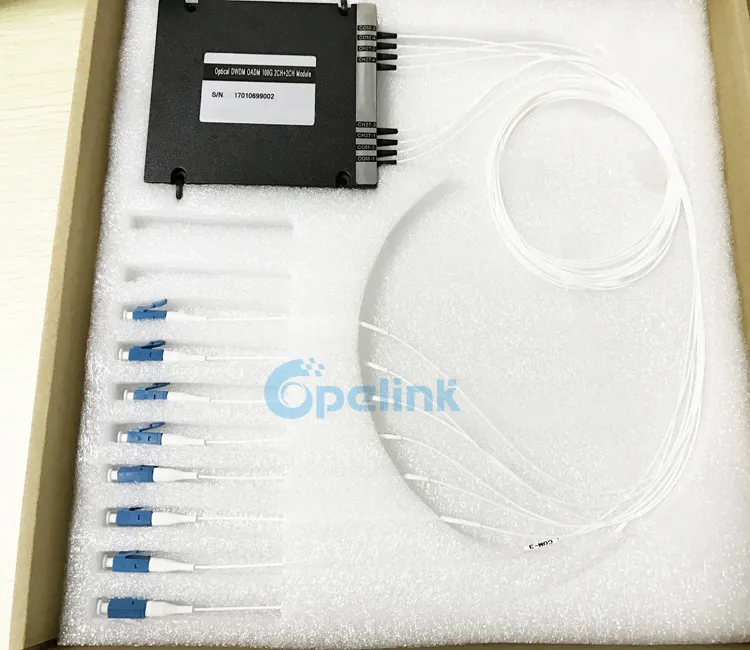

              2CH+2CH Optical DWDM OADM with LC/Upc Connector
              2CH+2CH Optical DWDM OADM with LC/Upc Connector
              2CH+2CH Optical DWDM OADM with LC/Upc Connector
              2CH+2CH Optical DWDM OADM with LC/Upc Connector


              Features:
              Low insertion loss, low PDL
              High  Isolation
              Compact  Design
              Good channel-to-channel uniformity
              High Reliability and Stability

              Application:
              Channel Add/Drop
              DWDM Network
              Wavelength Routing
              CATV Fiber Optical System

              Optical Specifications:

              ParameterMux/Demux
              Channel Wavelength(nm)ITU Grid
              Channel Spacing(GHz)100200
              Channel Passband (@-0.5dB bandwidth)(nm)>0.3>0.5
              Pass Channel Insertion Loss (dB)≤1.0≤0.9
              Reflection Channel Insertion Loss(dB)≤0.6≤0.6
              Channel Ripple(dB)<0.3
              Isolation(dB)Adjacent>30
              Non-adjacent>40
              Insertion Loss Temperature Sensitivity(dB/ºC)<0.005
              Wavelength Temperature Shifting (nm/ºC)<0.002
              Polarization Dependent Loss(dB)<0.1
              Polarization Mode Dispersion(ps)<0.1
              Directivity(dB)>50
              Return Loss(dB)>45
              Maximum Power Handling(mW)300
              Opterating Temperature(ºC)-10~+75
              Storage Temperature(ºC)-40~+85
              Package dimension(mm)Φ5.5xL38

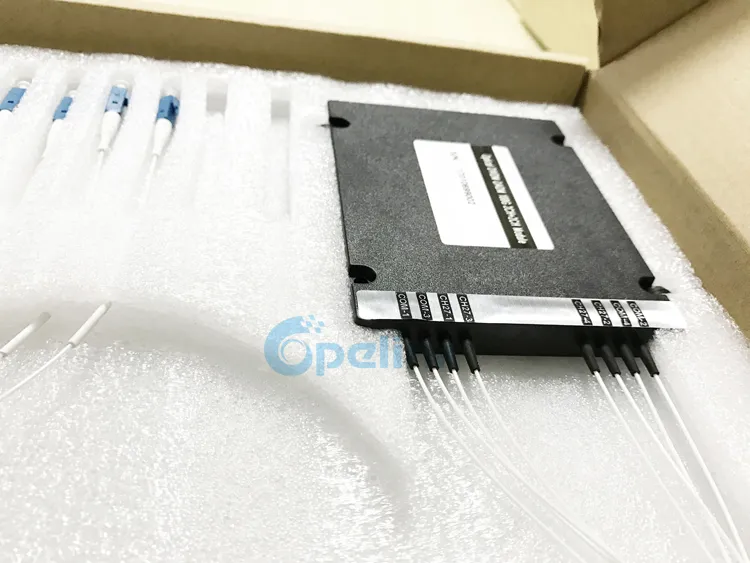

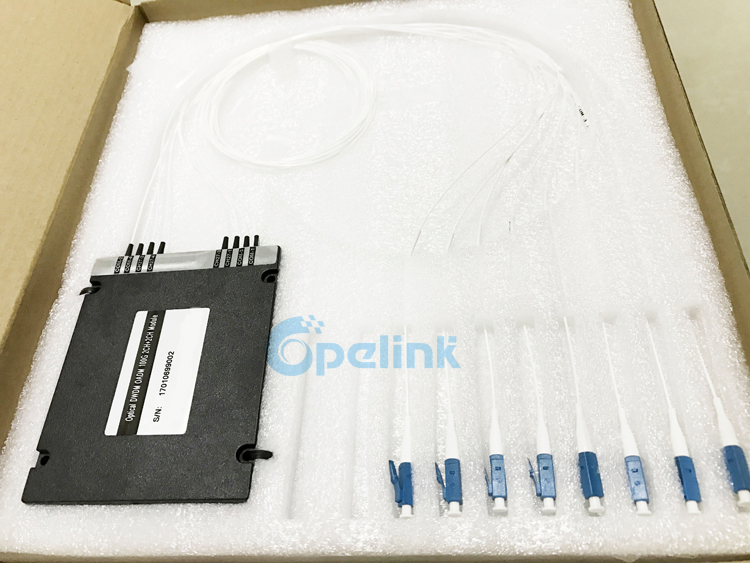

              2CH+2CH Optical DWDM OADM with LC/Upc Connector
              2CH+2CH Optical DWDM OADM with LC/Upc Connector
              2CH+2CH Optical DWDM OADM with LC/Upc Connector
              2CH+2CH Optical DWDM OADM with LC/Upc Connector




              FAQ:


              Q1. Can I have a sample order for this product?
              A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

              Q2. What about the lead time?
              A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

              Q3. Do you have any MOQ limit for sample order?
              A: Low MOQ, 1pc for sample checking is available

              Q4. How do you ship the goods and how long does it take to arrive?
              A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

              Q5. How to proceed an order for the product?
              A: Firstly let us know your requirements or application.
                  Secondly We quote according to your requirements or our suggestions.
                  Thirdly customer confirms the samples and places deposit for formal order.
                  Fourthly We arrange the production.

              Q6: Do you offer guarantee for the products?
              A: Yes, we offer 1-2 years warranty to our formal products.

              Q
              7: What action will you take if there are some product problems?
              A: If there are defective ones in the batch of products, we will offer spare ones for.
