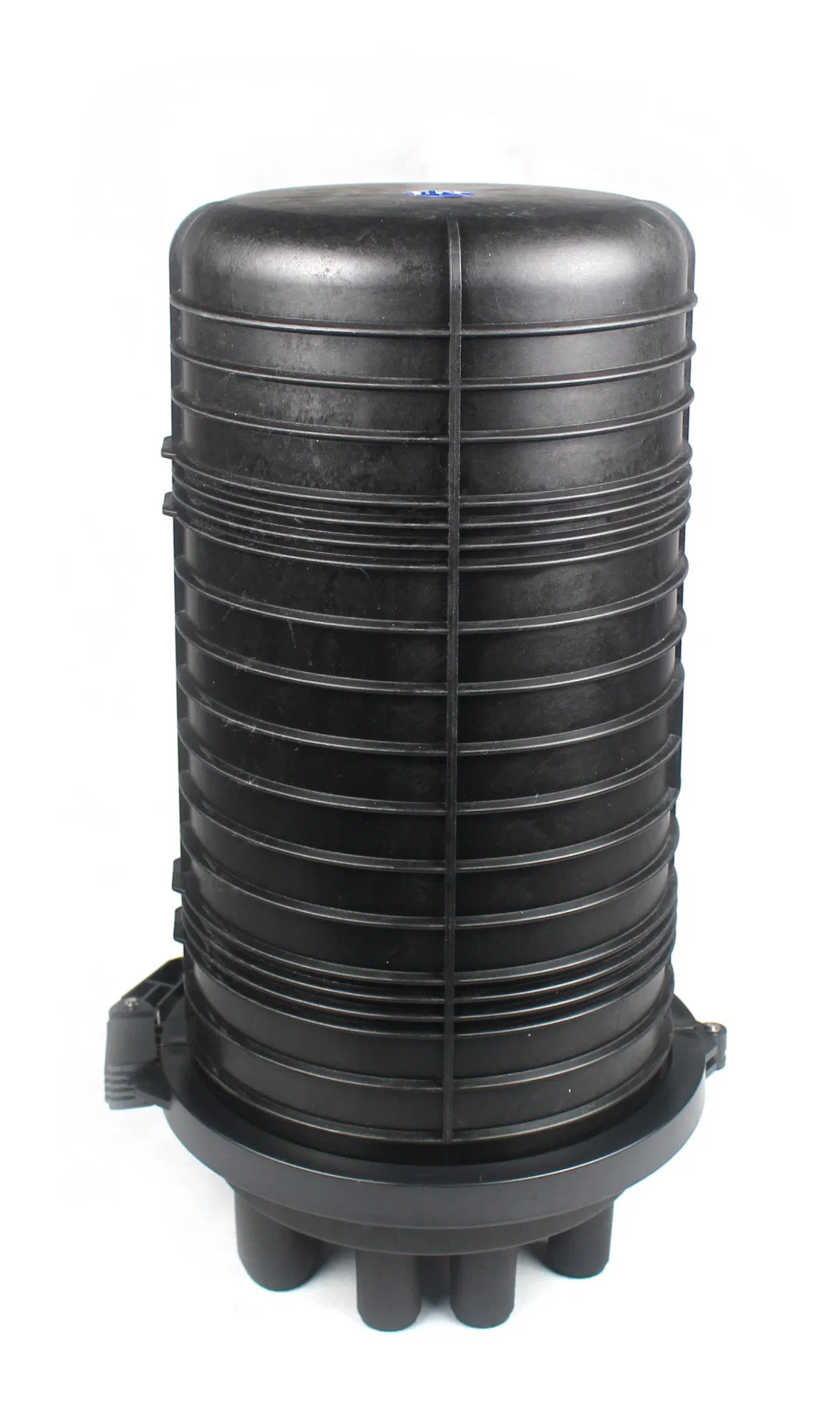

288 cores Vertical Type Fiber Optic Splice closure(TK-023)
TK-023 Fiber Optic Splice Closure provide with 7 fiber cable in-out round ports and the cable diameter is from Ф5-Ф38. It is made of PP and with the mechanical sealing structure filled with the sealing material.
Application:
1. Aerial
2. Underground
3. Wall-mounting
4. Duct-mounting
5. Handhole- mounting
Specification:
Outside dimension (Height x Diameter) | 515mm×310mm |
Weight (excluding outside box) | 3000 g- 4600g |

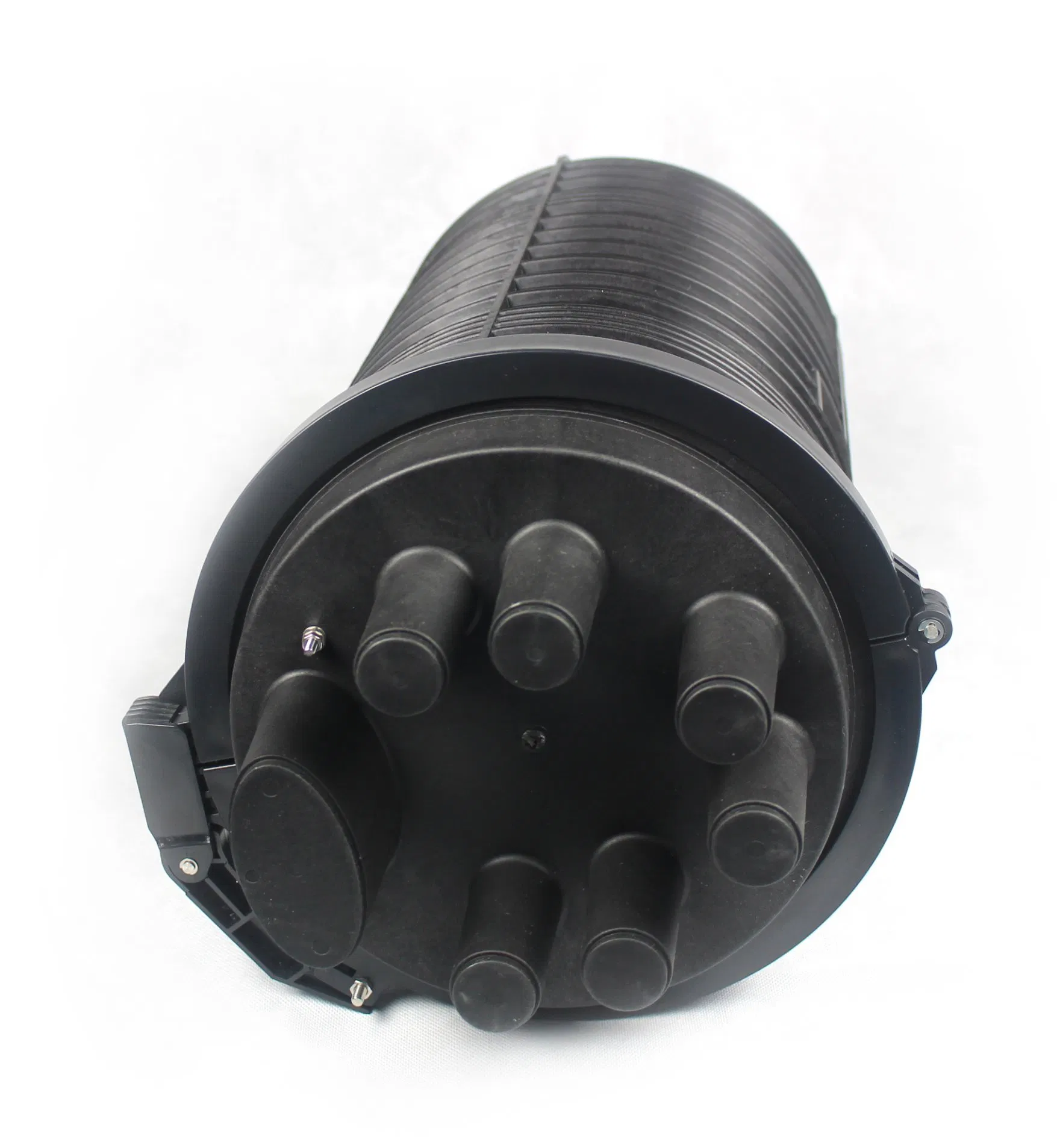

Number of inlet/out ports | 7 pieces in general |
Diameter of fiber cable | Φ5mm~Φ38 mm |
Capacity of FOSC | Bunchy: 24-288(cores), Ribbon: up to864(cores) |

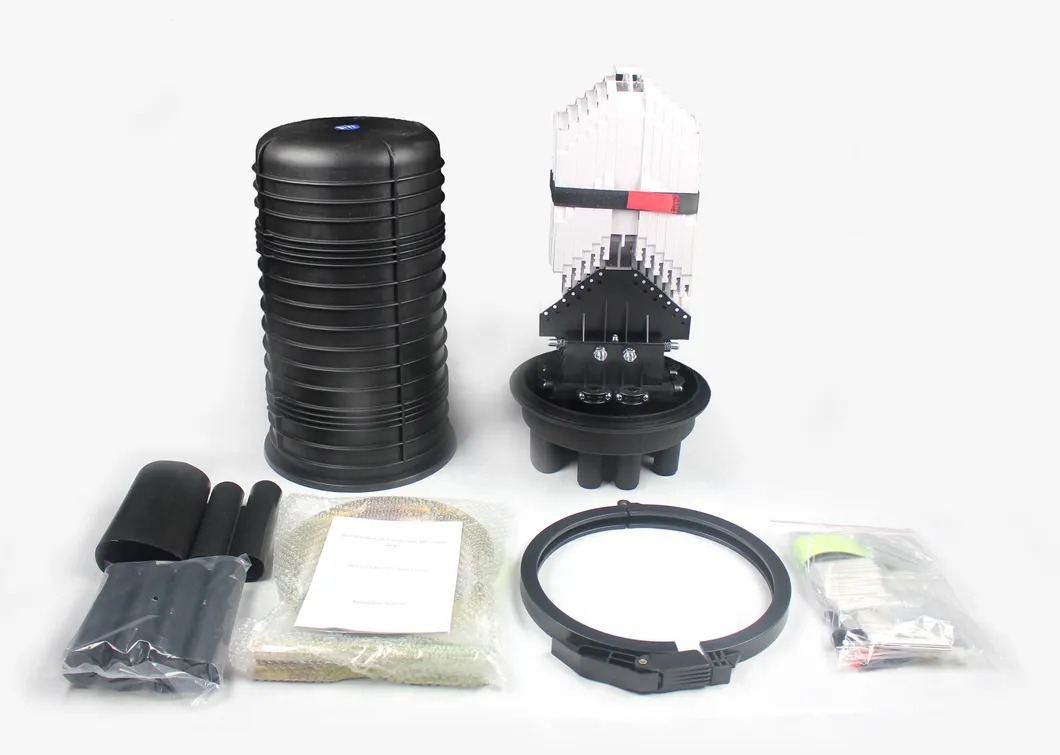

Main components:
No. | Name of components | Quantity | Usage | Remarks |
1 | FOSC cover | 1 piece | Protecting fiber cable splices in whole | Height x Diameter 360mm x 177mm |

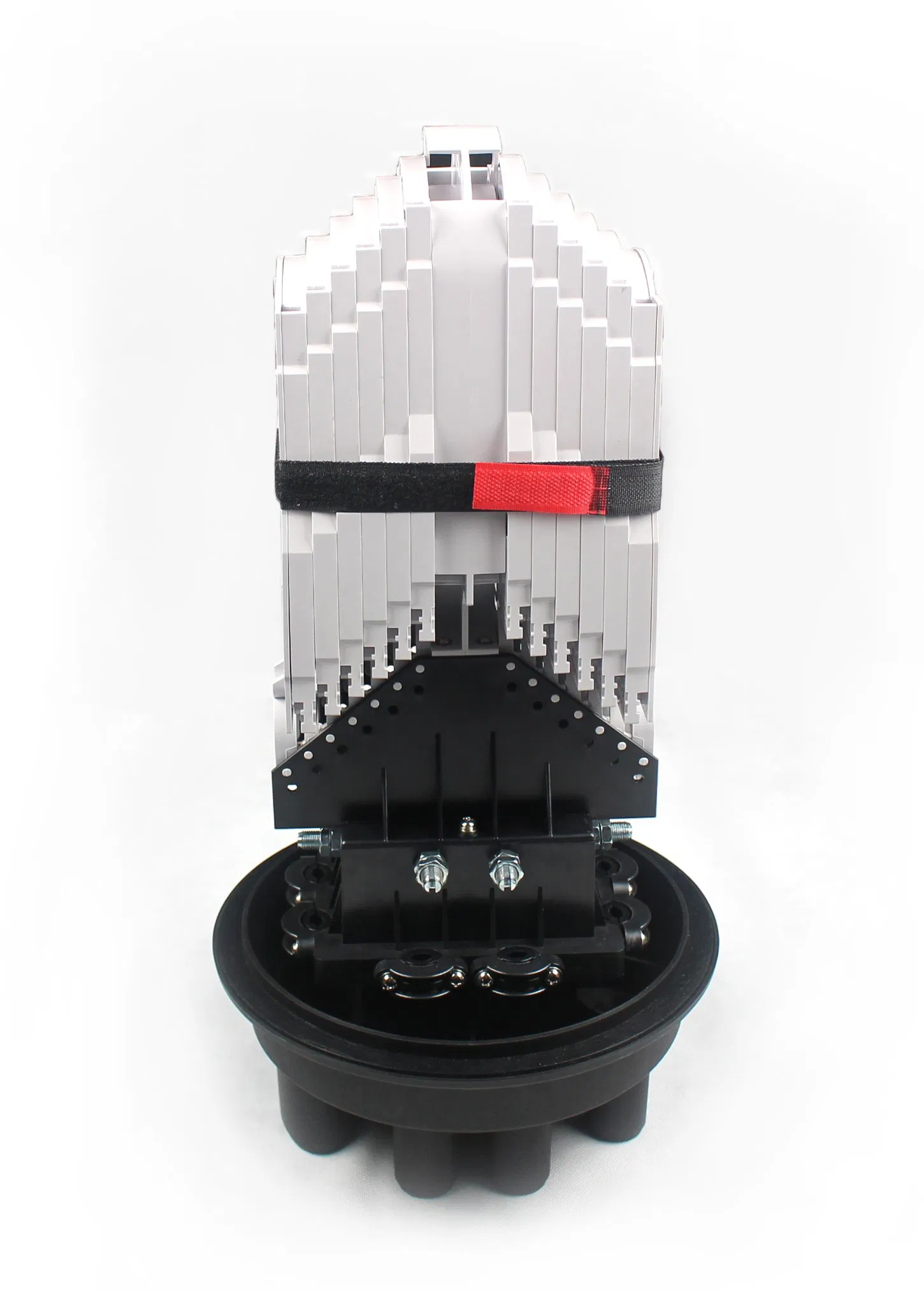

2 | Fiber optic splice tray (FOST) | Max. 12 trays (bunchy) Max. 12 trays (ribbon) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces) |
3 | Fiber holding tray | 1 pcs | Holding fibers with protective coat | |
4 | Base | 1set | Fixing internal and external structure | |
5 | Plastic hoop | 1 set | Fixing between FOSC cover and base | |
6 | Seal fitting | 1 piece | Sealing between FOSC cover and base | |
7 | Pressure testing valve | 1 set | After inject air, it is used for pressure testing and sealing testing | Configuration as per requirement |
8 | Earthing deriving device | 1 set | Deriving metal parts of fiber cables in FOSC for earthing connection | Configuration as per requirement |
