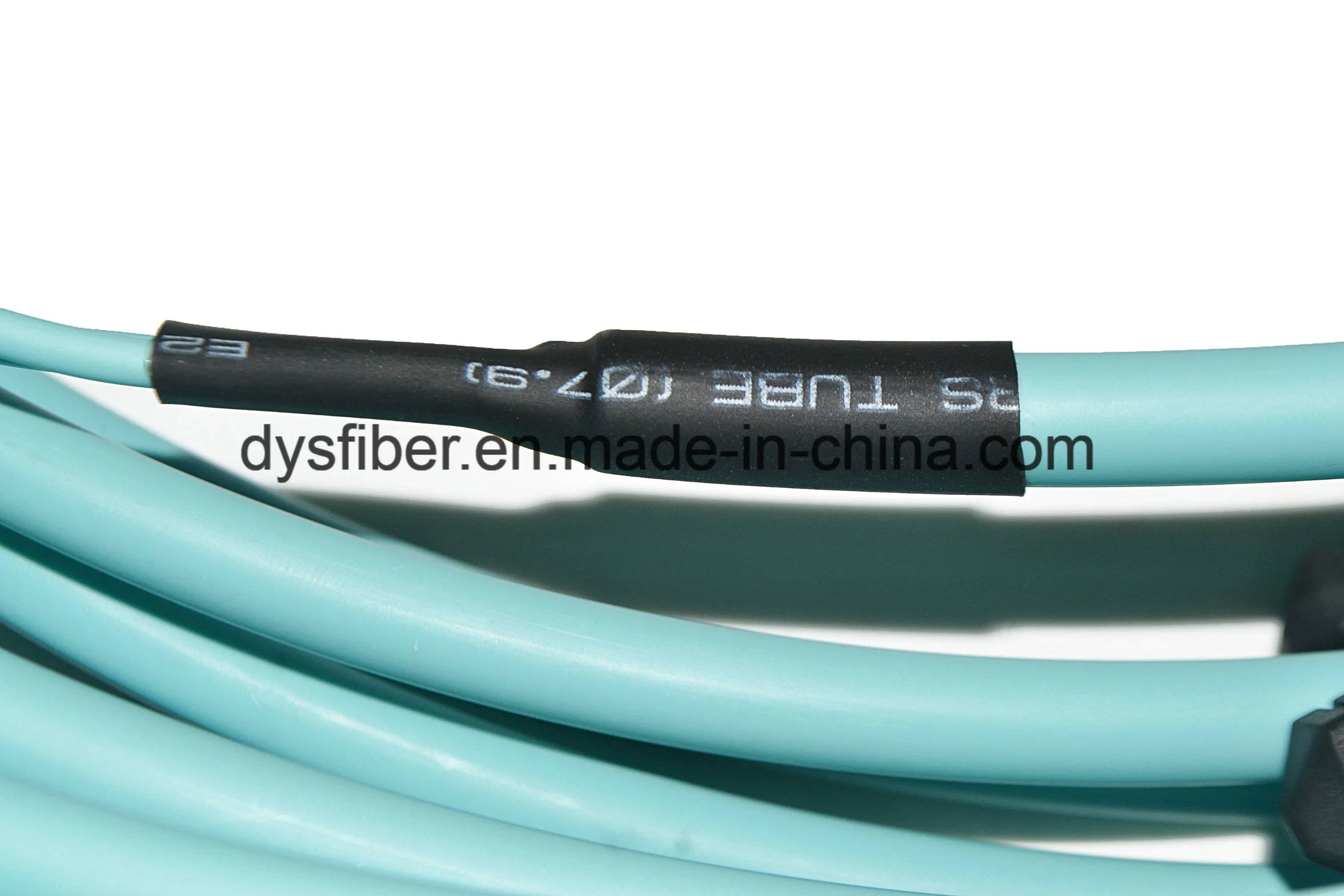

24core Aqua Om3 MPO-MPO Fiber Optic Patch Cord
DYS new line of MPO fiber-optic loopback assemblies offer an effective way to test transmitter capability and receiver sensitivity of network equipment, particularly for telecom and datacom requirements.Designed for burn-in and testing of MPO network components and systems, AFOP's MPO loopback a......
Send Inquiry
Product Description
DYS new line of MPO fiber-optic loopback assemblies offer an effective way to test transmitter capability and receiver sensitivity of network equipment, particularly for telecom and datacom requirements.
Designed for burn-in and testing of MPO network components and systems, AFOP's MPO loopback assemblies are available in a compact housing for high-density use and are available with or without attenuation.
Standard products include a female MPO interface with 8-fiber QSFP, 12-fiber or 24-fiber, SM or MM ferrules. The company says its streamlined, ruggedized housing design provides excellent stability and reliability.
.
MTP/MPO Features and Benefits:
Utilize MPO Connectors small Form Factor, 12 Fiber or 24 Fiber push/pull optical connectors.
Rapid Deployment - Application specific designs Tailor configuration and breakout construction to application requirements to minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability for lower installation costs.
Factory terminated - Provides a quick-to-deploy, scalable solution to improve reliability and reduce installation time and cost.
100% tested (test data supplied) - Assures verified optical performance for improved network integrity.
High-density cable - Uses pathway space more efficiently to improve manageability and reduce installation costs.
Optimized Performance- Assemblies constructed with low loss MPO/MTP OECE proprietary MT polishing Provides low insertion loss and high return loss, minimizing variability for improved channel link loss performance.
Standards Compliance:
Jacketed cable is compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating.
Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC.
MPO connector complies with IEC-61754-7 & EIA/TIA-604-5.
DYS manufactures a range of MPO fiber optic cable assemblies, include MPO patch cord, MPO multi-fiber assemblies, MPO loop-back, MPO adapters and so on.
Designed for burn-in and testing of MPO network components and systems, AFOP's MPO loopback assemblies are available in a compact housing for high-density use and are available with or without attenuation.
Standard products include a female MPO interface with 8-fiber QSFP, 12-fiber or 24-fiber, SM or MM ferrules. The company says its streamlined, ruggedized housing design provides excellent stability and reliability.
.
MTP/MPO Features and Benefits:
Utilize MPO Connectors small Form Factor, 12 Fiber or 24 Fiber push/pull optical connectors.
Rapid Deployment - Application specific designs Tailor configuration and breakout construction to application requirements to minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability for lower installation costs.
Factory terminated - Provides a quick-to-deploy, scalable solution to improve reliability and reduce installation time and cost.
100% tested (test data supplied) - Assures verified optical performance for improved network integrity.
High-density cable - Uses pathway space more efficiently to improve manageability and reduce installation costs.
Optimized Performance- Assemblies constructed with low loss MPO/MTP OECE proprietary MT polishing Provides low insertion loss and high return loss, minimizing variability for improved channel link loss performance.
Standards Compliance:
Jacketed cable is compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating.
Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC.
MPO connector complies with IEC-61754-7 & EIA/TIA-604-5.
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3) |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | SC/LC/ST/LC/MU/MTRJ/MPO/E2000 | |
| Ferrule Materials | Ceramic | |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
| Insertion Losss(dB) TIA/EIA-455-107 | ≤ 0.3dB (PC/UPC/APC) | ≤ 0.3dB (PC/UPC) |
| Return Loss(dB) TIA/EIA-455-107 | ≥45dB(PC/UPC) ≥55dB(APC) | ≥35dB(PC/UPC) |
| Exchangeability | ≤ 0.2dB | |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
| Operating Temperature (° C) | -10~ + 70 | |
| Storage Temperature (° C) | -40 ~ +85 | |
| Package | 1unit/bag | |
| *All values specified are with connectors. | ||
DYS manufactures a range of MPO fiber optic cable assemblies, include MPO patch cord, MPO multi-fiber assemblies, MPO loop-back, MPO adapters and so on.
