              2021 New Design 1.2mm 24 Core E2000 ODF

              DescriptionODF(Optical Distribution Frame) is an Optical fiber Distribution equipment specially designed for the Optical fiber communication machine room. It has the function of Optical cable fixation and protection.ODF is an important equipment in optical transmission system, mainly used for fiber ......

              Send Inquiry

              Product Description

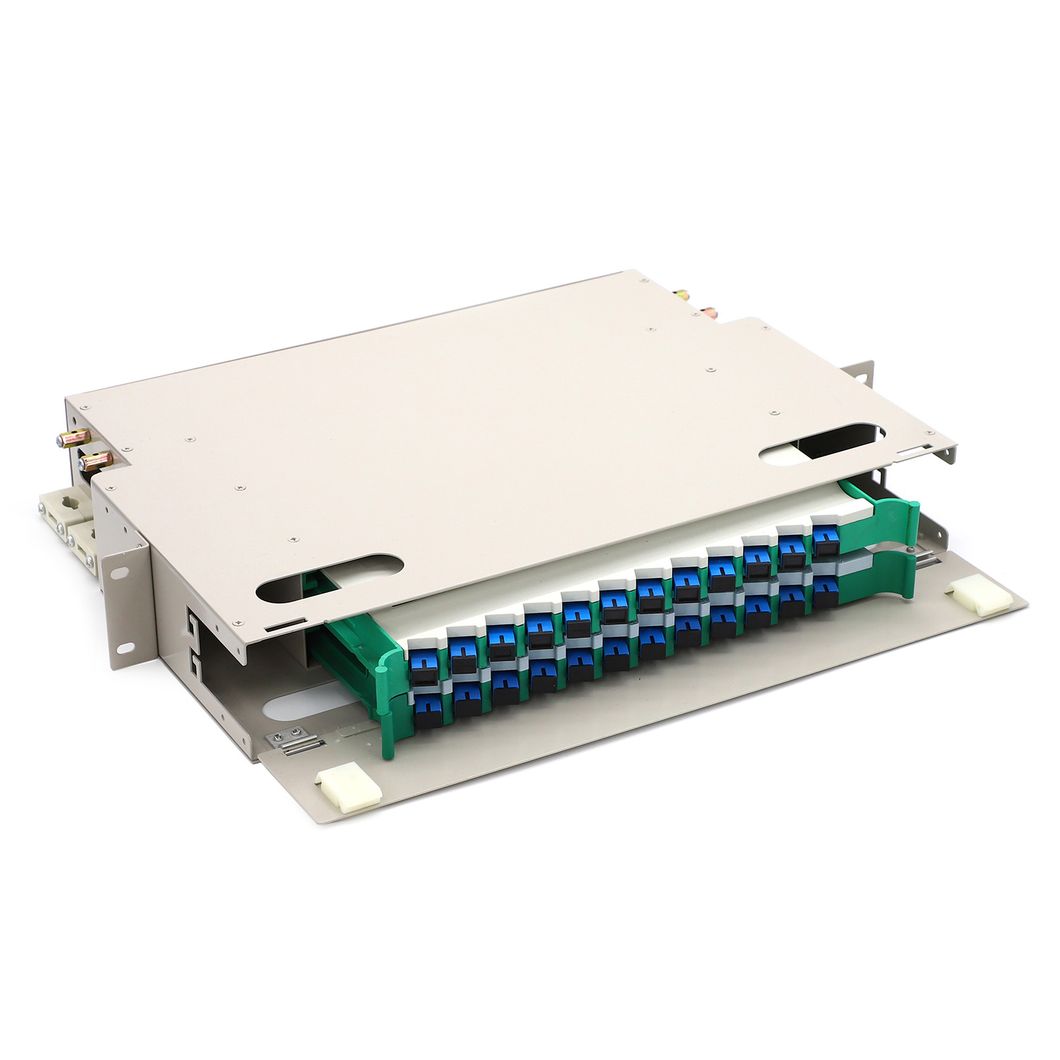

              2021 New Design 1.2mm 24 Core E2000 ODF

              Description

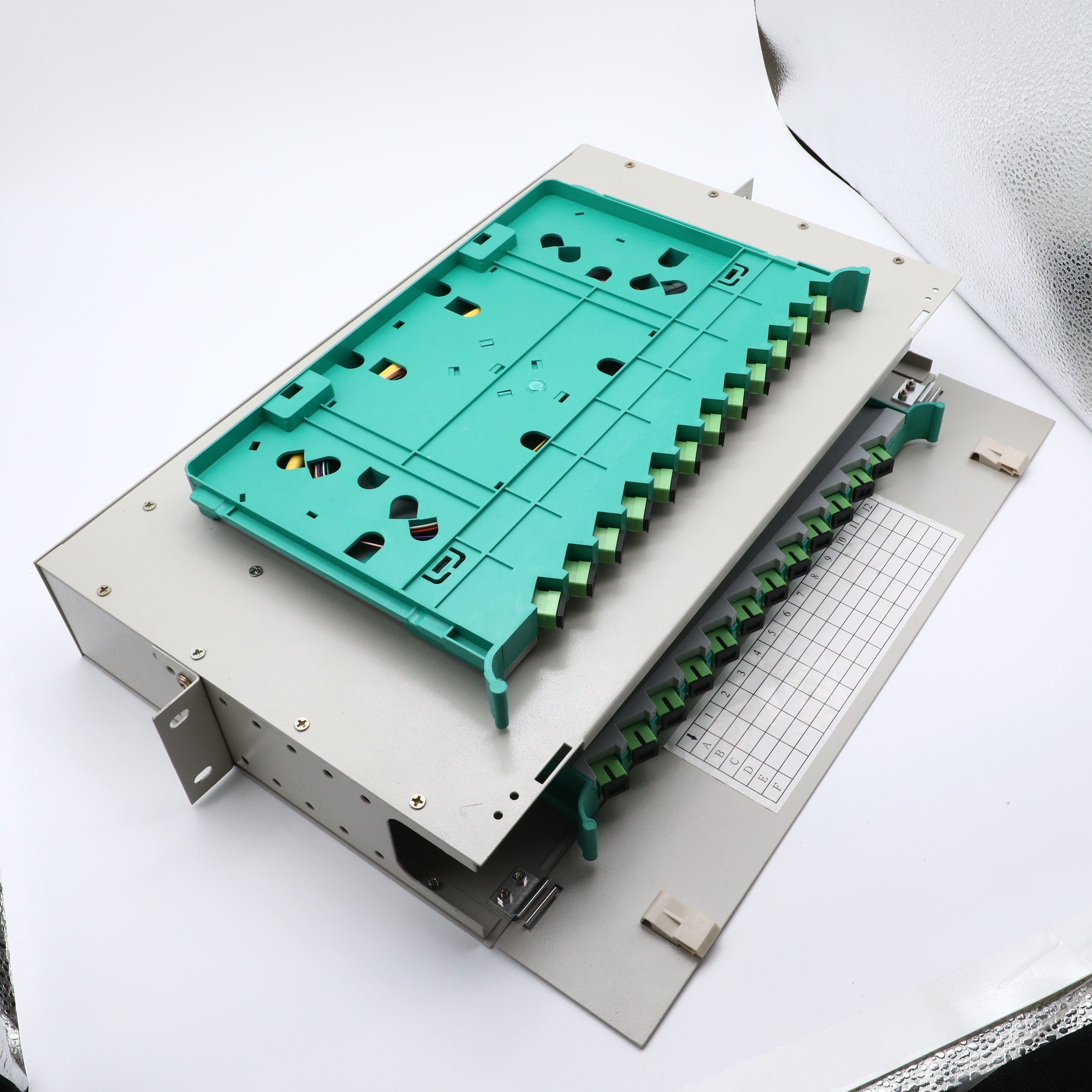

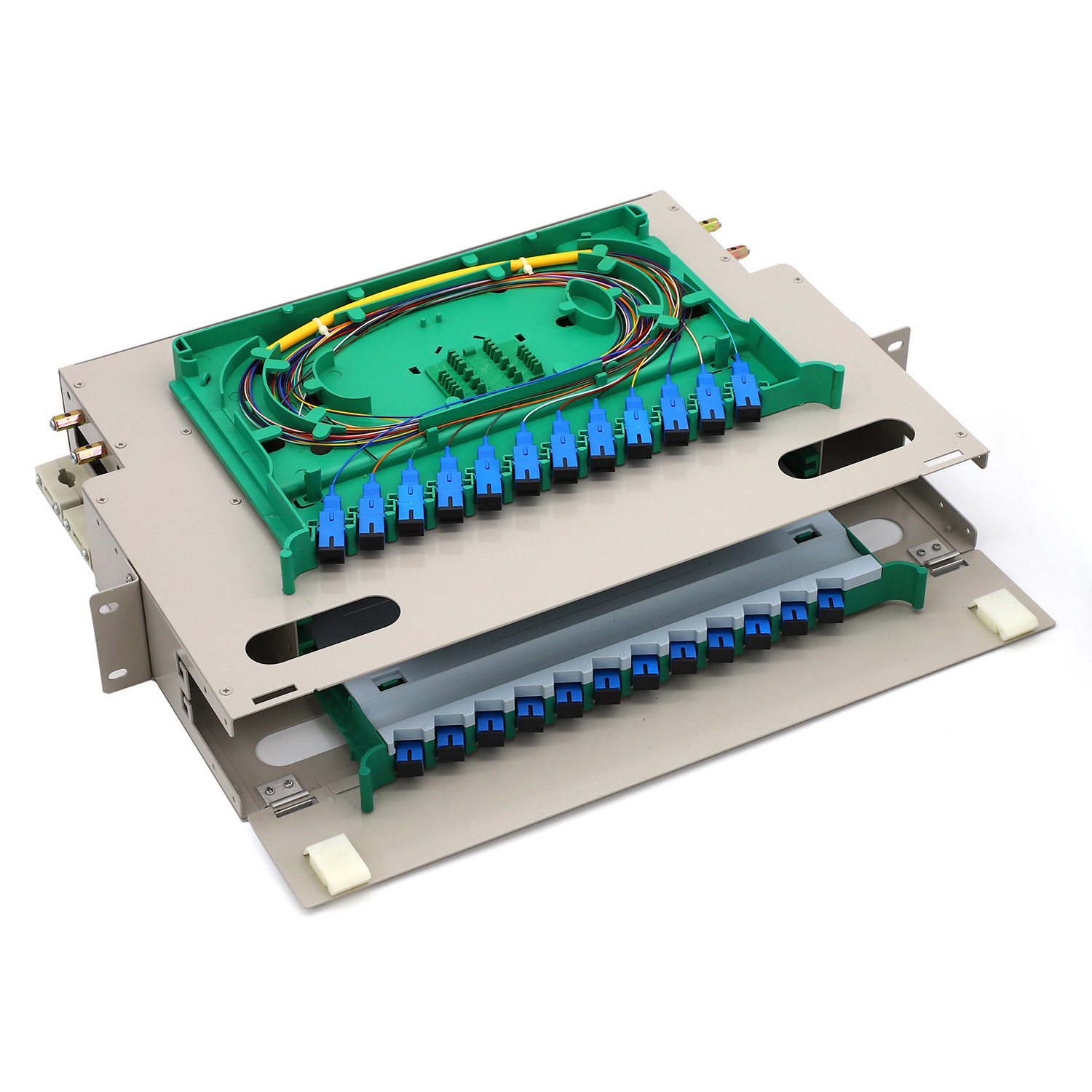

              ODF(Optical Distribution Frame) is an Optical fiber Distribution equipment specially designed for the Optical fiber communication
              machine room. It has the function of Optical cable fixation and protection.

              ODF is an important equipment in optical transmission system, mainly used for fiber optic cable terminal welding, optical connector
               installation, road light tones, receive, store and extra tail fiber optical cable

              protection, etc., it for the safe operation of the optical fiber communication network and flexible use plays an important role.

              Characteristics:

              1)Low insertion loss

              2)Low Polarization Dependent Loss

              3)Excellent Environmental Stability

              4)Excellent Mechanical Stability

              5)Available in dual/three wavelength operation

              6)Optional connectors termination upon request

              Application:

              1)The proper sealing for dust protection structure

              2)The splicing storage is the cassette organizer system

              3)The drawer is slide out for splicing or removable for initial pigtail installation.

              4)Enough space to coil up excess length of cables.

              Feature:

              1) Standard size, light weight and reasonable structure
              2) Splice tray inside changeable
              3) 19-inch standard size, light in weight and robust structure
              4) Suitable for ribbon and single fiber
              5) Various panel plate to fit different adapter interface
              6) Front mark on the plate is easy for identification and operation
              7) 24C, 36C, 48C, 96C,144C optional, with or without fiber optic pigtails and adapters
              8) Easy for management and operation

              2021 New Design 1.2mm 24 Core E2000 ODF

              Fiber Capacity of panel

              12-144 core(12 24 48 port usually)

              Panel Connector

              SC LC ST FC

              Type

              Sliding Fixed

              Dimension

              19'' 1U/2U/3U/4U...

              Material

              Cold Rolled Steel or Aluminum

              Storage Temperature

              -45~+65ºC



              2021 New Design 1.2mm 24 Core E2000 ODF
              2021 New Design 1.2mm 24 Core E2000 ODF2021 New Design 1.2mm 24 Core E2000 ODF2021 New Design 1.2mm 24 Core E2000 ODF
              2021 New Design 1.2mm 24 Core E2000 ODF2021 New Design 1.2mm 24 Core E2000 ODF
              2021 New Design 1.2mm 24 Core E2000 ODF
              2021 New Design 1.2mm 24 Core E2000 ODF2021 New Design 1.2mm 24 Core E2000 ODFFAQ
              Q1.: How can I get the quotation quickly?
              A1.:  To send your inquiry with detailed spec to our sales email box or call us. Our sales representative will get back to in 24 hours.

              Q2.: May I buy samples from you?
              A2.:  You are welcome to place sample order to test our superior quality and services.

              Q3.:How about the price?Can you make it cheaper?
              A3.: The price depends on the item your demand(quantity)Beat quotation after receving full description of the item you want.

              Q4.: Can you put my brand name (logo) on these products?
              A4.:  Yes! The professional OEM services will be welcomed to us.  Our factory accepts to make the logo free for bulk orders.

              Q5.: May I know the status of my order?
              A5.:  Yes .The order information and photos at different production stage of your order will be sent to you and the information will          be updated in time.

              Q6.: Can you provide us more other products to us to help us to save more shipping costs?
              A6:   Yes. There're kinds of Fiber Optic Products we can supply.
               Patch cord, Adapter, PLC Splitters, Splice Closure, will be the main products line of Our Factory.

              The OEM bulk order will be acceptable as well.
