2 Cores Fiber Optic Terminal Box with Sc/APC Adapter and Pigtail

Product Description

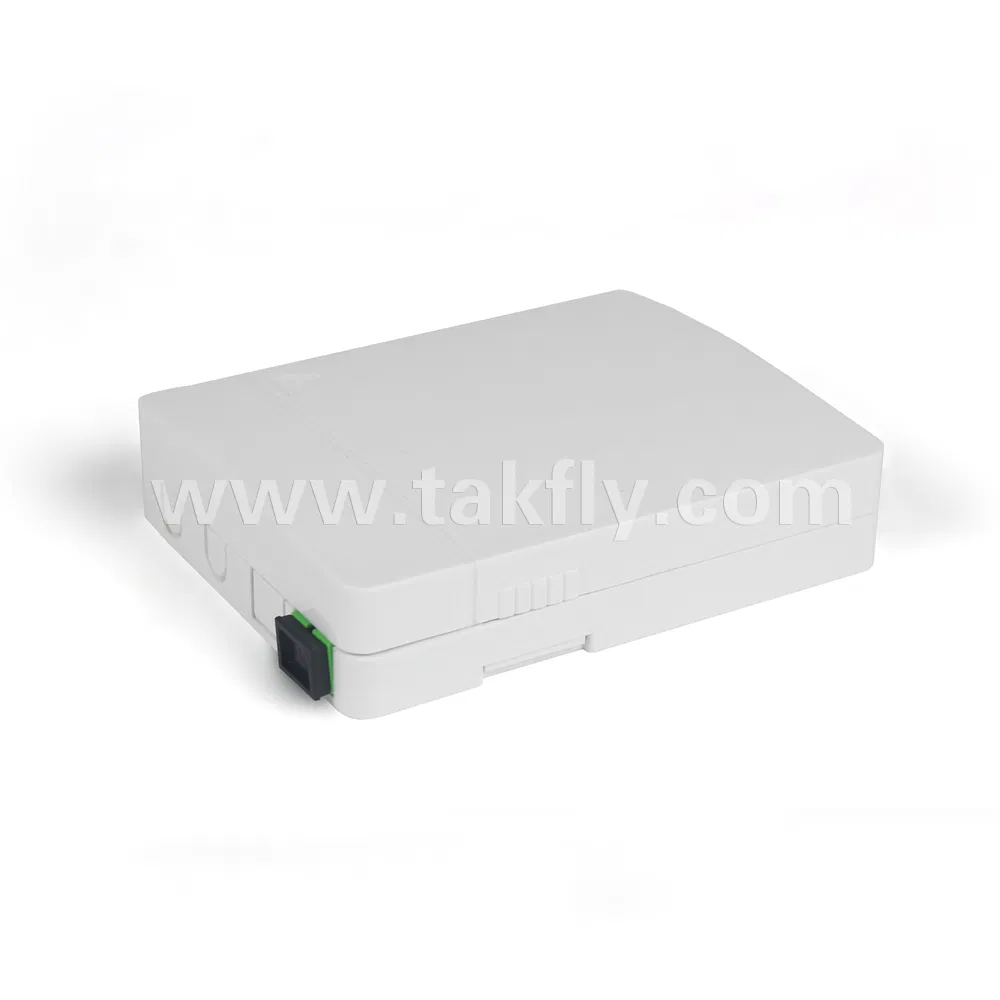

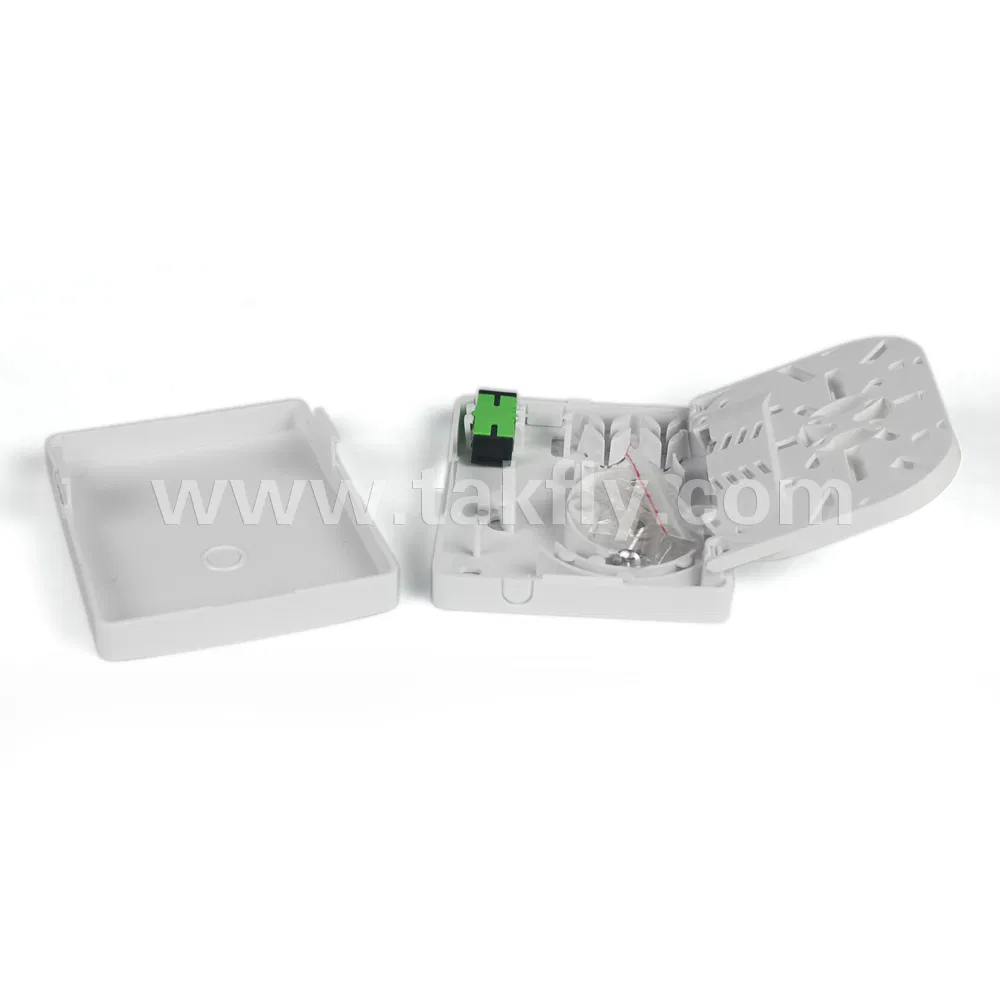

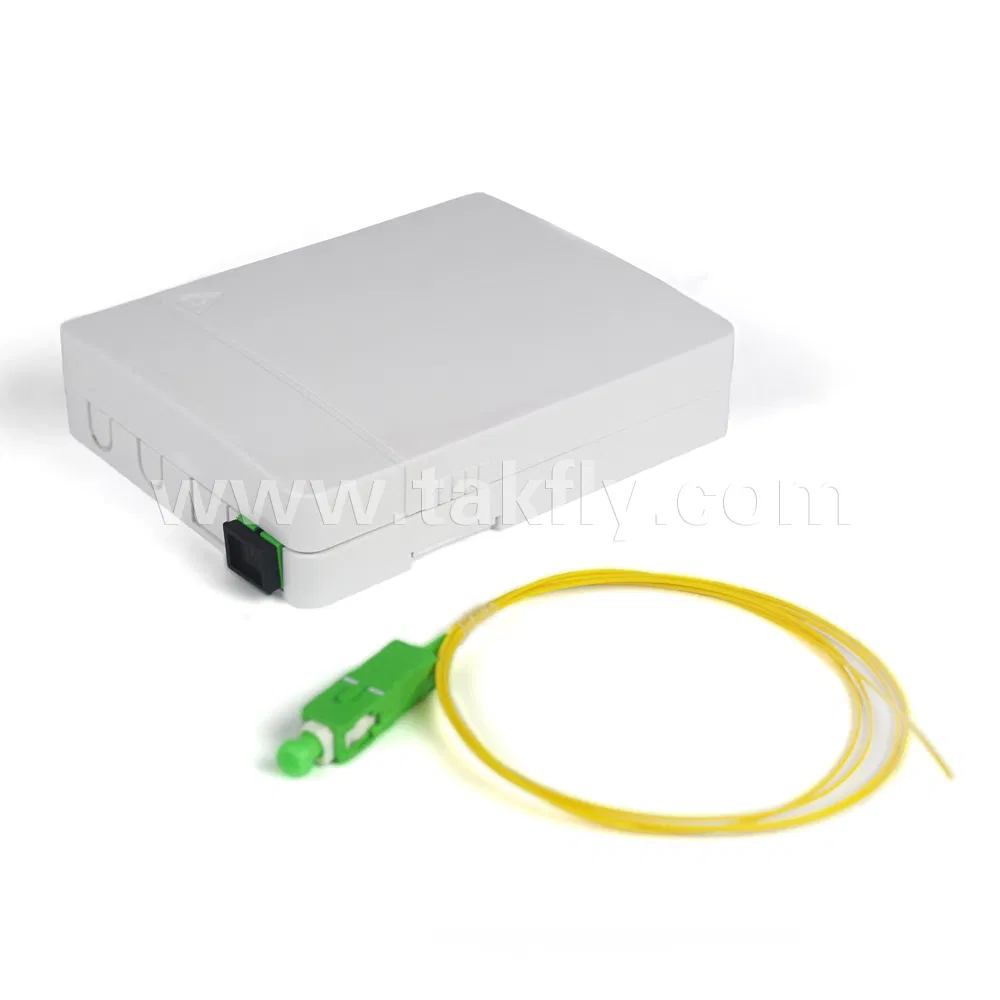

2 cores fiber optic terminal box with SC/APC adapter and pigtail

1.Description

1.It is used for different kinds of modules and applied to the working area subsystem;
2.It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO;
3.With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. All modules can be configured on customer's choice;
4.Cable management can be connected without cutting(with express port);
5.All modules are free of welding;

2.Working area

1.The telecommunication network, metropolitan area network, optical fiber communication system;
2.Optical testing equipment/instrument;
3.CATV optical fiber, optical fiber sensor;
4.Optical fiber broadband access network, FTTH optical fiber;
5.Optical fiber distribution frame, frame type and wall type optical fiber distribution unit;

3.Performance index

Item	Technical data
Application	3.0 x 2.0 mm drop cable or indoor cable
Fiber diameter	125μm ( 652 & 657 )
Tight cladding diameter	250μm & 900μm
Mode of application	Single mode & duplex mode
Tensile strength	>50 N
End-use temperature	-40~+85ºC
Adaptor	SC & LC
Insertion loss	≤0.2dB(1310nm & 1550nm)
output	2

4.Configuration table

Table 1 Model and configuration

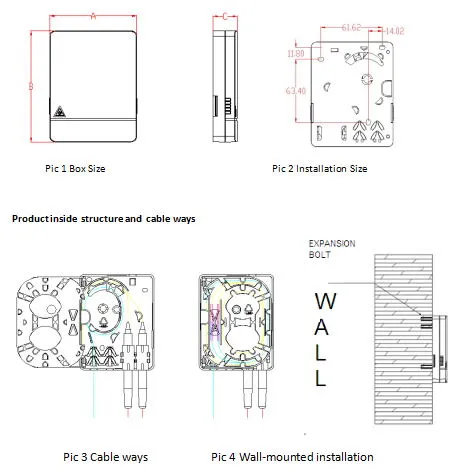

Model	Size(Pic 1)	Max Capacity			Installation Size(Pic 2)
Model	ABC(mm)	SC	LC	PLC	D (mm)
TKS-1806-02D	82.4105.422.5	2	4	4

2 Cores Fiber Optic Terminal Box with Sc/APC Adapter and Pigtail

5.Installation

1. Wall-mounted installation;
2. Drill 3 holes over the wall based on the size in table 1,place the expansion boltΦ5.5*30,place the box to match up the holes and use bolt to fasten.(see Pic 4);

6.Accessories

1. User Manual*1;
2. Accessories Bag * 1;

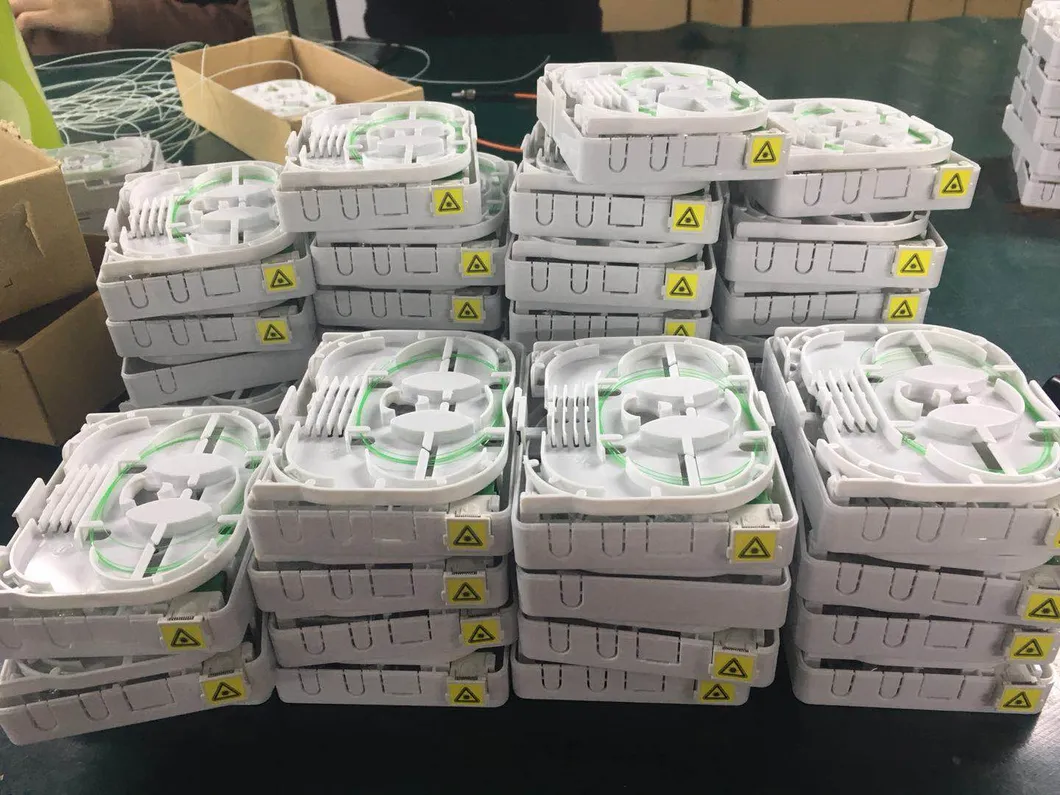

7.Item and company image

2 Cores Fiber Optic Terminal Box with Sc/APC Adapter and Pigtail

8.Company Information

Takfly, established in 2000, has been manufacturing and exporting fiber cable, adapter, attenuator, connector, coupler, splitter, termination box, ODF, fiber instruments, media conceiver, switch, optical module, CWDM/DWDM, etc. Takfly's products have passed the management verification: ISO14001: 2004. and goods have passed RoHS, CE, FCC, REACH, EN50575, ISO9001, etc.

So far, Our products have been widely installed in many big worldwide project and work perfectly. Many project contactors ask the first and second operators to purchase fiber items from Takfly for their new project. In addition, we also have builted long term cooperation with Lapp, Amper, Telefonica, orange and Ericsson. All enquiry are warmly welcomed here no matter it's small or big, we promise to provide all customers high quality and good price item.

9.Why choose Takfly?

Service

1.Customer's logo: Acceptable;
2.General inspection on fixing before packing;
3.Third party inspection: Acceptable;

Quality Control

All products must go through five checks before manufacturing process;
1.Material incoming inspection before production;
2.Full check after every individual process finished;
3.Full check after production half-done;
4.Full check before packing;
5.Spots check after production packed before shipping;

Advantage

1.15 years experience in manufacturing fiber optic products;
2.Availability of R & D with more than 10 engineers;
3.Available of design and making mold with special molding house;
4.High quality, attractive price and fast delivery(2-7days);
5.OEM, ODM customer designs are also welcomed;
6.More than 200 workers;
7.Excellent service;

Delivery

1.Packing: Plastic bag& carton, Neutral packing or as your required;
2.Sample time: 1-3 days after confirm;
3.Order lead time: 2-7working days depend on quantity and products;
4.Shipping port: Shenzhen China or HK;
5.Shipping term: EXW or FOB;

Shipping

1.Once confirmed the order, and payment sent after finishing goods;
2.Goods will be sent within 7 days with the fast, reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc;
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility;
4.Please do not bid if you disagree with the shipping and handling charge;

Pls kindly note we not only wanna to seek an opportunity to work with you, but also regard you as our friend. All inquiries from your side will be warmly welcomed here. You can call at 0086 13537892205 to reach me.
