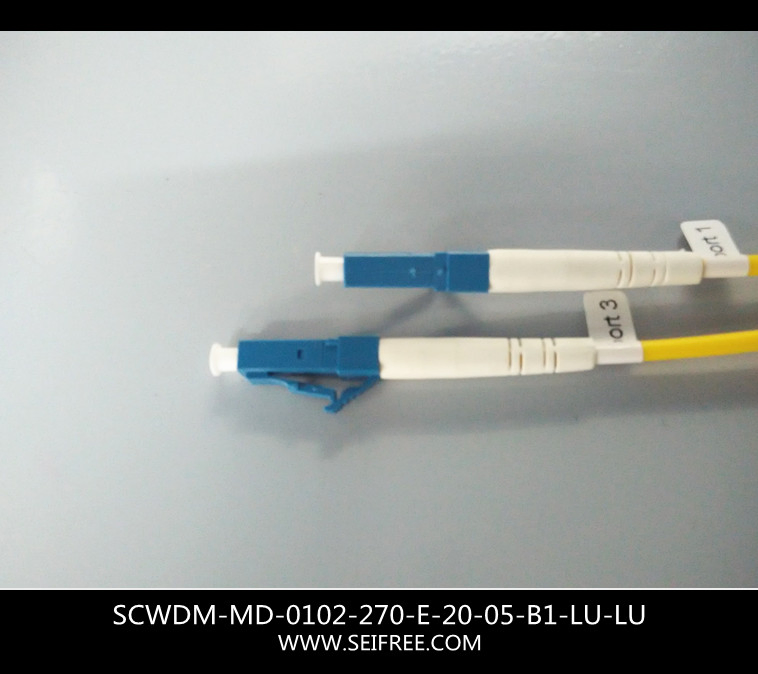

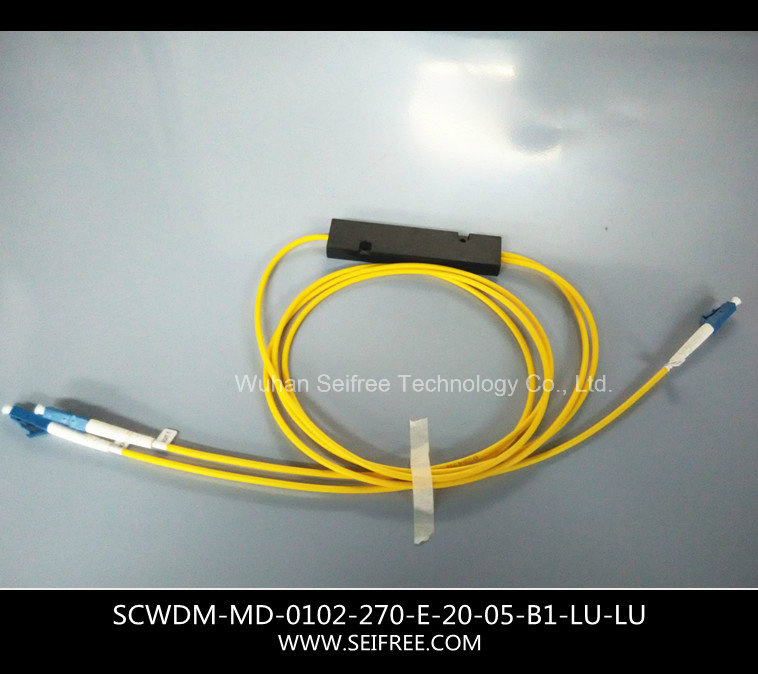

2 Channels Bi-Directional Optical CWDM Module
DescriptionThe Single Mode CWDM Based on thin-film filters technology and epoxy-free optical patch. It has single or multi window. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.Applications ......
Send Inquiry
Product Description
Description
The Single Mode CWDM Based on thin-film filters technology and epoxy-free optical patch. It has single or multi window. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.
Applications Features
Line Monitoring Low Excess Loss
Bi-Directional Systems Wide Pass Band
WDM Systems High Reliability
CATV system
Ordering Information
SCWDM- - - - - - - -
Package and Mounting Dimension (mm)
Specification
The Single Mode CWDM Based on thin-film filters technology and epoxy-free optical patch. It has single or multi window. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.
Applications Features
Line Monitoring Low Excess Loss
Bi-Directional Systems Wide Pass Band
WDM Systems High Reliability
CATV system
Ordering Information
SCWDM- - - - - - - -
| Config. | Ports | First Channel | Fiber Type | Pigtail Dia. | Pigtail Length | Package | Connector Type |
| M=Mux | 0102=1Com,2Out | 270(1)=1270(1)nm | E=SMF-28e | 09=0.9mm | 05=50cm | A6 | FU(A)=FC/UPC(APC) |
| D=Demux | 0204=2Com,4Out | 290(1)=1290(1)NM | B=SMF-28e XB | 20=2mm | 10=100cm | B2(3) | SU(A)=SC/UPC(APC) |
| MD=M&D | / | 30=3mm | C2(3,4) | ||||
| 0118=1Com,18Out | 590(1)=1590(1)nm | 20=200cm | D(1,2,3,4) | LU(A)=LC/UPC(APC) | |||
| 0218=2Com,18Out | 610(1)=1610(1)nm | X=Customization | |||||
Package and Mounting Dimension (mm)
| Stainless Steel Tube (A) | Plastic Box (B) | Aluminum alloy Box (C) | Aluminum alloy Rack (D) | |||||||||||||||||
| Outline | Outline | Outline | Mounting | Outline | Mounting | Outline | ||||||||||||||
| A1=Φ3x50 | A5=Φ5.5x34 | B1=90x20x9.5 | 50x12x2Φ3.2 | C1=85x18x8.4 | 44.5x13x2Φ3 | D1=129x29x160(LGX) | ||||||||||||||
| A2=Φ3x54 | A6=Φ5.5x38 | B2=100x80x10 | 70x73.5x4Φ3.2 | C2=90x72x8 | 86x68x4Φ3 | D2=129x58x160(LGX) | ||||||||||||||
| A3=Φ3x60 | A7=Φ5.5x50 | B3=120x80x18 | 80x74.5x4Φ3.2 | C3=110x95x7.5 | 99x84x4Φ3.5 | D3=485x43.5x230(19' Rack) | ||||||||||||||
| A4=Φ5x70 | A8=Φ5.5x64 | B4=141x115x18 | 100x106x4Φ3.2 | C4=110x95x15 | 99x84x4Φ3.5 | D4=485x87x230(19' Rack) | ||||||||||||||
| Item | M/D | M&D | ||||||||||||||||||
| X(CWDM Channel)+1(1310±50/EXP) | 1 | 2 | 4 | 8 | 8+1 | 16 | 18 | 1 | 2 | 4 | 8 | 8+1 | 16 | 18 | ||||||
| Bare Fiber/φ0.9 Stainless | A6 | / | / | / | / | / | / | / | / | / | / | / | / | / | ||||||
| φ0.9(φ2,φ3) Plastic Box | B1 | B2 | B2 | B2 | B2 | B3 | B3 | B2 | B2 | B2 | B3 | B3 | B4 | B4 | ||||||
| φ0.9(φ2/φ3) Aluminum Alloy Box | C1 | C2 | C2 | C3 | C3 | C3 | C3 | C2 | C2 | C3 | C4 | C4 | / | / | ||||||
| LGX | D1 | D1 | D1 | D1 | D2 | D2 | D2 | D1 | D1 | D2 | D2 | D2 | D2 | 4U | ||||||
| 19 Inches Rack | D3 | D3 | D3 | D3 | D3 | D3 | D3 | D3 | D3 | D3 | D3 | D3 | D3 | D3 | ||||||
Specification
| Operating Wavelength(nm) | ITU-T Grid | Parameter | Unit | Value | ||||||
| Channel Space(nm) | 20 | Fiber Type | / | SMF-28e/ SMF-28e XB | ||||||
| Channel Number | 1 | 2 | 4 | 8 | 8+1 | 16 | 18 | Directivity | dB | >40 |
| Passband@0.5dB | >14.0 | Return Loss | dB | >40 | ||||||
| Passband Flatness | <0.50 | Pigtail Dia. | mm | 0.25/0.9 / 2 / 3 | ||||||
| Max IL(In->TX@λPB) | 0.8 | 1.4 | 2.0 | 3.0 | 3.4 | 4.8 | 6.0 | Pigtail Length | cm | >50 |
| Max IL(In->Express@λother) | 0.6 | 1.8 | 2.4 | 3.4 | 3.8 | 5.4 | / | Power Handing | mW | <500 |
| Isolation(Adjacent) | >30 | Operating Tem. | ºC | -20~ +70 | ||||||
| Isolation(Non-Adjacent) | >45 | Storage Tem. | ºC | -40~ +85 | ||||||
| Insertion Loss Temperature Sensitivity (dB/ºC) | <0.005 | / | ||||||||
| Wavelength Temperature Shifting(nm/ºC) | <0.002 | |||||||||
| PDL (Max) | 0.1 | 0.1 | 0.15 | 0.2 | 0.2 | 0.25 | 0.3 | |||
