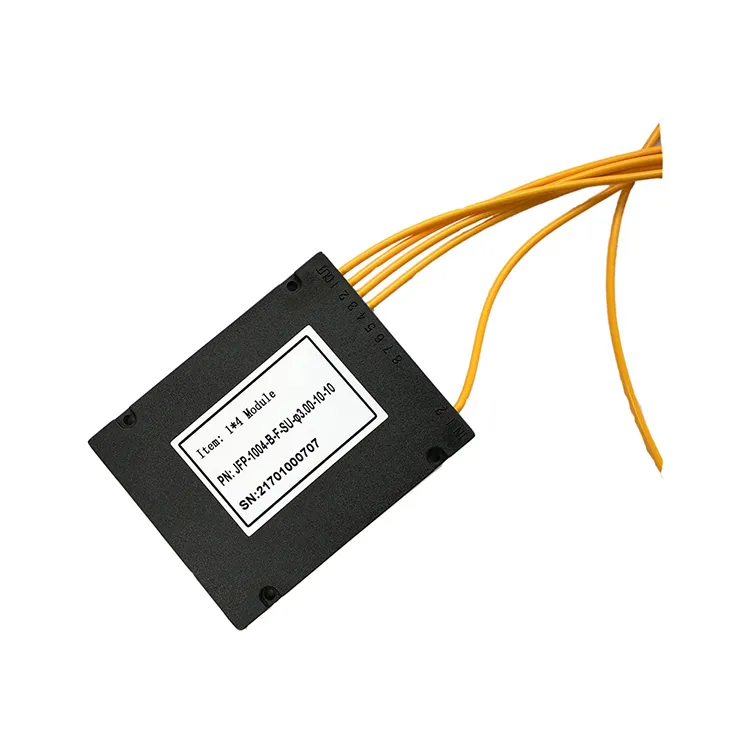

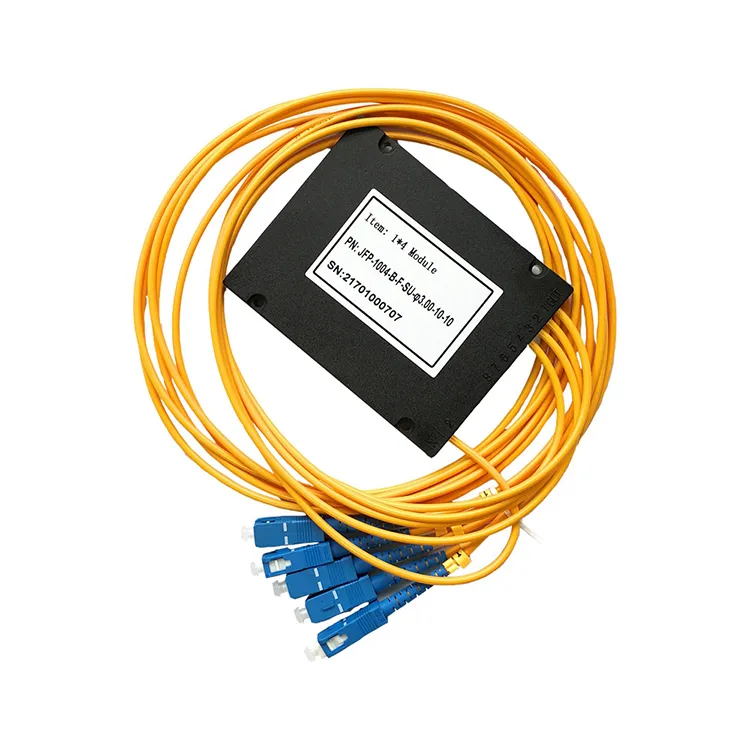

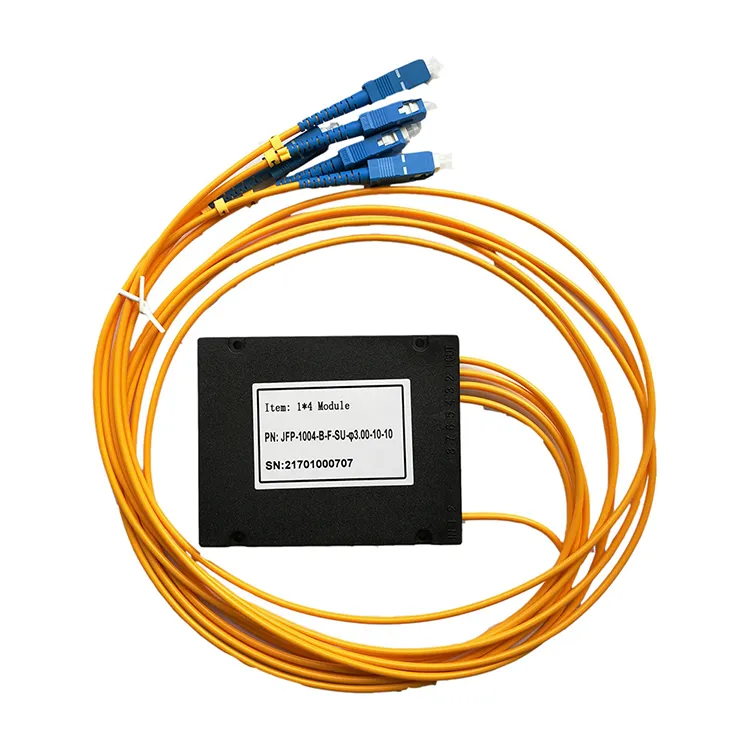

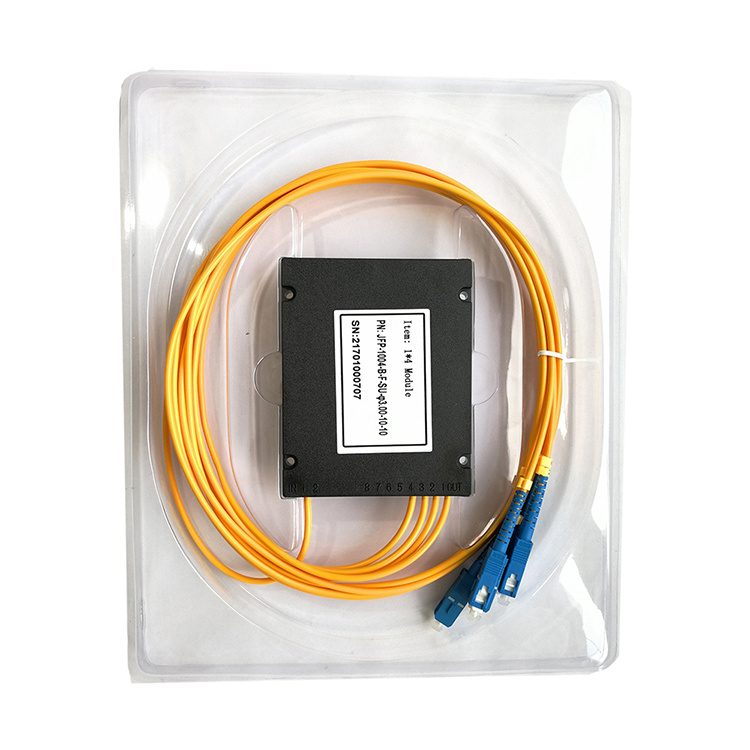

1X4 SC UPC PLC Splitter Module Plastic ABS Box Fiber Optic PLC Splitter
UT-King's PLC splitter is a micro-optical element using photolithographic techniques to form optical waveguide at medium or semiconductor substrate for realizing branch distribution function. Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.PLC splitter: Losses are not sensitive to the wavelength, spectral uniformity is higher, it is more compact and is lower cost with greater degrees of splitting. However, device fabrication process is more complex. Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.
Features:
- Low excess loss
- Excellent directivity
- Good channel-to-channel uniformity
- Low PDL
- High cost-effectiveness
- High environmental and mechanical stability
Application:
- Fiber optical communication system
- Fiber optical sensors
- CATV System
- LAN WAN System
Specification :
| Item | 1x2 | 1x3 | 1x4 | 1x6 | 1x8 | 1x12 | ||||||||||
| Operating Wavelength(nm) | 1260-1650 | |||||||||||||||
| Fiber Type | G657A1 or as customers' order | |||||||||||||||
| Connector | SC/FC/LC | |||||||||||||||
| Ferrule section | UPC/APC | |||||||||||||||
| Insertion loss(dB) | ≤4.1 | ≤6.4 | ≤7.4 | ≤9.3 | ≤10.5 | ≤12.8 | ||||||||||
| Loss uniformity(dB) | ≤0.4 | ≤0.4 | ≤0.6 | ≤1.6 | ≤0.8 | ≤1.2 | ||||||||||
| Return Loss(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||||||
| Polarization Dependent Loss(dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.25 | ||||||||||
| Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||||||
| Temperature correlation loss -40~85ºC(dB) | ≤0.5 | ≤0.5 | ≤0.5 | ≤1.5 | ≤0.5 | ≤0.5 | ||||||||||
| Size(mm)(LxWxH) | 40×4×4 | 60×7×4 | ||||||||||||||
| Working Temperature(ºC) | -40~85 | |||||||||||||||
| Storage Temperature(ºC) | -40~85 | |||||||||||||||
