1X2 1310 /1550nm Single Mode Optical Fiber Splitter with LC/Upc Connector
DescriptionThe Single Mode Broadband Fiber Coupler based on Two Parallel Fiber fused bi-conical taper technology. It has single or multi window. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.Applications FeaturesTelecommunicati......
Send Inquiry
Product Description
Description
The Single Mode Broadband Fiber Coupler based on Two Parallel Fiber fused bi-conical taper technology. It has single or multi window. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.
Applications Features
Telecommunication system Low excess loss
Line monitor system Low PDL
Access network High reliability
OCT system
Amplifier
CATV
Package and Mounting Dimension (mm)
Specification
FAQ

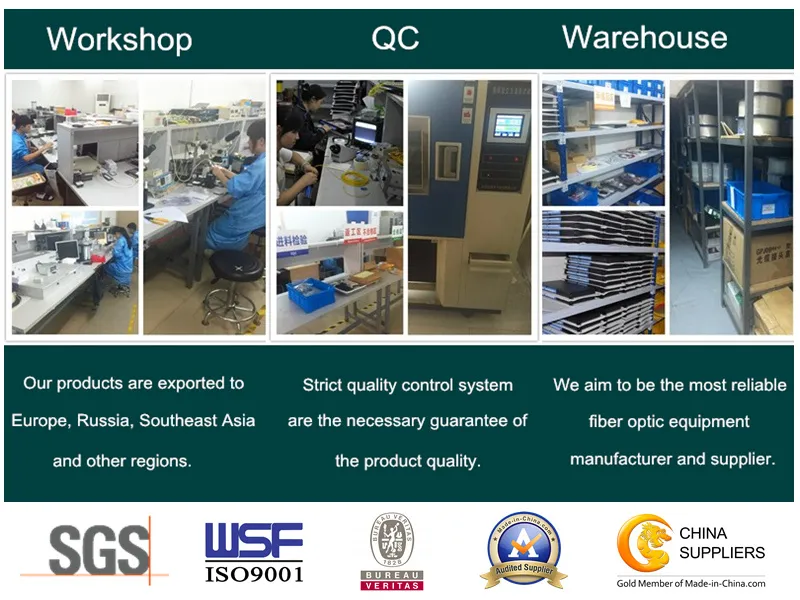

1.Is your company a manufacturer or dealer?
---We have our own factory in Wuhan, China.
2.Can you provide free samples for us?
---Sure, we can provide free samples for you, but the freight should be paid by you.
3.What's the lead time for all the goods that I required?
---It depend on the quantity of products. Generally, it would be 1-2 weeks.
4.What's the warranty for your products?
----Normally it is 1 year.
5.What's your payment term?
---It is 100% T/T in advance.
6.What's the MOQ for your products?
---1pcs is okay.
The Single Mode Broadband Fiber Coupler based on Two Parallel Fiber fused bi-conical taper technology. It has single or multi window. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.
Applications Features
Telecommunication system Low excess loss
Line monitor system Low PDL
Access network High reliability
OCT system
Amplifier
CATV
Package and Mounting Dimension (mm)
| Stainless Steel Tube (A) | Plastic Box (B) | Aluminum alloy Box (C) | Aluminum alloy Rack (D) | ||||||||||
| Outline | Outline | Outline | Mounting | Outline | Mounting | Outline | |||||||
| A1=Φ3x50 | A5=Φ5.5x34 | B1=90x20x9.5 | 50x12x2Φ3.2 | C1=85x18x8.4 | 44.5x13x2Φ3 | D1=129x29x160 1U LGX | |||||||
| A2=Φ3x54 | A6=Φ5.5x38 | B2=100x80x10 | 70x73.5x4Φ3.2 | C2=90x72x8 | 86x68x4Φ3 | D2=129x58x160 2U LGX | |||||||
| A3=Φ3x60 | A7=Φ5.5x50 | B3=120x80x18 | 80x74.5x4Φ3.2 | C3=110x95x7.5 | 99x84x4Φ3.5 | D3=485x43.5x230 1U 19' RACK | |||||||
| A4=Φ5x70 | A8=Φ5.5x64 | B4=141x115x18 | 100x106x4Φ3.2 | C4=110x95x15 | 99x84x4Φ3.5 | D4=485x87x230 2U 19' RACK | |||||||
| Item | φ0.25 Stainless | φ0.9 Stainless | φ2/3 Stainless | φ0.9(φ2,φ3) Plastic | φ0.9(φ2/φ3) Aluminum Alloy | LGX | 19' Rack | ||||||
| 1x2 | A1 | A2 | A4 | B1 | C1 | D1 | D3 | ||||||
| 2x2 | A1 | A3 | A4 | B1 | C1 | D1 | D3 | ||||||
Specification
| Operating Wavelength(nm) | 820±40/980±40/ 1310±40/1550±40 | 980&1550±40/ 1310&1490&1550±40 | Parameter | Unit | Value | ||
| Coupling Ratio (%) | Insertion Loss (dB) | Fiber Type | / | Hi 780/ Flex 1060/ SMF-28e/ SMF-28e XB | |||
| Tap | Signal | Tap | Signal | ||||
| 01/99 | 19.0-21.0 | ≤0.20 | 18.5-21.5 | ≤0.25 | PDL | dB | Typ.:<0.1 Max.:<0.15 |
| 03/97 | 14.6-16.2 | ≤0.30 | 14.5-16.5 | ≤0.30 | Directivity | dB | >55 |
| 05/95 | 12.4-13.8 | ≤0.35 | 12.0-14.5 | ≤0.45 | Return Loss | dB | >50 |
| 10/90 | 9.70---10.7 | ≤0.60 | 9.70-11.2 | ≤0.60 | Excess Loss | dB | Typ.:<0.1 Max.:<0.2 |
| 20/80 | 6.70---7.60 | ≤1.15 | 6.60---7.80 | ≤1.15 | Pigtail Dia. | mm | 0.25 /0.9 / 2 / 3 |
| 33/67 | 4.65---5.65 | ≤1.70 | 4.50---5.85 | ≤1.80 | Pigtail Length | cm | >100 |
| 40/60 | 3.95---4.30 | ≤2.50 | 3.70---4.70 | ≤2.70 | Operating Tem. | ºC | -10~ +70 |
| 50/50 | 2.85---3.30 | 2.80---3.40 | Storage Tem. | ºC | -40~ +85 | ||
FAQ
1.Is your company a manufacturer or dealer?
---We have our own factory in Wuhan, China.
2.Can you provide free samples for us?
---Sure, we can provide free samples for you, but the freight should be paid by you.
3.What's the lead time for all the goods that I required?
---It depend on the quantity of products. Generally, it would be 1-2 weeks.
4.What's the warranty for your products?
----Normally it is 1 year.
5.What's your payment term?
---It is 100% T/T in advance.
6.What's the MOQ for your products?
---1pcs is okay.
