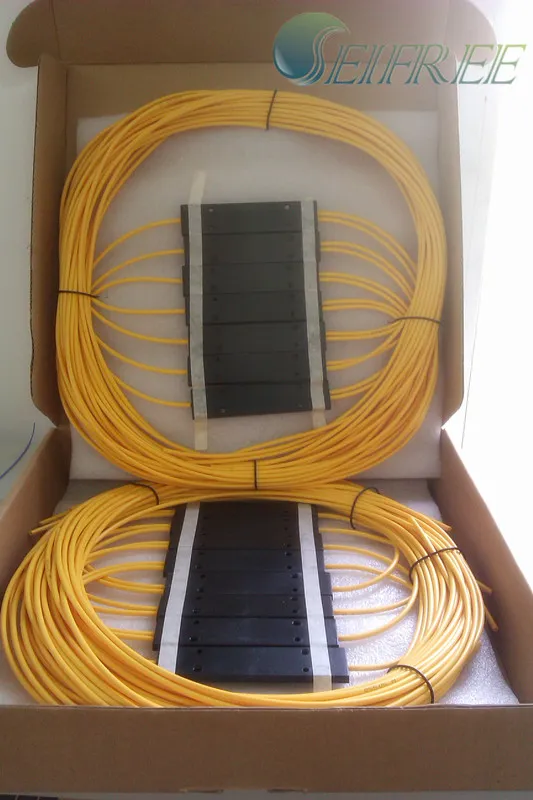

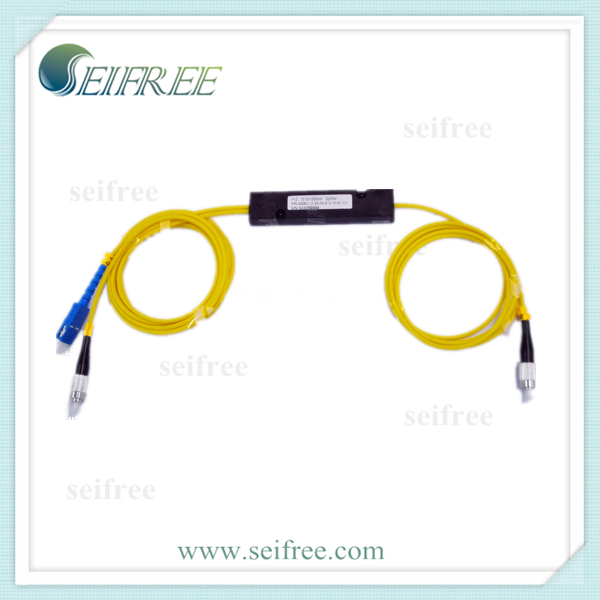

1X2 1310 /1550nm Fiber Optic Splitter for Telecommunication ODF
DescriptionThe Single Mode Broadband Fiber Coupler based on Two Parallel Fiber fused bi-conical taper technology. It has single or multi window. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.Applications FeaturesT......
Send Inquiry
Product Description
Description
The Single Mode Broadband Fiber Coupler based on Two Parallel Fiber fused bi-conical taper technology. It has single or multi window. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.
Applications Features
Telecommunication system Low excess loss
Line monitor system Low PDL
Access network High reliability
OCT system
Amplifier
CATV
Specification
| Operating Wavelength(nm) | 820±40/980±40/ 1310±40/1550±40 | 980&1550±40/ 1310&1490&1550±40 | Parameter | Unit | Value | ||
| Coupling Ratio (%) | Insertion Loss (dB) | Fiber Type | / | Hi 780/ Flex 1060/ SMF-28e/ SMF-28e XB | |||
| Tap | Signal | Tap | Signal | ||||
| 01/99 | 19.0-21.0 | ≤0.20 | 18.5-21.5 | ≤0.25 | PDL | dB | Typ.:<0.1 Max.:<0.15 |
| 03/97 | 14.6-16.2 | ≤0.30 | 14.5-16.5 | ≤0.30 | Directivity | dB | >55 |
| 05/95 | 12.4-13.8 | ≤0.35 | 12.0-14.5 | ≤0.45 | Return Loss | dB | >50 |
| 10/90 | 9.70---10.7 | ≤0.60 | 9.70-11.2 | ≤0.60 | Excess Loss | dB | Typ.:<0.1 Max.:<0.2 |
| 20/80 | 6.70---7.60 | ≤1.15 | 6.60---7.80 | ≤1.15 | Pigtail Dia. | mm | 0.25 /0.9 / 2 / 3 |
| 33/67 | 4.65---5.65 | ≤1.70 | 4.50---5.85 | ≤1.80 | Pigtail Length | cm | >100 |
| 40/60 | 3.95---4.30 | ≤2.50 | 3.70---4.70 | ≤2.70 | Operating Tem. | ºC | -10~ +70 |
| 50/50 | 2.85---3.30 | 2.80---3.40 | Storage Tem. | ºC | -40~ +85 | ||
Package and Mounting Dimension (mm)
| Stainless Steel Tube (A) | Plastic Box (B) | Aluminum alloy Box (C) | Aluminum alloy Rack (D) | ||||||||||
| Outline | Outline | Outline | Mounting | Outline | Mounting | Outline | |||||||
| A1=Φ3x50 | A5=Φ5.5x34 | B1=90x20x9.5 | 50x12x2Φ3.2 | C1=85x18x8.4 | 44.5x13x2Φ3 | D1=129x29x160 1U LGX | |||||||
| A2=Φ3x54 | A6=Φ5.5x38 | B2=100x80x10 | 70x73.5x4Φ3.2 | C2=90x72x8 | 86x68x4Φ3 | D2=129x58x160 2U LGX | |||||||
| A3=Φ3x60 | A7=Φ5.5x50 | B3=120x80x18 | 80x74.5x4Φ3.2 | C3=110x95x7.5 | 99x84x4Φ3.5 | D3=485x43.5x230 1U 19' RACK | |||||||
| A4=Φ5x70 | A8=Φ5.5x64 | B4=141x115x18 | 100x106x4Φ3.2 | C4=110x95x15 | 99x84x4Φ3.5 | D4=485x87x230 2U 19' RACK | |||||||
| Item | φ0.25 Stainless | φ0.9 Stainless | φ2/3 Stainless | φ0.9(φ2,φ3) Plastic | φ0.9(φ2/φ3) Aluminum Alloy | LGX | 19' Rack | ||||||
| 1x2 | A1 | A2 | A4 | B1 | C1 | D1 | D3 | ||||||
| 2x2 | A1 | A3 | A4 | B1 | C1 | D1 | D3 | ||||||
