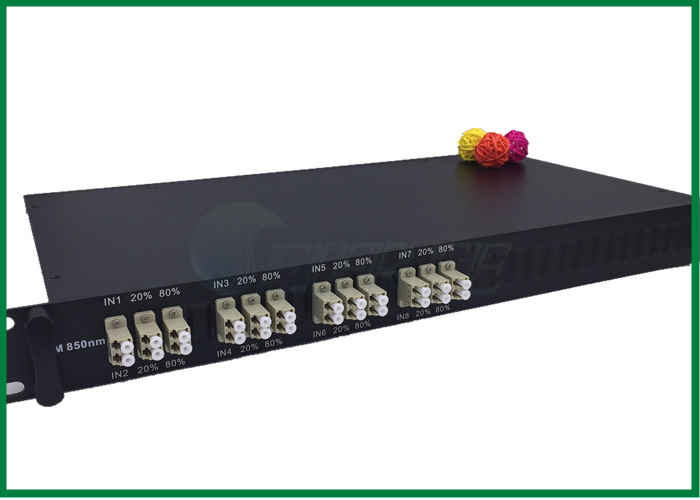

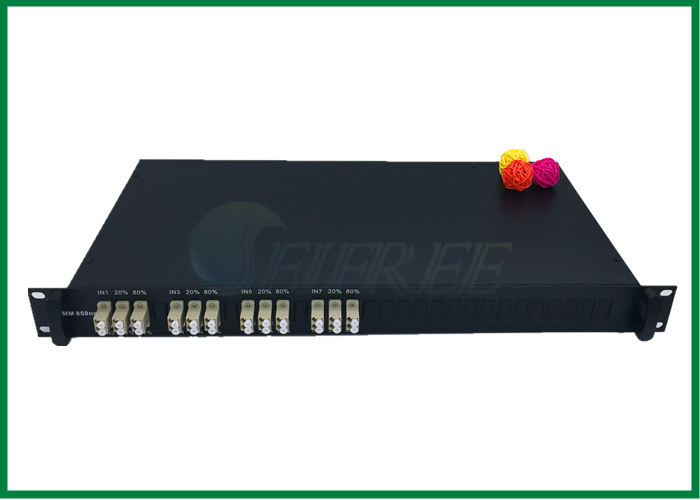

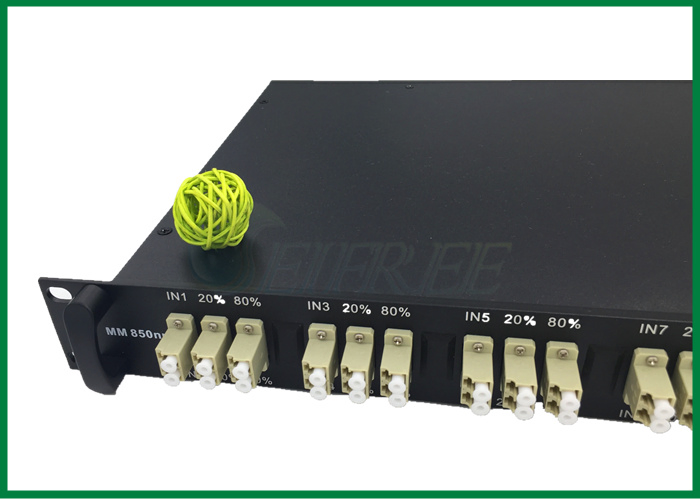

1U Rackmount Multimode Fiber Optic Coupler Splitter 1x2(8 in1)
Description
As one of the key components for GPON FTTx networks, optical splitters can be placed in the Central Office or in one of the distribution points (outdoor or indoor). Because the FBT splitters are highly stable for multiport optical signal splitting with low insertion loss. FBT couplers are designed for power splitting and tapping in telecommunication equipment, CATV network, and test equipment.Seifree Fused Biconic Tapered (FBT) splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1xN, 2xN configurations with single mode or multimode fiber. And, we offer all type connectors of pre-connectorized like SC, FC, ST, LC and E2000 etc.
Features
1. Good Directivity
2. Steel tube smaill size
3. Coupling ratio can be customized
4. Low insertion loss & excess loss
5. Telcordia GR-1209 and GR-1221 Compliance
Application
1. Optical LAN & WAN & CATV
2. FTTH project & FTTX Deployments
3. Broadband High Speed Data Transmission
4. Active Device Terminations
5. Testing Instruments
6. Multimode Communication Systems
7. PON Networks
Ordering Information
SMMC-14-83-00-OM1-09-10-D3-LU
| 1 Ports | 2 Wavelength | 3 Coupling Ratio | 4 Fiber Type | 5 Pigtail Dia. | 6 Pigtail Length | 7 Package | 8 Connector Type |
| 12=1x2 | 85=850nm | 01=01/99 | OM1(62.5/125) | 02=0.25mm | 05=50cm | A1(2, 3, 4) | FU(A)=FC/UPC(APC) |
| 22=2x2 | 13=1300nm | 02=02/98 | OM2(50/125) | 09=0.9mm | 10=100cm | B1(2) | SU(A)=SC/UPC(APC) |
| 13=1x3 | 83=850&1300nm | … | OM3(50/125) | 20=2mm | … | C1(2) | … |
| … | / | 40=40/60 | OM4(50/125) | 30=3mm | 20=200cm | D1 | LU(A)=LC/UPC(APC) |
| 18=1x8 | 00=50/50 | / | X=Customization | ||||
Package and Mounting Dimension (mm)
| Stainless Steel Tube (A) | Plastic Box (B) | Aluminum alloy Box (C) | Aluminum alloy Rack (D) | ||||||||||
| Outline | Outline | Outline | Mounting | Outline | Mounting | Outline | |||||||
| A1=Φ3x50 | A5=Φ5.5x34 | B1=90x20x9.5 | 50x12x2Φ3.2 | C1=85x18x8.4 | 44.5x13x2Φ3 | D1=129x29x160 1U LGX | |||||||
| A2=Φ3x54 | A6=Φ5.5x38 | B2=100x80x10 | 70x73.5x4Φ3.2 | C2=90x72x8 | 86x68x4Φ3 | D2=129x58x160 2U LGX | |||||||
| A3=Φ3x60 | A7=Φ5.5x50 | B3=120x80x18 | 80x74.5x4Φ3.2 | C3=110x95x7.5 | 99x84x4Φ3.5 | D3=485x43.5x230 1U 19' RACK | |||||||
| A4=Φ5x70 | A8=Φ5.5x64 | B4=141x115x18 | 100x106x4Φ3.2 | C4=110x95x15 | 99x84x4Φ3.5 | D4=485x87x230 2U19' RACK | |||||||
| Item | 1x2 |
| φ0.25 Steel Tube | A1 |
| φ0.9 Steel Tube | A2 |
| φ2,φ3 Steel Tube | A4 |
| φ0.9(φ2,φ3) Plastic Box | B1 |
| φ0.9(φ2/φ3) Aluminum Alloy Box | C1 |
| LGX | D1 |
| 19 Inches Rack | D3 |
Specification
Operating Wavelength(nm) | 850±20/1310±20 | 850&1310±20 | Parameter | Unit | Value | ||
Coupling Ratio (%) | Insertion Loss (dB) | Mode Cross | dB | <0.7 | |||
| Tap | Signal | Tap | Signal | Fiber Type | / | OM1/OM2/OM3/OM4 | |
| 03/97 | 14.6-17.5 | ≤0.70 | 14.0-19.5 | ≤0.90 | Directivity | dB | >36 |
| 05/95 | 12.8-14.5 | ≤0.80 | 12.5-15.0 | ≤1.00 | Return Loss | dB | >36 |
| 10/90 | 9.20---11.5 | ≤1.20 | 9.00-12.0 | ≤0.20 | Excess Loss | dB | Typ.:<0.4 Max.:<0.7 |
| 20/80 | 6.70---7.80 | ≤2.20 | 6.60---8.20 | ≤0.20 | Pigtail Dia. | mm | 0.25 /0.9 / 2 / 3 |
| 33/67 | 4.70---6.00 | ≤2.50 | 5.00---6.40 | ≤0.20 | Pigtail Length | cm | >50 |
| 40/60 | 3.80---4.70 | ≤2.70 | 3.60---5.00 | ≤0.20 | Operating Tem. | ºC | -10~ +70 |
| 50/50 | 2.90---3.80 | 2.80---4.00 | Storage Tem. | ºC | -40~ +85 | ||
Note: *1. All the data above does not include connectors.
*2. Test under Vcsel.
Competitive Advantage
1. Fiber splitter manufacturer, supply OEM, ODM
2. Quality certification : ISO9001:2008, RoHS
3. High technology, professional and excellent sales team, efficient and sound management
4. Known as the fiber optic manufacturer for the excellent products quality, competitive prices, fast delivery
5. Value-added service: except good products, we can provide good services on logistic and other help you may need.
