1u 8 Uplink Ge Ports Gpon Epon Olt
[SOFTEL] Communication Equipment supplier 16 port GPON OLT This small capacity and enhancement mode cassette GPON OLT, meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/Unicom GPON, possessing super GPON access capacity, carrier-class reliability and the complete......
Send Inquiry
Product Description

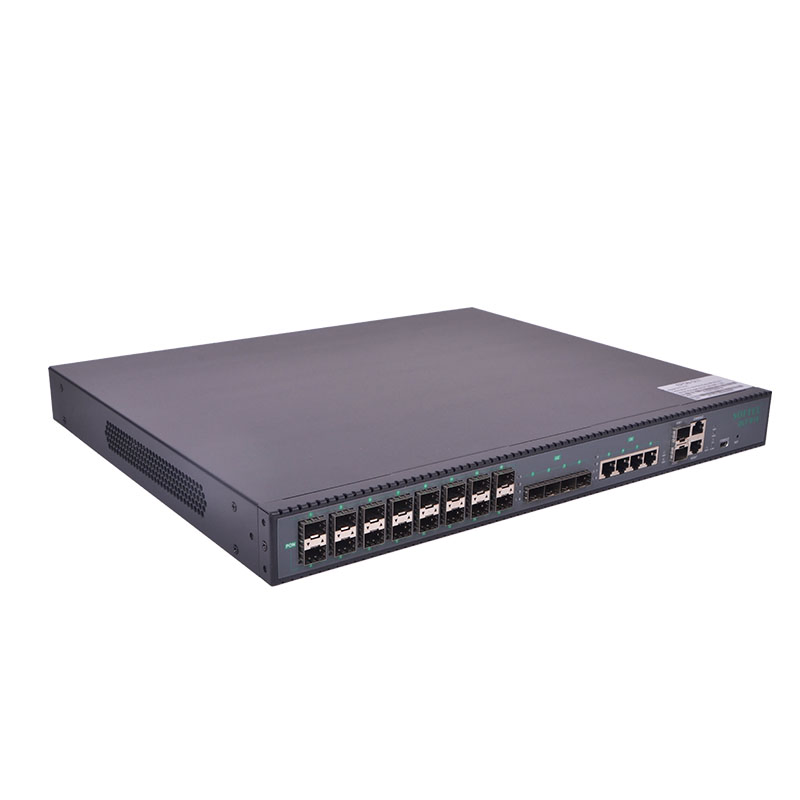

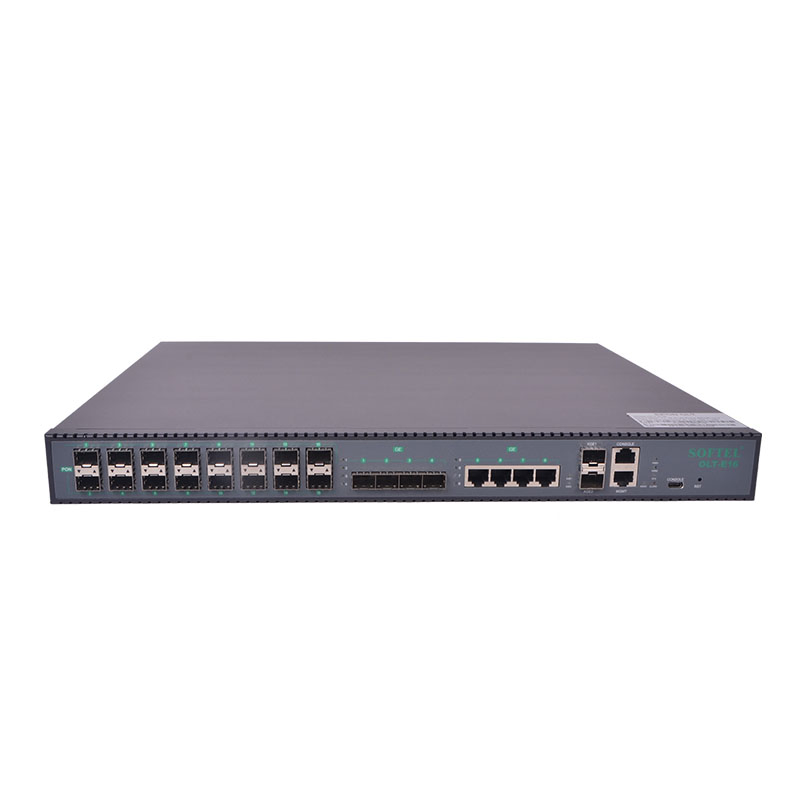

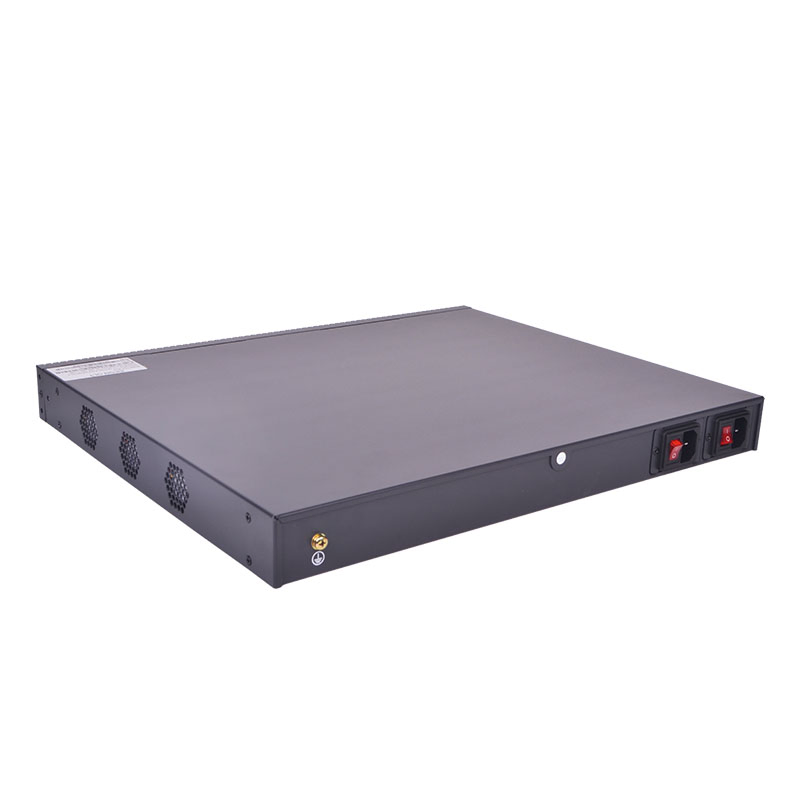

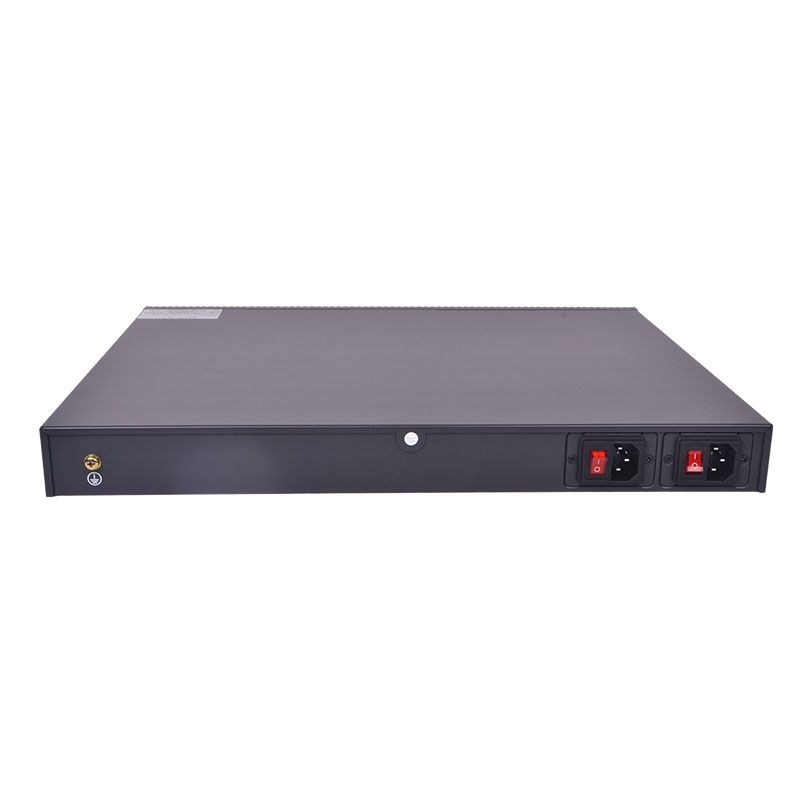

[SOFTEL] Communication Equipment supplier 16 port GPON OLT
This small capacity and enhancement mode cassette GPON OLT, meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/Unicom GPON, possessing super GPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode. GL5610 can be used with NGBNVIEW network management system so as to provide users with the perfect solution.
It provides 8/16 * down-link GPON port, 4 *GE combo port and 2* 10G SFP+ port. The height is only 1U for easy installation and space saving. GL5610 is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.
OLT-G16P
1 RU19 inch
1+1power redundancy
16* fixed GPON port
4*GE COMBO port, 2*10GE SFP+ port
1*console port
This small capacity and enhancement mode cassette GPON OLT, meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/Unicom GPON, possessing super GPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode. GL5610 can be used with NGBNVIEW network management system so as to provide users with the perfect solution.
It provides 8/16 * down-link GPON port, 4 *GE combo port and 2* 10G SFP+ port. The height is only 1U for easy installation and space saving. GL5610 is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.
OLT-G16P
1 RU19 inch
1+1power redundancy
16* fixed GPON port
4*GE COMBO port, 2*10GE SFP+ port
1*console port
| Item | OLT-G08P/16P |
| Switching Capacity | 140Gbps |
| Forwarding Capacity(Ipv4/Ipv6) | 104MPPS |
| Service Port | 8*PON port(OLT-G08P)/16*PON port(OLT-G16P), 4*GE SFP, 4*GE COMBO port, 2*10GE SFP+ port |
| Redundancy Design | Dual power supply |
| Support AC input, double DC input and AC+DC input | |
| Power Supply | AC: input 90~264V 47/63Hz; |
| DC: input -36V~-72V; | |
| Power Consumption | ≤110W |
| Dimensions (Width x Depth x Height) | 440mm×44mm×380mm |
| Weight (Full-Loaded) | ≤3kg |
| Environmental Requirements | Working temperature: -10°C~55°C |
| Storage temperature: -40°C~70°C | |
| Relative humidity: 10%~90%, non-condensing |
