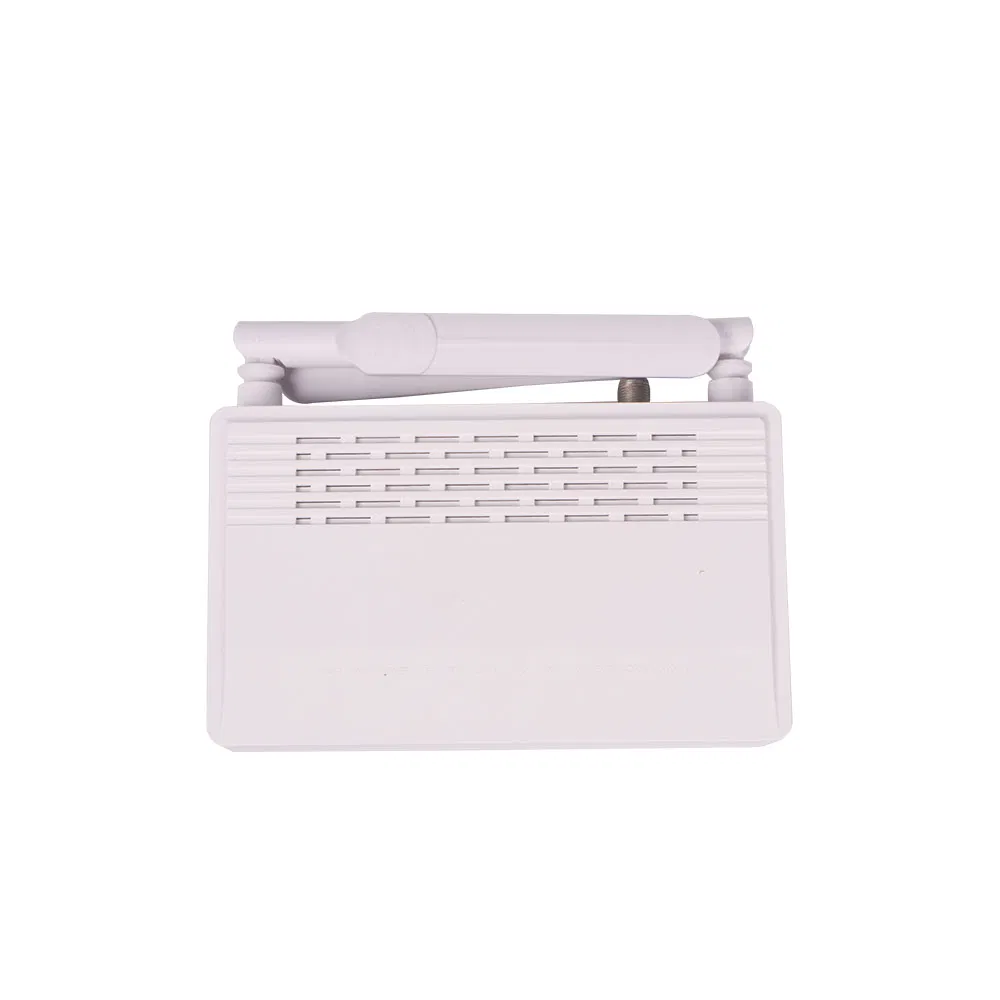

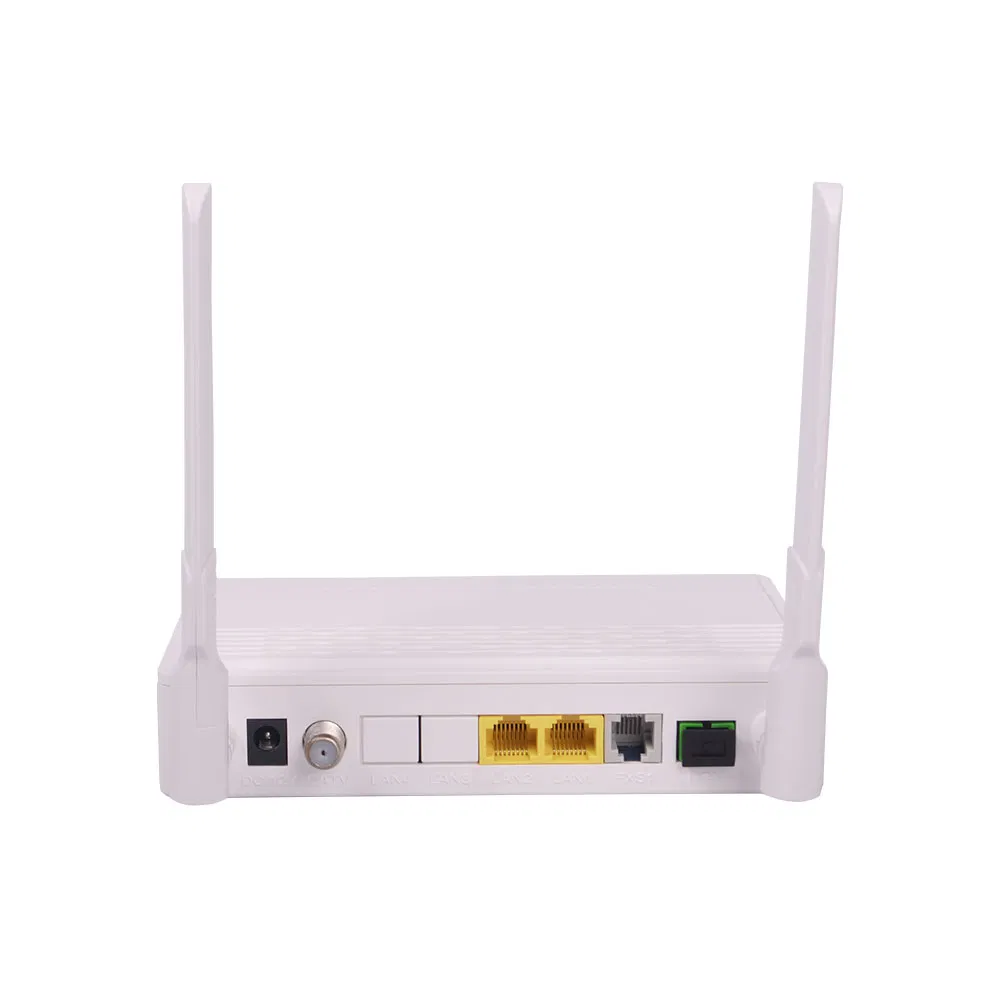

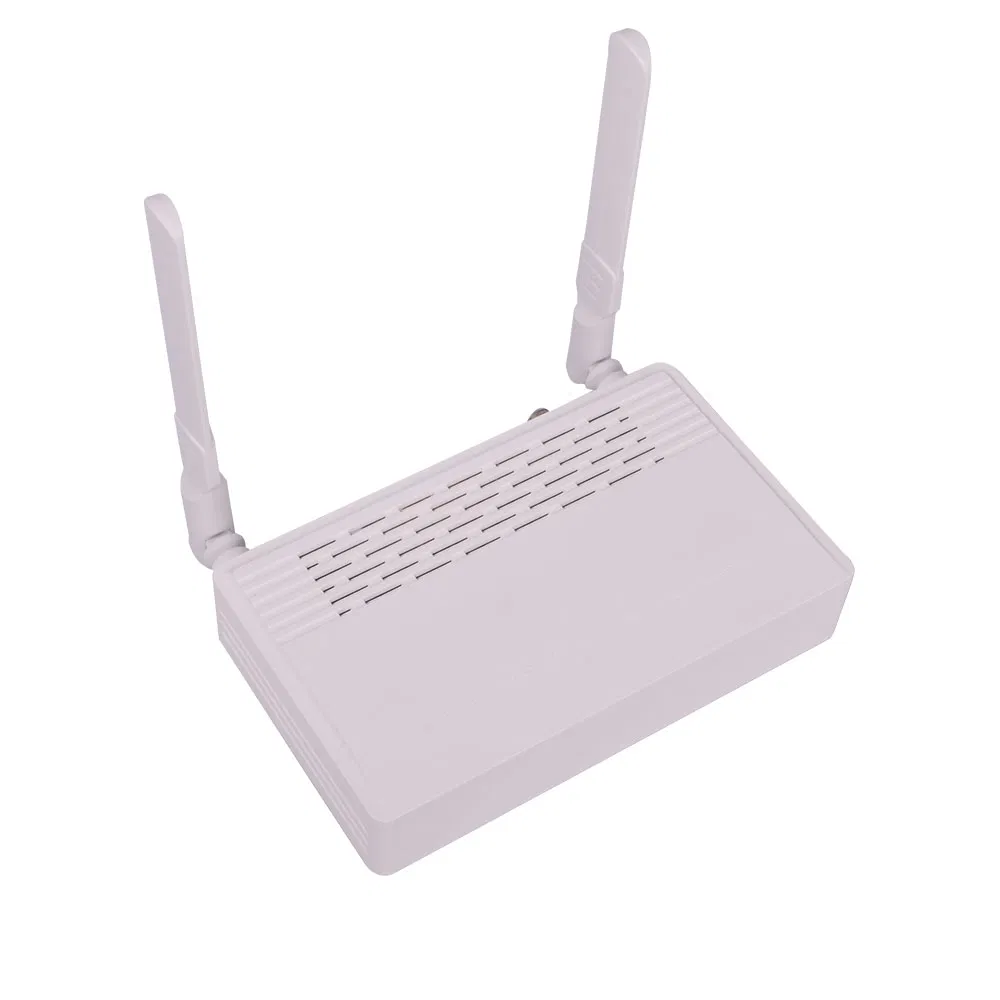

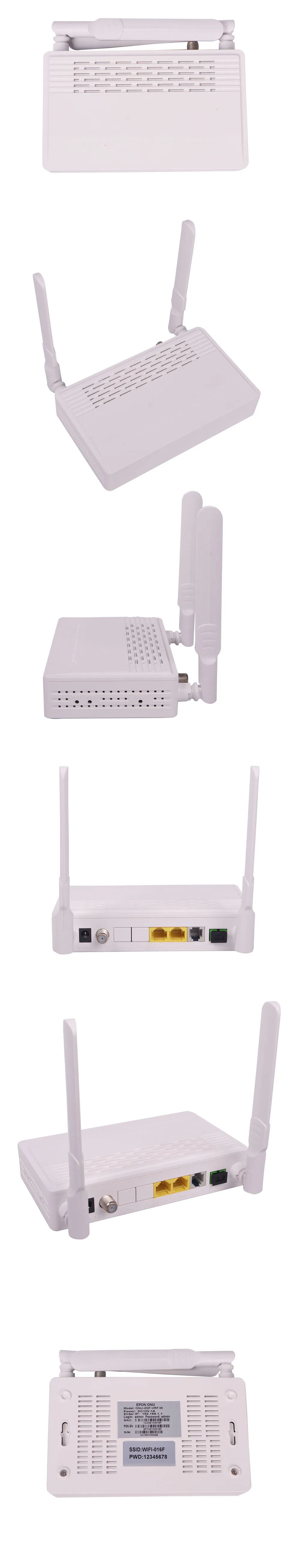

1ge+1fe+CATV+Pots+WiFi FTTH Gpon/Epon ONU

Product Description

1GE+1FE+CATV+POTS+WIFI FTTH GPON/EPON ONU

1. Overview

1. ONT-2GF-RFW is designed as HGU (Home Gateway Unit) in deferent FTTH solutions by HDV, The carrier-class FTTH application provides data service access.
2. ONT-2GF-RFW is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON when it accesses to the EPON OLT or GPON OLT.
3. ONT-2GF-RFW adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0 and GPON Standard of ITU-TG.984.X
4. ONT-2GF-RFW is designed by Realtek chipset 9603C

2. Functional Feature

1. Support EPON/GPON mode and switch-mode automatically
2. Support ONU auto-discovery/Link detection/remote upgrade of software
3. WAN connections support Route and Bridge mode
4. Route mode supports PPPoE/DHCP/ static IP
5. Support WIFI Interface and multiple SSID
6. Support POTS interface for VOIP Service
7. Support CATV interface for Video Service and control by OLT
8. Support QoS and DBA
9. Support port Isolation and port VLAN configuration
10. Support Firewall function and IGMP Snooping/Proxy multicast feature
11. Support LAN IP and DHCP Server configuration
12. Support Port Forwarding and Loop-Detect
13. Support TR069 remote configuration and maintenance
14. Specialized design for system breakdown prevention to maintain stable system

3. Hardware Specification

Technical item	Details
PON Interface	1 G/EPON port(EPON PX20+ and GPON Class B+)
	Receiving sensitivity: ≤-27dBm
	Transmitting optical power: 0~+4dBm
	Transmission distance: 20KM
Wavelength	TX: 1310nm, RX: 1490nm
Optical Interface	SC/APC Connector
POTS interface	1 FXS, RJ11 connector Support: G.711/G.723/G.726/G.729 codec Support: T.30/T.38/G.711 Fax mode, DTMF Relay Line testing according to GR-909
LAN Interface	1 x 10/100/1000Mbps and 1 x 10/100Mbps auto-adaptive Ethernet interfaces. Full/Half, RJ45 connector
CATV Interface	RF, WDM, optical power: +2~-18dBm
	Optical reflection loss: ≥45dB
	Optical receiving wavelength: 1550±10nm
	RF frequency range: 47~1000MHz, RF output impedance: 75Ω
	RF output level: 78dBuV
	AGC range: 0~-15dBm
	MER: ≥32dB@-15dBm
Wireless	Compliant with IEEE802.11b/g/n,
	Operating frequency: 2.400-2.4835GHz
	support MIMO, rate up to 300Mbps,
	2T2R,2 external antenna 5dBi,
	Support: Multiple SSID
	Channel: Auto
	Modulation type: DSSS, CCK, and OFDM
	Encoding scheme: BPSK, QPSK, 16QAM, and 64QAM
LED	10 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN2,FXS, Worn, Normal(CATV)
Push-Button	3, For Function of Reset, WLAN, WPS
Operating Condition	Temperature: 0ºC~+50ºC
Operating Condition	Humidity: 10%~90%(non-condensing)
Storing Condition	Temperature: -30ºC~+60ºC
Storing Condition	Humidity: 10%~90%(non-condensing)
Power Supply	DC 12V/1A
Power Consumption	≤6W
Dimension	155mm×92mm×34mm(L×W×H)
Net Weight	0.24Kg

4. Panel lights Introduction

Pilot Lamp	Status	Description
WIFI	On	The WIFI interface is up.
	Blink	The WIFI interface is sending or/and receiving data (ACT).
	Off	The WIFI interface is down.
WPS	Blink	The WIFI interface is securely establishing a connection.
WPS	Off	The WIFI interface does not establish a secure connection.
PWR	On	The device is powered up.
PWR	Off	The device is powered down.
LOS	Blink	The device doses not receive optical signals.
LOS	Off	The device has received optical signal.
PON	On	The device has registered to the PON system.
	Blink	The device is registering the PON system.
	Off	The device registration is incorrect.
LAN1~LAN2	On	Port (LANx) is connected properly (LINK).
	Blink	Port (LANx) is sending or/and receiving data (ACT).
	Off	Port (LANx) connection exception or not connected.
FXS	On	The phone has registered to the SIP Server.
	Blink	The phone has registered and data transmission (ACT).
	Off	Phone registration is incorrect.
Worn (CATV)	On	Input optical power is higher than 3dbm or lower than -13dbm
Worn (CATV)	Off	Input optical power is between -13dbm and 3dbm
Normal (CATV)	On	Input optical power is between -13dbm and 3dbm
Normal (CATV)	Off	Input optical power is higher than 3dbm or lower than -13dbm

5. Application

Typical Solution:FTTO(Office), FTTB(Building),FTTH(Home)
Typical Business:INTERNET,IPTV,IP Camera ,WIFI ,VOIP,CATV etc

6. Ordering information

Product Name	Product Model	Descriptions
SFF Type XPON ONU	1G1F+WIFI+CATV+POTS	1x10/100/1000Mbps Ethernet, 1 x 10/100Mbps Ethernet , 1 SC/APC Connector, 1 FXS Connector, 2.4GHz WIFI,1 RF Plastic Casing, External power supply adapter
