HA5400
1550nm High-power CATV EDFA optical amplifier
Product descripton
HA5400 series is a high-power optical amplifier with gain spectrum band within 1540~1563nm. It is designed for the application of single channel or 1~8 continuous ribbon channels (ITU wavelength). This series of EDFA offers a flexible and low-cost solution for CATV large area coverage of metropolises and medium-sized cities.

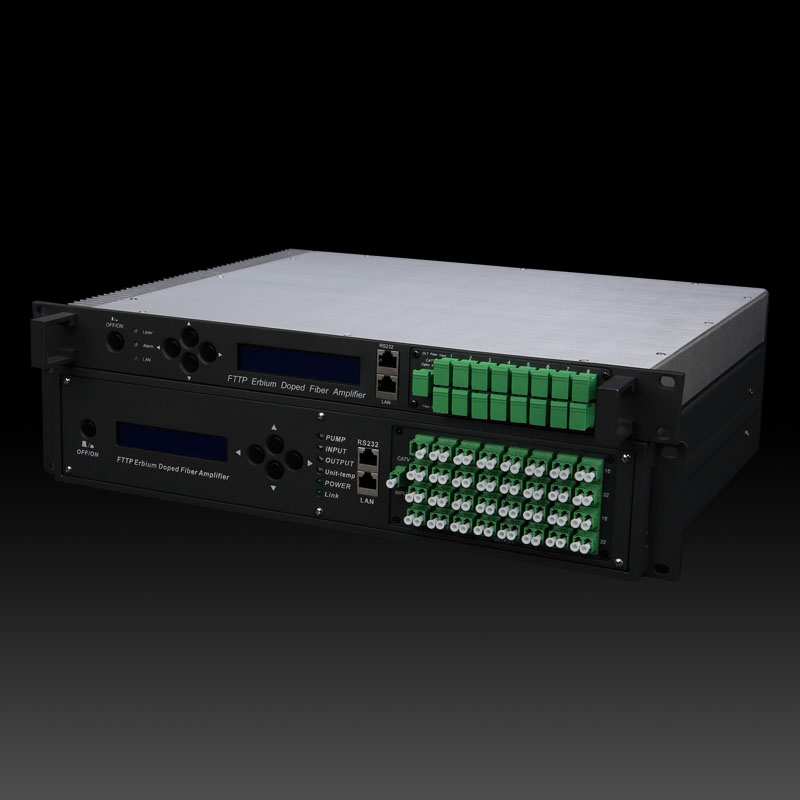

HA5400A EDFA: 1RU chassis, total output power >1000mW, offers 16 optical outputs at most.
HA5400B EDFA: 2RU chassis, total output power >5000mW, offers 64 optical outputs at most.
Product features
1. 1540~1563nm operating bandwidth for HA5400 optical amplifier
2. 500~5000mW (27~37dBm) high output power
3. 8~64 outputs is optional
4. APC, ACC, ATC controlled selection (HA5400/P)
5. Powerful RS232 supervisory instruction
6. Efficient space, flexible installation and easy operation
Main application
1. AM CATV
2. Digital CATV
3. DBS & MMDS
4. FTTX PON
1550nm High-power CATV EDFA optical amplifier
Product descripton
HA5400 series is a high-power optical amplifier with gain spectrum band within 1540~1563nm. It is designed for the application of single channel or 1~8 continuous ribbon channels (ITU wavelength). This series of EDFA offers a flexible and low-cost solution for CATV large area coverage of metropolises and medium-sized cities.
HA5400A EDFA: 1RU chassis, total output power >1000mW, offers 16 optical outputs at most.
HA5400B EDFA: 2RU chassis, total output power >5000mW, offers 64 optical outputs at most.
Product features
1. 1540~1563nm operating bandwidth for HA5400 optical amplifier
2. 500~5000mW (27~37dBm) high output power
3. 8~64 outputs is optional
4. APC, ACC, ATC controlled selection (HA5400/P)
5. Powerful RS232 supervisory instruction
6. Efficient space, flexible installation and easy operation
Main application
1. AM CATV
2. Digital CATV
3. DBS & MMDS
4. FTTX PON
| Performance | Index | Supplement | ||||
| Min. | Typ. | Max. | ||||
| Optical feature | Operating wavelength range | (nm) | 1540 | 1563 | CATV | |
| Input power | (dBm) | -10 | +7.5 | |||
| Total output power 1) | (dBm) | 27 | 32 | 1U | ||
| 28 | 37 | 2U | ||||
| Number of output port | (pcs) | 4 | 16 | 1U, SC/APC, LC/APC | ||
| 8 | 32 | 1U, LC/APC | ||||
| 8 | 32 | 2U, SC/APC, LC/APC | ||||
| 16 | 64 | 2U, LC/APC | ||||
| Difference of each output power | (dB) | -0.5 | +0.5 | |||
| Output power adjustable range | (dBm) | -6 | 0 | |||
| Noise figure (Pin=0dBm) | (dB) | 4.5 | 5.0 | HA5437 | ||
| Polarization dependence loss | (dB) | 0.3 | ||||
| Polarization dependence gain | (dB) | 0.4 | ||||
| Polarization mode dispersion | (ps/nm) | 0.3 | ||||
| Input/output isolation | (dB) | 30 | ||||
| Pump power leakage | (dBm) | -30 | ||||
| Echo loss | (dB) | 55 | APC | |||
| General feature | Serial interface | RS232 | ||||
| SNMP network management interface | RJ45 | |||||
| Power supply | (V) | 90 | 265 | 220VAC | ||
| 30 | 72 | -48VDC | ||||
| Power consume | (W) | 150 | ||||
| Work temp. | ( °C ) | -5 | 65 | |||
| Storage temp. | ( °C ) | -40 | 80 | |||
| Relative humidity | (%) | 5 | 95 | |||
| Size (W) × (D) × (H) | 19 × 14.3 × 1.75 ( " ) 483 × 363 × 44 ( mm ) | 1RU (19") | ||||
| 19 × 14.7 × 3.5 ( " ) 483 × 373 × 89 ( mm ) | 2RU (19") | |||||
