              1550nm EDFA 1 2 4 8 16 32 Port 19dbmw~23dBm Fiber Optical Amplifier CATV EDFA
              • 1550nm EDFA 1 2 4 8 16 32 Port 19dbmw~23dBm Fiber Optical Amplifier CATV EDFA1550nm EDFA 1 2 4 8 16 32 Port 19dbmw~23dBm Fiber Optical Amplifier CATV EDFA
              • 1550nm EDFA 1 2 4 8 16 32 Port 19dbmw~23dBm Fiber Optical Amplifier CATV EDFA1550nm EDFA 1 2 4 8 16 32 Port 19dbmw~23dBm Fiber Optical Amplifier CATV EDFA
              • 1550nm EDFA 1 2 4 8 16 32 Port 19dbmw~23dBm Fiber Optical Amplifier CATV EDFA1550nm EDFA 1 2 4 8 16 32 Port 19dbmw~23dBm Fiber Optical Amplifier CATV EDFA
              • 1550nm EDFA 1 2 4 8 16 32 Port 19dbmw~23dBm Fiber Optical Amplifier CATV EDFA1550nm EDFA 1 2 4 8 16 32 Port 19dbmw~23dBm Fiber Optical Amplifier CATV EDFA

              1550nm EDFA 1 2 4 8 16 32 Port 19dbmw~23dBm Fiber Optical Amplifier CATV EDFA

              Technical parametersWS-EA1500Received wavelength1535~1565 nmInput optical power-5dBm~+10dBm(Standard input+3dBm)Output optical power+3dBmOutput power stability±0.1dBmNoise Figure≤ 5.0dB(Pin=0dB)Input reflection loss≥ 45dBOutput reflection loss≥ 45dBC/N≥ 50dBC/C......

              Send Inquiry

              Product Description

              1550nm EDFA 1 2 4 8 16 32 Port 19dbmw~23dBm Fiber Optical Amplifier CATV EDFA
              Technical parametersWS-EA1500
              Received wavelength1535~1565 nm
              Input optical power-5dBm~+10dBm(Standard input+3dBm)
              Output optical power+3dBm
              Output power stability±0.1dBm
              Noise Figure≤ 5.0dB(Pin=0dB)
              Input reflection loss≥ 45dB
              Output reflection loss≥ 45dB
              C/N≥ 50dB
              C/CTB≥ 63dB
              C/CSO≥ 63dB
              The optical fiber connectorFC/APC(Standard)&SC/APC&LC/APC(Customizable)
              VoltageAC220V(160V ~ 265V) /AC110V(90 ~130V)/DC48V(38 ~ 58V)
              Total power consumption≤ 10w
              Operating temperature-5ºC~+42ºC
              Storage temperature-30ºC~+70ºC
              Maximum working relative humidityUp to 95% non-condensing
              Dimensions357(W)*482(L)*44(H)mm
              Packing size (one set)595(W)*490(L)*120(H)mm
              Packing size (two sets)595(W)*490(L)*230(H)mm

              Erbium doped fiber amplifier (EDFA) is a CATV professional device used to amplify and transmit 1550 nm optical signals in
              a cable television transmission system. Cable TV 1550nm single- wavelength transmission, DWDM multi-wavelength transmission, flat gain, low noise series (PA), mid-noise series (LA), and power amplifier series (BA) are available. The
              company can produce a wide range of products such as power amplifiers, pre-amplifiers, and line amplifiers to meet
              different application locations of equipment and different customerrequirements.

              1550nm EDFA 1 2 4 8 16 32 Port 19dbmw~23dBm Fiber Optical Amplifier CATV EDFA

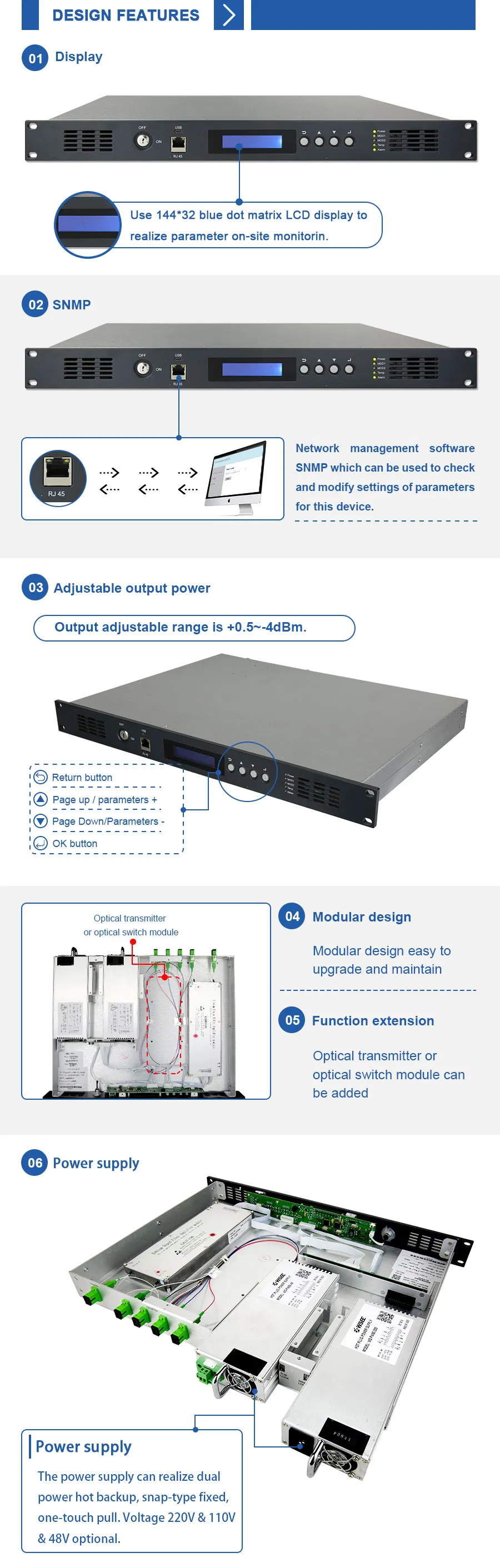

              1. Selection of internationally renowned brands of low noise pump lasers, low distortion, wide band, high output optical power.
              2. Imported high-performance American Corning Erbium-doped fiber, high energy conversion efficiency.
              3. 32-bit ARM processor, light control output accuracy of ± 0.1dBm.
              4. Optical power receiving range -5dBm ~ +10dBm, optical power output 13~26dBm.
              5. The number of output ports is 1/2/4/8 optional, enabling CATV network construction.
              6. A dual-module structure is reserved, and functions such as light emitting, EDFA, optical switch, optical receiver, RF switch, RF amplifier, and reverse light receiver can be added.
              7. Modular structure, easy to expand the function of equipment and maintenance.
              8. All control circuits and devices use high-efficiency switching chips, and the overall power consumption is ≤10W.
              9. The power supply can realize dual power hot backup, snap-type fixed, one-touch pull. Voltage 220V & 110V & 48V optional.
              10. Output power +0.2~-4dBm adjustable.
              11. Standard network management interface, in line with SNMP network management protocol.
              12. Use 144*32 blue dot matrix LCD display to realize parameter on-site monitorin.
              1550nm EDFA 1 2 4 8 16 32 Port 19dbmw~23dBm Fiber Optical Amplifier CATV EDFA1550nm EDFA 1 2 4 8 16 32 Port 19dbmw~23dBm Fiber Optical Amplifier CATV EDFA1550nm EDFA 1 2 4 8 16 32 Port 19dbmw~23dBm Fiber Optical Amplifier CATV EDFA1550nm EDFA 1 2 4 8 16 32 Port 19dbmw~23dBm Fiber Optical Amplifier CATV EDFA
