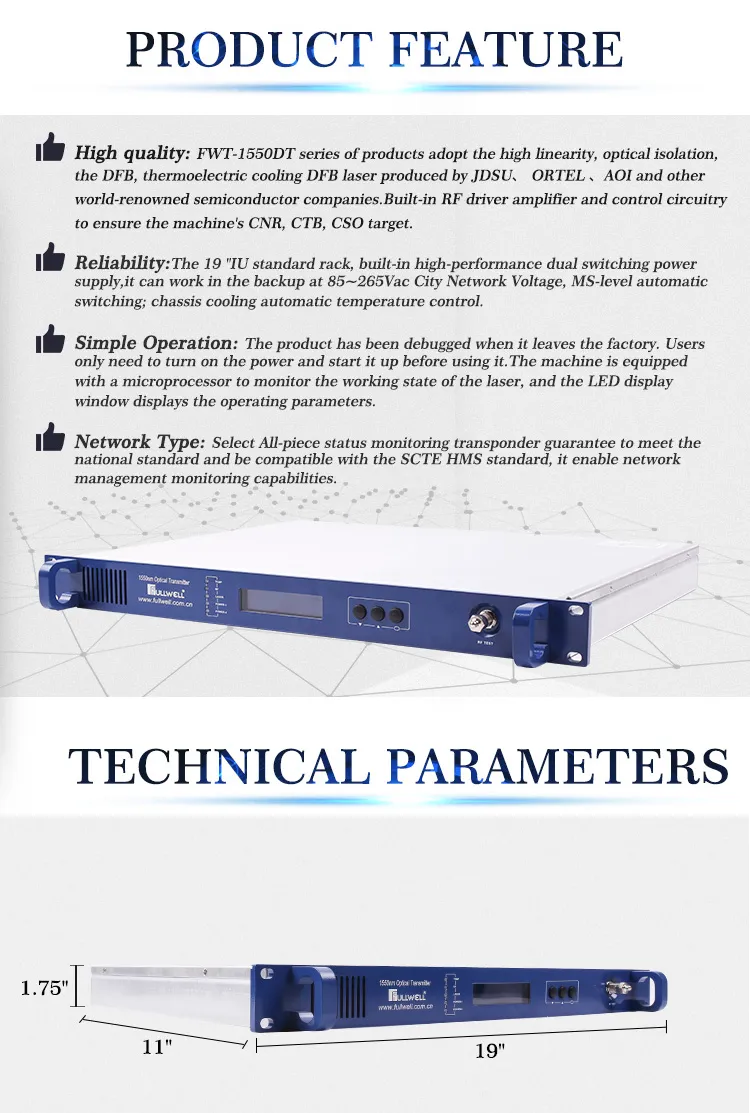

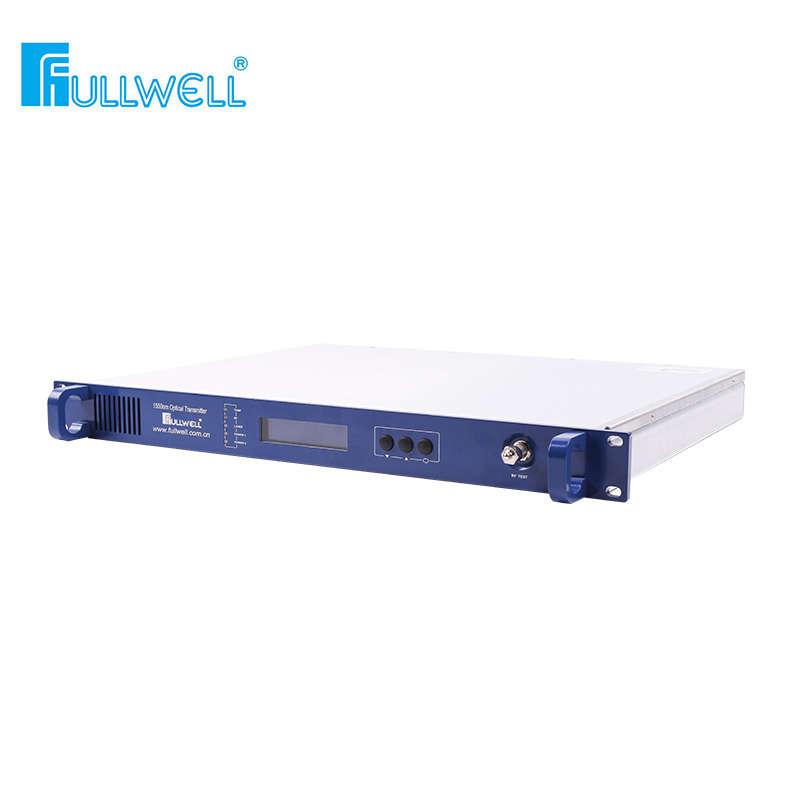

1550 Optical Transmitter with AGC Dual Power Supply
Fullwell CATV 0 ~ 15km, 1550 Directed Optical Transmitter(FWT-1550D/PS-10)Features: 1. One port, output 10mW.2. Realize 0 ~ 15km transmitter distance in HFC network and stable signal3. Composed by AGC signle module and 100% new JDSU.4. Can be made to 2 port output, per port output 6dBm,Application:T......
Send Inquiry

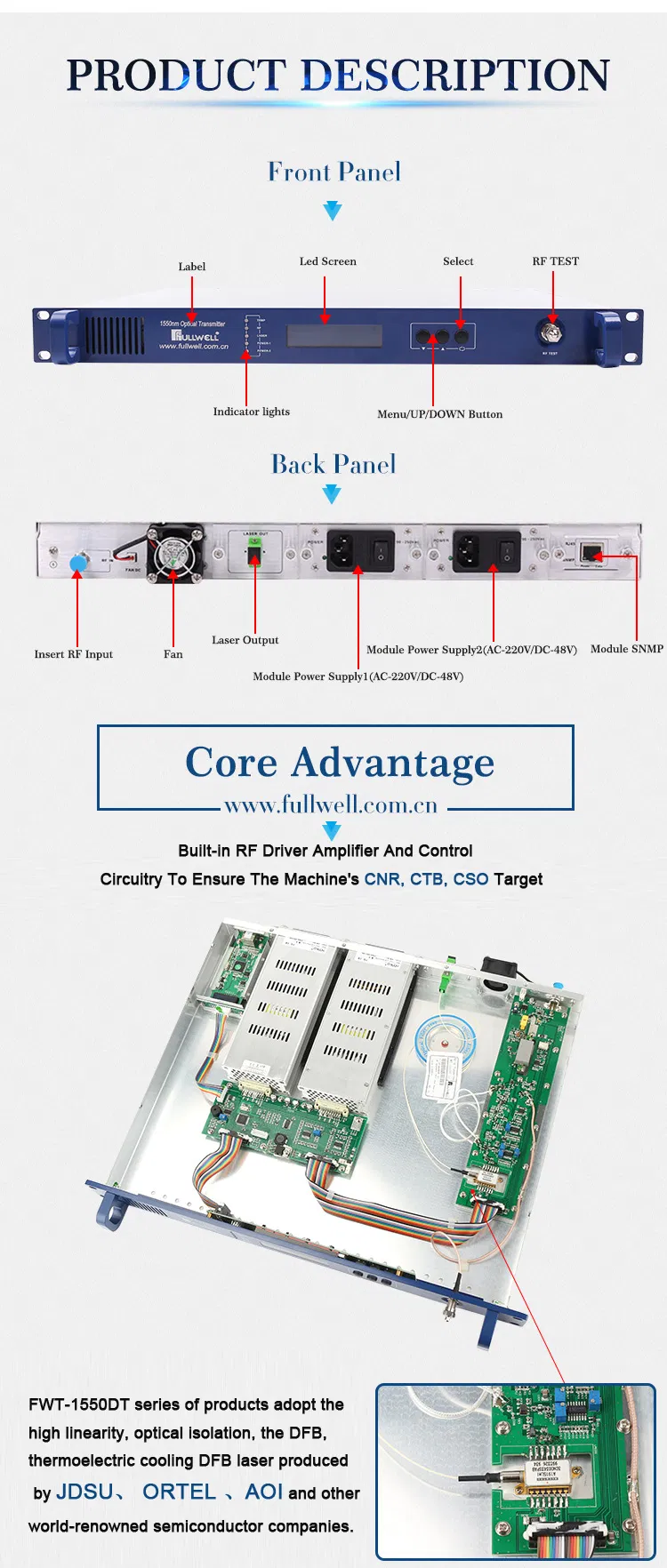

Product Description
(FWT-1550D/PS-10)
Features:
1. One port, output 10mW.
2. Realize 0 ~ 15km transmitter distance in HFC network and stable signal
3. Composed by AGC signle module and 100% new JDSU.

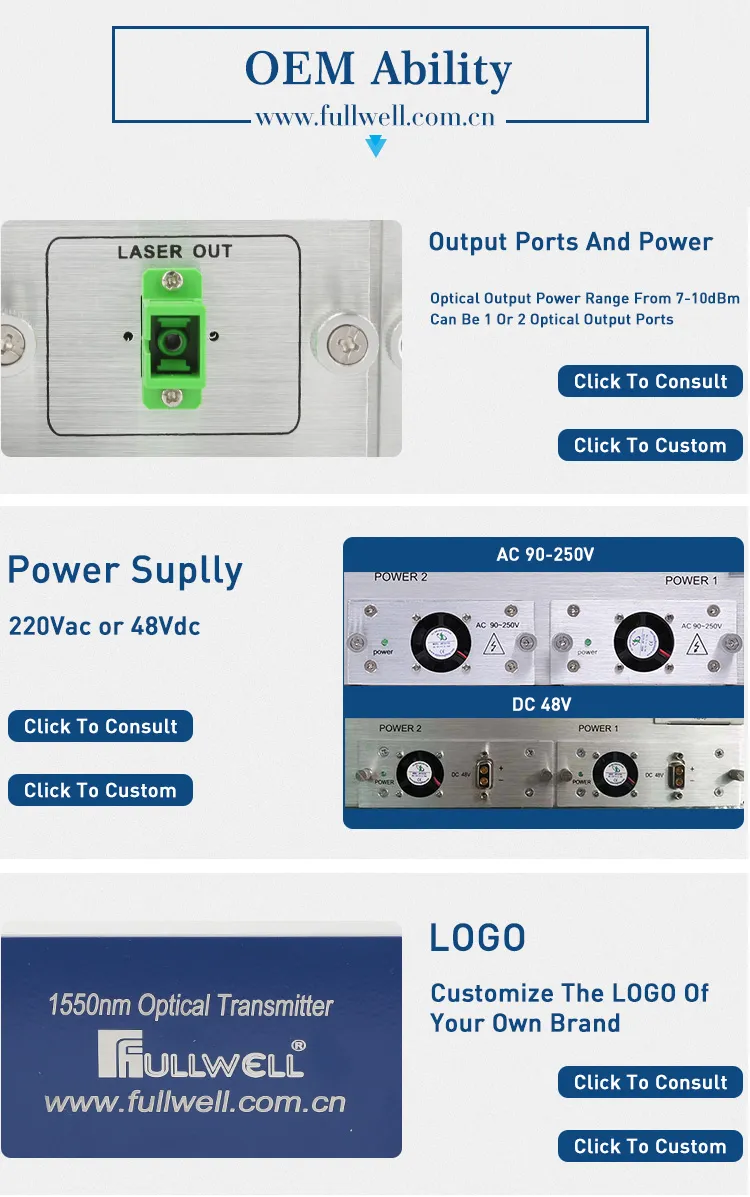

4. Can be made to 2 port output, per port output 6dBm,
Application:
The radio frequency signal of the cable is converted into a continuous, stable and reliable optical signal.
Technical Index
| No. | Item | Units | Parameter | Note |
1 | Laser Type |
| DFB | See specifications |
2 | Wavelength | nm | 1550±10 |
|
3 | Optical Modulation |
| Intensity Modulated |
|
4 | Optical output power | mW | 2~10 | See specifications |
5 | The number of channels | N | 59 |
|
6 | Optical Connector Type |
| FC/APC or SC/APC | Specified before ordering |
7 | Frequency range | MHz | 47~750(862) |
|
8 | CNR | dB | ≥52.0 |
|
9 | Flatness | dB | ±0.83 |
|
10 | RF input level | dBuV | 78~88 |
|
11 | C/CTB | dB | ≥65.0 |
|
12 | C/CSO | dB | ≥65.0 |
|
13 | RF input impedance | Ω | 75 |
|
14 | RF Input Return Loss | dB | >16(47~550)MHz |
|
15 | VCC | V | 90~265Vac |
|
16 | Power | W | ≤50 | Single-supply operation |
17 | Working Temperature | ºC | 0~50 | Automatic temperature control |
18 | Storage temperature | ºC | -20~85 |
|
19 | Working relative humidity | % | 20%~85% |
|
20 | Size | ″ | 19″×15″×1.83″ | (W)x(D)x(H) |
21 | Network management interface |
| RJ45 | supporting The browser and SNMP |
