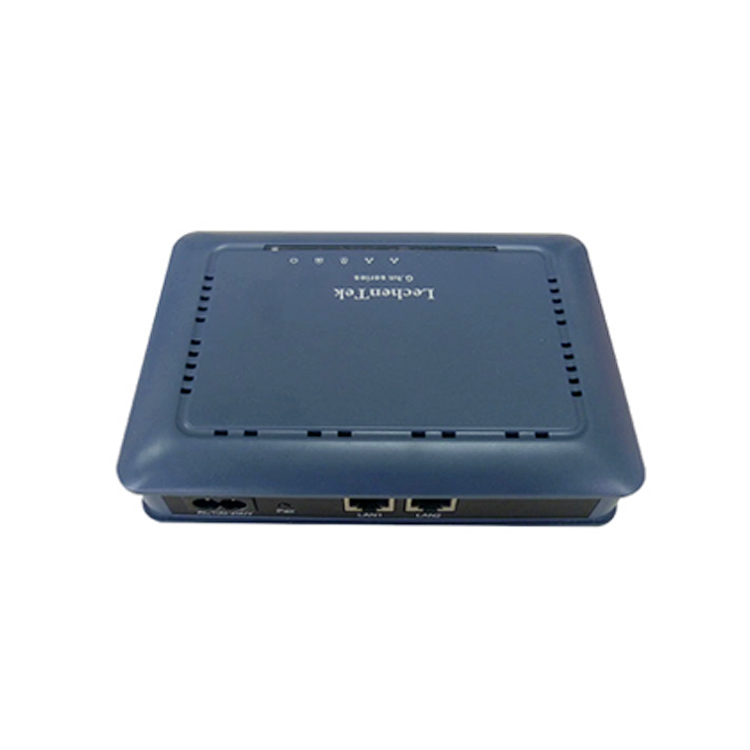

WD-1002M with PLC Powerline Ethernet Adapter for Home switch
The Most Powerful and Cost-Effective G.hn SolutionConsumers today face a mix of Non-inter -operable home networking technologies. G.hn offers a single wired international standard for connecting devices. Every power outlet in home becomes a network connectivity point on the same mesh network, bring......
Send Inquiry
Product Description
The Most Powerful and Cost-Effective G.hn Solution
Consumers today face a mix of Non-inter -operable home networking technologies. G.hn offers a single wired international standard for connecting devices. Every power outlet in home becomes a network connectivity point on the same mesh network, brings convenience and flexibility to consumers. This enables datum to be delivered seamlessly from one medium to another.WD-1002M is an Ethernet wall mountable bridges which can guarantee the reliable performance and good user experience on every power outlet in the home. With WD-1002M /WD-F1000M multimedia distribution is available even in the environment with thick walls and multiple floors. In addition to the function of transferring HD digital signals, the WD-1002M also can transmit remote commands over the house existing power lines, so users can operate remotely in the TV viewing room to get the AV source located in another room. The WD-1002M will allow consumers easily connect various HD sources to HD TVs or projectors throughout the home without having to install any new wiring or be pestered by complicated set-ups. With the existing electrical lines which providing a fast, reliable wired connection between various entertainment components, consumers can enjoy the entertainment grade video at any virtual power outlet.
Introduction
The G.hn Power line Ethernet Bridge ,WD-1002M enables you to set up your private network at home with your existing power line.

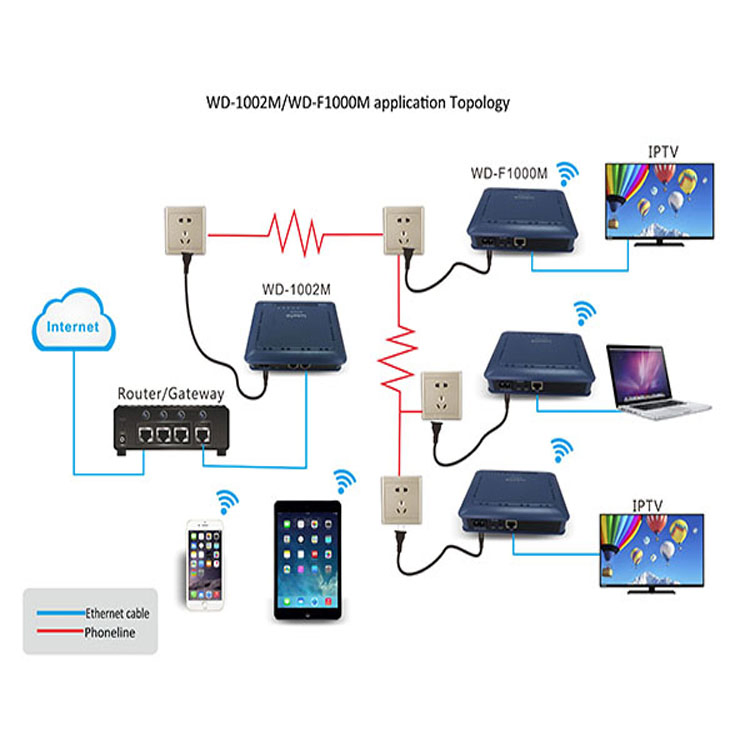

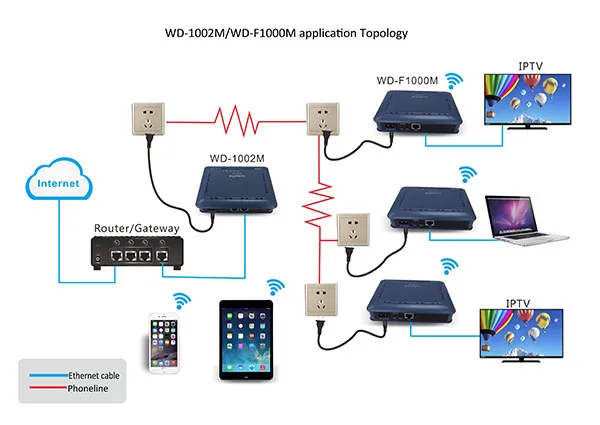

Topology
Specification
Item | WD-1002M |
Interface | 2*100/1000 Base-T self-adapting standard Ethernet interface |
1*POWER (AC) interface | |
LED display light | Power light |
PLC light | |
ETH light | |
Function | Bandwidth limitation,QOS Integrated |
Modulate | OFDM |
Transfer frequency band | 2-100MHz |
Protocol | Network protocols: IEEE 802.3, IEEE 802.3x,IEEE 802.3u Auto MDI (X),IEEE IP1901 |
Down link and Up link protocol:CSMA/CA, TDMA | |
Security | 128-DES |
Transfer rate | 1000Mbps |
Transfer distance | 2000M |
Operating system | Windows 98/ME/NT/2003/7,Windows XP Home/Pro,Mac OSX ,Linux |
Operating voltage range | AC100-250V < 3W |
Certification | FCC,CE,ROHS |
Operating environment | Working temperature: 0ºC-70ºC |
storage temperature:-30ºC-80ºC |
No additional network wiring
Just find a power outlet in the wall ,put the plug into it, and then you would get 1Gbps home network which can meet the demands of broadband internet and IPTV transmission among rooms.Intelligent to support variant services
Configuration of Tag Vlan, Queuing scheme, and bandwidth control are helpful to the deployment of services.
With WD-1002M/F1000M,SOHO can even quickly extend or flexibly change the existing lan environment ,no re-wiring and no more trouble.
Features
Ø G.hn PLC Port as Home Network Backbone Using Existing power line to transfer the data.
Ø G.hn PHY Rate up to 1Gbps
Ø Two 10/100/1000Mbps Gigabit Ethernet Ports
Ø Energy Efficiency (Green) Ethernet Support
Ø Signal Status Indication
Ø Remote Management (Optional)
Ø Diagnosis
Ø QoS Priority and Mapping Support
Ø Tag VLAN Configuration
Ø IGMP Snooping Control
