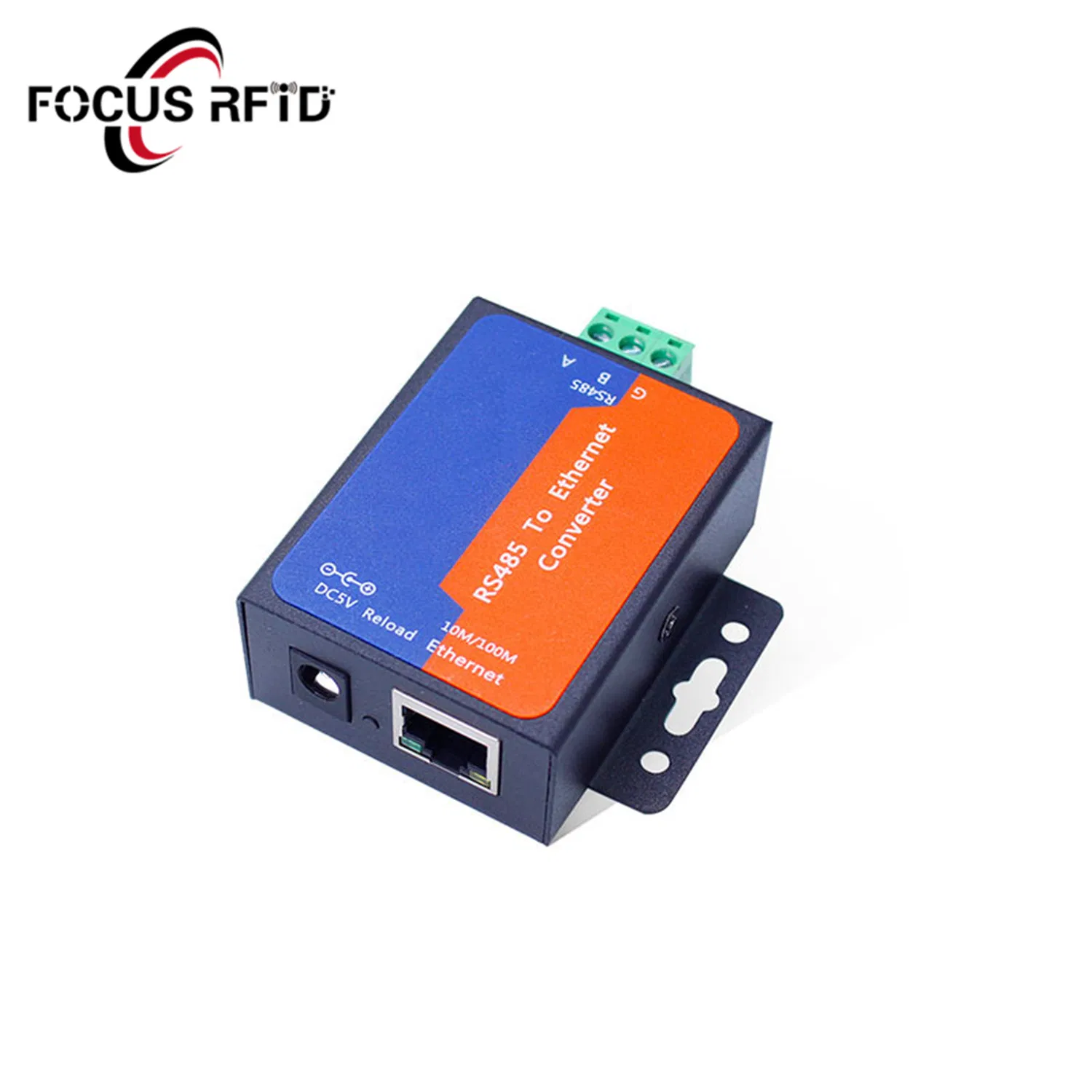

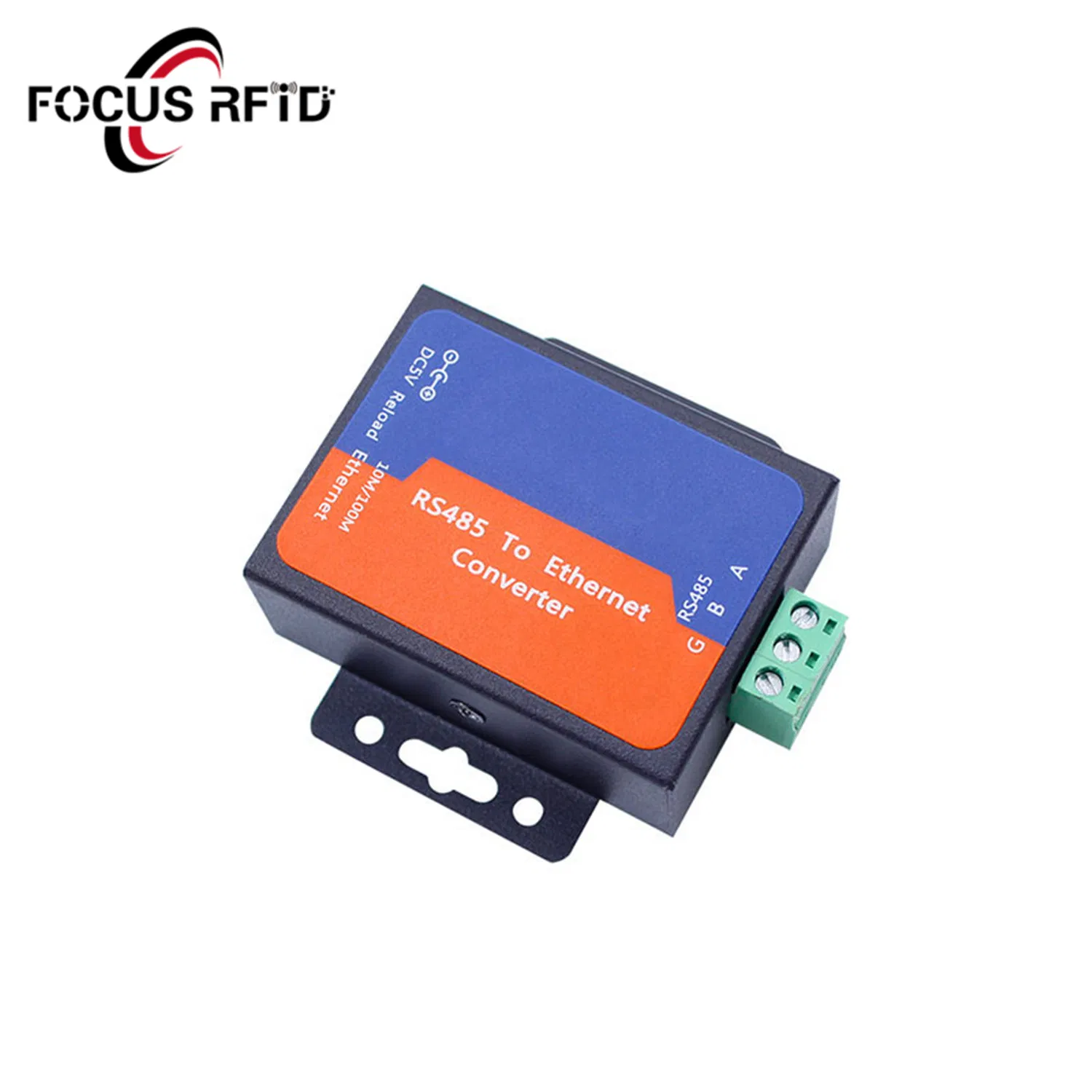

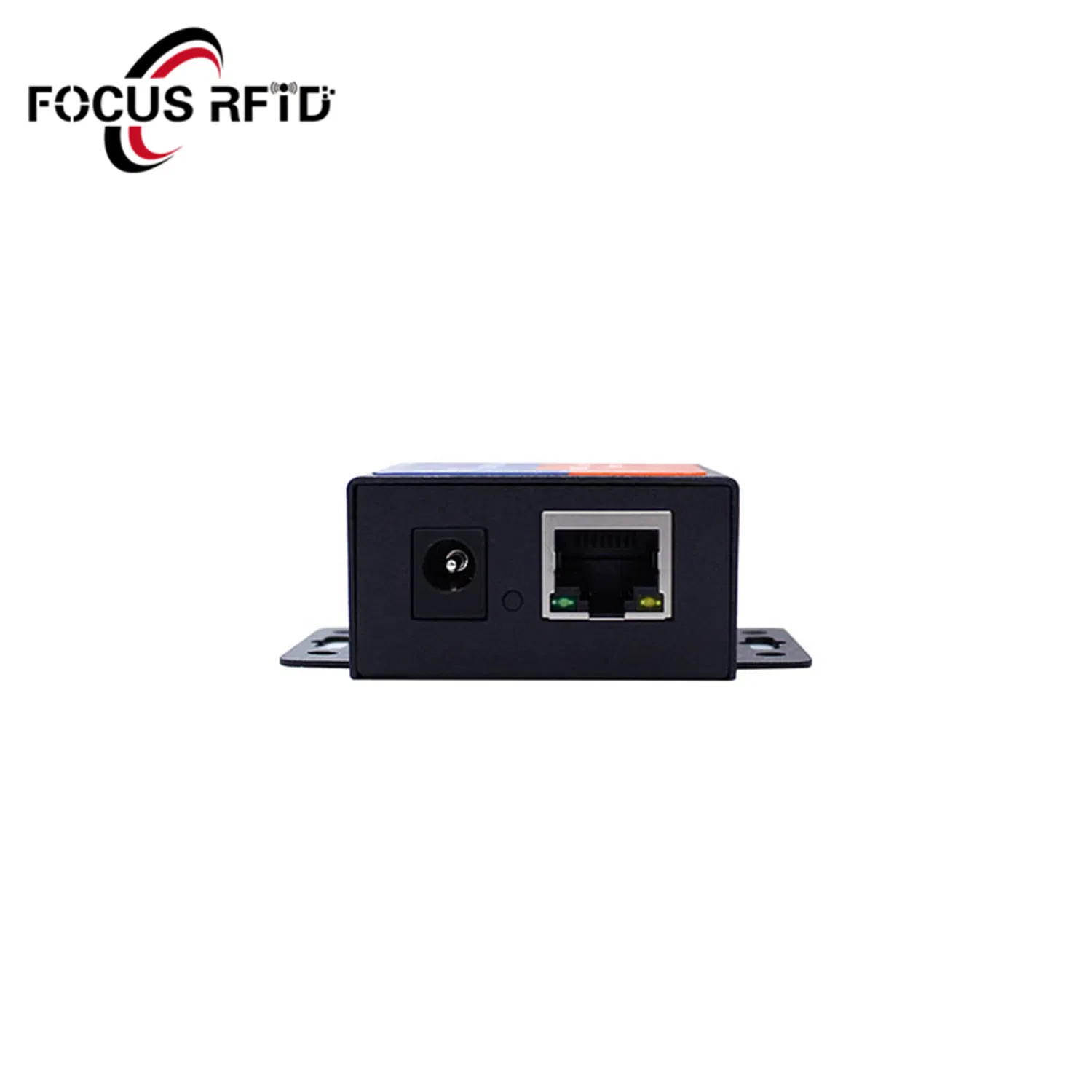

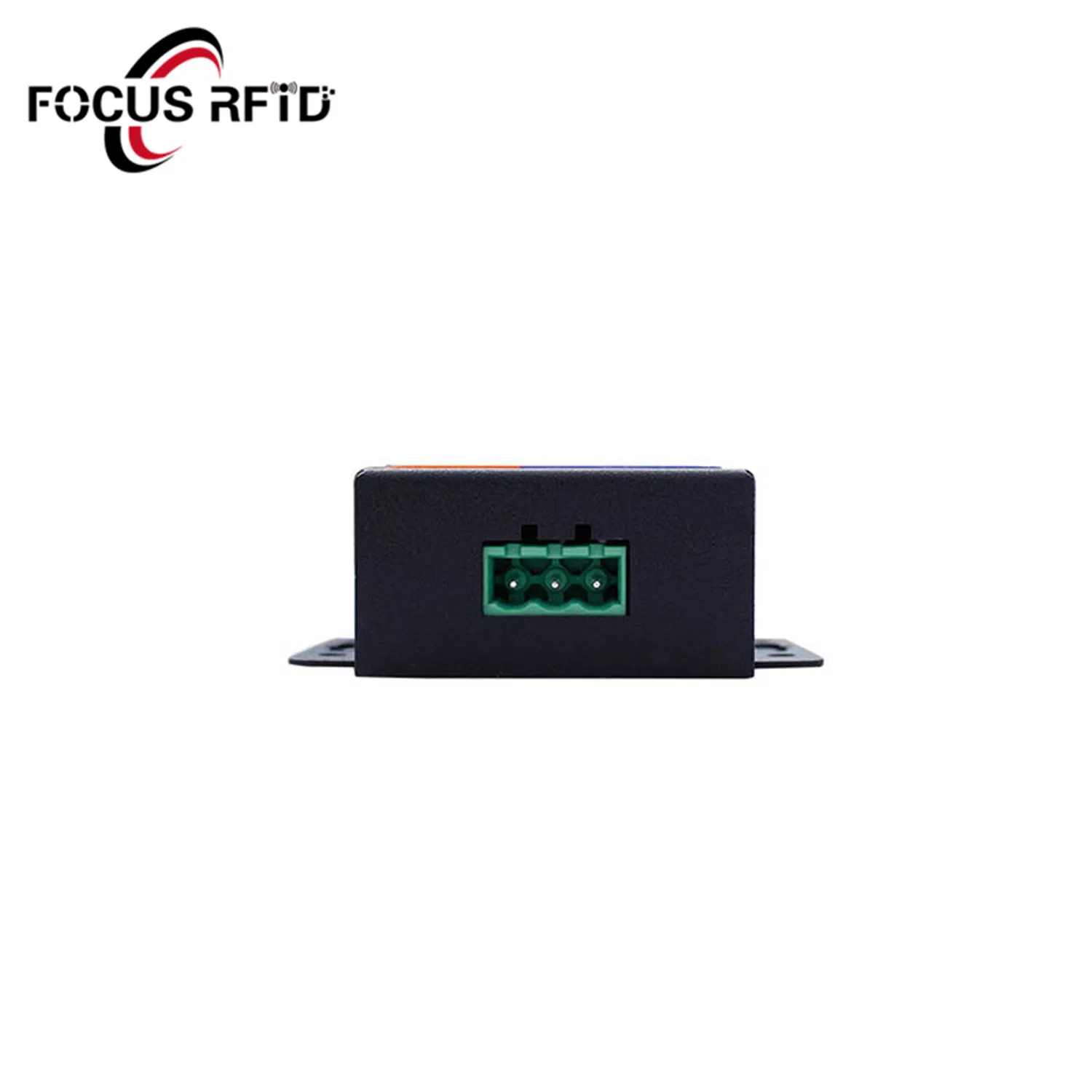

ST-TCP314

1-port RS485 to Ethernet Converters RS485 Port, Cost-Effective 1-Port RS485 to Ethernet Converters

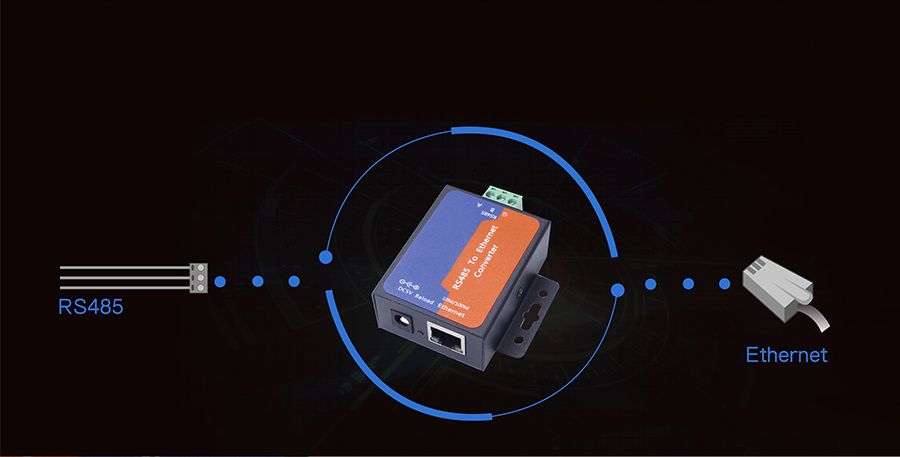

1-port RS485 to Ethernet converters ST-TCP314 can transmit data transparently between TCP/IP and RS485. RS485 to Ethernet converters ST-TCP314 are widespread required in industrial automation. Simple configuration and easy to use.

1-Single RS485 to Ethernet converters
2-Compact, light, weight
3-RS485 port, cost-effective
4-DC 4.75-7V
5-Client connection: 1 to 16 in TCP Server Mode
6-Support TCP server/client, UDP server/client, virtual COM

Technical parameters

System Information
Processor	TI Cortex-M0
Ethernet
Port Number	1
Interface Standard	RJ45
Rate	10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection
Protection	2KV electromagnetism isolation, shell insulation blocking
Network Protocol	IP, TCP, UDP, DHCP, DNS, https, ARP, ICMP
Buffer	Send: 6K bytes, receive: 4K bytes
Serial Port
Port Number	1

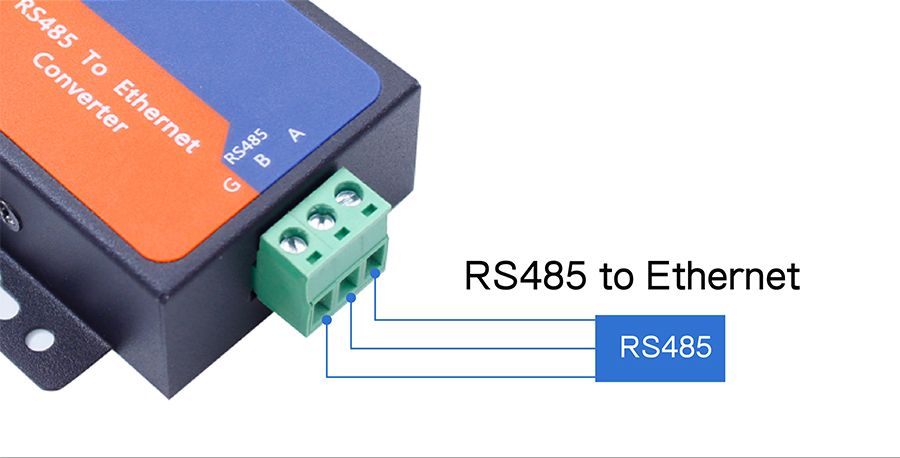

Interface Standard	RS-485: 3 wire (A+, B-, GND)
Data Bits	5, 6, 7, 8
Stop Bit	1, 2
Check Bit	None, Even, Odd, Space, Mark
Baud Rate	600 bps ~ 230.4 Kbps
Flow Control	Null
Buffer	Receive: 800 bytes
Software
Virtual Serial(USR-VCOM)	Windows 2000 or higher (32 bit/64 bit)
Configuration	Computer set-up software, serial command, built-in webpage
Basic Parameter
Size	71 x 60 x 25 mm
Operating Temp.	-25 ~ 75°C
Storage Temp.	-40 ~ 105°C, 5 ~ 95% RH
Input Voltage	DC 4.75 ~ 7V
Working Current	150mA @ 5V
Power	<1W
More
Warranty	2 years
Accessory	5V1A power supply
Certificate	CE/FCC/Rohs

Work mode

TCP Server

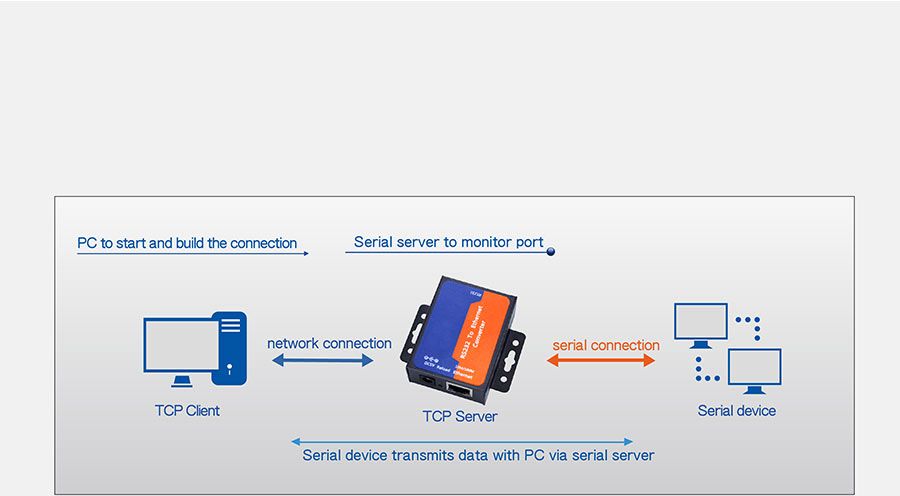

RS232 to Ethernet converters ST-TCP314 monitor the set port and waits for a TCP client connection. Data from the serial device will transmit to all successfully-connected TCP clients.
RS485 Port, Cost-Effective 1-Port RS485 to Ethernet Converters

TCP client mode

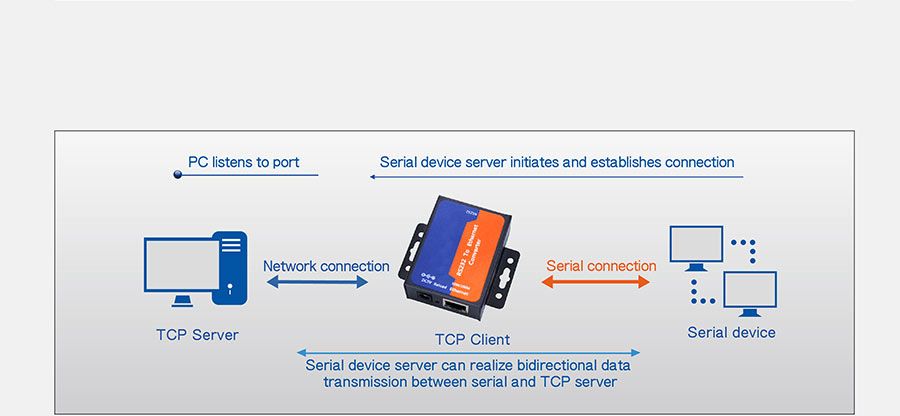

RS232 to Ethernet converters ST-TCP314 will initiate TCP connection to the destination IP address that configured by the user and ST-TCP314 will continuously try to reconnect if establishing TCP connection unsuccessfully. If the ST-TCP314 establishes TCP connection to TCP Server successfully, it can realize bidirectional data transparent transmission between TCP Server and the serial device. RS485 Port, Cost-Effective 1-Port RS485 to Ethernet Converters

UDP mode

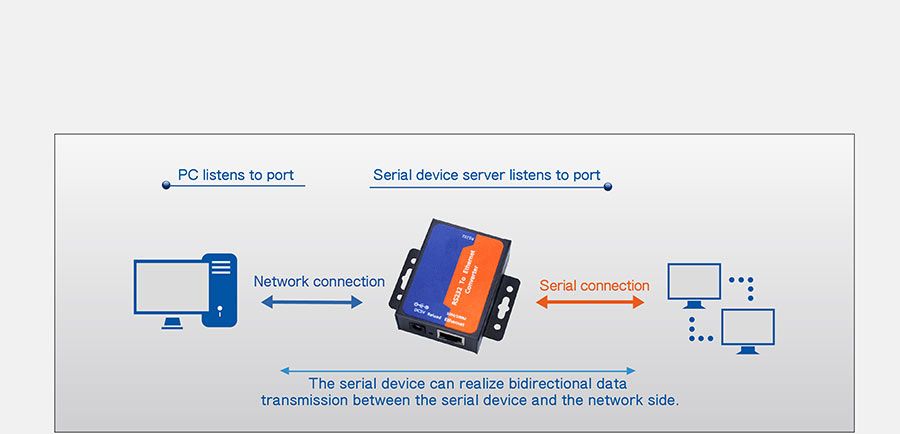

RS232 to Ethernet converters ST-TCP314 will transmit serial data from serial device to target network device by UDP connection. ST-TCP314 will listen to port and transmit all received data to serial device. RS485 Port, Cost-Effective 1-Port RS485 to Ethernet Converters

httpsD Client

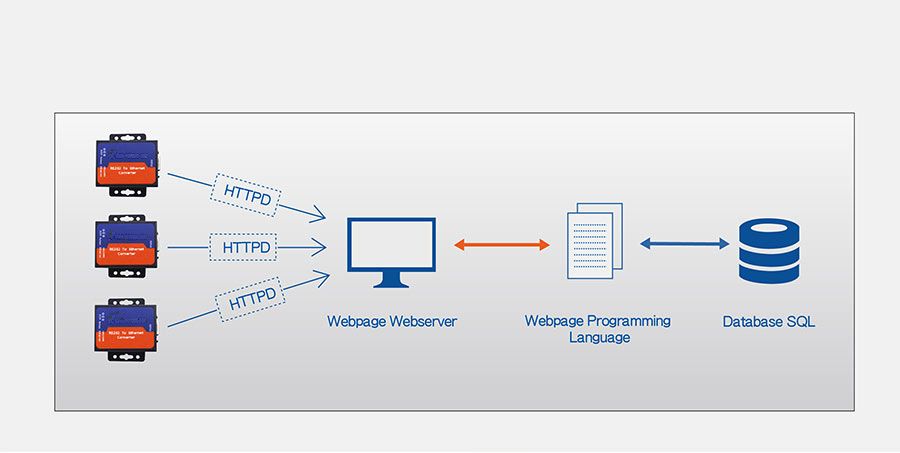

RS232 to Ethernet converters ST-TCP314 supports https Client mode which can transmit serial data to the https server in https format(GET/POST).

RS485 Port, Cost-Effective 1-Port RS485 to Ethernet Converters

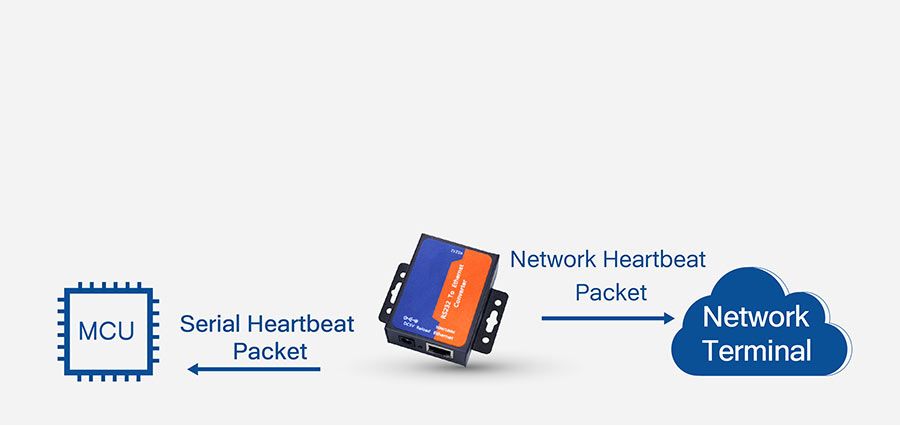

Serial & Network Heartbeat Packet

RS232 to Ethernet converters USR-TCP232-302 maintain the normal connection with the server bysending heartbeat packet regularly.

RS485 Port, Cost-Effective 1-Port RS485 to Ethernet Converters

Application

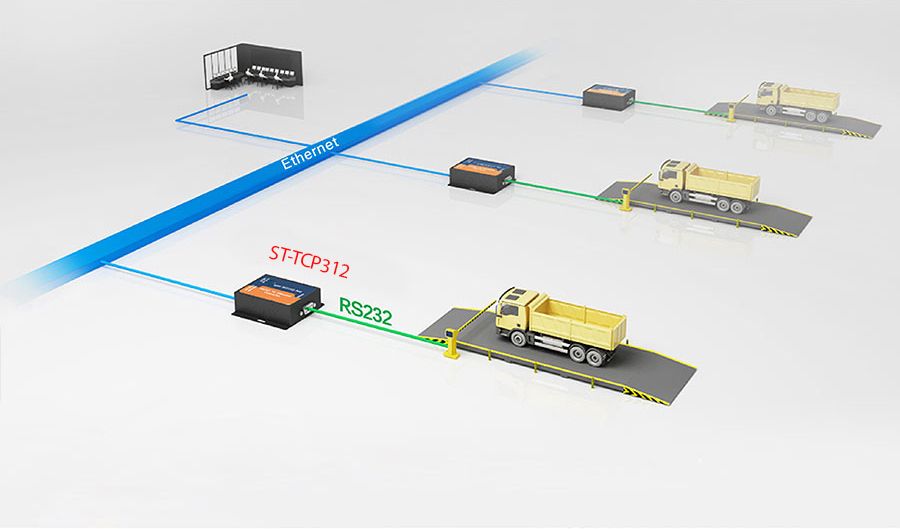

Unattended Weighting

Connect RS232 to Ethernet converters ST-TCP314 to barrier gate and they can realize remote control of barrier gate by Ethernet in control center.

RS485 Port, Cost-Effective 1-Port RS485 to Ethernet Converters

Traffic Lights Management System

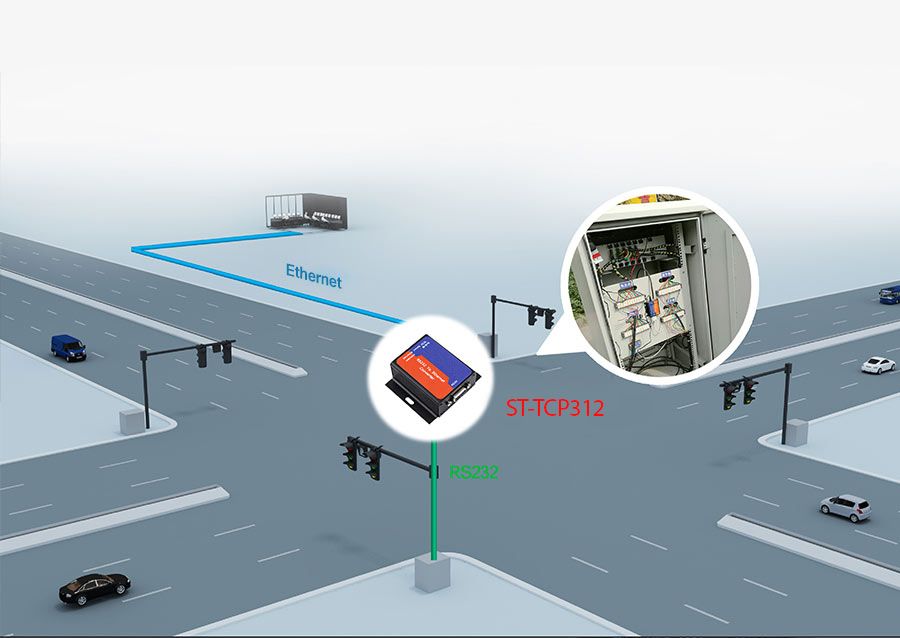

Connect RS232 to Ethernet converter ST-TCP314 and it can realize traffic data acquisition and processing by Ethernet in control center. It can also provide accurate quantitative basis for traffic dispatch management and urban transport planning Can implement the optimum control for transportation phenomena such as traffic jam, traffic accident, traffic capacity from a regional or global perspective.
