RF Attenuator DC-3GHz 25W Standard Coaxial Attenuator 30dB with N Male to Female Connector
Product Discription25W RF Attenuator(DC-3GHz, N Male to N Female, IP60)RF attenuators are used in a wide variety of applications in RF circuits. They are a key building block used in many areas of RF design. The basic concept behind an attenuator is to reduce the signal level. This can be required t......
Send Inquiry
Product Description
| Product Discription |

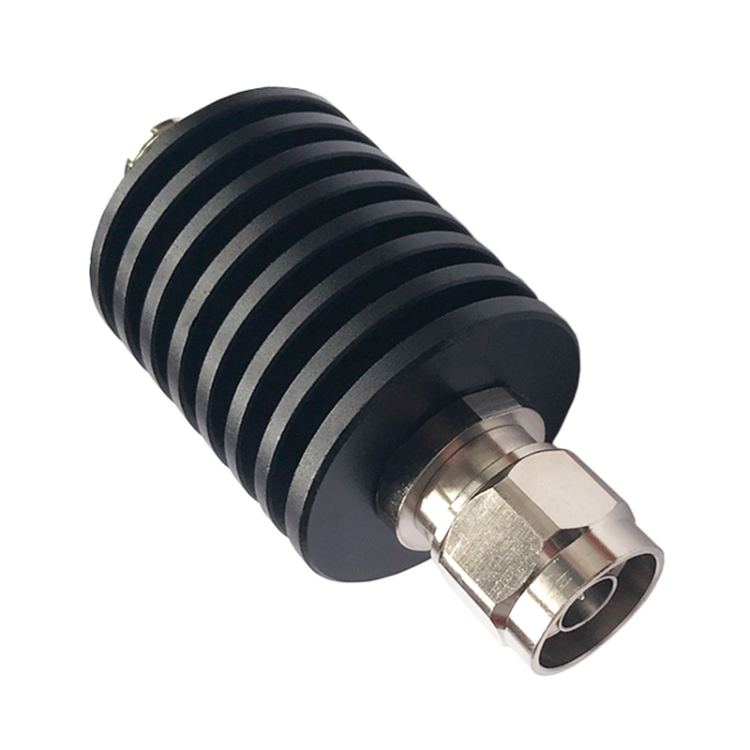

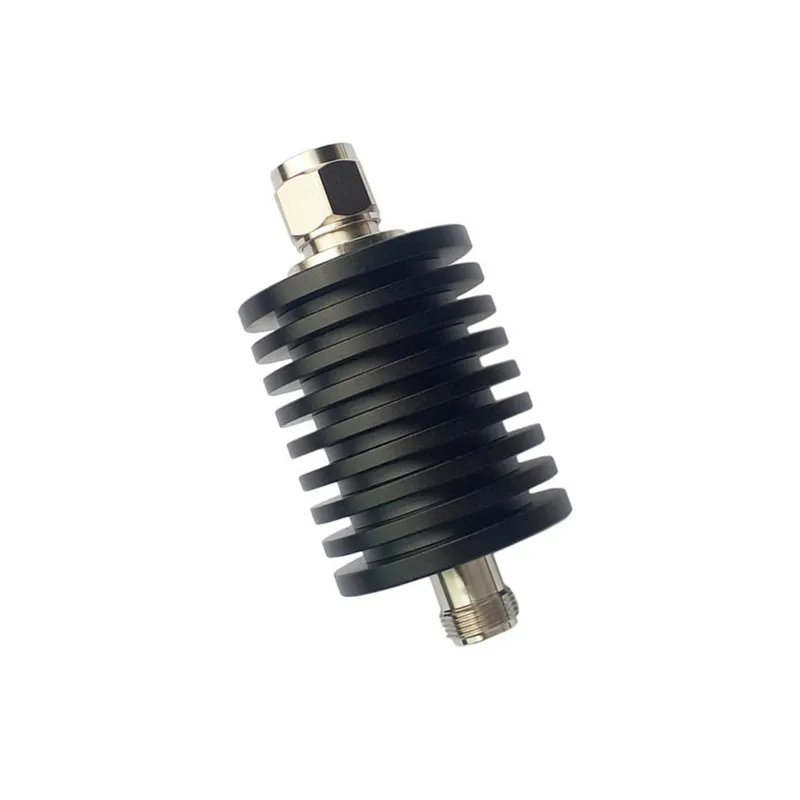

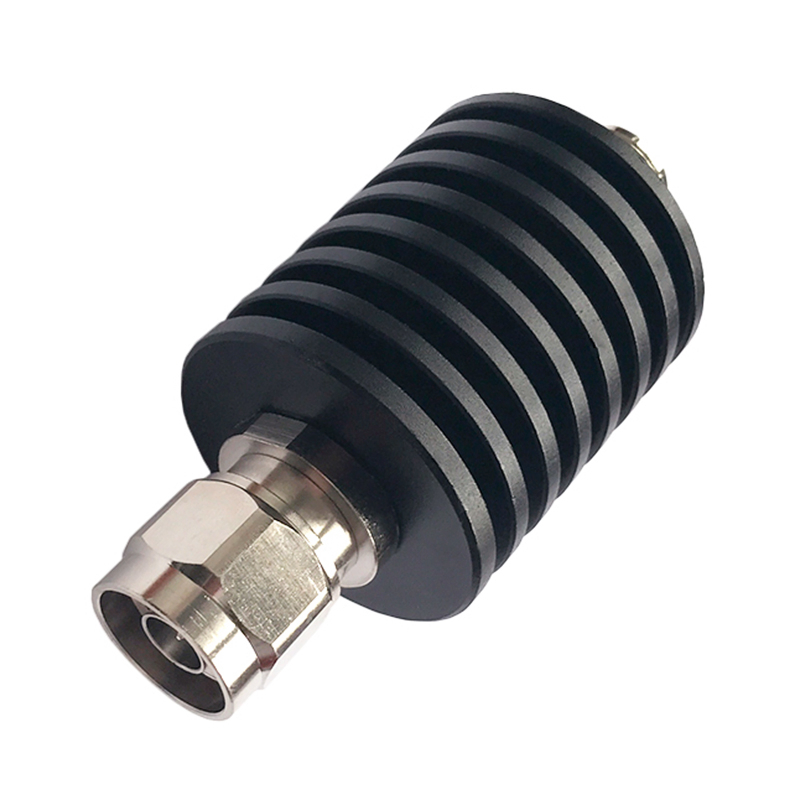

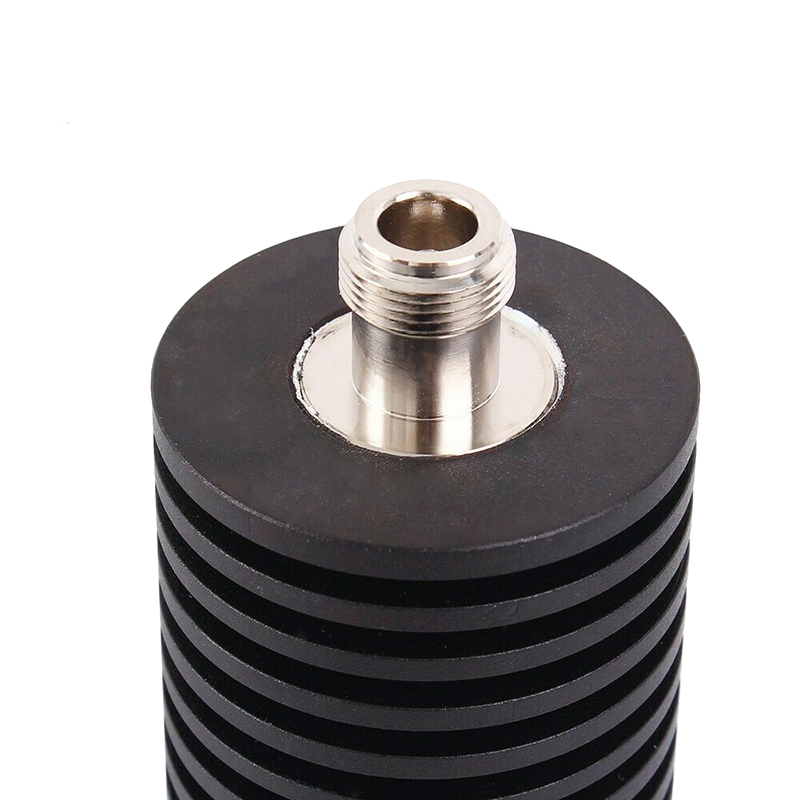

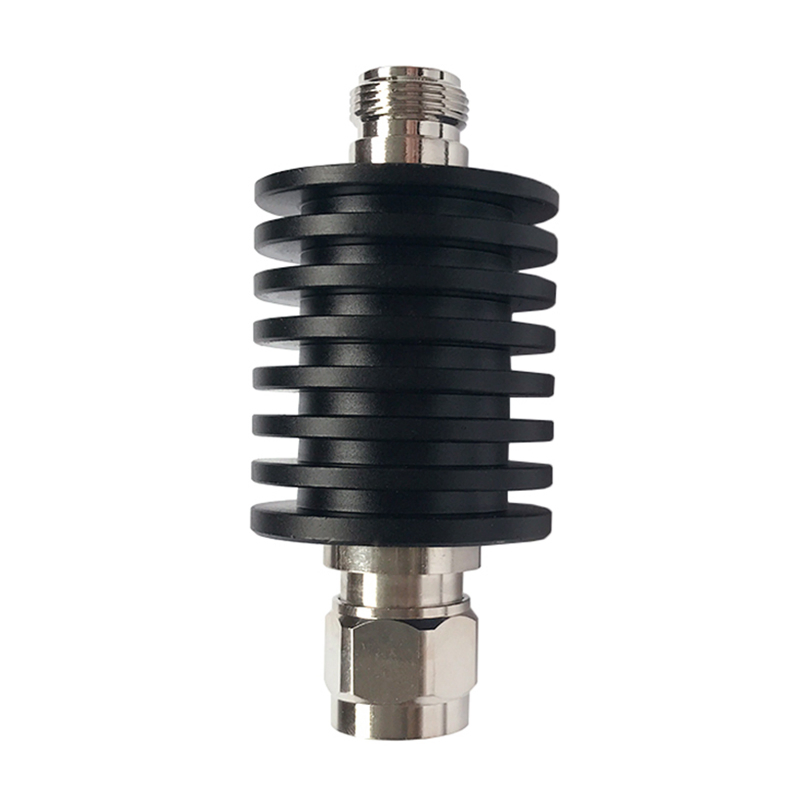

25W RF Attenuator(DC-3GHz, N Male to N Female, IP60)
RF attenuators are used in a wide variety of applications in RF circuits. They are a key building block used in many areas of RF design. The basic concept behind an attenuator is to reduce the signal level. This can be required to control levels within a circuit to keep them within the required range. One particular use is for testing high power RF signals, e.g. in transmitters where the signal level needs to be reduced before it can be applied to an item of test equipment.
Topwave model TPW-ATT25-XX-3-NMF(XX means attenuation in dB), a 25watt DC-3GHz coaxial fixed RF attenuator with N-male to N-female connector, is a typical one with various attenuation like 3dB,5dB, 6dB, 8dB, 10dB, 15dB, 20dB etc. The attenuator can be available to 6GHz, 12GHz and 18GHz, stocks in type N, 7/16DIN and 4.3-10 connectors. Good quality, low cost, enough in stocks.
| Features & Benefits |
·Wide Frequency Band Coverage
·Good Performance in Attenuation Accuracy
·Low VSWR
·Indoor Using IP60
·Available with Type N, 7/16DIN, 4.3/10, SMA, TNC, BNC, QMA Type Connectors
| Electrical & Mechanical Specifications |
| Model No. | TPW-ATT25-30-3-NMF | ||||||||||
| Attenuation(dB) | 30 | ||||||||||
| Accuracy(dB) | ±1.5 | ||||||||||
| Freq(MHz) | DC-3GHz | ||||||||||
| VSWR | ≤1.20 | ||||||||||
| Power Rating(W) | 25W (average) | ||||||||||
| Impedance | 50 ohm | ||||||||||
| Connector | N-male to N-female | ||||||||||
| Color | Black | ||||||||||
| Relative Humidity | 5-95% | ||||||||||
| Operating Tem(ºC) | -35°C to +65°C | ||||||||||
| Weight(kg) | 0.30(approx) | ||||||||||
