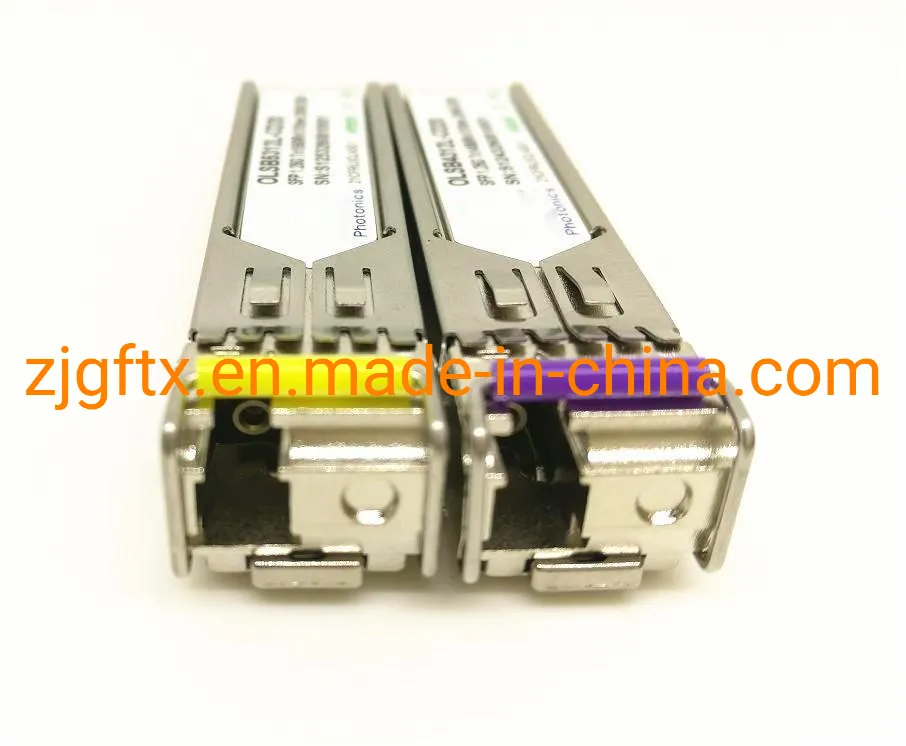

Optical Fiber RoHS Compliant 2.5g 1490/1550nm ( 1550 /1490nm) 80km Transceiver
Product FeaturesSupports 2.5Gbps/2.125Gbps bit ratesBi-Directional LC connectorHot pluggable SFP footprint1490nm DFB laser and 1550nm APD photo detector1550nm DFB laser and 1490nm APD photo detectorApplicable for 80Km SMF connectionLow power consumption< 1.0WDigital Diagnostic Monitor InterfaceCo......
Send Inquiry
Product Description
Product Features
- Supports 2.5Gbps/2.125Gbps bit rates
- Bi-Directional LC connector
- Hot pluggable SFP footprint
- 1490nm DFB laser and 1550nm APD photo detector
- 1550nm DFB laser and 1490nm APD photo detector
- Applicable for 80Km SMF connection
- Low power consumption< 1.0W
- Digital Diagnostic Monitor Interface
- Compliant with SFP MSA and SFF-8472
- Very low EMI and excellent ESD protection
- Operating case temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C
Applications
- SDH STM-16 and SONET OC-48 system
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other Optical Links
Product Descriptions
GFC-OLSB45(54)25L-C(I)D80, The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 2.5Gbps/2.125Gbps and 80km transmission distance with SMF.The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedanc e preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

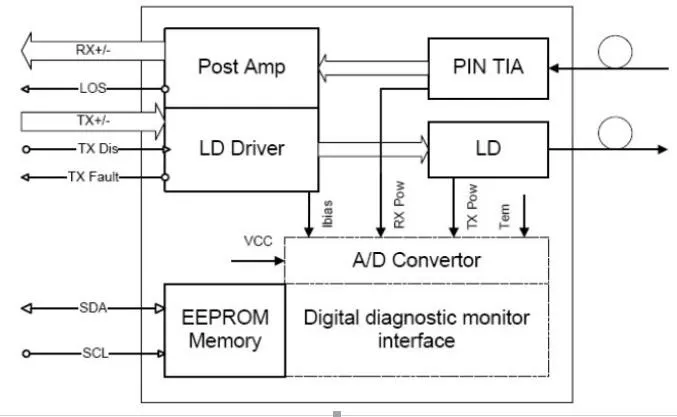

Functional Diagram
Absolute Maximum Ratings
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
Electrical Characteristics (TOP(C) = 0 to 70 ºC, TOP(I) =-40 to 85 ºC,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | DR | 2.125 | 2.5 | Gb/s | ||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 300 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| TI | -40 | 85 |
Electrical Characteristics (TOP(C) = 0 to 70 ºC, TOP(I) =-40 to 85 ºC,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Differential data input swing | VIN,PP | 120 | 820 | mVpp | 1 | |
| Tx Disable Input-High | VIH | 2.0 | Vcc+0.3 | V | ||
| Tx Disable Input-Low | VIL | 0 | 0.8 | V | ||
| Tx Fault Output-High | VOH | 2.0 | Vcc+0.3 | V | 2 | |
| Tx Fault Output-Low | VOL | 0 | 0.8 | V | 2 | |
| Input differential impedance | Rin | 100 | Ω | |||
| Receiver | ||||||
| Differential data output swing | Vout,pp | 340 | 650 | 800 | mVpp | 3 |
| Rx LOS Output-High | VROH | 2.0 | Vcc+0.3 | V | 2 | |
| Rx LOS Output-Low | VROL | 0 | 0.8 | V | 2 | |
Notes:
- TD+/- are internally AC coupled with 100Ω differential termination inside the module.
- Tx Fault and Rx LOS are open collector outputs, which should be pulled up with 4.7k to 10kΩ resistors on the host board. Pull up voltage between 2.0V and Vcc+0.3V.
- RD+/- outputs are internally AC coupled, and should be terminated with 100Ω (differential) at the user SERDES.
Optical Characteristics (TOP(C) = 0 to 70 ºC, TOP(I) =-40 to 85 ºC,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1470 | 1490 | 1510 | nm | |
| 1530 | 1550 | 1570 | ||||
| Ave. output power (Enabled) | PAVE | 0 | 5 | dBm | 1 | |
| Extinction Ratio | ER | 9 | dB | 1 | ||
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 0.26 | ns | 2 | ||
| Dispersion penalty | TDP | 3.9 | dB | |||
| Output Optical Eye | ITU-T G.957 Compliant | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1530 | 1550 | 1570 | nm | |
| 1470 | 1490 | 1510 | ||||
| Receiver Sensitivity | PSEN1 | -28 | dBm | 3 | ||
| Overload | PAVE | -7 | dBm | 3 | ||
| LOS Assert | Pa | -35 | dBm | |||
| LOS De-assert | Pd | -29 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1.Measured at 2.5Gb/s with PRBS 2 223 - 1NRZ test pattern. 2.Unfiltered, measured with a PRBS223 - 1 test pattern @2.5Gb/s
3.Measured at 2.5Gb/s with PRBS 223 - 1 NRZ test pattern for BER < 1x10-12

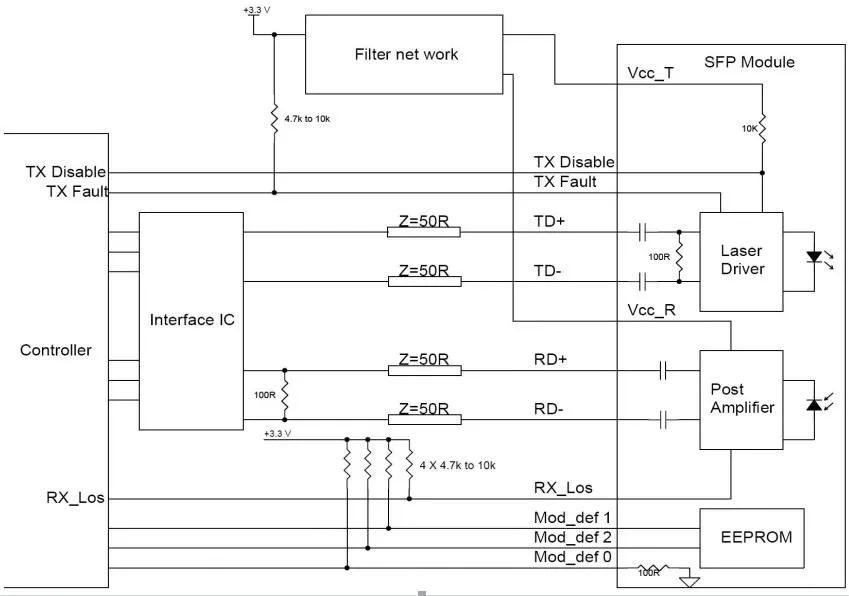

Typical Interface Circuit

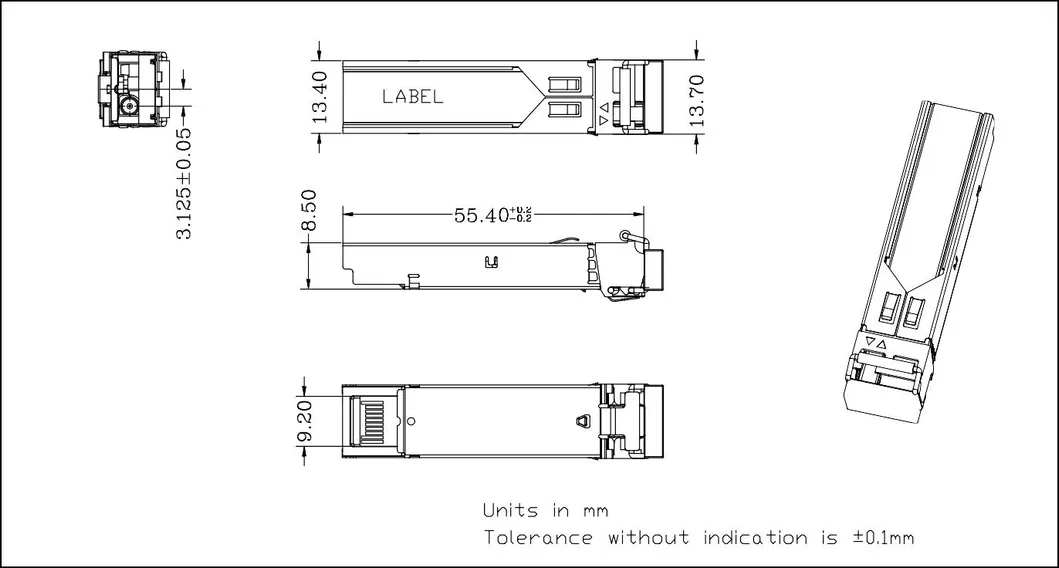

Package Dimensions
