Optical Fiber Data Center AWG30 40gbps Dac Passive Copper Cable
Data Rate:40GbpsWire AWG:30AWGLength:1m 2m 3m 4m 5mConnectors:QSFP+ To QSFP+Compatible:Cisco HP Juniper EtcPackage:PP BagColor:BlackApplication:Data CenterHigh Light:40Gbps DAC Copper Cable, AWG30 DAC Cable 40G QSFP+ to QSFP+ DAC AWG30 Passive Copper cable 1~5m40G QSFP+ Passive Copper Cbales are cus......
Send Inquiry
Product Description
| Data Rate: | 40Gbps | Wire AWG: | 30AWG |
|---|---|---|---|
| Length: | 1m 2m 3m 4m 5m | Connectors: | QSFP+ To QSFP+ |
| Compatible: | Cisco HP Juniper Etc | Package: | PP Bag |
| Color: | Black | Application: | Data Center |
| High Light: | 40Gbps DAC Copper Cable,AWG30 DAC Cable | ||

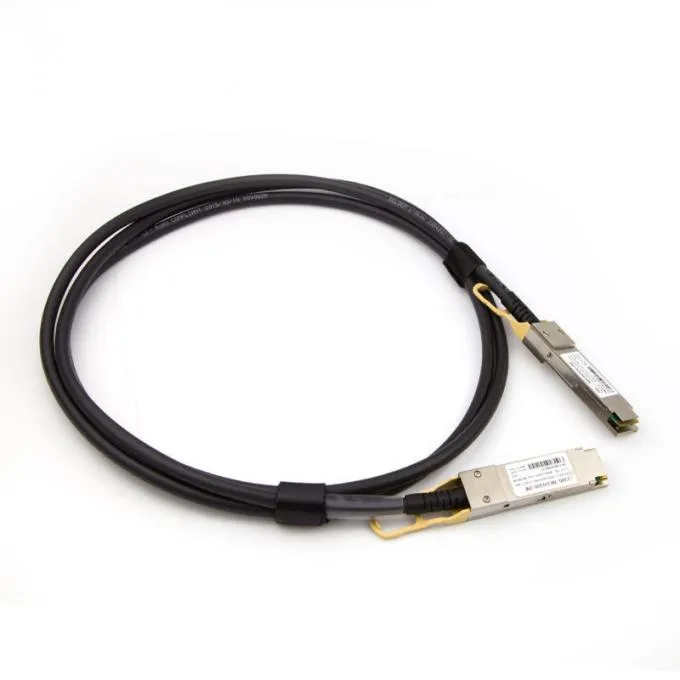

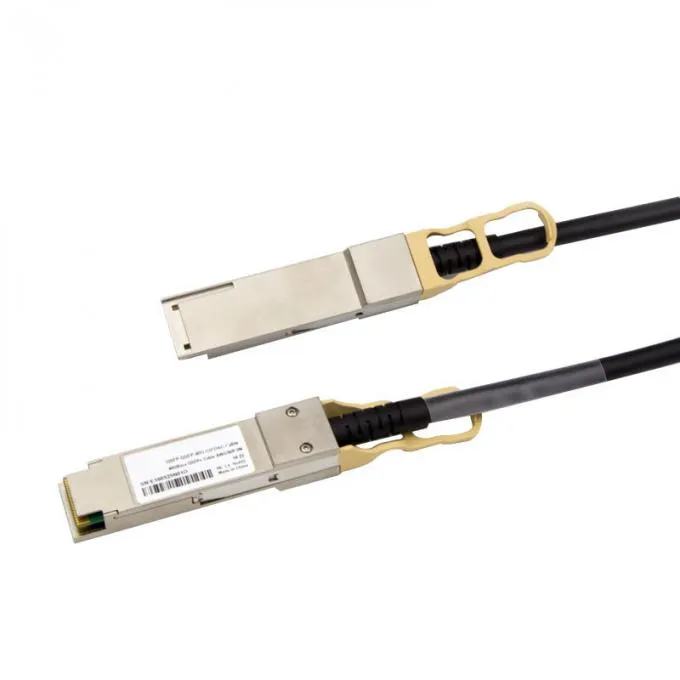

40G QSFP+ to QSFP+ DAC AWG30 Passive Copper cable 1~5m
40G QSFP+ Passive Copper Cbales are customized for an ultra-high performance, cost effective cable solution in 40-Gigabit speed applications including switched fabric I/O, switches, routers, data storage arrays, and high performance computer (HPC) clusters.
Feature
QSFP+ conforms to the Small Form Factor SFF-8436
4-Channel Full-Duplex Passive Copper Cable Transceiver
Support for multi-gigabit data rates :1 Gb/s - 10 Gb/s (per channel)
Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)
Copper link length up to 5m (passive limiting)
High-Density QSFP 38-PIN Connector
Power Supply :+3.3V
Low power consumption: 0.02 W (typ.)
I2C based two-wire serial interface for EEPROM signature which can be customized
Temperature Range: 0~ 70 °C
Applications
10 Gigabit Ethernet 4
40 Gigabit Ethernet
InfiniBand4x SDR, DDR, QDR
2, 4, 8, 10 Gigabit Fiber Channel
Fiber Channel over Ethernet SAS,Servers,Hubs,Switches,Routers
SFP+ DAC, 40G DAC, DAC Cable
Compatibility brand
|
Cisco,HP,Juniper,Finisar,D-Link,Alcatel,etc |
Application
|
Telecommunication |
Power Supply
|
+3.3V |
Operating Temperature
|
0 ºC to 70 ºC |
Wire Gauge
|
30AWG |
Conductor Material
|
Copper |
Data Rate |
40G |
