Mosfet Amplifier 20- 500MHz for Repeater Jammer Modular
PRODUCT DESCRIPTION: This wideband Power Amplifier module is working for VHF & UHF RF bands, model type: PWR-V UHF-WB with aluminum case, it need operating on heatsink. This product are using GaN technology that is able to cover the superwide bandwidth, in this model, it is allowed to do as the ......
Send Inquiry
Product Description
PRODUCT DESCRIPTION:
This wideband Power Amplifier module is working for VHF & UHF RF bands, model type: PWR-V UHF-WB with aluminum case, it need operating on heatsink.
This product are using GaN technology that is able to cover the superwide bandwidth, in this model, it is allowed to do as the following three types of: 10-100MHz, 100-600MHz and 20-500MHz, power range can be customized from 44-50dBm. PA are equiped with over-high VSWR and over-high power protection to avoid/reduce the damage from any misoperation. I/O Port is compatible with DB9 serial port.
More function and parameters are avaiable to customized according to actual requirement.
TECHNICAL SPECIFICATION:
| Item | Parameters | |
| Frequency Range | VHF | 10-100MHz |
| UHF | 100-600MHz | |
| VHF&UHF | 20-512MHz | |
| Gain | ≥44dB | |
| Small Signal Gain Flatness | ≤4dB | |
| Power Gain Flatness | ≤1.5dB | |
| Max Output Power | 25w | ≥44dBm |
| 50w | ≥47dBm | |
| 100w | ≥50dBm | |
| Input Power | 0-5dBm | |
| Harmonics | 3rd harmonics ≥12dBc, 2nd harmonics≥15dBc | |
| Spurious | >60dBc | |
| Input VSWR | ≤1.5 | |
| Output VSWR | ≤2 | |
| Working Voltage | 28VDC | |
| Working Current | 25w | <3.5A |
| 50w | <7A | |
| 100w | <12A | |
| Efficiency | ≥25% @CW | |

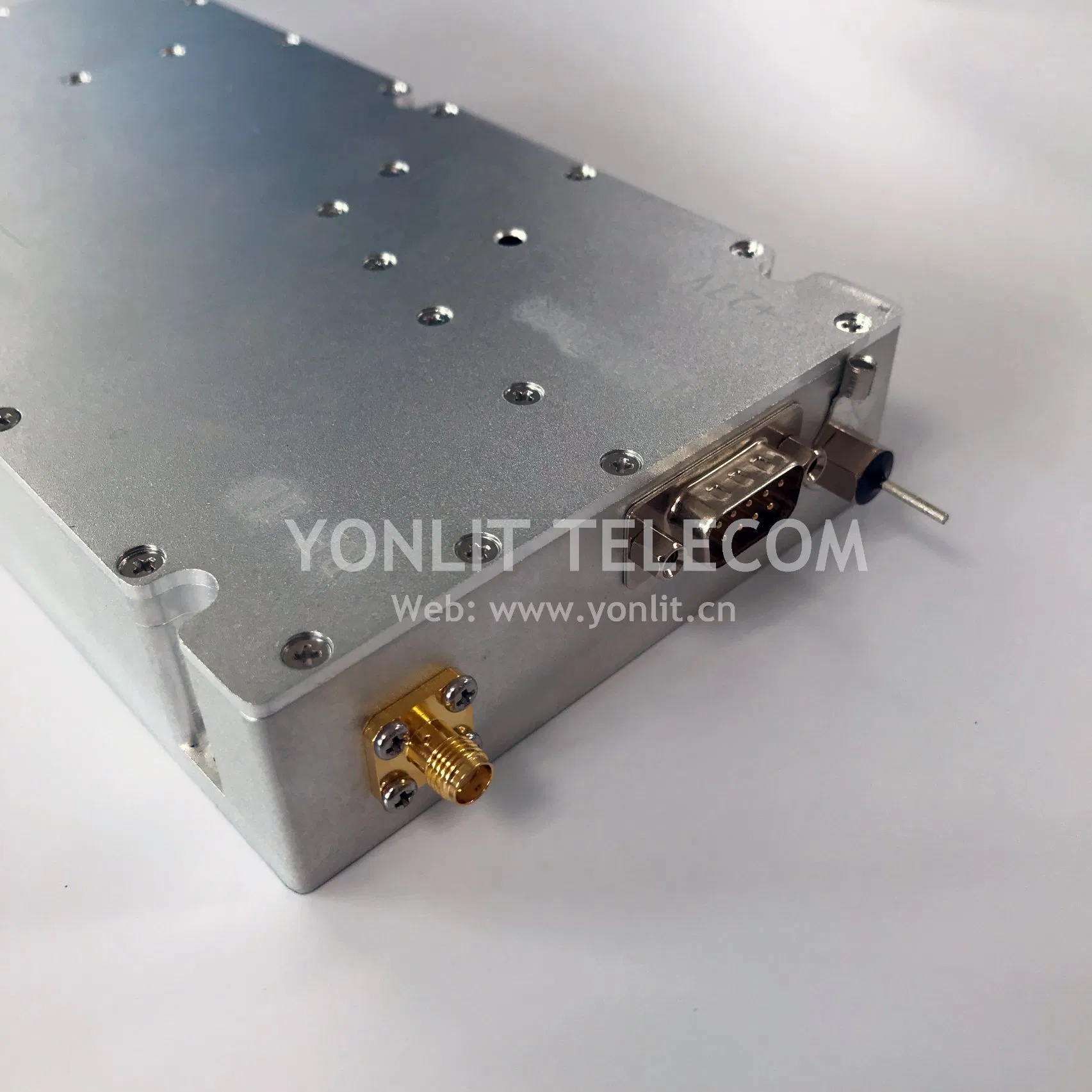

| RF Input Port | SMA-Female | |

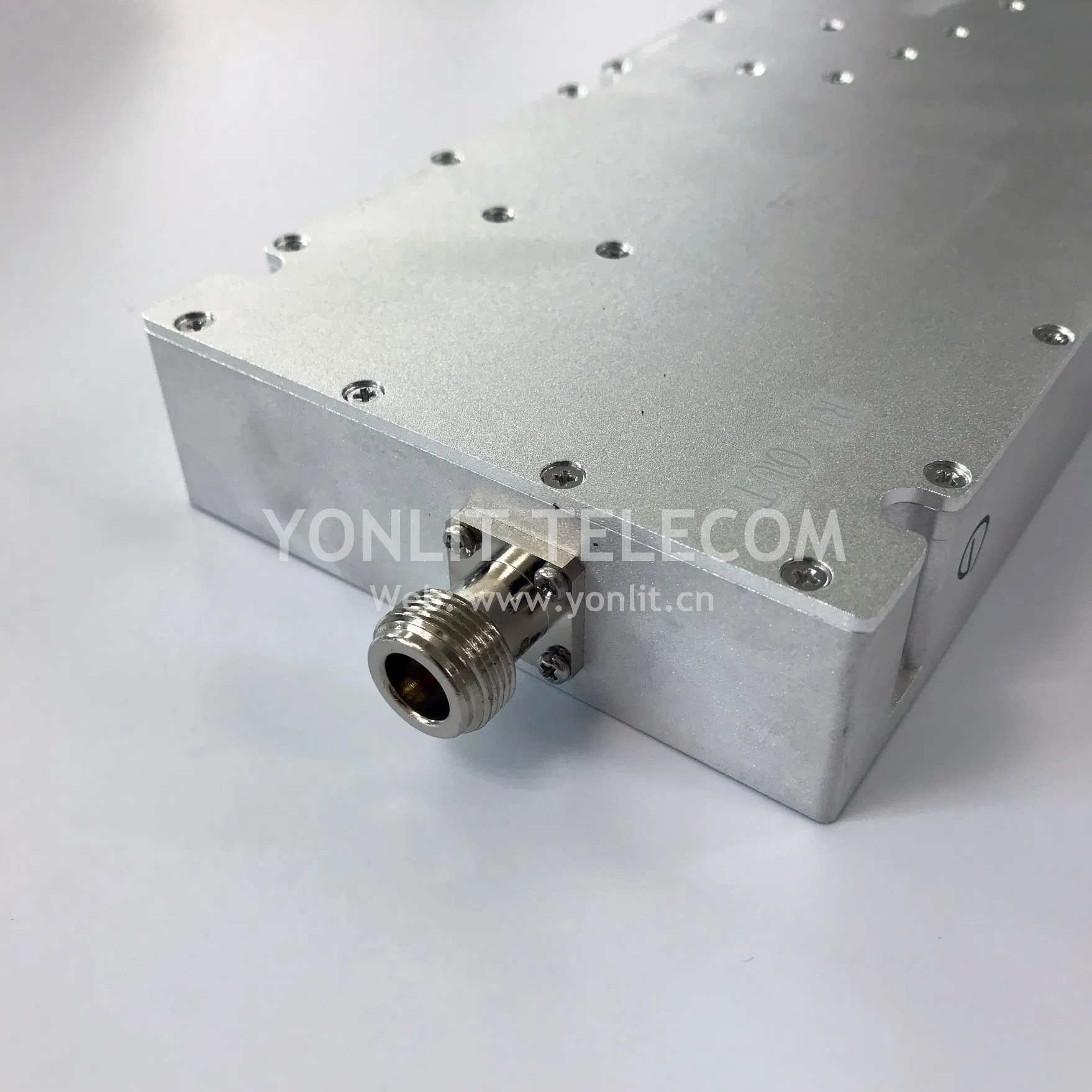

| RF Output Port | SMA-Female or N-Female | |
| Input/output Impedance | 50ohms | |
| Power Supply Interface | Pull-core Capacitor | |
| Working Temperature | -20~+65ºC | |
| Storage Temperature | -40~+85ºC | |
| Size | 136x75x21; 150x88x25; 200x100x31mm | |
| Weight | About 2kg | |
| Protection | Shutdown: Over temperature than 70ºC, Auto-restart will after temp cooling down less than 50ºC | |
| Shutdown: Over high-VSWR, | ||
| After solve the problem, input 5V Pulse to PIN2 for restart PA | ||

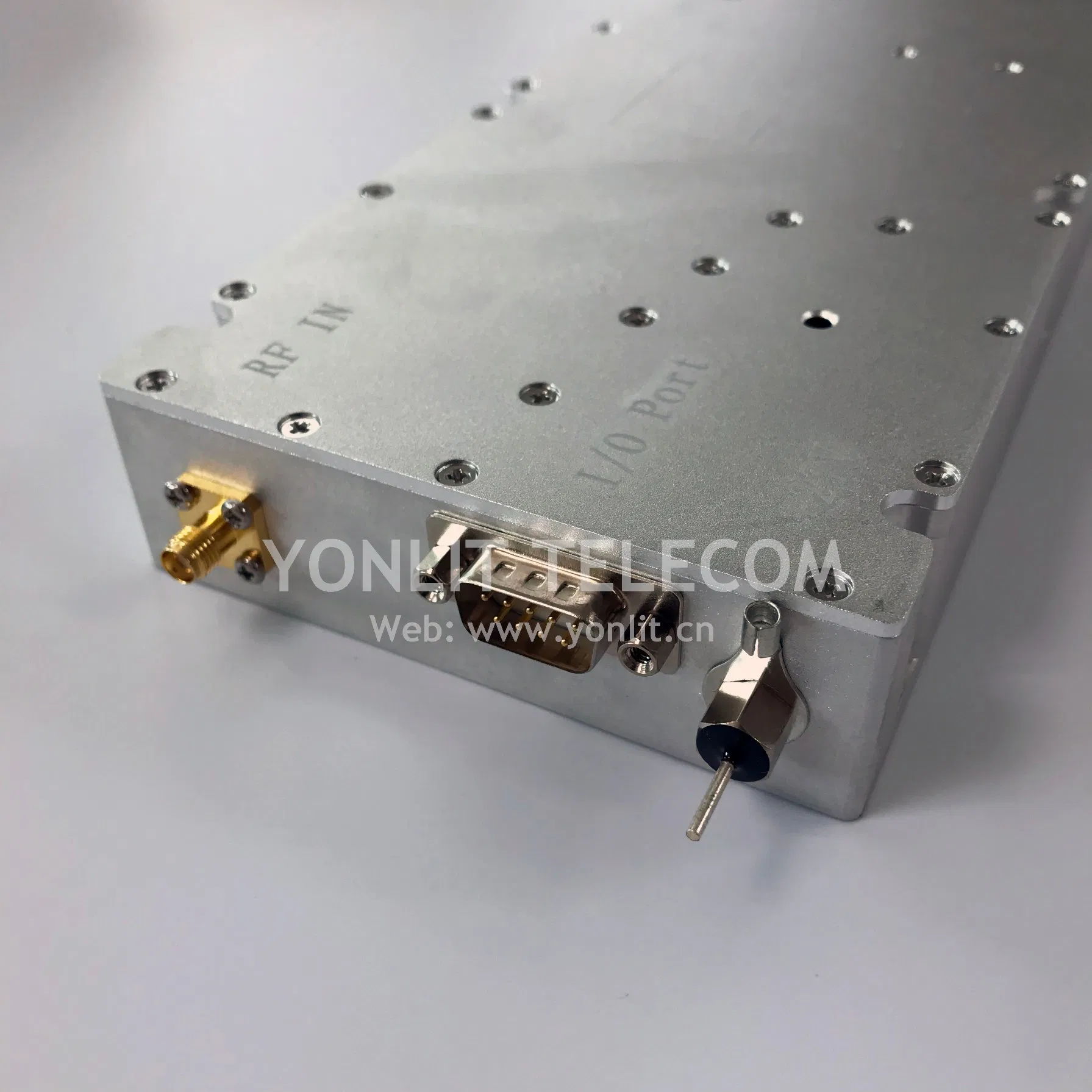

| Monitoring Function I/O Port Definition (DB9, Male) | PIN1: Vin: Indicator of Input Power (Max:4V), or NC. | |
| PIN2: Reset: Input 5V pulse voltage would restart PA after VSWR shutdown | ||
| PIN3: TEMP: Alarm Over-High-Temperature (+5V), and PA shutdown | ||
| PIN4: V-: Indicator of reversed RF power | ||
| PIN5: GND: Grounding | ||
| PIN6 :PTT: (Hanging in air or grouding : PA ON; +5V:PA OFF) | ||
| PIN7: SWR: Alarm Over-high-VSWR (+3V), and PA shutdown | ||
| PIN8: Vt: Indicator of PA Temperature (Vt=0.5V+TC×10mV/ºC) | ||
| PIN9: V+: Indicator of forward Power (Max: 4V) | ||
