Hot Selling 50W DC-3GHz RF 30dB Coaixal Fixed Attenuator N Male to N Female Connector
Products Description50W 30dB RF Attenuator(DC-3GHz, N Male to N Female, IP60)RF attenuators are used in a wide variety of applications in RF circuits. They are a key building block used in many areas of RF design. By its very nature an impedance matched RF attenuator will improve the impedance match......
Send Inquiry
Product Description
| Products Description |

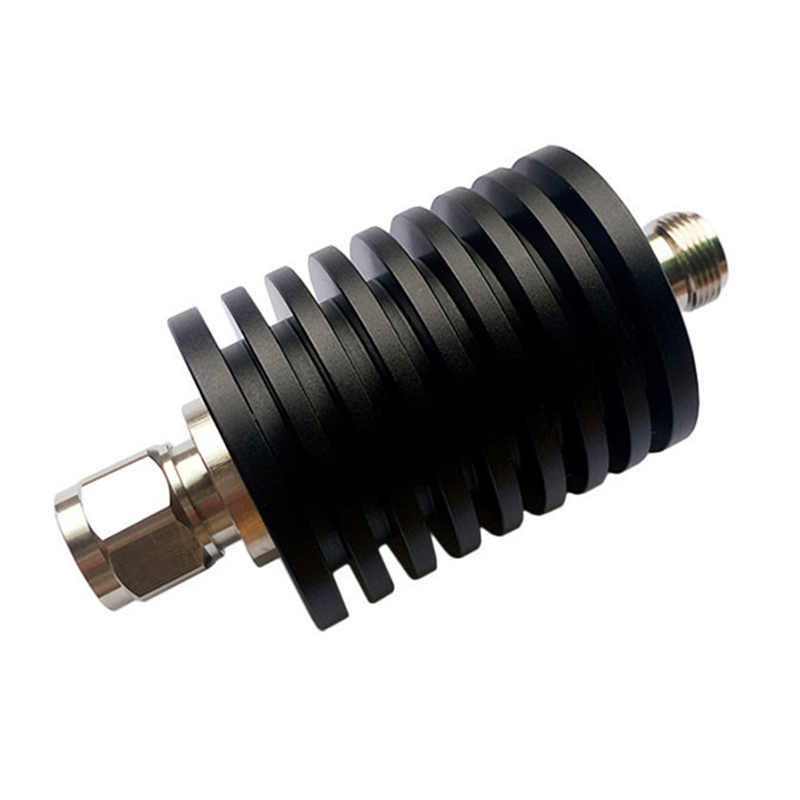

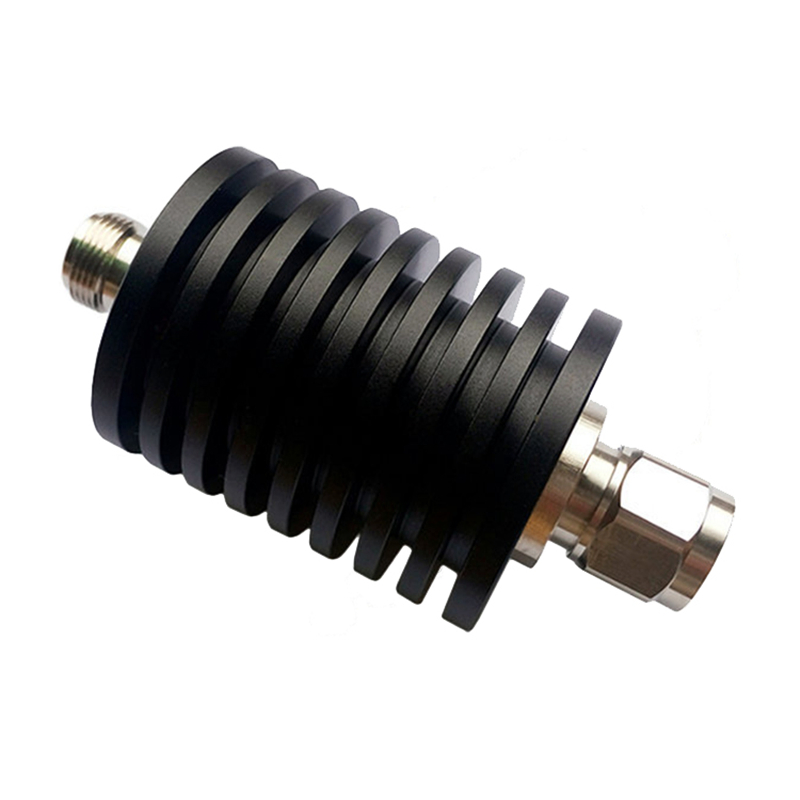

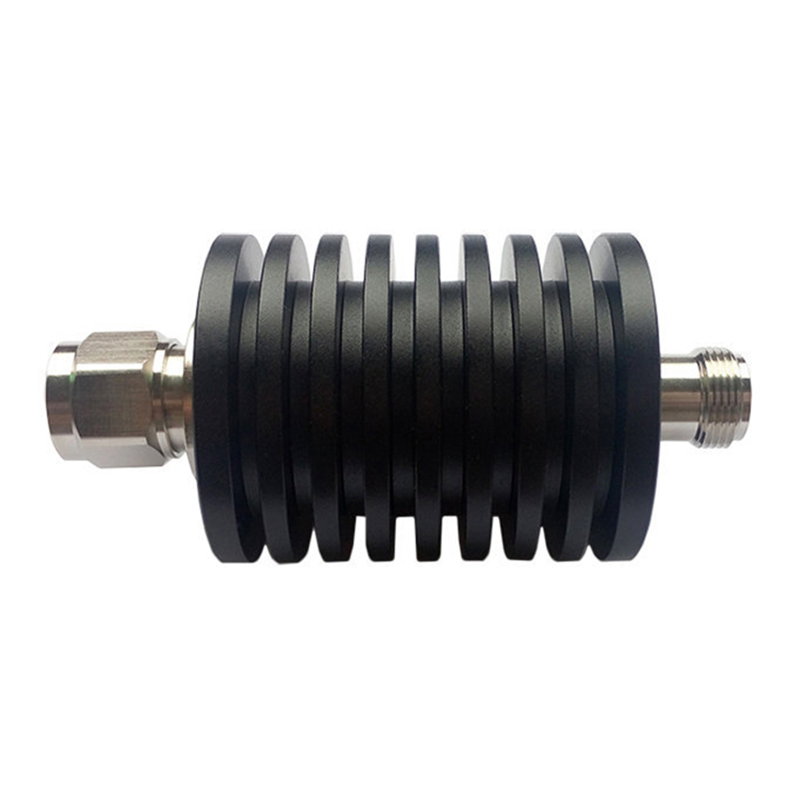

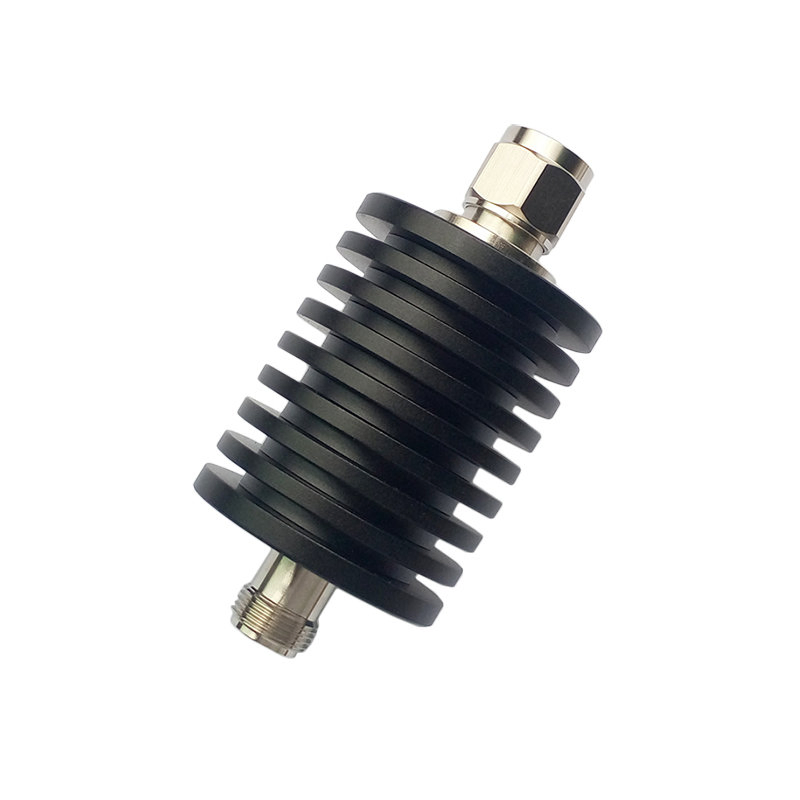

50W 30dB RF Attenuator(DC-3GHz, N Male to N Female, IP60)
RF attenuators are used in a wide variety of applications in RF circuits. They are a key building block used in many areas of RF design. By its very nature an impedance matched RF attenuator will improve the impedance match. This can be very useful when driving RF mixers that are match sensitive and their performance will be degraded if a poor match is seen. RF attenuators are used widely within RF circuits for a variety of reasons. Fortunately these attenuators are easy to design and using surface mount technology their performance can be exceedingly good.
Topwave model TPW-ATT50-30-3-NMF, a 50watt DC-3GHz 30dB coaxial fixed RF attenuator with N-male to N-female connector, is a typical one. The attenuator can be available to 6GHz, 12GHz and 18GHz, stocks in type N, 7/16DIN and 4.3-10 connectors.
RF attenuators are used in a wide variety of applications in RF circuits. They are a key building block used in many areas of RF design. By its very nature an impedance matched RF attenuator will improve the impedance match. This can be very useful when driving RF mixers that are match sensitive and their performance will be degraded if a poor match is seen. RF attenuators are used widely within RF circuits for a variety of reasons. Fortunately these attenuators are easy to design and using surface mount technology their performance can be exceedingly good.
Topwave model TPW-ATT50-30-3-NMF, a 50watt DC-3GHz 30dB coaxial fixed RF attenuator with N-male to N-female connector, is a typical one. The attenuator can be available to 6GHz, 12GHz and 18GHz, stocks in type N, 7/16DIN and 4.3-10 connectors.
| Features & Benefits |
·Wide Frequency Band Coverage
·Good Performance in Attenuation Accuracy
·Low VSWR
·Indoor Using IP60
·Available with Type N, 7/16DIN, 4.3/10, SMA, TNC, BNC, QMA Type Connectors
| Electrical & Mechanical Specifications |
| Model No. | TPW-ATT50-30-3-NMF |
| Attenuation(dB) | 30 |
| Accuracy(dB) | ±2.5 |
| Freq(MHz) | DC-3GHz |
| VSWR | ≤1.20 |
| Power Rating(W) | 50W (average Per Port) |
| Impedance | 50 ohm |
| Connector | N-male to N-female |
| Color | Black |
| Relative Humidity | 5-95% |
| Operating Tem(ºC) | -35°C to +65°C |
| Weight(kg) | 0.50 |
| Related Products |

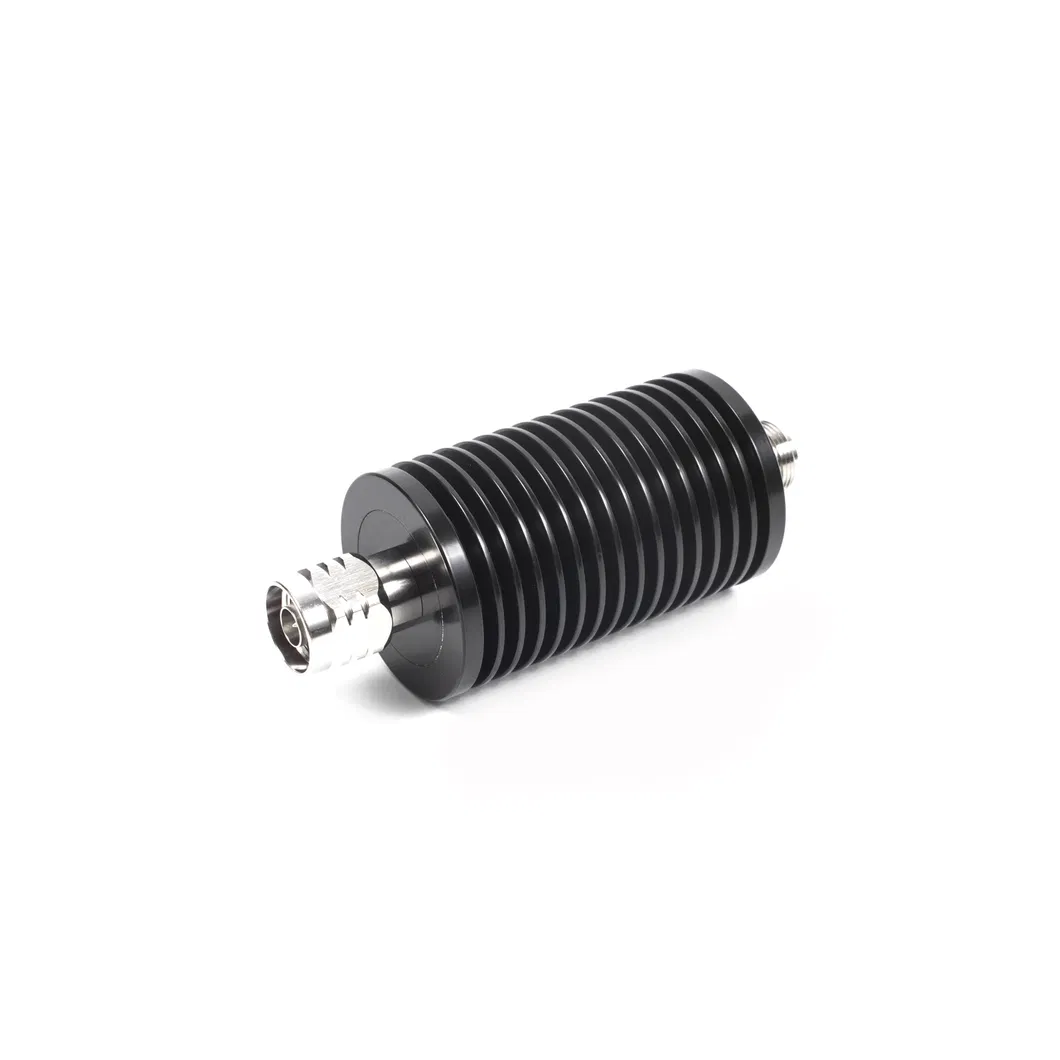

50ohm Rotary Variable Step Attenuator Coaxial Fixed Attenuator 20dB 4.3-10 Male to Female 698-4000MHz Low Pim RF Dummy Load 4.3-10 Male
