Eoc Bridge Cldo-0206rj
Product DescriptionCLDO-0206RJ is an EOC bridge for outdoor use with following features:Support coaxial cable power supply AC 60V/10A;Low insertion loss, high isolation;Metal shell, waterproof, dustproof, good EMI shielding.Application & StandardsApplication: Ethernet Over Coaxial cableComply wi......
Send Inquiry
Product Description
Product Description
CLDO-0206RJ is an EOC bridge for outdoor use with following features:
Support coaxial cable power supply AC 60V/10A;
Low insertion loss, high isolation;
Metal shell, waterproof, dustproof, good EMI shielding.
Application & Standards
Application: Ethernet Over Coaxial cable
Comply with: GY/T 137-1999
Operation Environment
Temperature:
Operating: -40°C to +70°C
Storage: -40°C to +70°C
Humidity: 0%-100% non-condensing

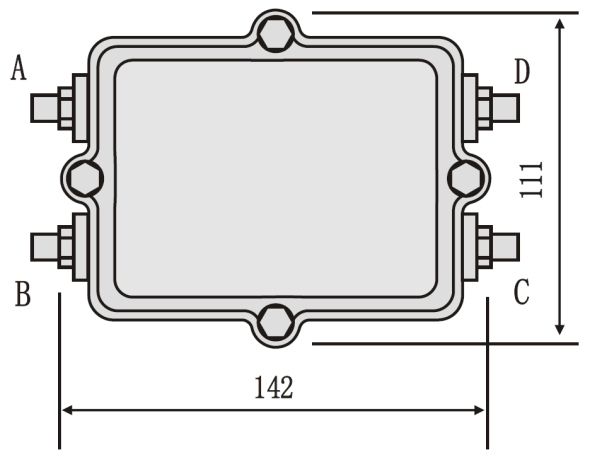

Outline Dimensions
CLDO-0206RJ is an EOC bridge for outdoor use with following features:
Support coaxial cable power supply AC 60V/10A;
Low insertion loss, high isolation;
Metal shell, waterproof, dustproof, good EMI shielding.
Application & Standards
Application: Ethernet Over Coaxial cable
Comply with: GY/T 137-1999
Operation Environment
Temperature:
Operating: -40°C to +70°C
Storage: -40°C to +70°C
Humidity: 0%-100% non-condensing
Outline Dimensions
| Test item | Condition/Requirement |
| Impedance | 75Ω |
| Power Pass | 63VAC 10A |
| Insertion loss | 5-65MHz ≤3.0dB (B Port_C Port or C Port_B Port ) |
| 87-860MHz≤1.5dB (B Port to A Port , C Port to D Port ) | |
| Return loss | 5-65MHz ≥16.0dB |
| 87-860MHz ≥16.0 dB | |
| Out of Band Suppression | 87-860MHz ≥50.0 dB (B Port_C Port or C Port_B Port ) |
| 5-65MHz ≥50.0dB (B Port to A Port , C Port to D Port ) | |
| Isolation(LP-HP) | 5-860MHz ≥50.0dB |
| Connector Type | F |
