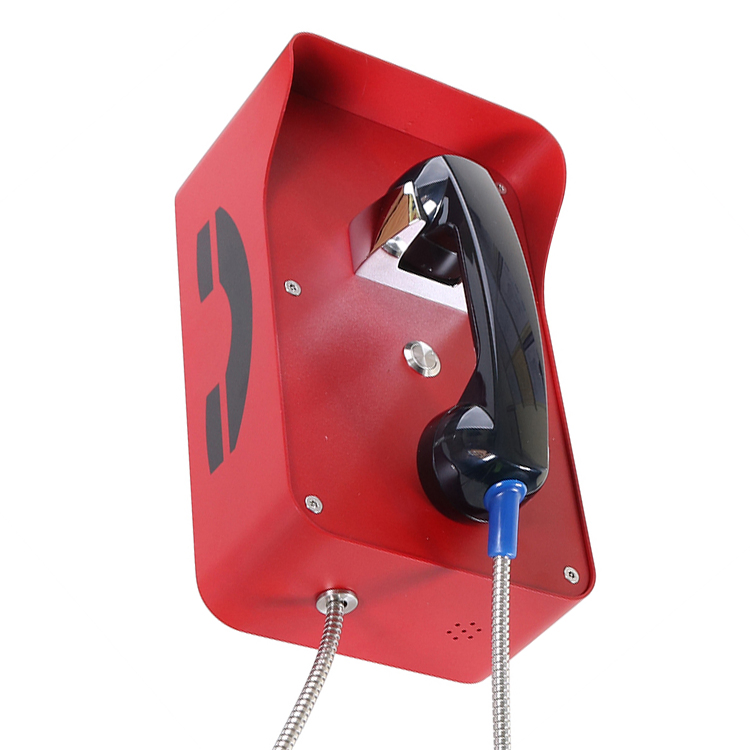

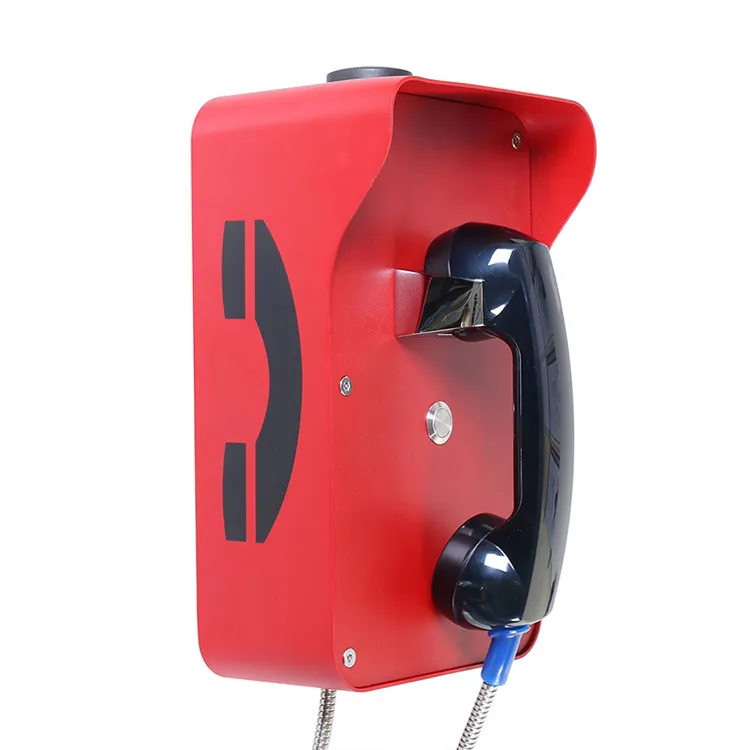

Emergency Hotline Intercom Speed Dial Vandal Resistant Telephone for Highway

Product Description

Emergency Hotline Intercom Speed Dial Vandal Resistant Telephone for Highway

This Telephone is housed in cold rolled steel box and manufactured to a high standard, it offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF. Ideal for parking lots, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, inside and outside building etc.
Emergency Hotline Intercom Speed Dial Vandal Resistant Telephone for Highway

Main Features

Emergency Hotline Intercom Speed Dial Vandal Resistant Telephone for Highway

- Standard Analogue Telephone
- Robust housing, constructed of cold rolled steel
- On wall mounting, simple intallation
- One button for speed dial
- Vandal resistant Handset and Cord
- Weather proof protection: IP55-IP65
- Inductive coupler fitted as standard for hard of hearing
- Tamper resistant fixings
- Fast-fit terminal connection
- Can be programmed remotely by tone phone or locally via keypad
- Non-volatile memory
- Telephone line powered (Analogue)
- Weatherproof and corrosion resisitant handset
- Stainless steel armoured handset cord
- CE, FCC, RoHS, ISO9001 compliant

Specification

Emergency Hotline Intercom Speed Dial Vandal Resistant Telephone for Highway

TECHNICAL SPECIFICATION:
Operating Temperatures: -40°C to + 70°C
Relative humidity high: 93% R.H at 40°C (non condensing)
Casing Material: Heavy Duty aluminium (salt & corrosion resistant)
Illuminated LCD Display: for status notifications and instructions
Flashing Light: ideal for noisy areas where a ring may not be heard, or for easy location inside dark tunnels etc
Excellent Sound Quality: STI approved to 0.9 (Excellent Sound)
Ringing volume: 80 dB(A) in 1m distance
Power Supply: 24V DC input, or Power over Ethernet (PoE).
Connection: RJ45 Ethernet socket through IP67 plug connector.
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP. Mass configuration available.
Keypad Option: available without a keypad (autodial-on-handset-lift),used to initiate a PABX Hotline or wait for reply.
Remote Management: Available with remote management software,to simplify installation and cut maintenance costs.

Analogue Version
Power Supply	From the analogue telephone network
Supply Voltage	24 VDC to 65 VDC
Supply Current	20 mA DC to 100 mA DC
Ringer Volume	- 80dB(A) at a distance of 1 m
Ringer Volume	- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method	DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply	PoE or 12V DC
Power Consumption	-Idle:1.5W -Active:1.8W
SIP Protocol	SIP 2.0 (RFC3261)
Support Codec	G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type	Full duplex
Ringer volume	- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
3G Version
Power Supply	12V DC
Power Consumption	-Idle:0.3W -Active: 1.5W
Communication Type	Full duplex
Ringer volume	90~95dB(A) at a distance of 1 m
Program Method	Remote programming by SMS
Frequency	A version: - Dual-Band WCDMA/HSDPA 850/1900MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz E version: - Dual-Band UMTS/HSDPA 900/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
Ambient conditions
Protection type	IP 66 as per EN60529
Operating temperature	-25°C to +70°C
Storage temperature	-25°C to +85°C

Application

Emergency Hotline Intercom Speed Dial Vandal Resistant Telephone for Highway

This vandal resistant telephone is Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
