Drone Uav Jammer PA Wide Band GSM WCDMA
PRODUCT DESCRIPTION:This Power Amplifier module is working for General RF Bands, model type: PWR-GNR-210 with aluminum case and cooper base, it need operating on heatsink.Output power can be suit in this design from 43dBm to 50dBm with more than 25% efficiency, and it can keep stable working over -2......
Send Inquiry
Product Description
PRODUCT DESCRIPTION:

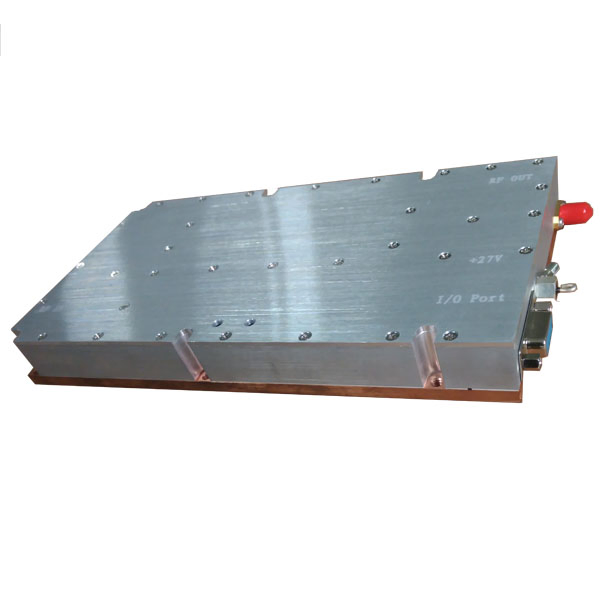

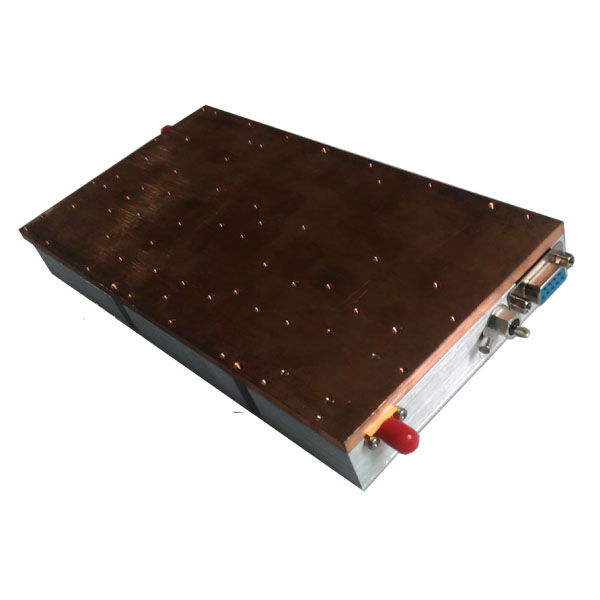

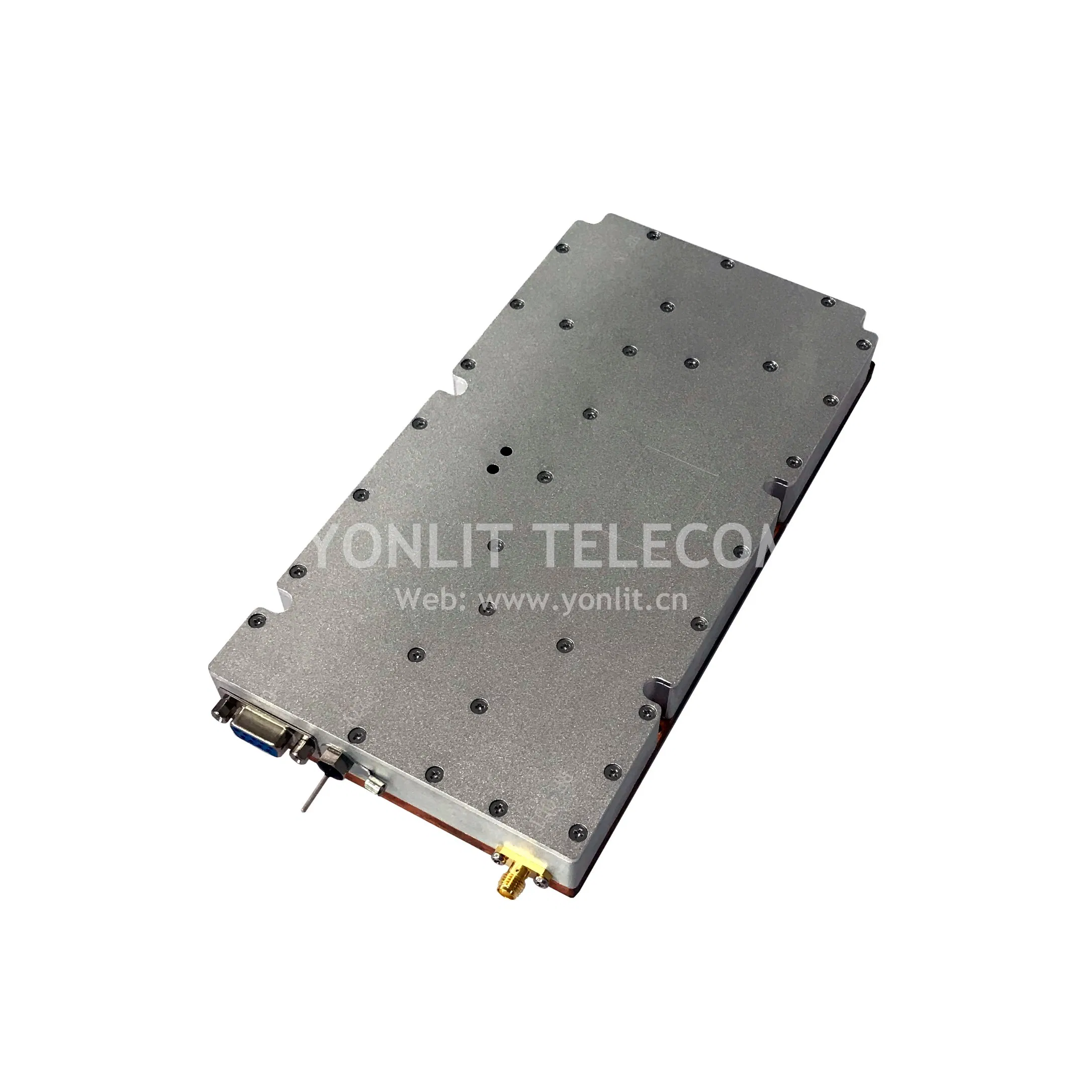

This Power Amplifier module is working for General RF Bands, model type: PWR-GNR-210 with aluminum case and cooper base, it need operating on heatsink.
Output power can be suit in this design from 43dBm to 50dBm with more than 25% efficiency, and it can keep stable working over -20~65ºC. PA are equiped with over-high VSWR and over-high power protection to avoid/reduce the damage from any misoperation. I/O Port is compatible with DB15 serial port and RS485.
More function and parameters are avaiable to customized according to actual requirement.
TECHNICAL SPECIFICATION:
| Item | Parameters |
| Frequency Range | 1805-1880MHz |
| Customized | |
| Gain | >45dB |
| Input Range | 3-8dBm |
| Max RF Output Power | 47dBm |
| Gain Adjust Range | 31dB,1dB Step |
| In-Band Ripple | 2dB |
| Input/Output VSWR | ≤1.5 |
| Working Voltage | 27VDC |
| Working Current | <11A |
| RF Input/ Output Ports | SMA -Female |
| Power Supply Interface | Pull-core Capacitance |
| Working Temperature | -20~+65ºC |
| Dimension | 210*110*25mm |
| Weight | <2Kg |
| Protection Optional | Shutdown over 75ºC, Auto-restart after PA cooling down than 50ºC |
| High VSWR: shutdown over High-VSWR, Auto-restart after 30s | |
| I/O Port Monitoring function (DB15,Female) Optional | PIN1: 1dB(Hang in air or add 5VDC: No attenuation; Grounding: attenuation) |
| PIN2: 2dB(Hang in air or add 5VDC: No attenuation; Grounding: attenuation) | |
| PIN3: 4dB(Hang in air or add 5VDC: No attenuation; Grounding: attenuation) | |
| PIN4: 8dB(Hang in air or add 5VDC: No attenuation; Grounding: attenuation) | |
| PIN5: 16dB(Hang in air or add 5VDC: No attenuation; Grounding: attenuation) | |
| PIN7: VSWR (Reflected RF Power Indicator; Max voltage:4V) | |
| PIN10:P/L (Output RF Power Indicator; Max voltage:4V) | |
| PIN11: LE /EN (5V: PA OFF; Hang in air or grounding: PA ON) | |
| PIN14: T/L(Temperature Indicator :Vt=0.5V+TC×10mV/Celsius) | |
| PIN6, PIN8,PIN9,PIN12,PIN13: NC | |
| I/O Port (DB9, Female, RS485) Optional | PIN1,PIN2: RS485A; PIN3,PIN4: RS485B; PIN5: GND |
| RS485 (With free PC software) | |
| Data Protocol: China Mobile Standard | |
| Setting: ON/OFF, ATT, Gain, Alarm Temperature, Alarm VSWR | |
| Monitoring: RF Power, VSWR, Temperature, ATT, Gain, Alarms | |
| PS: Items marked with "Optional" are not standard items, if need those functions should info us before production. | |
