Product Description

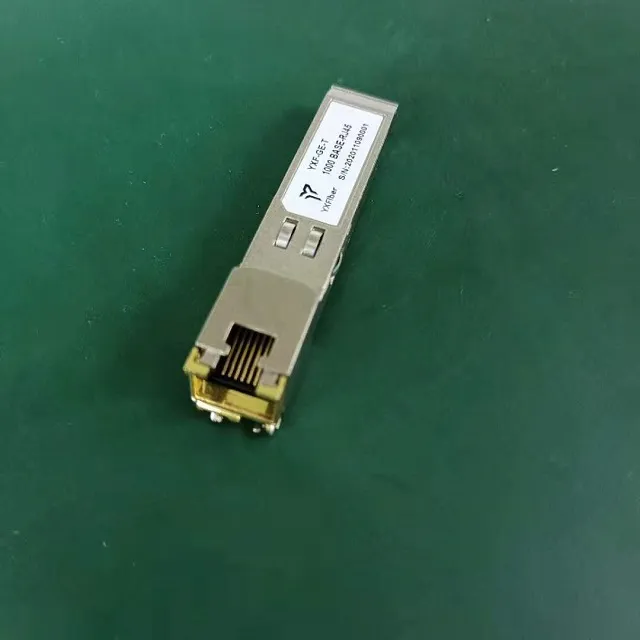

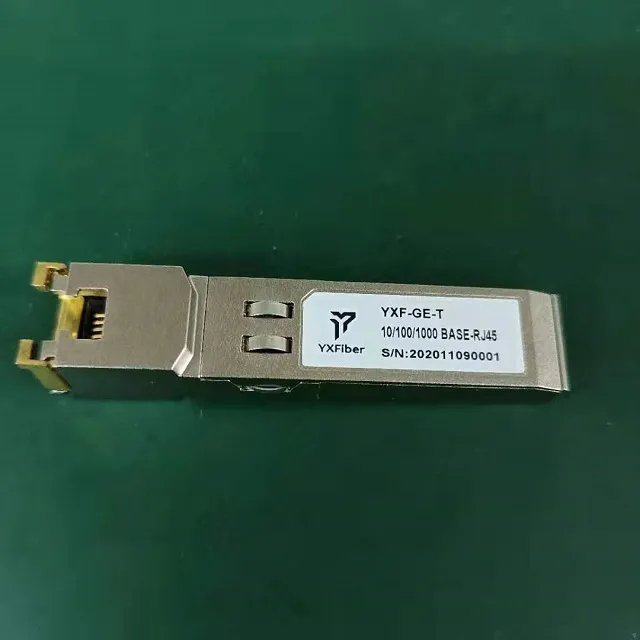

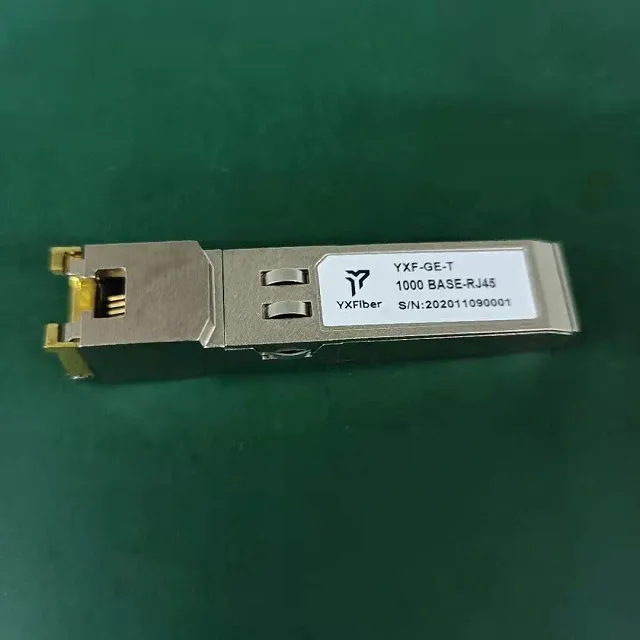

Competitive Price 10/100/1000 Base-RJ45 Connector 100m SFP Optic Copper Transceiver
Features :
• Support 10/100/1000BASE-T Operation in Host Systems with SGMII interface
• 100m transmission over Cat 5 UTP Cable
• Hot-Pluggable SFP Footprint
• Fully metallic enclosure for low EMI
• Low power dissipation (1.05 W typical)
• The compact RJ-45 connector assembly
• Access to physical layer IC via a 2-wire serial bus
• Detailed product information in EEPROM • Commercial Temperature Range: 0~70ºC
Application:
• LAN 10/100/1000Base-T
• Gigabit Ethernet over Cat 5 Cable
• Switch to Switch Interface
• Router/Server Interface
Description:
SFP-GB-GE-T is a 10/100/1000BASE-T Copper Small Form Pluggable (SFP), which is based on the SFP Multi Source Agreement (MSA). It is compliant with the Gigabit Ethernet standard as pecified in IEEE STD 802.3 and can fully satisfy the 10/100/1000BASE-T application.
Pin Descriptions:
| Pin Descriptions | ||||
| Pin | Signal Name | Description | Plug Seq. Notes | Notes |
| 1 | VeeT | Transmitter Ground | 1 | |
| 2 | TX FAULT | Transmitter Fault Indication | 3 | Note1 |
| 3 | TX DISABLE | Transmitter Disable | 3 | Note2 |
| 4 | MOD_DEF(2) | SDA Serial Data Signal | 3 | Note3 |
| 5 | MOD_DEF(1) | SCL Serial Clock Signal | 3 | Note3 |
| 6 | MOD_DEF(0) | TTL Low | 3 | Note3 |
| 7 | Rate Select | Not Connected | 3 | |
| 8 | LOS | Loss of Signal | 3 | Note4 |
| 9 | Veer | Receiver ground | 1 | |
| 10 | Veer | Receiver ground | 1 | |
| 11 | Veer | Receiver ground | 1 | |
| 12 | RX- | Inv. Receiver Date Out | 3 | Note5 |
| 13 | RX+ | Receiver Date Out | 3 | Note5 |
| 14 | VeeR | Receiver ground | 1 | |
| 15 | VccR | Receiver Power Supply | 2 | |
| 16 | VccT | Transmitter Power Supply | 2 | |
| 17 | VeeT | Transmitter Ground | 1 | |
| 18 | TX+ | Transmit Date In | 3 | Note6 |
| 18 | TX- | Inv. Transmit Date In | 3 | Note6 |
| 20 | VeeT | Transmitter Ground | 1 | |

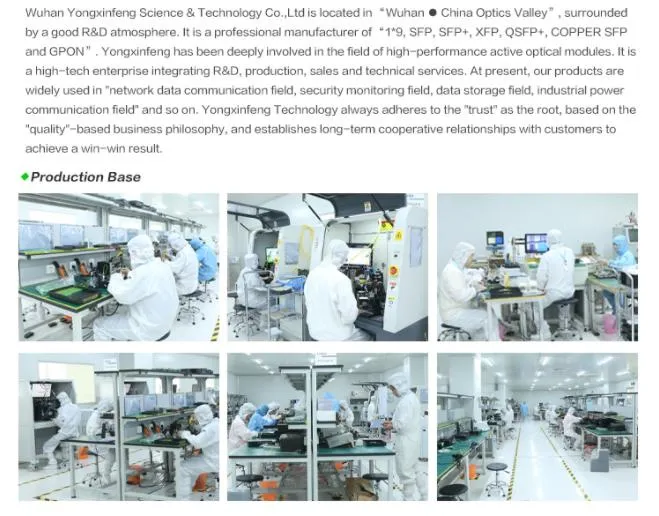

Company Information:
Packing information:
RFQ:1, What is your main products?
Dual SFP Modules, BIDI SFP Modules,10G SFP+ Modules, Copper SFP, 10G XFP Modules, DWDM SFP+, 40G QSFP+ Modules, 100G QSFP28 Modules, DAC Cable, AOC Cable
2, What is your terms of payment?
Payment ≤5000USD, 100% T/T in advance,
Payment >5000USD, 40% T/T in advance, 60% balance before delivery.
3, Can you offer samples for testing?
Yes, we can supply samples for testing by customers international express account, such as UPS/DHL/TNT, etc.
4, What is your terms of packing?
Generally, we pack our goods in neutral brown cartons. 50pcs per inner carton, 150pcs per outer carton or 250pcs per outer carton.
5, What about the lead time?
For usual products, we keep stock, could ship 1-3 days after receiving customers' payment. For big quantity and special products, please check lead time with our foreign sales.
6, Can I get a lower price? Any discount?
Yes, price could be negotiated based on the quantity.
7, What is your after-sales service? How about the warranty?
All our customers can enjoy the after-sales service for one year warranty and lifetime technical support.
