Home > Products > Communication Module > Compatible 10g 20km 1310nm Sm LC Ddm Duplex Optic Module XFP
Compatible 10g 20km 1310nm Sm LC Ddm Duplex Optic Module XFP
10G XFP 1310nm 20km Optical Telecommunication Transceiver Form TypeXFPMax Data Rate10GWavelength1310nmMax Cable Distance*20KMConnectorDUAL LCTransmitter TypeDFB/PINProtocolsMSA CompliantDDM/DOMSupportedTX Power-6-0dBmReceiver Sensitivity<--14.5dBmWarranty1 yearCertificationCE ROHS ISO9001Features......
Send Inquiry
Product Description
10G XFP 1310nm 20km Optical Telecommunication Transceiver
Features :
Application:
Functional Diagram:
Products Details:
Related products:
Our Advantages:
Packing and Shipping:
Q&A
Q: What kinds of custom choices are offered in YXFiber?
A: As for customized transceivers, YXFiber offers regular custom choices such as compatibility, transmission distance, operating temperature, label pattern, label colors and etc. What's more, YXFiber welcomes any inquiry for customized products and solutions for all need and specifications.
Q: Why should I trust YXFiber compatible transceivers?
A: Besides the price advantage, we have compared to branded transceivers, YXFiber compatible transceivers also maintain the same performance and reliability. To satisfy our customers' needs of high performance, all of our transceivers are tested multiple times in mainstream original brand switches in our test center before shipped out.
Q: Can we use APC connectors on this?
A: Hi, as the default type is UPC, so it's only can be connected with UPC connectors. Thanks
Q: Once I place an order for my transceivers, how long will it take to receive them?
A: Normally you can receive the goods within 7 workdays
Q: Will using compatible optics in my equipment negatively affect my manufacturer's warranty?
A: No. Network equipment manufacturers do not require that you use only name-brand optics. In fact, when a product fault or defect occurs in the network, and the fault or defect is not attributable to the use of third-party optics, they will continue to provide support for the affected product under warranty or covered by their support program.
| Form Type | XFP | Max Data Rate | 10G |
| Wavelength | 1310nm | Max Cable Distance* | 20KM |
| Connector | DUAL LC | Transmitter Type | DFB/PIN |
| Protocols | MSA Compliant | DDM/DOM | Supported |
| TX Power | -6-0dBm | Receiver Sensitivity | <--14.5dBm |
| Warranty | 1 year | Certification | CE ROHS ISO9001 |
Features :
•Supports 9.95 to 11.3Gb/s bit rates
•Duplex LC connector
•Hot-pluggable XFP footprint
•Uncooled 1310nm DFB laser ,PIN photo-detector
•Applicable for 20km SMF connection
•Low power consumption, <1.5W
•Digital Diagnostic Monitor Interface
•No Reference Clock required
•Operating case temperature:
Commerical:0 to 70 °C
Industrial:-40 to 85°C
Application:
•10GBASE-LR/LW 10G Ethernet
•10G Fibre Channel
•10G CPRI
•Other optical link

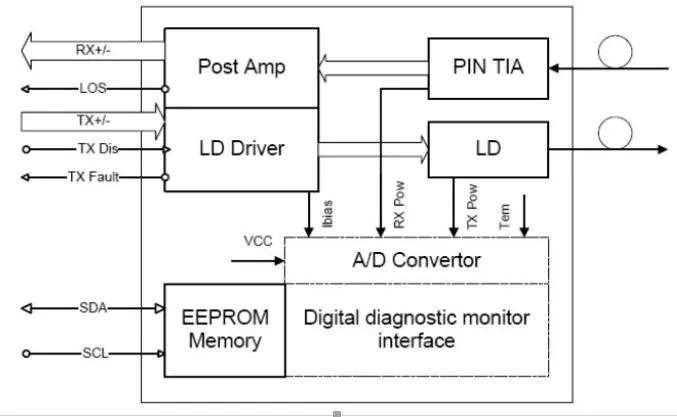

Functional Diagram:

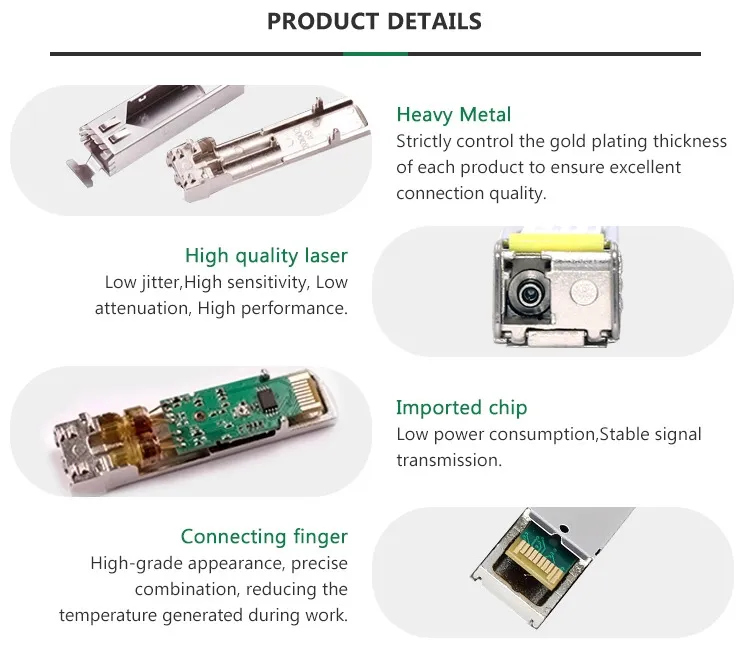

Products Details:
Related products:
Our Advantages:
Packing and Shipping:
Q&A
Q: What kinds of custom choices are offered in YXFiber?
A: As for customized transceivers, YXFiber offers regular custom choices such as compatibility, transmission distance, operating temperature, label pattern, label colors and etc. What's more, YXFiber welcomes any inquiry for customized products and solutions for all need and specifications.
Q: Why should I trust YXFiber compatible transceivers?
A: Besides the price advantage, we have compared to branded transceivers, YXFiber compatible transceivers also maintain the same performance and reliability. To satisfy our customers' needs of high performance, all of our transceivers are tested multiple times in mainstream original brand switches in our test center before shipped out.
Q: Can we use APC connectors on this?
A: Hi, as the default type is UPC, so it's only can be connected with UPC connectors. Thanks
Q: Once I place an order for my transceivers, how long will it take to receive them?
A: Normally you can receive the goods within 7 workdays
Q: Will using compatible optics in my equipment negatively affect my manufacturer's warranty?
A: No. Network equipment manufacturers do not require that you use only name-brand optics. In fact, when a product fault or defect occurs in the network, and the fault or defect is not attributable to the use of third-party optics, they will continue to provide support for the affected product under warranty or covered by their support program.
