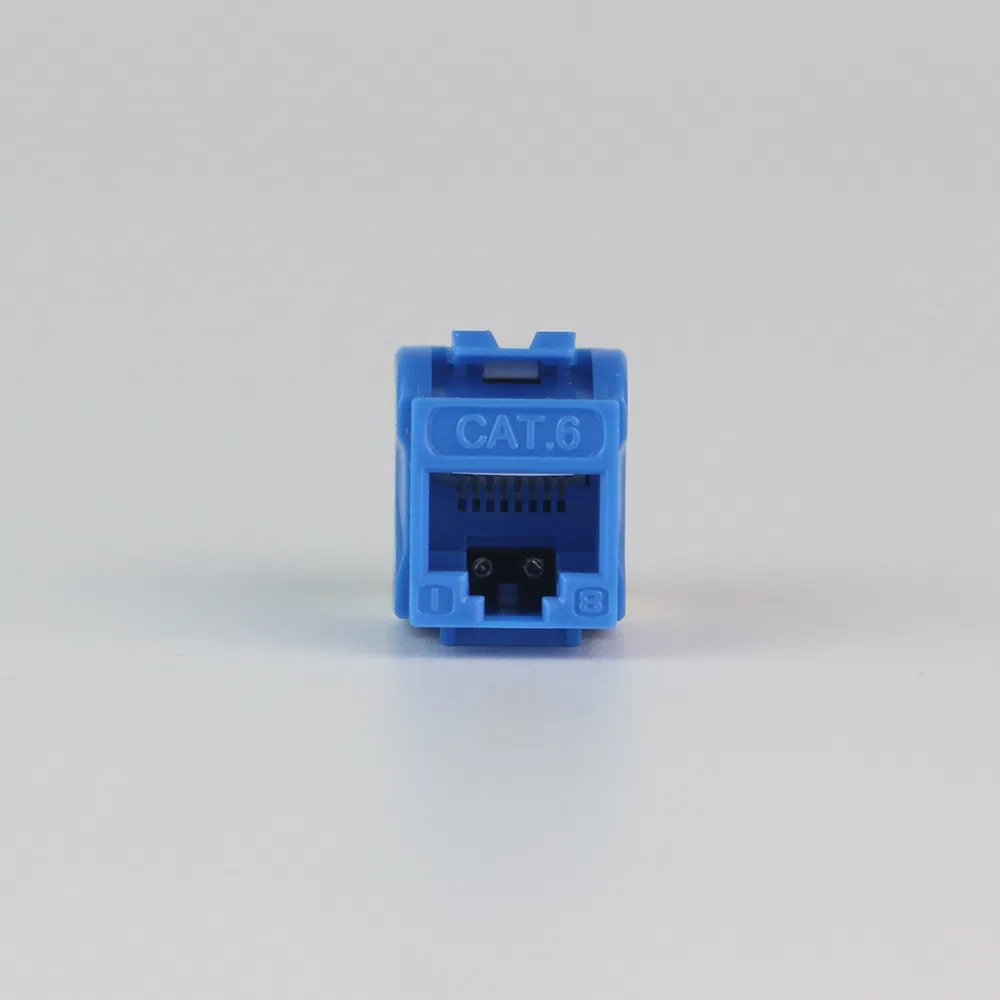

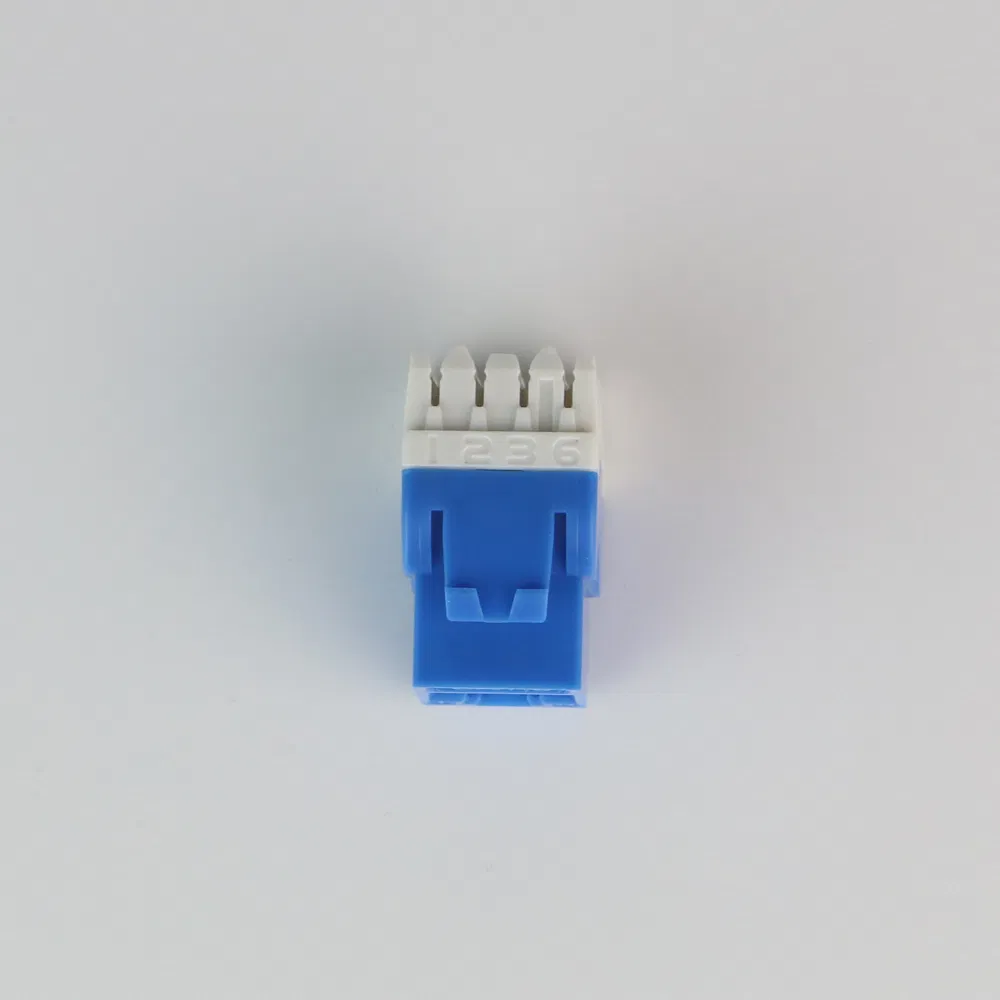

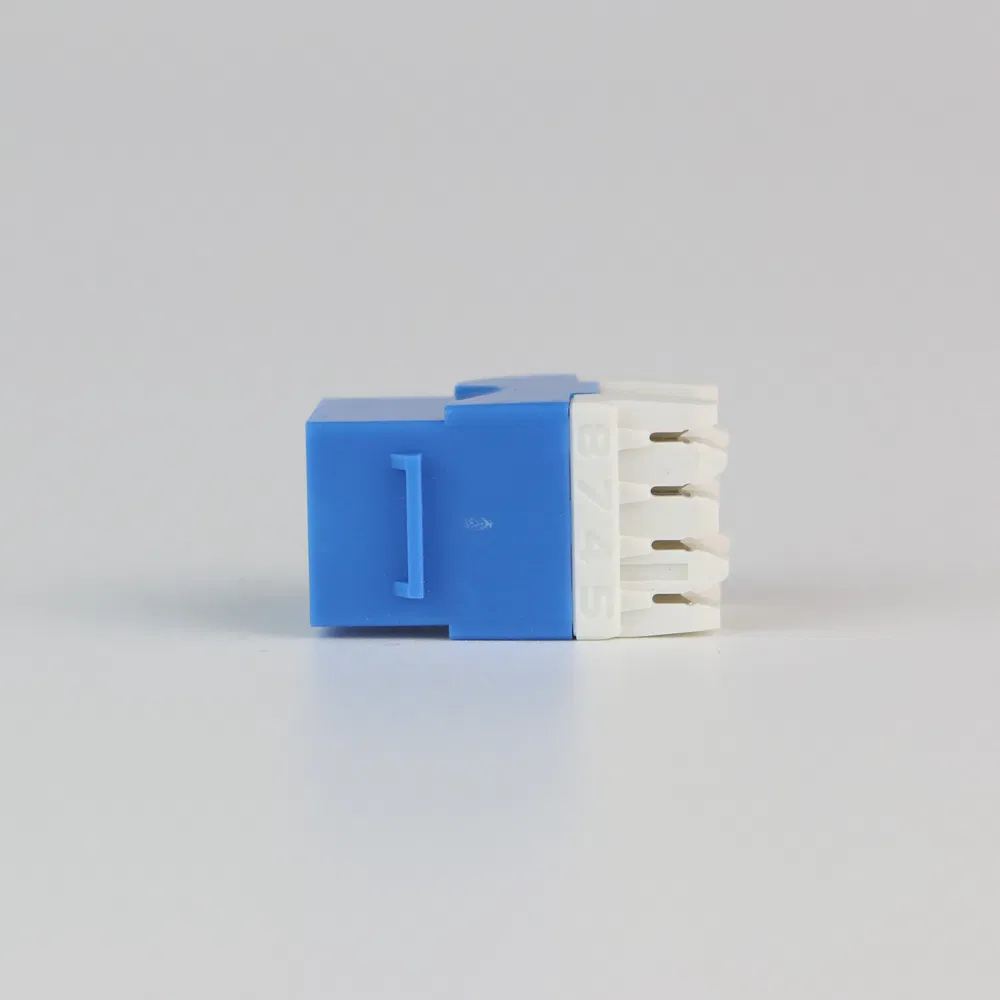

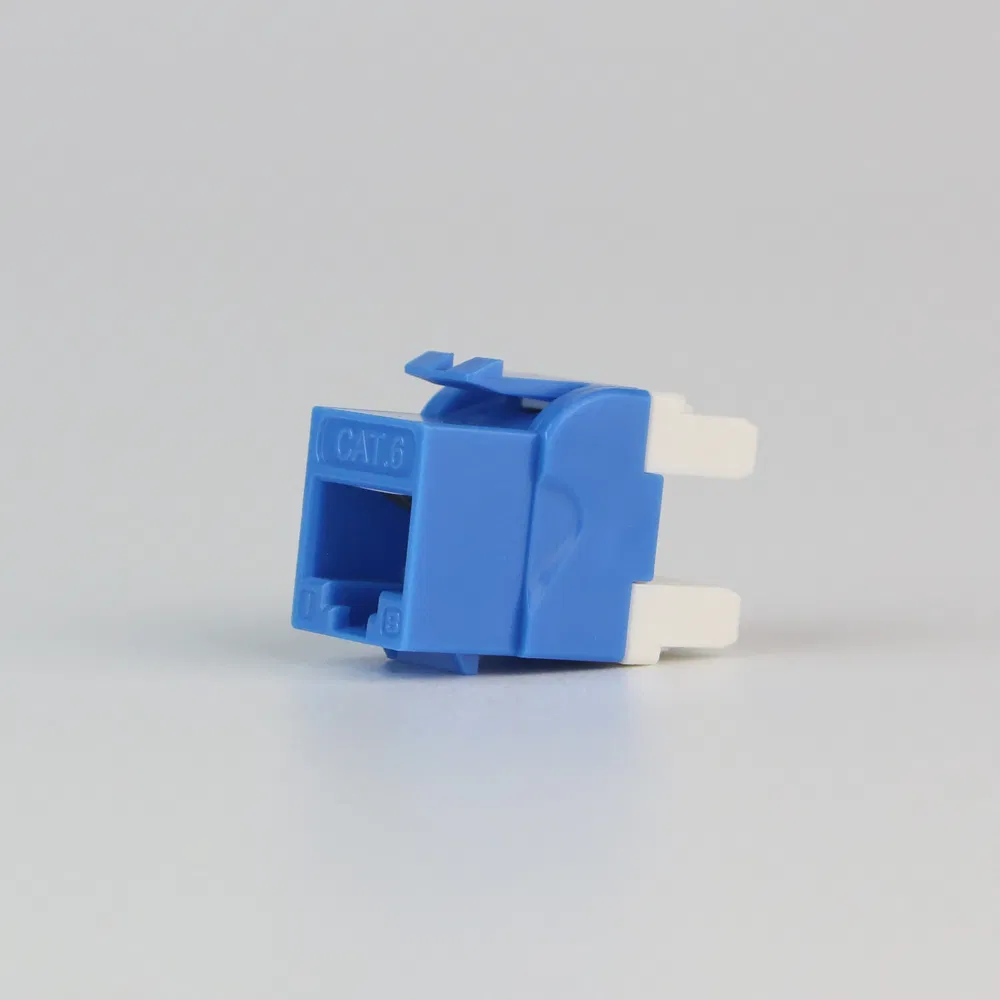

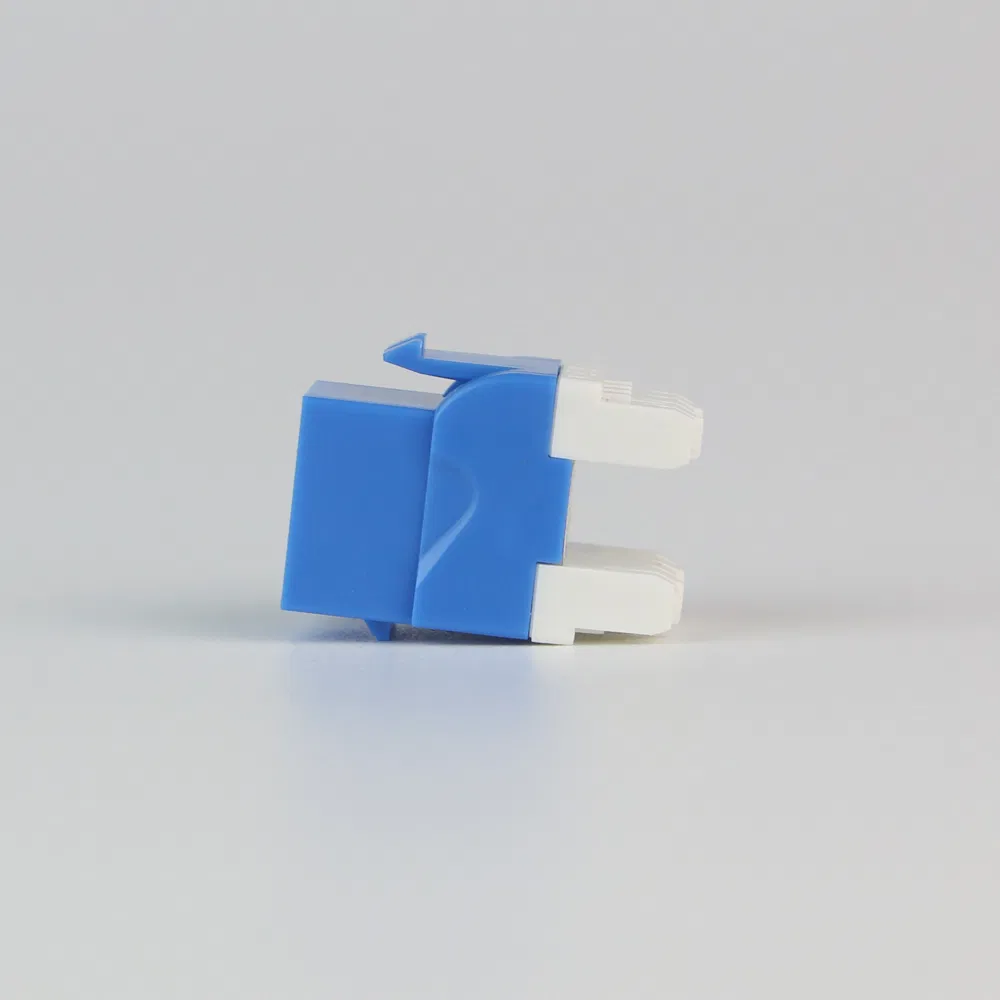

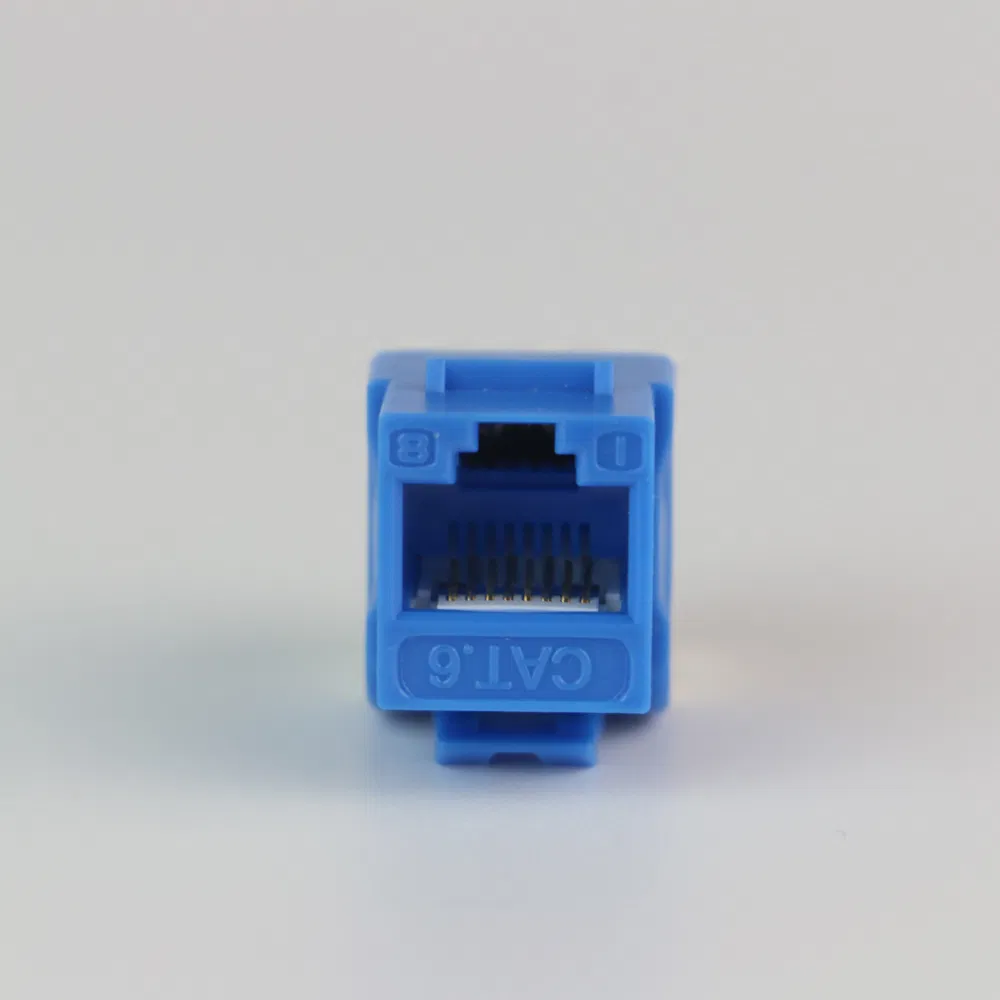

Cabling Network Keystone Jack Cat. 6 UTP 180 Degree

Product Description

1.Technique Characteristics

·Material of plastic parts: PC UL94V-0
·Standard 110 and LSA dual use punching tool make operation more convenient

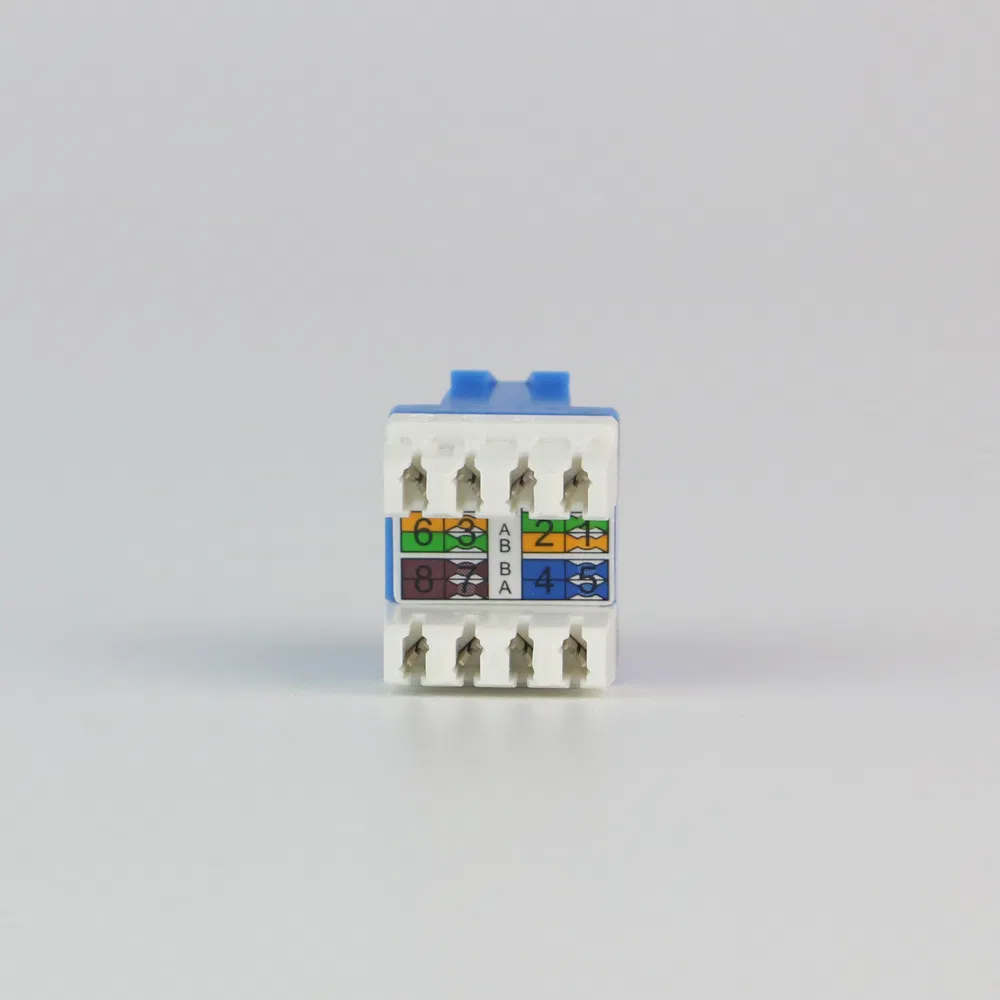

·IDC clips with 45 degree angled design ensure the cables reliable connection
·According to the standard of ISO/IEC 11801 & TIA/EIA 568-B.2 Cat.6
·Golden plated Pins, IDC clips and internal PCB board match well and provide best performance
·Whole Pin nickel plated with connect pins golden plated 6μ prevent oxidation, lasting the service life
· IDC clips: Tinned phosphor bronze nickel plated with dependability 250 times

2. Electrical Characteristics
·DC Resistance: ≤300mΩ
·Contact Resistance: ≤20mΩ
·Dielectric strength: 1000V(AC750V)1min
·Insulation Resistance: ≥1000MΩ

3. Physical Characteristics
· Phosphor bronze with nickel plated , connector pins with golden plated 6μ
· IDC clip: Tinned phosphor bronze pins with nickel plated, fitting for 22-26AWG cables
·Inserting Duration: ≥750 times
·Punching Duration: ≥250 times
·Jack housing plastic part: UL 94V-0,RED,YELLOW,BLUE,GREEN,BLACK and other colors available
· Termination caps material UL94V -0
·Working temperature: -25ºC~60ºC

4. Standards
· ISO/IEC11801
·TIA/EIA-568B.2-1
·EN50173
·UL 94V-0

5. Application
·Structured cabling transmitting data ,voice, video
·Applied for Cat.6 and E Classes
·Suitable for working area, central room, managing room, equipment room and subsystem applications
