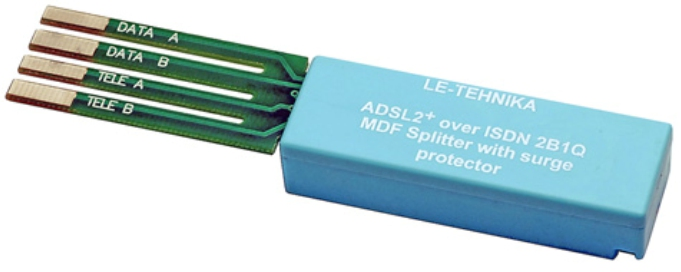

ADSL2 + Over Isdn Splitter Module for Corning MDF Clsi-018j6
Brief introductionCLSP-018J6 is an ADSL2+ over ISDN splitter module which is suitable for CORNING MDF.Complied StandardsITU-T G.992.1 YD-T 1187-2006ETSI TS 101 952-1-3 RoHS compliantETSI TS 101 952-1-4Circuit DiagramOutline Dimensions Oper......
Send Inquiry
Product Description
Brief introduction
Complied Standards
Circuit Diagram
Outline Dimensions
Operation Environment
CLSP-018J6 is an ADSL2+ over ISDN splitter module which is suitable for CORNING MDF.
Complied Standards
ITU-T G.992.1 YD-T 1187-2006
ETSI TS 101 952-1-3 RoHS compliant
ETSI TS 101 952-1-4

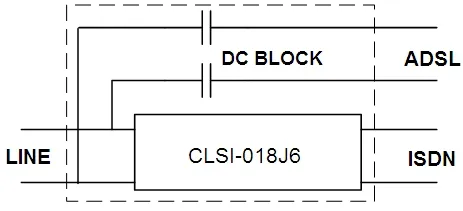

Circuit Diagram

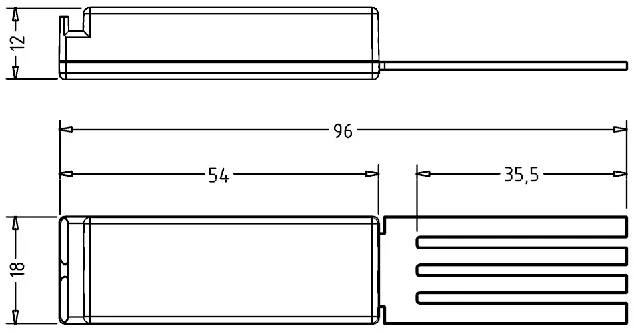

Outline Dimensions
Temperature:
Operating: -30°C to +70°C
Storage : -40°C to +70°C
Humidity: 0%-80% non-condensing
| Test item | Condition/Requirement |
| Impedance | ISDN:4B3T POTS:115nF//820Ω +220Ω |
| DC Current | 100mA |
| DC series resistance | ≥12.5Ω |
| Insertion loss/ distortion for ISDN | 1-40KHz≤1.5dB |
| 40-80KHz≤2.0dB | |
| Insertion loss/ distortion | 1KHz≤1.0dB |
| |a(0.2-4KHz)-a(1KHz) |≤1.0dB | |
| Return loss for ISDN | 1-40KHz≥16.0dB |
| 40-80KHz≥14.0dB | |
| Return loss for POTS | 0.2-1.6KHz≥15.0dB |
| 1.6-3.4KHz≥12.0dB | |
| ADSL insertion loss | 120-170KHz≤3.0dB |
| 170-2208KHz≤1.0dB | |
| Stop band attenuation | 138-150KHz≥55.0dB |
| 150-2208KHz≥65.0dB | |
| Unbalance attenuation | 0.05-1104KHz≥50.0dB |
| 1104KHz-5MHz≥30.0dB | |
| Group runtime distortion | 1-80KHz≤20nS |
