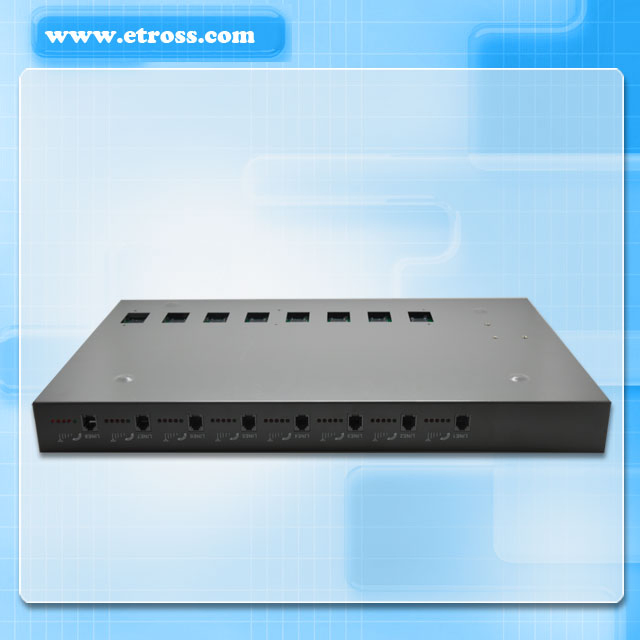

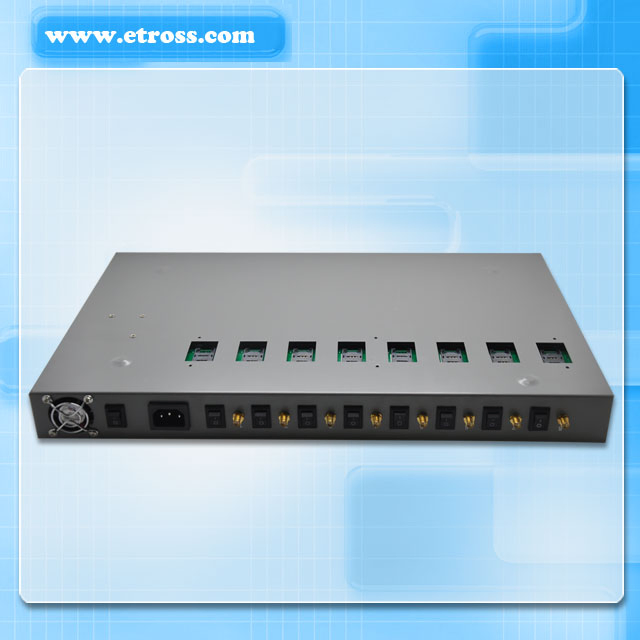

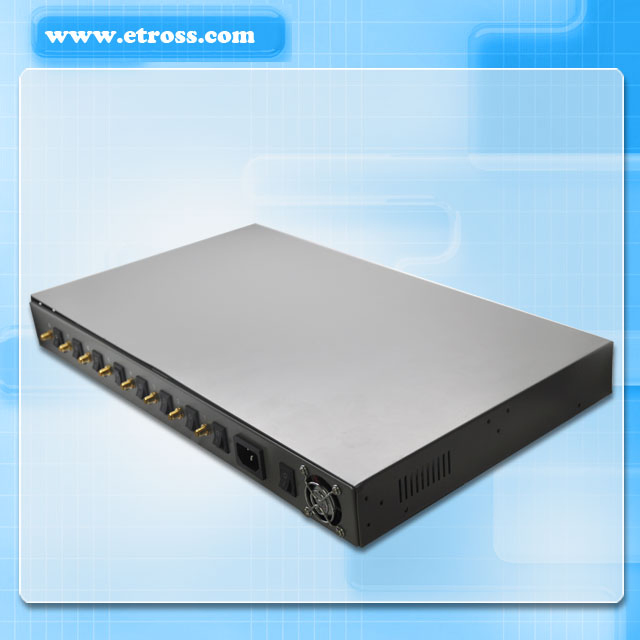

8 Ports 8 SIM Cards GSM Fixed Wireless Terminal for Voice Call
Brand: Etross or OEM BrandModel no.: GSM FWT/GATEWAY 8888-8-8Product name: 8 Ports GSM Fixed Wireless Terminal/GSM Gateway,CDMA GatewayFrequencies: GSM850/1900MHz,900/1800MHz, CDMA 800/1900MHz Main function & Features1) It is a 8 channels GSM/CDMA Gateway that has 8 ports FXS interfaces.2) It ca......
Send Inquiry
Product Description
Brand: Etross or OEM Brand
Model no.: GSM FWT/GATEWAY 8888-8-8
Product name: 8 Ports GSM Fixed Wireless Terminal/GSM Gateway,CDMA Gateway
Frequencies: GSM850/1900MHz,900/1800MHz, CDMA 800/1900MHz
Main function & Features
1) It is a 8 channels GSM/CDMA Gateway that has 8 ports FXS interfaces.
2) It can connect with ordinary telephone set, PBX or VoIP Gateway, call back system etc.
3) Dialing tonefrequency: 450hz
4) DTMF Dialing
5) IP Presetting
6) Has 8 FXS ports
7) Displays caller ID
8) Bell signal,clear voice
9) Comptiable with Asterisk
10) SIM card supported(1.8V,3V)
11) Simple to install and operate
12) Can hide subscriber ID(Optional)
13) Employ Industrial module to make
14) Provides proper reversal polarity for metering
15) Working status and Signal Strength by LED indicator
16) Compatible to ordinary telephones,PBX,PABX,VOIP gateway
Technical Specifications
Air interface standard: GSM850/1900MHz,900/1,800MHz phase 2+ full band
Frequency ranges:
A) GSM 850 GSM 1900:
I) Transmission: 869.2 ~ 893.8MHz I) Transmission: 1, 930 ~ 1, 990MHz
Ii) Reception: 824.2 ~ 848.2MHz Ii) Reception: 1, 850 ~ 1, 910MHz
B) GSM 900: GSM 1800:
I) Transmission: 890 ~ 915MHz I) Transmission: 1, 710 ~ 1,
Ii) Reception: 935 ~ 960MHz Ii) Reception: 1, 805 ~ 1, 880MHz
Hanging voltage: 45V
Senditivity: <-104DBM
Transmitting power: <3W
Dialing frequency: 450Hz
Antenna Amplifying: >1.5db
Picking current: 30mA/41mA
Picking off voltage: 30mA / 41mA
Phone interface:8 RJ-11 Phone Interfaces
Antenna interface: SMA antenna connection
Adapter interface: Input:110-240V, Output:5V/6A
Operation Circumstance
Operation temperature: -10C-60C
Storage temperature: -20C-70C
Operation humidity: 45%-95%
Atmosphere pressure: 86-106Kpa
Environment noise:<60D
Transmitting Power: 2W
Sensitivity: <-104dbm
Antenna Amplifying: >1.5db
Dailing frequency:450Hz
Hanging voltage: 45V
Picking current: 30mA/41mA
Package
1) G.W:5kg
2) Product dimension: L455x W280x H45mm
3) Gift box dimension:L510x W300x H64mm
Standard Component
Packing
Model no.: GSM FWT/GATEWAY 8888-8-8
Product name: 8 Ports GSM Fixed Wireless Terminal/GSM Gateway,CDMA Gateway
Frequencies: GSM850/1900MHz,900/1800MHz, CDMA 800/1900MHz
Main function & Features
1) It is a 8 channels GSM/CDMA Gateway that has 8 ports FXS interfaces.
2) It can connect with ordinary telephone set, PBX or VoIP Gateway, call back system etc.
3) Dialing tonefrequency: 450hz
4) DTMF Dialing
5) IP Presetting
6) Has 8 FXS ports
7) Displays caller ID
8) Bell signal,clear voice
9) Comptiable with Asterisk
10) SIM card supported(1.8V,3V)
11) Simple to install and operate
12) Can hide subscriber ID(Optional)
13) Employ Industrial module to make
14) Provides proper reversal polarity for metering
15) Working status and Signal Strength by LED indicator
16) Compatible to ordinary telephones,PBX,PABX,VOIP gateway
Technical Specifications
Air interface standard: GSM850/1900MHz,900/1,800MHz phase 2+ full band
Frequency ranges:
A) GSM 850 GSM 1900:
I) Transmission: 869.2 ~ 893.8MHz I) Transmission: 1, 930 ~ 1, 990MHz
Ii) Reception: 824.2 ~ 848.2MHz Ii) Reception: 1, 850 ~ 1, 910MHz
B) GSM 900: GSM 1800:
I) Transmission: 890 ~ 915MHz I) Transmission: 1, 710 ~ 1,
Ii) Reception: 935 ~ 960MHz Ii) Reception: 1, 805 ~ 1, 880MHz
Hanging voltage: 45V
Senditivity: <-104DBM
Transmitting power: <3W
Dialing frequency: 450Hz
Antenna Amplifying: >1.5db
Picking current: 30mA/41mA
Picking off voltage: 30mA / 41mA
Phone interface:8 RJ-11 Phone Interfaces
Antenna interface: SMA antenna connection
Adapter interface: Input:110-240V, Output:5V/6A
Operation Circumstance
Operation temperature: -10C-60C
Storage temperature: -20C-70C
Operation humidity: 45%-95%
Atmosphere pressure: 86-106Kpa
Environment noise:<60D
Transmitting Power: 2W
Sensitivity: <-104dbm
Antenna Amplifying: >1.5db
Dailing frequency:450Hz
Hanging voltage: 45V
Picking current: 30mA/41mA
Package
1) G.W:5kg
2) Product dimension: L455x W280x H45mm
3) Gift box dimension:L510x W300x H64mm
Standard Component
| Item | Qty | Remarks |
| GSM GATEWAY-8888 | 1 | |
| Manual | 1 | Printed |
| Power Supply | 1 |
Packing
| Inner box MEAS | 51*30*6.4cm |
| G.W./unit | 5.0kg |
| G.W. | 5.5kg |
| PCS/CTN | 1pcs |
