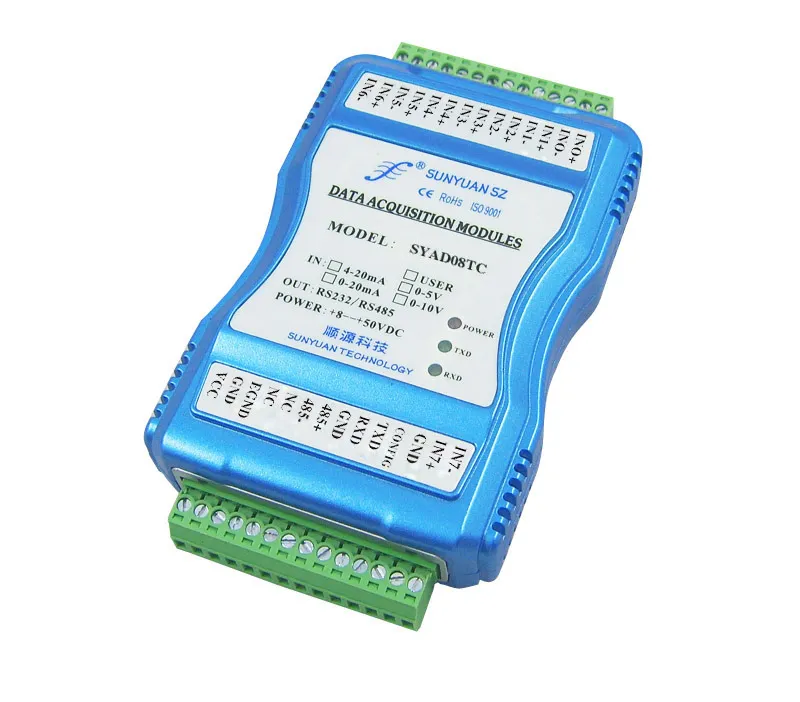

8 Channels 4-20mA/0-10V/5V to RS232/RS485 Converter (each channel non-isolation) Analog Signal Conditioning Module Data Acquisition

8 channels 4-20mA/0-10V/5V to RS232/RS485 Converter(each channel non-isolation) analog signal conditioning module DATA ACQUISITION


U/A: Input Voltage / Current Signal Value
    U1:0-5V           A1:0-1mA
    U2:0-10V          A2:0-10mA
   U3:0-75mV         A3:0-20mA
   U4:0-2.5V         A4:4-20mA
   U5:0-±5V         A5:0-±1mA
  U6:0-±10V        A6:0-±10mA
  U7:0-±100mV      A7:0-±20mA
  U8:Customized     A8:Customized
Note: SYAD08 series modules support both RS232 and RS485 communication interface. User can choose the communication interface according to the application environment, and at the same time only one interface works, otherwise it may interference with each other.
E.g.: SY AD08A4  Means 8-channel  4-20mA signal input, RS232/RS485 output
      SY AD08A7  Means 8-channel  0-±20mA signal input, RS232/RS485 output
      SY AD08U1  Means 8-channel  0-5V signal input, RS232/RS485 output

ISOAD A08 General Parameter:
(typical @ +25ºC,Vs is 24VDC)
Input:  Current/Voltage input
Accuracy: 0.05%
Input Imbalance: ±0.1 uA/ºC
Temperature Drift: ±15 ppm/ºC (±30 ppm/ºC,Max.)
Input Resistance: 50Ω (4-20mA/0-20mA/0-±20mA current input)
              100Ω (0-10mA/0-±10mA current input)
              1KΩ (0-1mA/0-±1mA current input)
              >1MΩ(Voltage input)
Band width:  -3 dB 10 Hz
Switching rate: 10 Sps
Common mode restraint (CMR): 120 dB(1kΩ Source Imbalance @ 50/60 Hz)
Normal mode restraint (NMR):  60 dB (1kΩ Source Imbalance @ 50/60 Hz)
Input terminal protection: over-voltage / over-current protection
Communication:  Protocol RS-485 or RS-232;ASCII character protocol and MODBUS RTU communication protocol. Baud rage(300bps,600 bps,1200 bps,2400 bps,4800 bps,9600 bps,19200 bps,38400bps)(can be set through software).
Address:(00H~FFH)can be set through software
Synchronous Acquisition:support
Response time: 100 ms Max.
Operation Power Supply:+8 ~ 50 VDC wide range power, internal anti-inverse connection and over-voltage protection circuit.
Power Consumption:≤1W
Operation Temperature:- 45 ~ +80ºC
Operation Humidity:10 ~ 90% (no dew)
Storage Temperature:- 45 ~ +85ºC
Storage Humidity:10 ~ 95% (no dew)
Isolation Withstand Voltage: 3KVDC between input and output,1 minute,stray current 1mA, Output and power are common-ground
Endure Impact Voltage: 3KVAC, 1.2/50us(peak value)
Dimension:83mm  x  37 mm  x  51 mm
Weight:about 72g

Pin Definition(For details,see table 1)
