30W 2500-6000MHz Power Amplifier Moduler for Jammer
PRODUCT DESCRIPTION:30W 2500-6000MHz Wide Band High Power Amplifier Customize This Power Amplifier module is working for General RF Bands, model type: PWR-GNR-210 with aluminum case and cooper base, it need operating on heatsink. Output power can be suit in this design from 43dBm to 50dBm with more......
Send Inquiry
Product Description
PRODUCT DESCRIPTION:

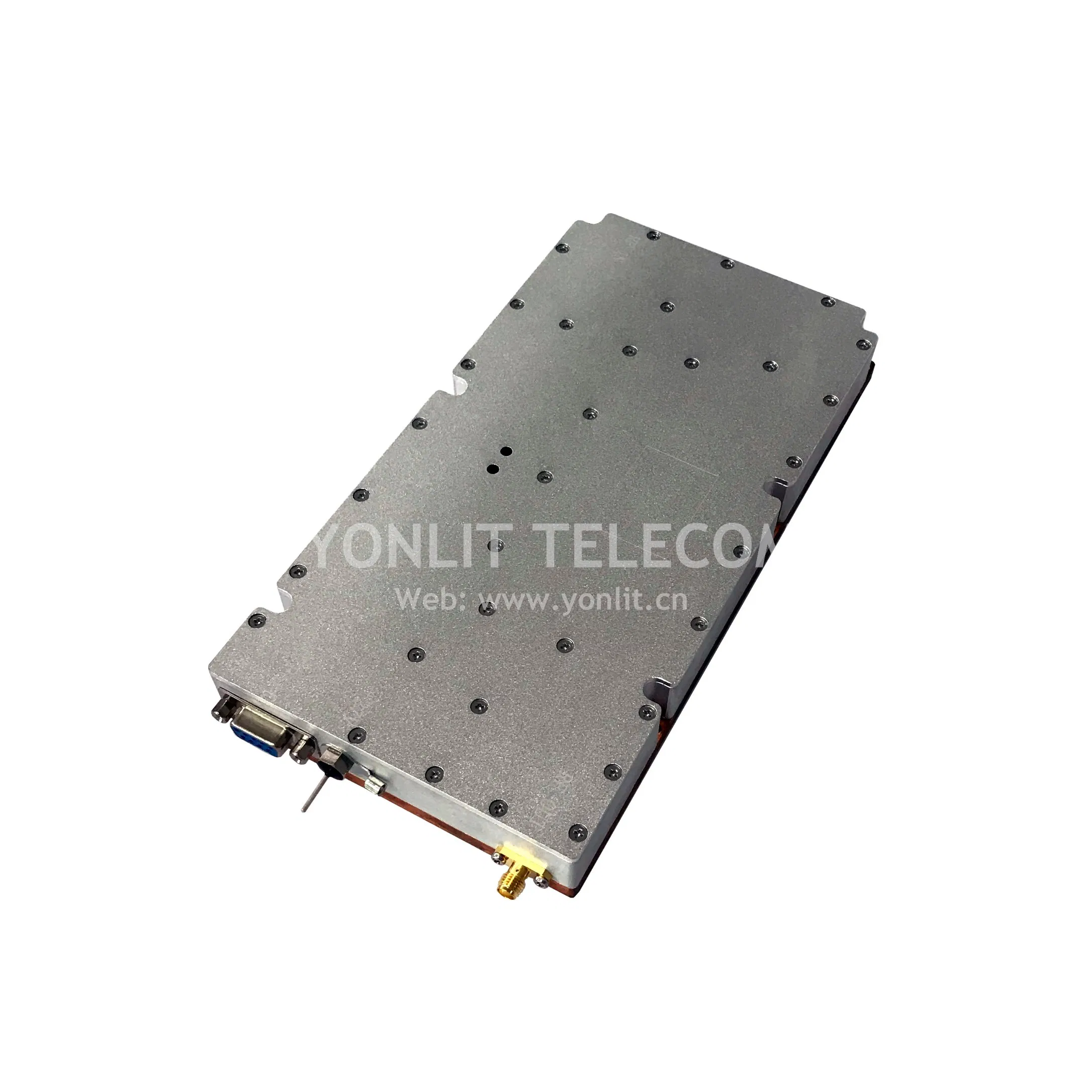

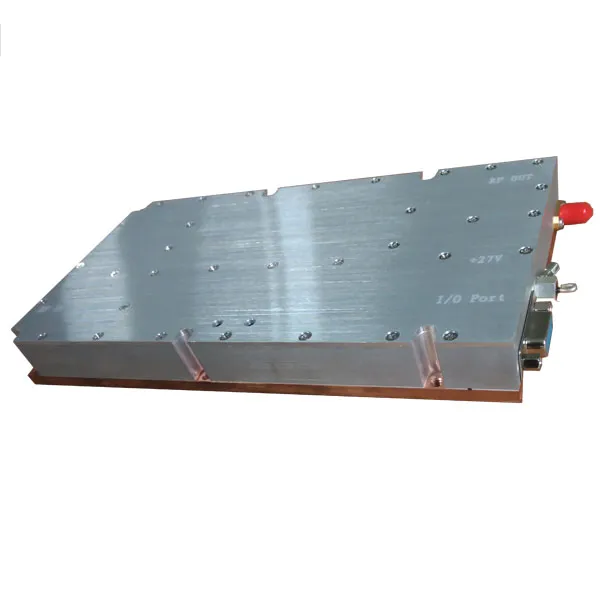

30W 2500-6000MHz Wide Band High Power Amplifier Customize

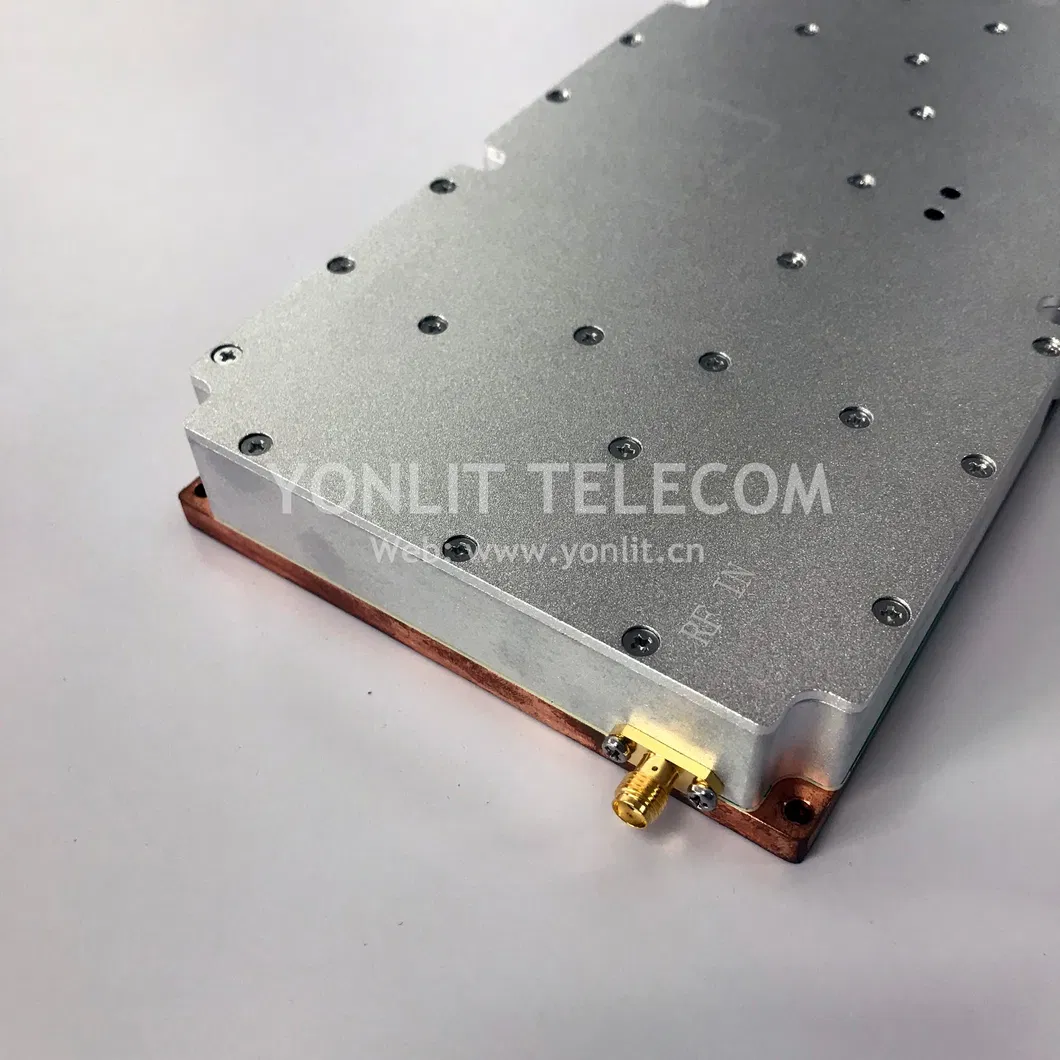

This Power Amplifier module is working for General RF Bands, model type: PWR-GNR-210 with aluminum case and cooper base, it need operating on heatsink.
Output power can be suit in this design from 43dBm to 50dBm with more than 25% efficiency, and it can keep stable working over -20~65ºC. PA are equiped with over-high VSWR and over-high power protection to avoid/reduce the damage from any misoperation. I/O Port is compatible with DB15 serial port and RS485.
More function and parameters are avaiable to customized according to actual requirement.
TECHNICAL SPECIFICATION:
| No. | Item | Requirements | |
| 1 | Frequency Range | 2500-6000MHz | |
| 2 | Gain | >40dB | |
| 3 | RF Output Power | 44.5dBm/30W | |
| 4 | Input Level | 10-15dBm | |
| 5 | In-Band Ripple | 1dB | |
| 6 | Input VSWR | ≤1.5 | |
| 7 | Output VSWR | ≤2 | |
| 8 | Working Voltage | 28VDC | |
| 9 | Working Current | <4.5A | |
| 10 | Harmonics | ≥12dBc at Odd harmonics, ≥15dBc at Even harmonics | |
| 11 | Spurious | >60dBc at CW | |
| 12 | In/out impedance | 50ohms | |
| 13 | RF Input Port | SMA -Female | |
| 14 | RF Output Port | SMA -Female or NK | |
| 15 | Power Interface | Pull-core capacitor | |
| 16 | Working Temperature | -20 to 65ºC | |
| 17 | Efficiency | ≥25% at CW | |
| 18 | Dimension | About 180x91x26 | |
| 19 | Protection (Optional) | Shutdown over more 70ºC, Auto-restart less than 50ºCor after 30s | |
| Shutdown over Output High-VSWR | |||
| 20 | I/O Port | DB9,Male (Optional) | PIN1: VSWR (VSWR ALarm) |
| PIN2: TEMP (Temperature ALarm) | |||
| PIN3: V+ (Forward Power indicator) (0-4V) | |||
| PIN4: Vt (Temperature indicator,-40 to 150, 0.1-1.5V) | |||
| PIN5: GND (Grounding) | |||
| PIN6: V- (Reversed Power indicator) (0-4V) | |||
| PIN7: Vc (Current Indicator) (0-4V) | |||
| PIN8: PTT (Enable PA. Grounding or Hang in air: ON; +5V: OFF) | |||
| PIN9: ALC (0-5V input, 5V: MAX Output Power,0V: Min Output Power) | |||
We accept T/T and Western Union for payment.
PAYMENT TERMS, ORDER INFO & PACKING
Leadtime within 1 month, subject to actual requirement might have change.
Product will got packed in carton with foam, each unit will have single box for packing.
If need more information, please send us email.
