1X9 Optical Transceiver 155Mbps Sm Sc 20km 1310 /1550nm Module Wholesale

Description:

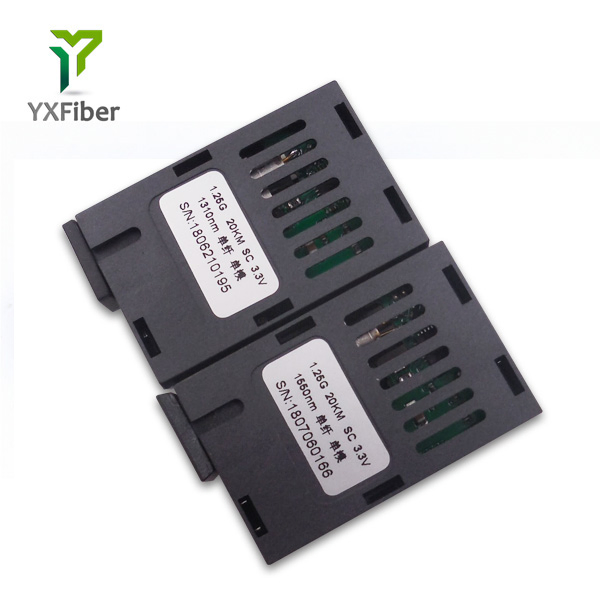

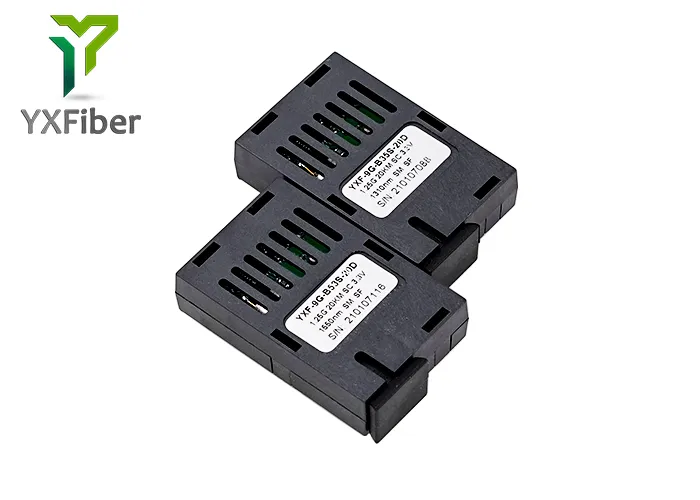

The YXF-9G-B35S-20D/ YXF-9G-B53S-20D Bidi transceiver series consume low power, operates at 5V compatible DC power supply. The low jitter and high sensitivity are extinguished features with 1310nm/1550nm FP LD transmitter and PIN/TIA receiver. It incorporates RX_Signal Detect (RX_SD) monitor functions with PECL interface. The device is Class I laser safety compliant.


Application

1. Gigabit Ethernet
2. 1X Fiber Channel
3. Optical access network
4. Other optical links

1. Compliant with IEEE802.3z

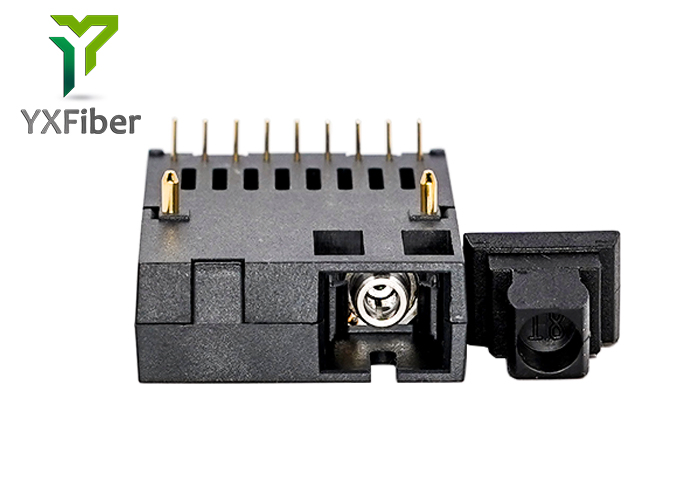

2. Standard 1*9 package
3. Single SC receptacle optical interface
4. 1550nm /1310nm FP laser, 10km distance

SD: PECL Logic Level, 3.3V power supply


Absolute Maximum Ratings
