16lines Standalone Analog Line Recorder with 64GB SSD
Product Description Qihang Aegis 4/8/16Ports Embedded Voice Logger uses a sophisticated design appearance, with desktop or wall-mounted installation options, high-performance 64G solid state drive to store data, low-power operation to save energy. With an integrated design, users can remotely manage......
Send Inquiry
Product Description
Product Description

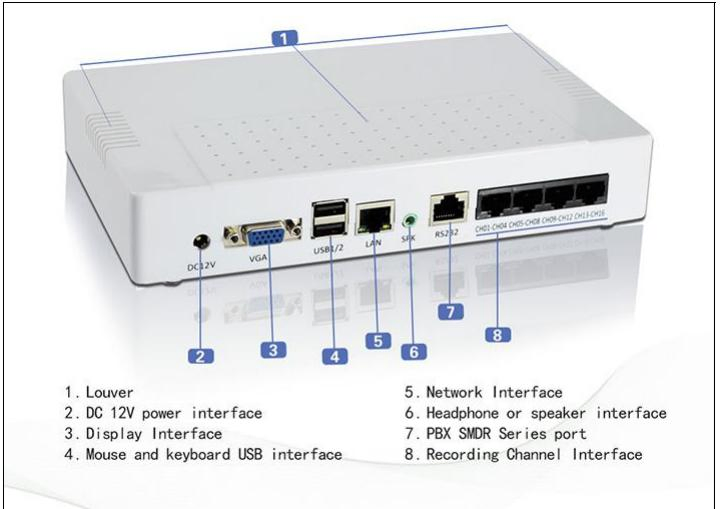

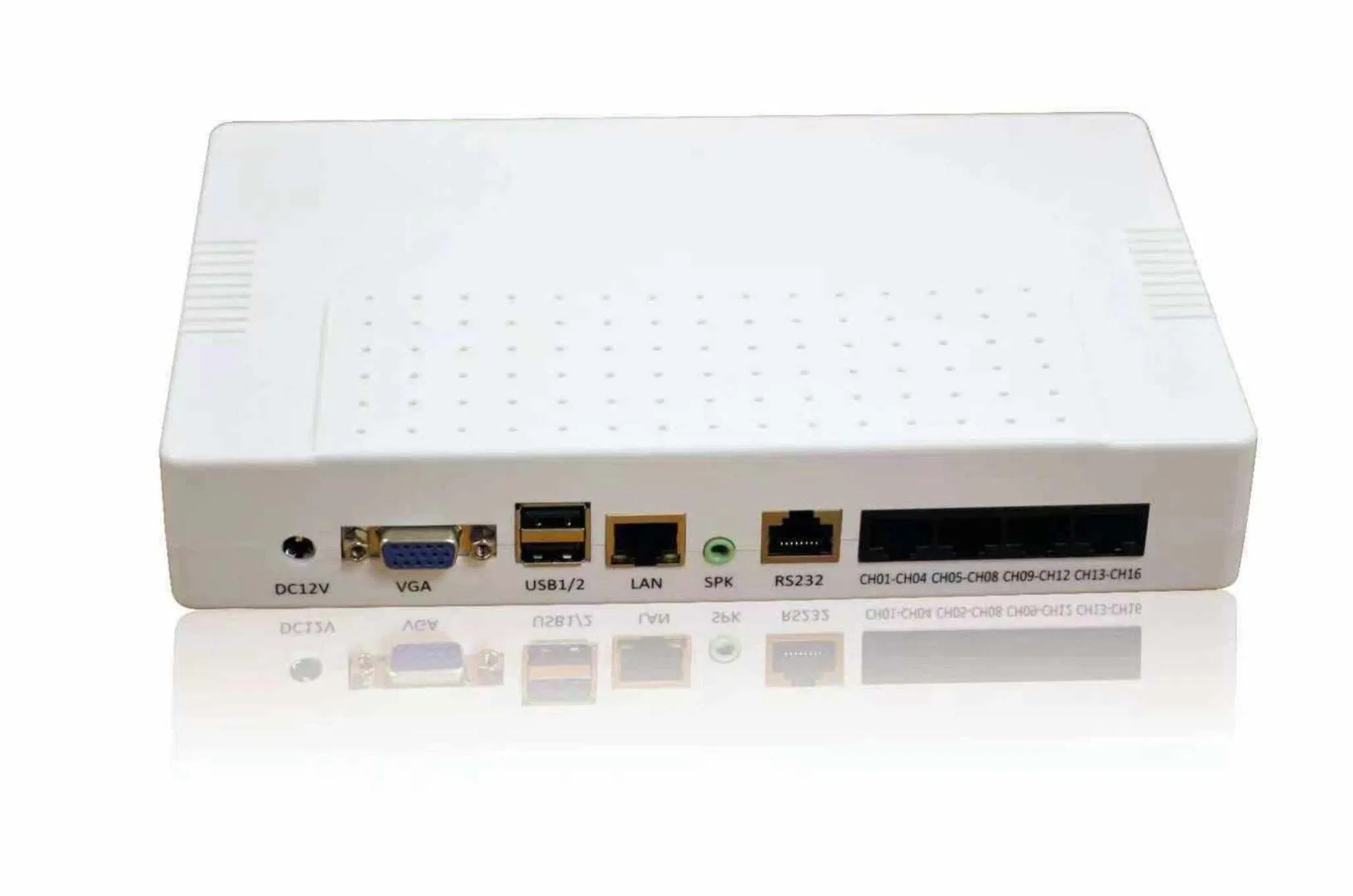

Qihang Aegis 4/8/16Ports Embedded Voice Logger uses a sophisticated design appearance, with desktop or wall-mounted installation options, high-performance 64G solid state drive to store data, low-power operation to save energy. With an integrated design, users can remotely manage through the network. With DC12V power port , VGA display port , USB keyboard port, mouse port , LAN network port , SPK3.5mm audio port , RS232 switch billing serial port, and recording port.Its convenient for users without computers or networks. Machine can be connected directly to run when reboot.
Embedded Voice Logger Supports Real time monitoring,Caller ID records,Log Management,1 times compression,Unanswered Call Records,Extension Calls Records,Line AGC,CID POPUP,Department Statistics, Disconnection Alarm,Email Alarm,CMS,FTP data backup,Smart Client Management,WEB Query,Cloud storage and other functions. Supports one Client software in the LAN default((which can be added Client software quantity) ,just input Server IP address then can do some monitor,query operation.Simple operation, multiple permission settings, Refine management level..It can be widely used in commercial call,electric power dispatch,hotline call,complaint call,financial and stock,auto 4S shop,public security alarm,aviation, railway and transportation,and so on.
Salient Features
1.Monitoring people service atttitude,technology level,Examining working ability of service person; Analyzing product problem,Collecting customer's advice in order to provice with product improvement base.
2.Monitoring enterprise operation and checking utilization rate of call and human resource for high rank people.Can also find action of benefit damage quickly and do some relevant measure to prevent that.Futhermore,phone recording system can make people devote themselves to work and improve working efficiency.Therefore can search new sales potential and orientation,also can provide with unexpected law proof for high rank people.
3.Helping sales know well about customer's status in time and improving rate of business conclusion so that enterprise can trainsales pointedly.
4.Offering evidence directly for some special occasion,also can play these information in the player.
5.Offering effect evidence for other field.
6.Pop up the customer detailed information.
» Real time recording
When the logger device is being used ,the system will automatically record the voice of both party .The recording file will be saved into the harddisk of PC. At the same time,system will record dial in/out number and conversation date,time and so on.It will stop to record when the calls on-hook.
»Real time monitoring
Can monitor the channel on conversation without any disturbance to the line.
»Caller ID Records
Dian in/out number automatically records in the software,so that convenient for future inquiry.
»Log Management
When an incoming call was unanswered, the system would detect the CID and record it automatically
»Extension number records

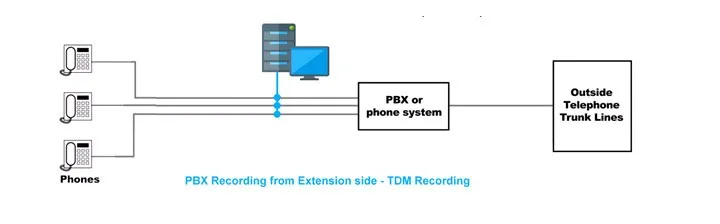

When connecting to a PBX system,using our Startup pbx tool in our software,then it will can records all the extension number and save lots of costing.
»Line AGC
Can slove the problem about both sides conversation sound no imbalance,like one side sound small,and the other side is too big,so that can hear the clearly sound.
»POPUP Management
It will pop up the client detail information of incoming call on the screen of computer.. It also can record your client address,telephone number, business record and so on contents.This function becomes your business helper. Support user rights management, different levels of different permissions, blacklist, VIP customer phone number automatic reminder, caller information can be sent to designated agents or working groups as required.
»Email Alarm
The user can set more kinds alarm remind,such as the harddisk space lack of,recording system disconnection,conversation delay and so on .After setting them,the system will send email to inform the administer.
»FTP Backup
It can upload the recording file to Server by FTP upload function,so that you can listen the recording even if you go on errands.

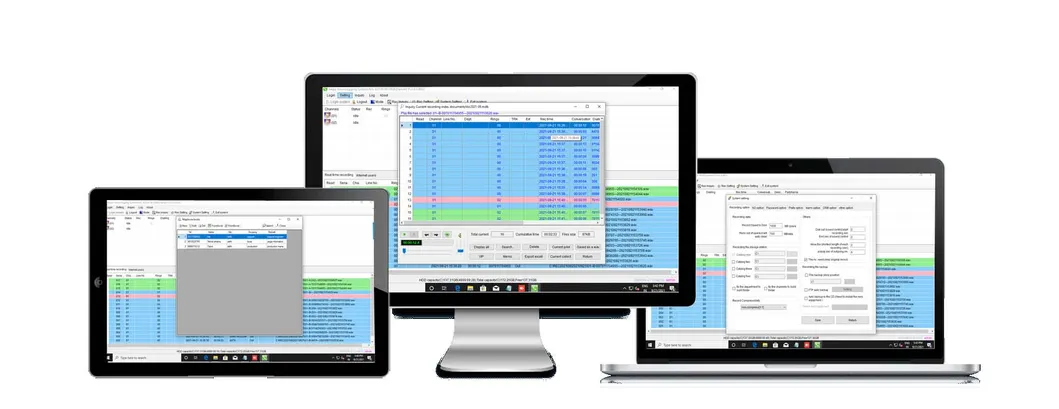

»Intelligent Client
For each system is equipped with intelligent client software.After install the client software,it can do some monitoring, searching and cabel status and other functions.
»WEB query
Enter the IP address in IE browser then can inquiry the details of software. Support Iphone , Android system.
»Cloud storage
a.The recording files can be stored in the cloud server.
b.CMS features,apply for Cloud server and Database then can manage all the recording file in central management system.
»CMS Features
CMS with Smart Client software and Central Management software.It can manage all the location recording file on LAN or WAN.It can obtain the host IP without manual search. It can do some monitor and search and also set the line number, department, and permissions of each device.
Technic Parameter:
Channel: 4ch,8ch,16ch.
Hard disk:64GB SSD
Memory:2GB
Voice file: WAV
Compression ratio: 1/8 times
Recording start mode:Voltage,Key,Sound control.
Consume power maximai: 15W
Temperature: -20ºC-60ºC
SNR: 60dB
Humidity: 5%-85%
Requency: 300-3400Hz(±3dB)
Input impedance: ≥1.5MΩ
Data speed: 64kbps/1s
Distortion degree: ≤2%
Call number: FSK,DTMF
FSK concoct mode: Logic 0(: 2200Hz±1%), Logic 1: 1200Hz±1%
DTMF code: 0~9,*,#,A,B,C,D
Qihang Aegis 4/8/16Ports Embedded Voice Logger uses a sophisticated design appearance, with desktop or wall-mounted installation options, high-performance 64G solid state drive to store data, low-power operation to save energy. With an integrated design, users can remotely manage through the network. With DC12V power port , VGA display port , USB keyboard port, mouse port , LAN network port , SPK3.5mm audio port , RS232 switch billing serial port, and recording port.Its convenient for users without computers or networks. Machine can be connected directly to run when reboot.
Embedded Voice Logger Supports Real time monitoring,Caller ID records,Log Management,1 times compression,Unanswered Call Records,Extension Calls Records,Line AGC,CID POPUP,Department Statistics, Disconnection Alarm,Email Alarm,CMS,FTP data backup,Smart Client Management,WEB Query,Cloud storage and other functions. Supports one Client software in the LAN default((which can be added Client software quantity) ,just input Server IP address then can do some monitor,query operation.Simple operation, multiple permission settings, Refine management level..It can be widely used in commercial call,electric power dispatch,hotline call,complaint call,financial and stock,auto 4S shop,public security alarm,aviation, railway and transportation,and so on.
Salient Features
1.Monitoring people service atttitude,technology level,Examining working ability of service person; Analyzing product problem,Collecting customer's advice in order to provice with product improvement base.
2.Monitoring enterprise operation and checking utilization rate of call and human resource for high rank people.Can also find action of benefit damage quickly and do some relevant measure to prevent that.Futhermore,phone recording system can make people devote themselves to work and improve working efficiency.Therefore can search new sales potential and orientation,also can provide with unexpected law proof for high rank people.
3.Helping sales know well about customer's status in time and improving rate of business conclusion so that enterprise can trainsales pointedly.
4.Offering evidence directly for some special occasion,also can play these information in the player.
5.Offering effect evidence for other field.
6.Pop up the customer detailed information.
» Real time recording
When the logger device is being used ,the system will automatically record the voice of both party .The recording file will be saved into the harddisk of PC. At the same time,system will record dial in/out number and conversation date,time and so on.It will stop to record when the calls on-hook.
»Real time monitoring
Can monitor the channel on conversation without any disturbance to the line.
»Caller ID Records
Dian in/out number automatically records in the software,so that convenient for future inquiry.
»Log Management
When an incoming call was unanswered, the system would detect the CID and record it automatically
»Extension number records
When connecting to a PBX system,using our Startup pbx tool in our software,then it will can records all the extension number and save lots of costing.
»Line AGC
Can slove the problem about both sides conversation sound no imbalance,like one side sound small,and the other side is too big,so that can hear the clearly sound.
»POPUP Management
It will pop up the client detail information of incoming call on the screen of computer.. It also can record your client address,telephone number, business record and so on contents.This function becomes your business helper. Support user rights management, different levels of different permissions, blacklist, VIP customer phone number automatic reminder, caller information can be sent to designated agents or working groups as required.
»Email Alarm
The user can set more kinds alarm remind,such as the harddisk space lack of,recording system disconnection,conversation delay and so on .After setting them,the system will send email to inform the administer.
»FTP Backup
It can upload the recording file to Server by FTP upload function,so that you can listen the recording even if you go on errands.
»Intelligent Client
For each system is equipped with intelligent client software.After install the client software,it can do some monitoring, searching and cabel status and other functions.
»WEB query
Enter the IP address in IE browser then can inquiry the details of software. Support Iphone , Android system.
»Cloud storage
a.The recording files can be stored in the cloud server.
b.CMS features,apply for Cloud server and Database then can manage all the recording file in central management system.
»CMS Features
CMS with Smart Client software and Central Management software.It can manage all the location recording file on LAN or WAN.It can obtain the host IP without manual search. It can do some monitor and search and also set the line number, department, and permissions of each device.
Technic Parameter:
Channel: 4ch,8ch,16ch.
Hard disk:64GB SSD
Memory:2GB
Voice file: WAV
Compression ratio: 1/8 times
Recording start mode:Voltage,Key,Sound control.
Consume power maximai: 15W
Temperature: -20ºC-60ºC
SNR: 60dB
Humidity: 5%-85%
Requency: 300-3400Hz(±3dB)
Input impedance: ≥1.5MΩ
Data speed: 64kbps/1s
Distortion degree: ≤2%
Call number: FSK,DTMF
FSK concoct mode: Logic 0(: 2200Hz±1%), Logic 1: 1200Hz±1%
DTMF code: 0~9,*,#,A,B,C,D
