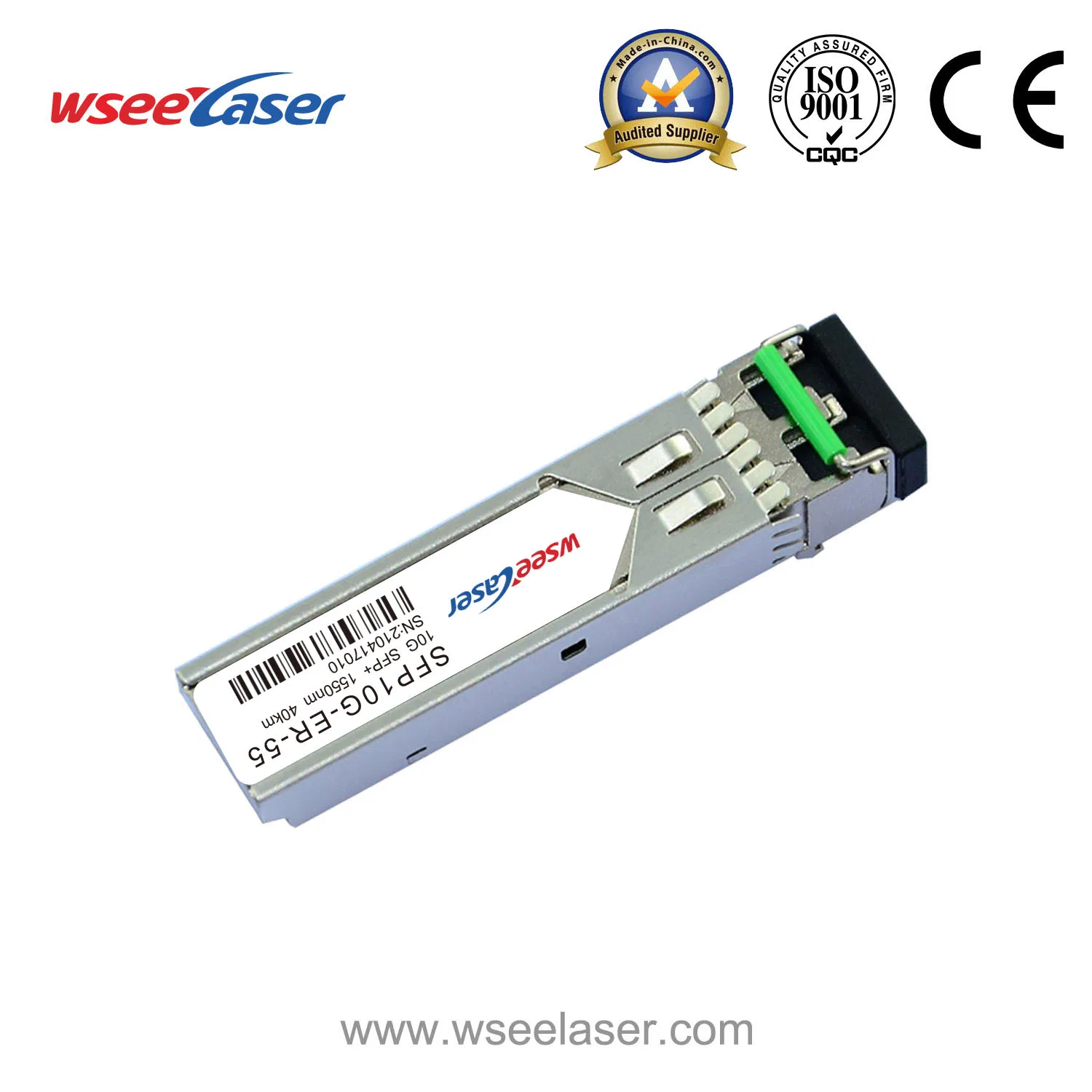

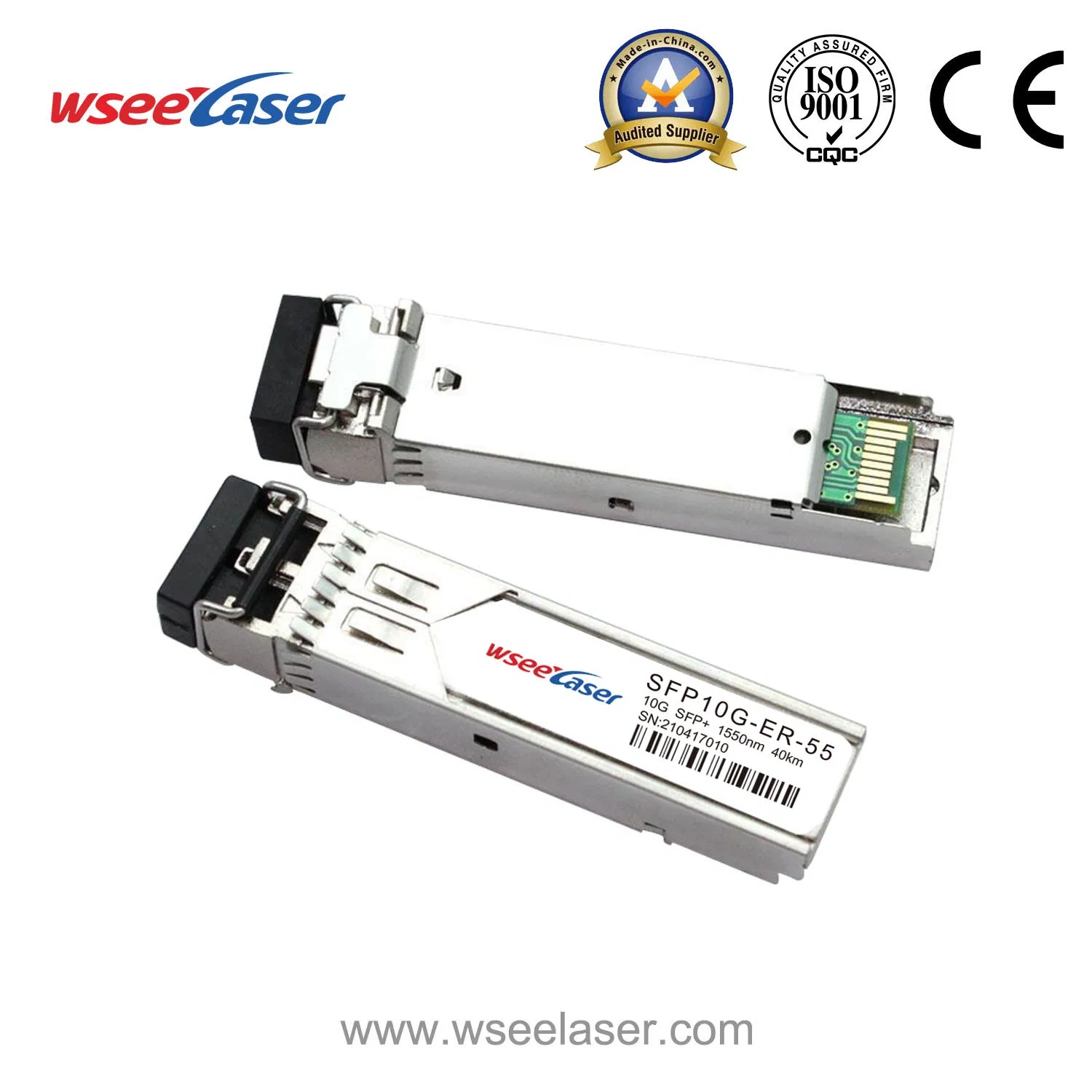

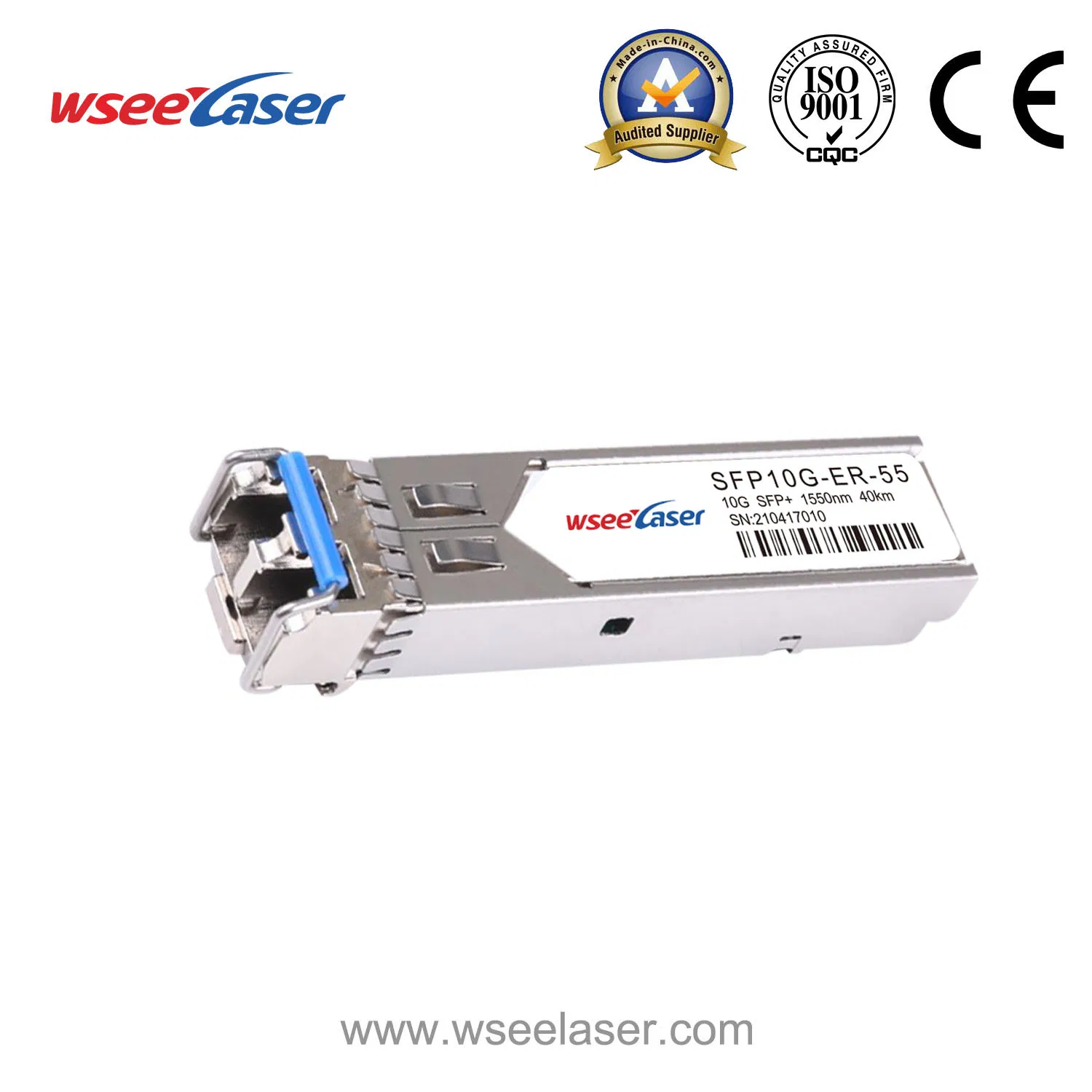

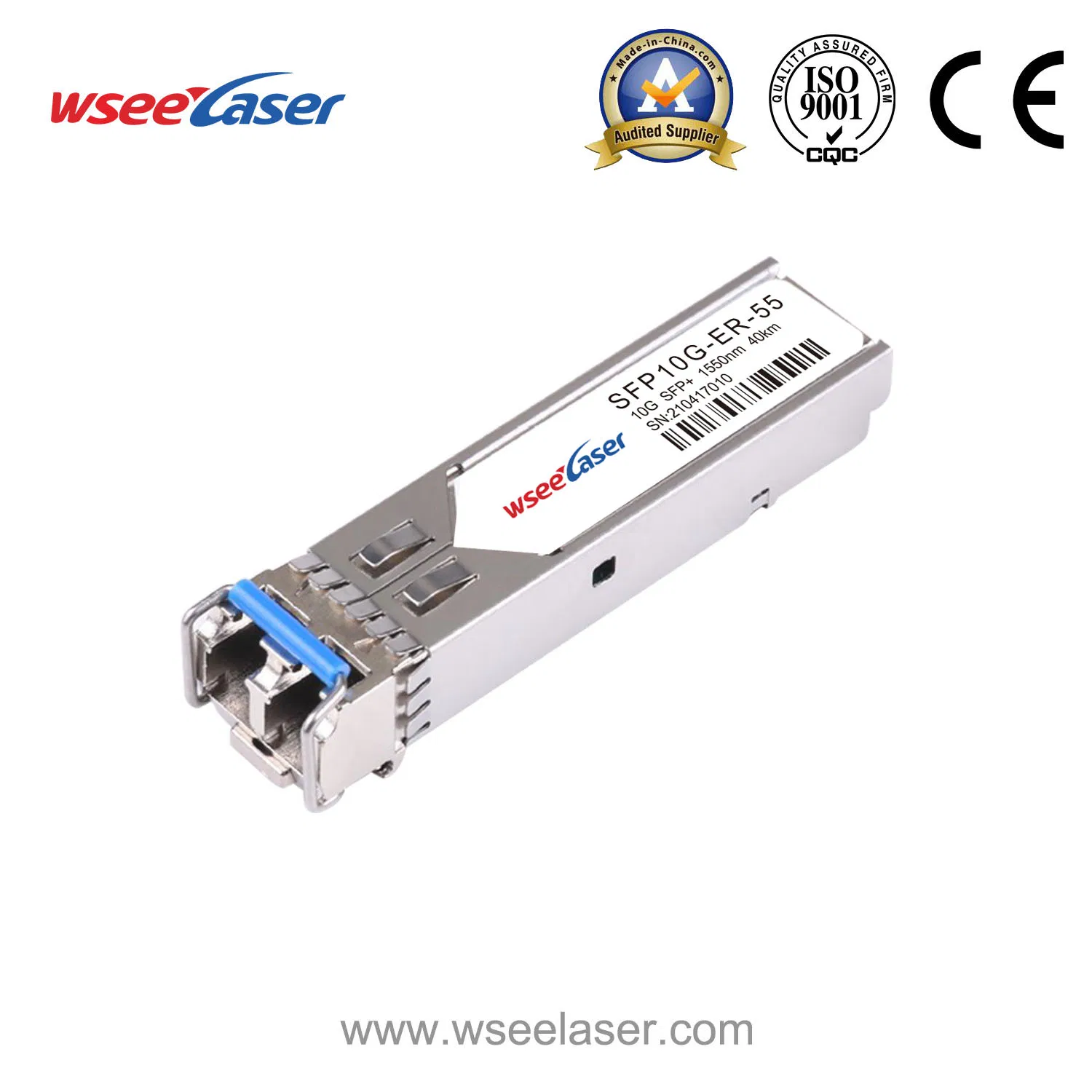

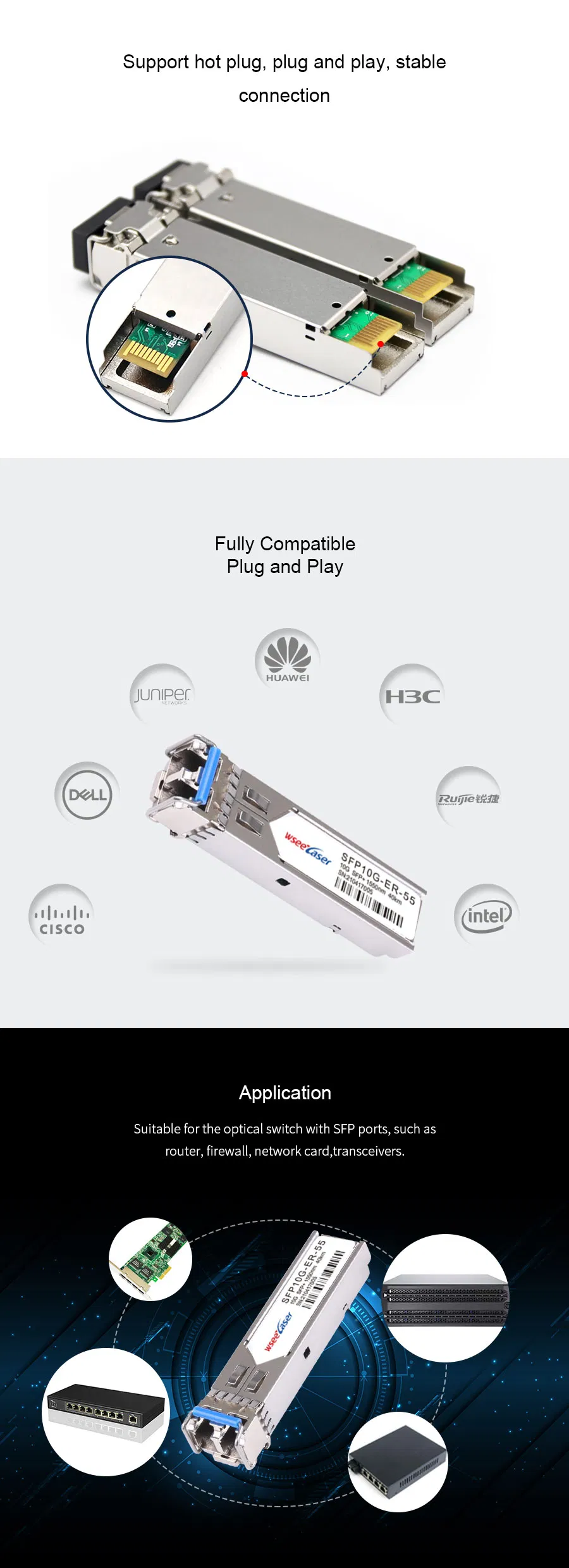

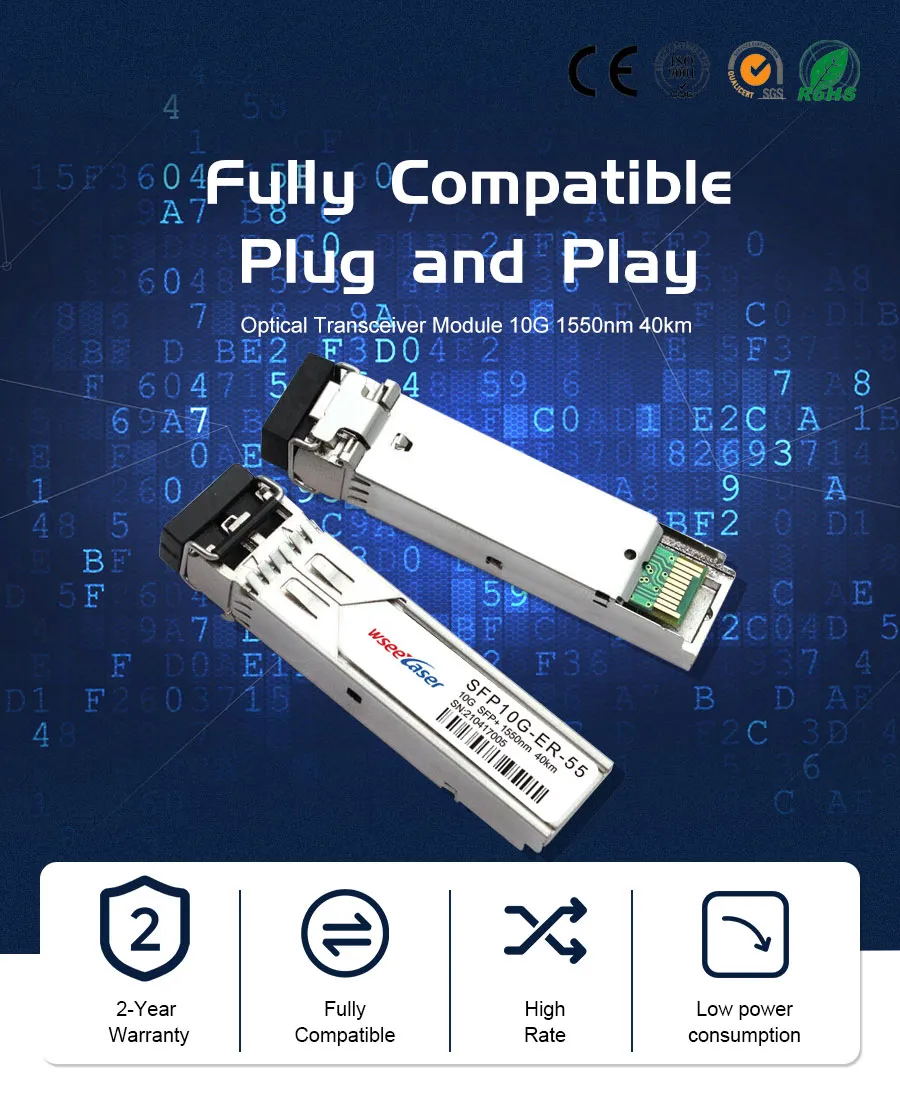

1550 Compatible 10g CWDM SFP+ 1550nm 40km Dom Transceiver Module
SFP+ transceivers, according to Enhanced 8.5 and 10 Gigabit Small Form Factor Pluggable "SFP+" Multi-Sourcing Agreement (MSA) SFF-8431 and SFF-8472, revision 10.4, are designed for 10G Ethernet serial optical data communication up to 40km on multimode fiber. They are compatible with IEEE S......
Send Inquiry
Product Description
SFP+ transceivers, according to Enhanced 8.5 and 10 Gigabit Small Form Factor Pluggable "SFP+" Multi-Sourcing Agreement (MSA) SFF-8431 and SFF-8472, revision 10.4, are designed for 10G Ethernet serial optical data communication up to 40km on multimode fiber. They are compatible with IEEE Std 802.3-2005 10Gb Ethernet 10GBase-LR/LW.Features
- Compliant with IEEE Std 802.3-2005 10G
- Ethernet 10GBase-ER/EW
- Electrical interface specifications per SFF-8431
- Management interface specifications per
- SFF-8431 and SFF-8472
- Up to 40km on 9/125µm SMF
- 1.25Gb/s to 11.3Gb/s bi-directional data links
- Cooled 1550nm EML Laser
- SFP+ MSA package with duplex LC connector
- Single +3.3V power supply
- Class 1 laser safety certified

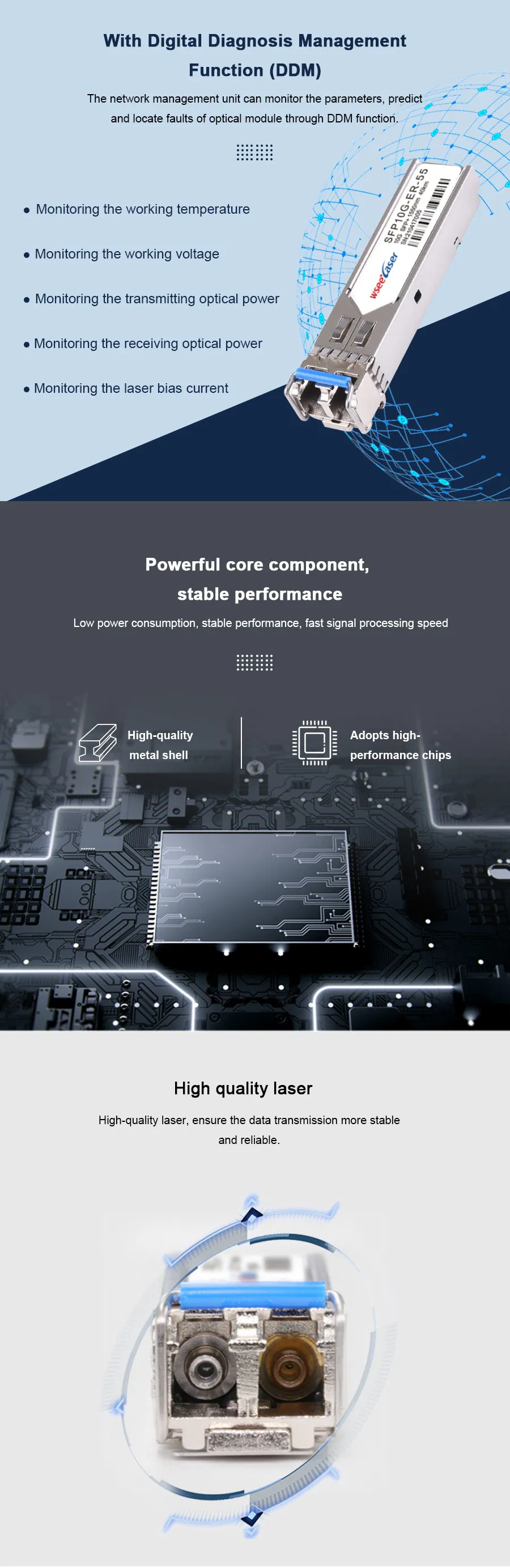

- Digital Diagnostic Monitoring available
- RoHS Compliant
- Operating case temperature:
ii (Industrial) -40oC to +85oC
| Transmitter Operating Characteristic-Optical, Electrical | ||||||
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Centre Wavelength | λC | 1530 | 1550 | 1565 | nm | |
| Laser Off Power | Poff | - | - | -30 | dBm | Note1 |
| Average Optical Power | Pavg | -4.7 | - | +4.0 | dBm | Note1 |
| Extinction Ratio | ER | 6.0 | - | - | dB | Note2 |
| Transmitter Dispersion Penalty | TDP | - | - | 2 | dB | |
| Relative Intensity Noise | RIN12OMA | - | - | -128 | dB/Hz | |
| Optical Return Loss Tolerance | ORLT | - | - | 21 | dB | |
| Side Mode Suppression Ratio | SMSR | 30 | - | - | dB | |
| Operating Data Rate | Gb/s | 2.4576 | - | 10.7 | Gbps | |
| Optical Eye Mask | % | 5 | - | - | % | Note2 |
| Tx Input Diff. Voltage | VI | 180 | - | 700 | mV | |
| Tx Fault | VoL | 0 | - | 0.8 | V | |
| VoH | 2.0 | Vcc+0.3 | ||||
| Eye Diagram | IEEE Std 802.3-2005 10Gb Ethernet 10GBASE-ER compatible | |||||
[1] The optical power is launched into 9/125µm SMF.
[2] Measured with a PRBS 231 -1 test pattern @10.3125Gbps.
| Receiver Operating Characteristic-Optical, Electrical | ||||||
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| Center Wavelength | λr | 1530 | - | 1565 | nm | |
| Receive Sensitivity In Average Power | Pavg | - | - | -15.8 | dBm | Note1 |
| Stressed Receiver Sensitivity In OMA | - | - | -11.3 | dBm | Note2 | |
| Optical Return Loss | ORL | 26 | - | - | dB | |
| Los Assert | LosA | -30 | - | - | dBm | |
| Los Dessert | LosD | - | - | -17 | dBm | |
| Los Hysteresis | LosH | 0.5 | - | - | dB | |
| Receiver Overload (P avg ) | P OL | -1.0 | - | - | dBm | Note1 |
[1] Measured with PRBS 231 -1 test pattern, 10.3125Gb/s, BER<10-12
[2] Measured with11.3Gb/s ;BER<10-12.
