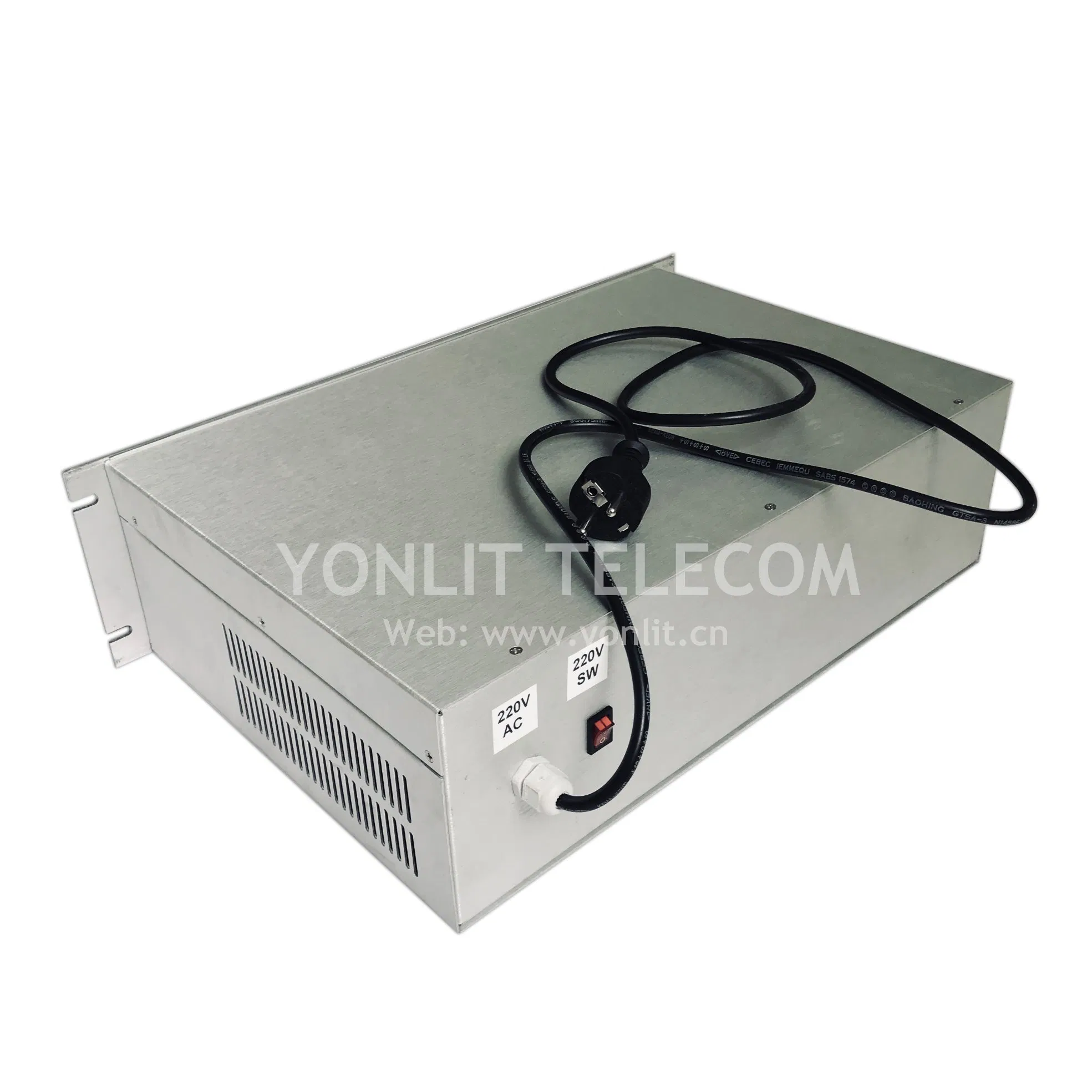

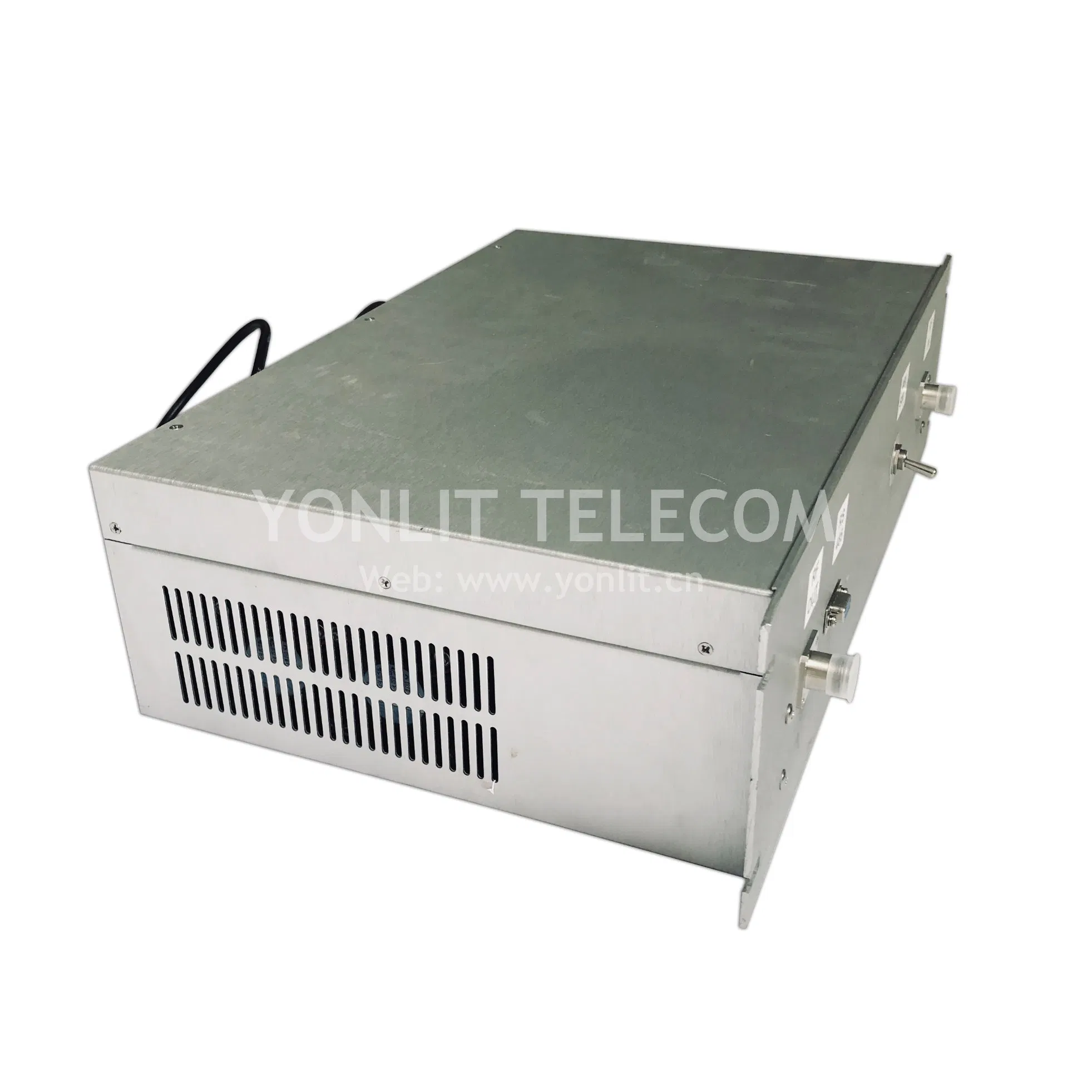

1000W 20- 500MHz VHF UHF Broadband RF Power Amplifier
Main Specification:ItemSpecificationFrequency Range20-500MHzMax RF Output Power1000wattInput Signal5-10dBmGain>50Gain Flatness±3dBIn/Out VSWR1.3Working Voltage50VDCWorking Current50Amps (Full Power)Size&Weight300mm*200mm*30mm RF Power ConnectorSMA-FemalePower Supply ConnectorPull-c......
Send Inquiry
Product Description
Main Specification:
Remark: We are available to provide customized similar Power Amplifier module.
| Item | Specification | |
| Frequency Range | 20-500MHz | |
| Max RF Output Power | 1000watt | |
| Input Signal | 5-10dBm | |
| Gain | >50 | |
| Gain Flatness | ±3dB | |
| In/Out VSWR | 1.3 | |
| Working Voltage | 50VDC | |
| Working Current | 50Amps (Full Power) | |
| Size&Weight | 300mm*200mm*30mm | |
| RF Power Connector | SMA-Female | |
| Power Supply Connector | Pull-core Capacitance | |
| Monitoring RS485 | RS485 Interface Pin1, Pin2 RS485A; Pin3, Pin4 RS 485-B; | |
| Baud speed: 19200 | ||
| Monitoring DB15 | PA Switch | |
| Forward RF Power | ||
| Reversed RF Power | ||
| Temperature | ||
| Alarm over High-VSWR and High-Temperature | ||
Remark: We are available to provide customized similar Power Amplifier module.
