Product Description

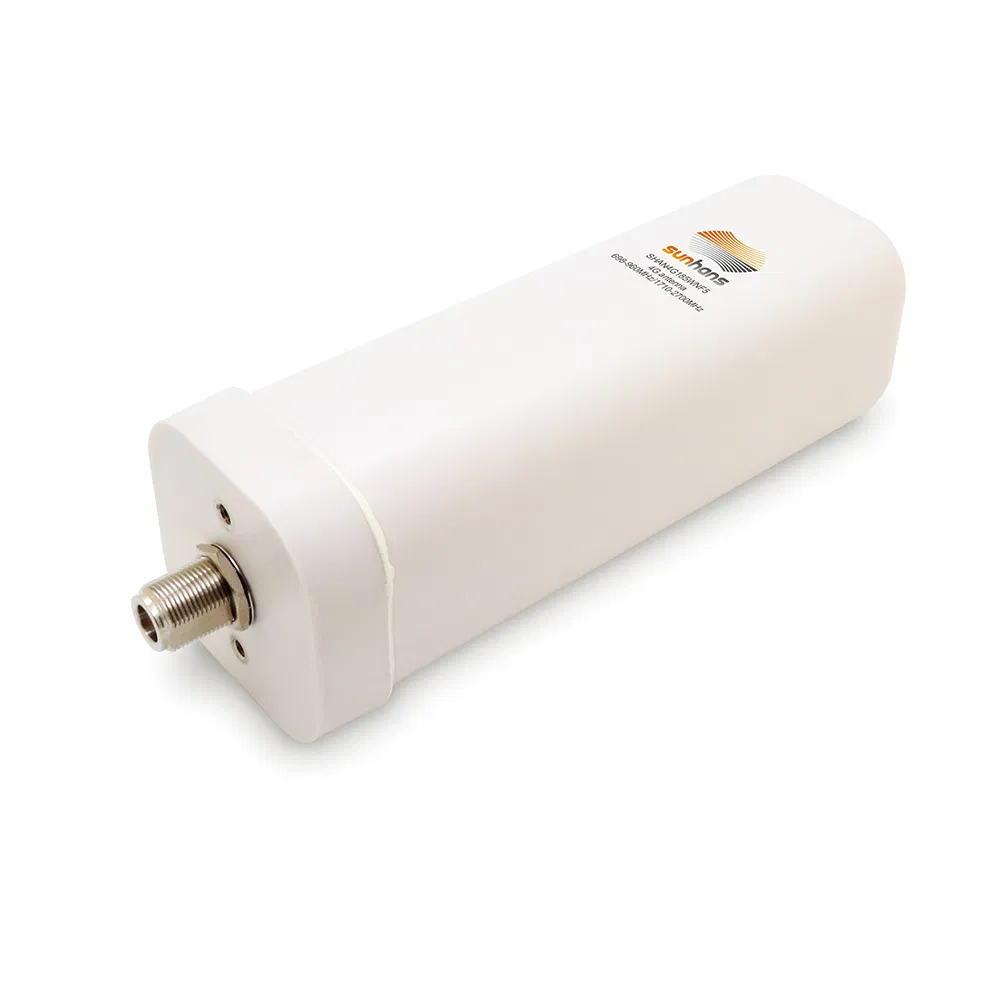

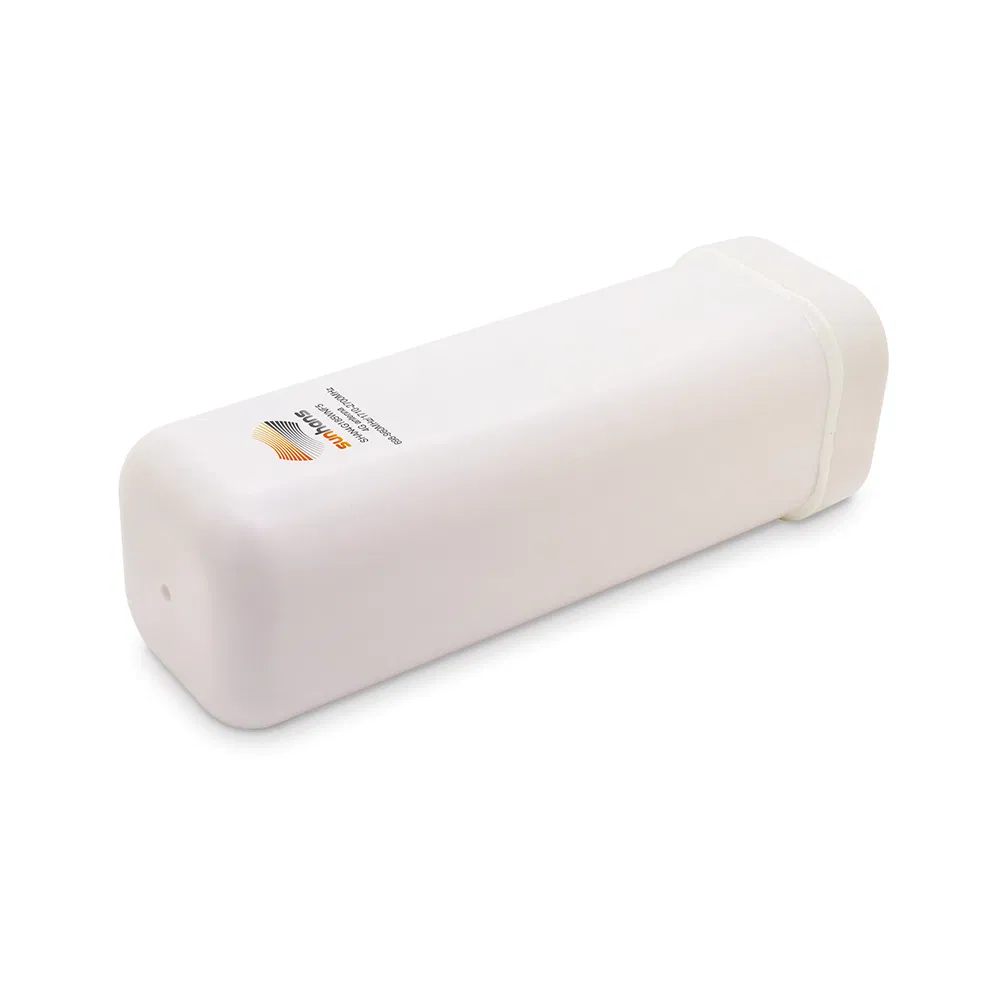

Sunhans 5dBi 698-960MHz/ 1710-2700MHz 4G Mobile Signal Booster Omni Antenna with Waterproof
Point-to-multipoint system
Testing Report,VSWR Curve
Antenna Radiation Pattern
♦ Short leading time: 1-2.5 working days for samples or small order, 10-15 working days for bulk order.
♦ One year warranty: for you without trouble of after-sales maintenance.
♦ Quality Guarantee: Return rate is only 0.001.
♦ Support small orders: help your business from small to big.
♦ OEM & ODM are welcome.
Feature:
- Exquisite appearance.
- Good impact resistance,waterproofing and anti-corrosion ability.
- Full day working.
- Optimized dimension.
- High gain,low standing wave,strong anti-interference ability.
Application
GSM/CDMA/PCS/3G/4G/WLAN systemPoint-to-multipoint system
| Electrical Characteristics | |
| Frequency Range | 698-960 / 1710-2700 MHz |
| VSWR | <3.0 |
| Polarization | Vertical |
| Antenna Gain | 5.0 dBi |
| Impedance | 50 Ohm |
| Material | |

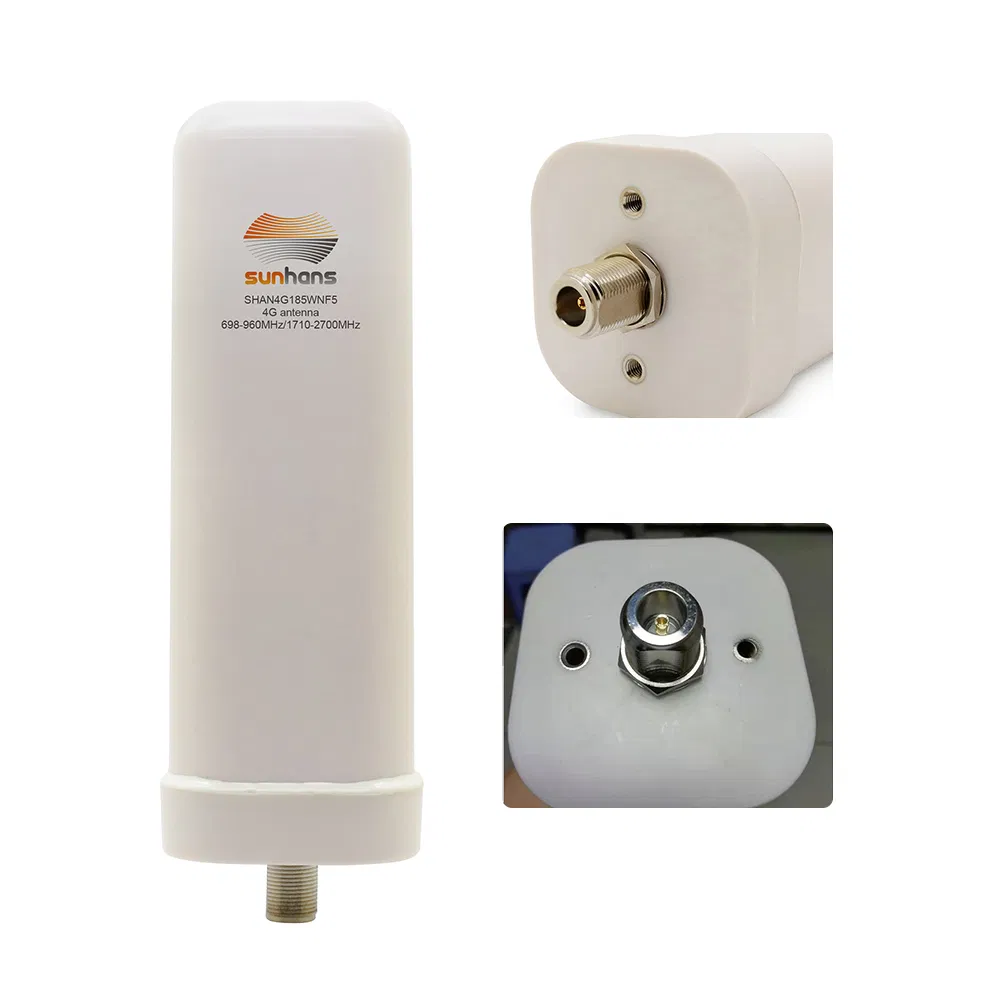

| Connector Type | N Female |
| Material of Plastic | ABS |
| Environmental | |
| Operation Temperature | - 45 ˚C ~ + 85 ˚C |
| Storage Temperature | - 45 ˚C ~ + 85 ˚C |
| Size | 20.5*6.3 cm |
| Weigh | 296g |
| Radome color | White |
Testing Report,VSWR Curve
Antenna Radiation Pattern
| Testing Equipment Specification: | |
| Antenna Anechoic Chamber Dimension | 7x3 x3 m |
| Isolation | >100dB @ 1 MHz ~ 10 GHz |
| Testing Equipment | Agilent E5071C |
| Received Antenna | 0.4 ~ 6.0 GHz for Gain Calibration |
| Quite Zone | 600mm @1 GHz |
| Double Ridged Horn Antenna | |
Antenna Installation Instructions

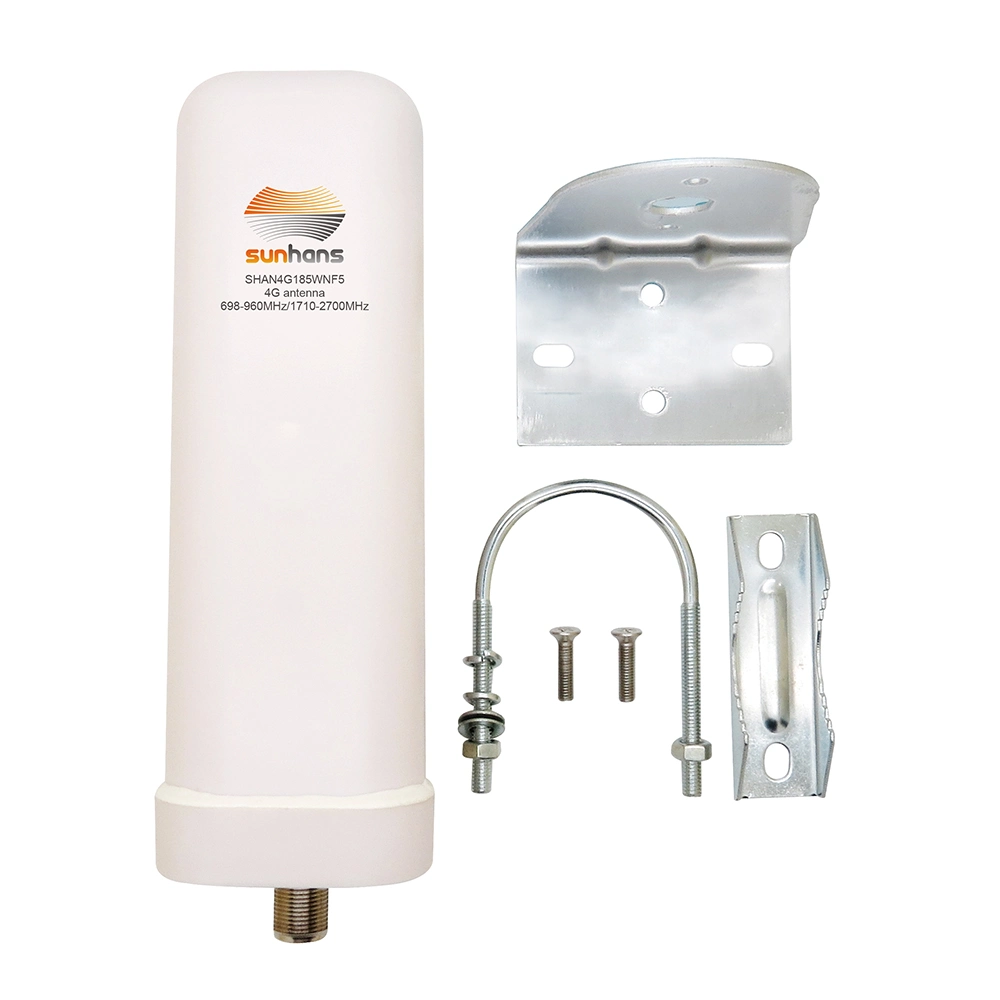

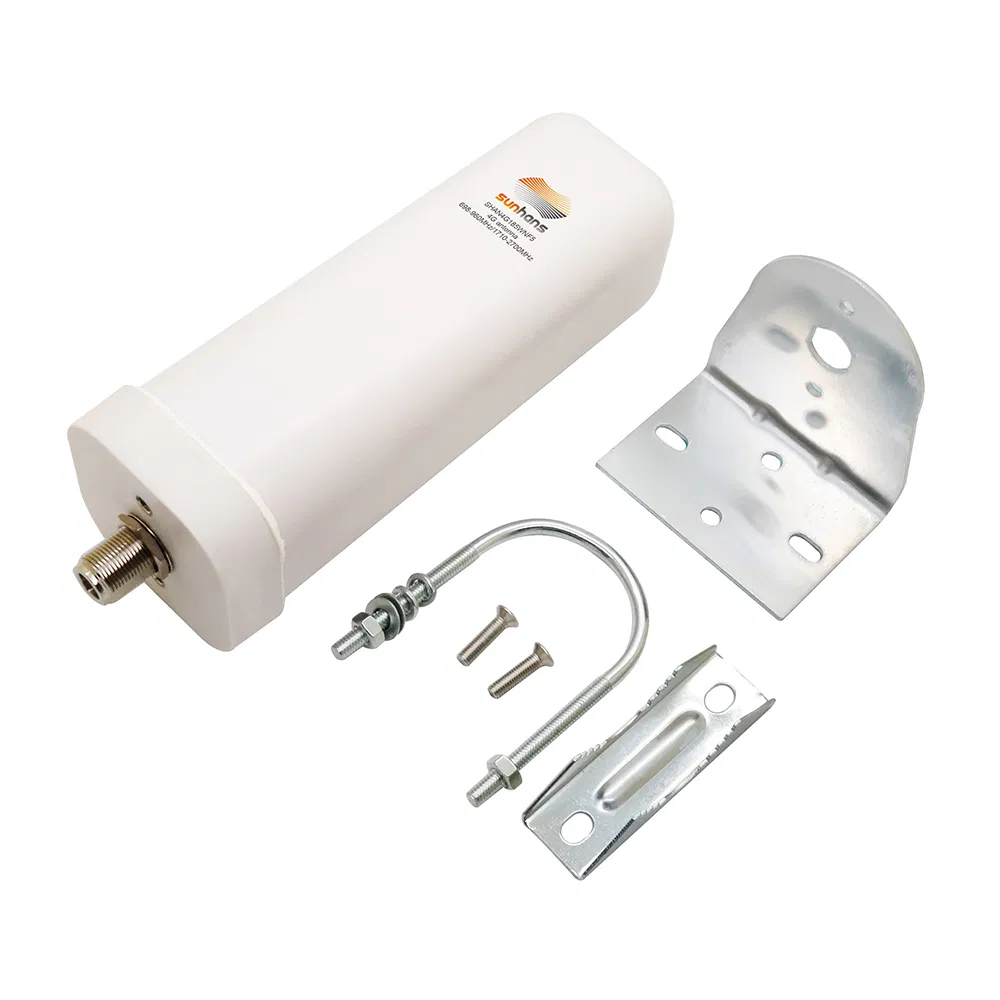

1. Install as the picture below2. Installation Steps
1. Place the M6 U-shape screw through the holes on the clamps to mount the antenna to the pole whose outer diameter is ¢35~¢50mm.Then put on the flat washer,the spring washer and twist all the nuts.
2.There should be at least three meters between the ground or floor and the antenna above.No huge building or metal object or any other obstacle or shelter nearby.
3.Adjust the mounting height of the antenna to the proper position to receive the best signal,then seal all the connections.
4.Please pay attention to lightning protection.
1. Place the M6 U-shape screw through the holes on the clamps to mount the antenna to the pole whose outer diameter is ¢35~¢50mm.Then put on the flat washer,the spring washer and twist all the nuts.
2.There should be at least three meters between the ground or floor and the antenna above.No huge building or metal object or any other obstacle or shelter nearby.
3.Adjust the mounting height of the antenna to the proper position to receive the best signal,then seal all the connections.
4.Please pay attention to lightning protection.
