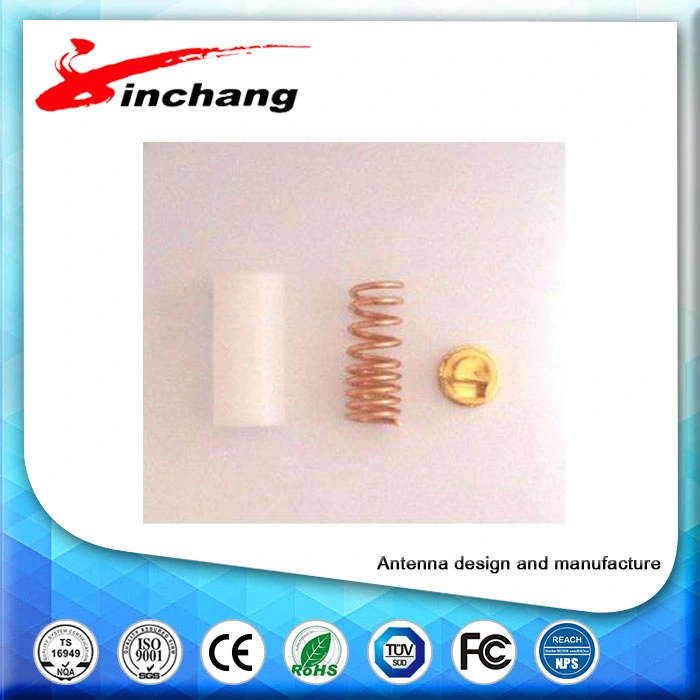

Spring GSM/GPRS Antenna
ItemSpecificationsGSM AntennaFrequency Range824~960MHz/1710~1990MHzPolarizationLinearGain0dBi(Zenith)V.S.W.R(min)<3.0Impendance50ΩRadome MaterialABSMounting MethodScrew or SolderEnvironmentalOperating Temperature -40ºC~+85ºC Relative HumidityUp to 95%Environmentally Fr......
Send Inquiry
Product Description
| Item | Specifications | |
| GSM Antenna | Frequency Range | 824~960MHz/1710~1990MHz |
| Polarization | Linear | |
| Gain | 0dBi(Zenith) | |
| V.S.W.R(min) | <3.0 | |
| Impendance | 50Ω | |
| Radome Material | ABS | |
| Mounting Method | Screw or Solder | |
| Environmental | Operating Temperature | -40ºC~+85ºC |
| Relative Humidity | Up to 95% | |
| Environmentally Friendly | ROHS Compliant | |
