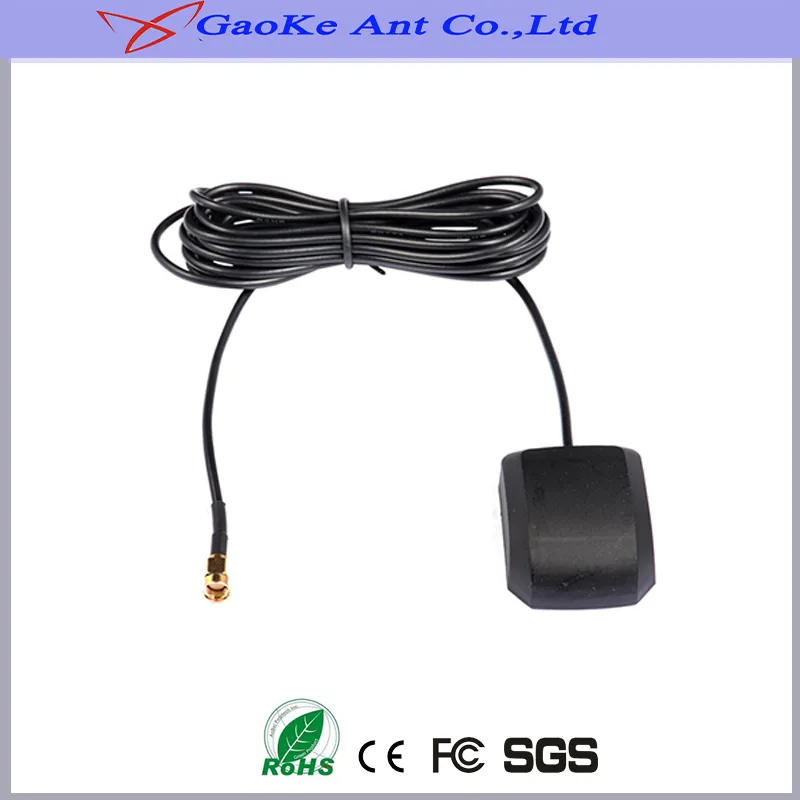

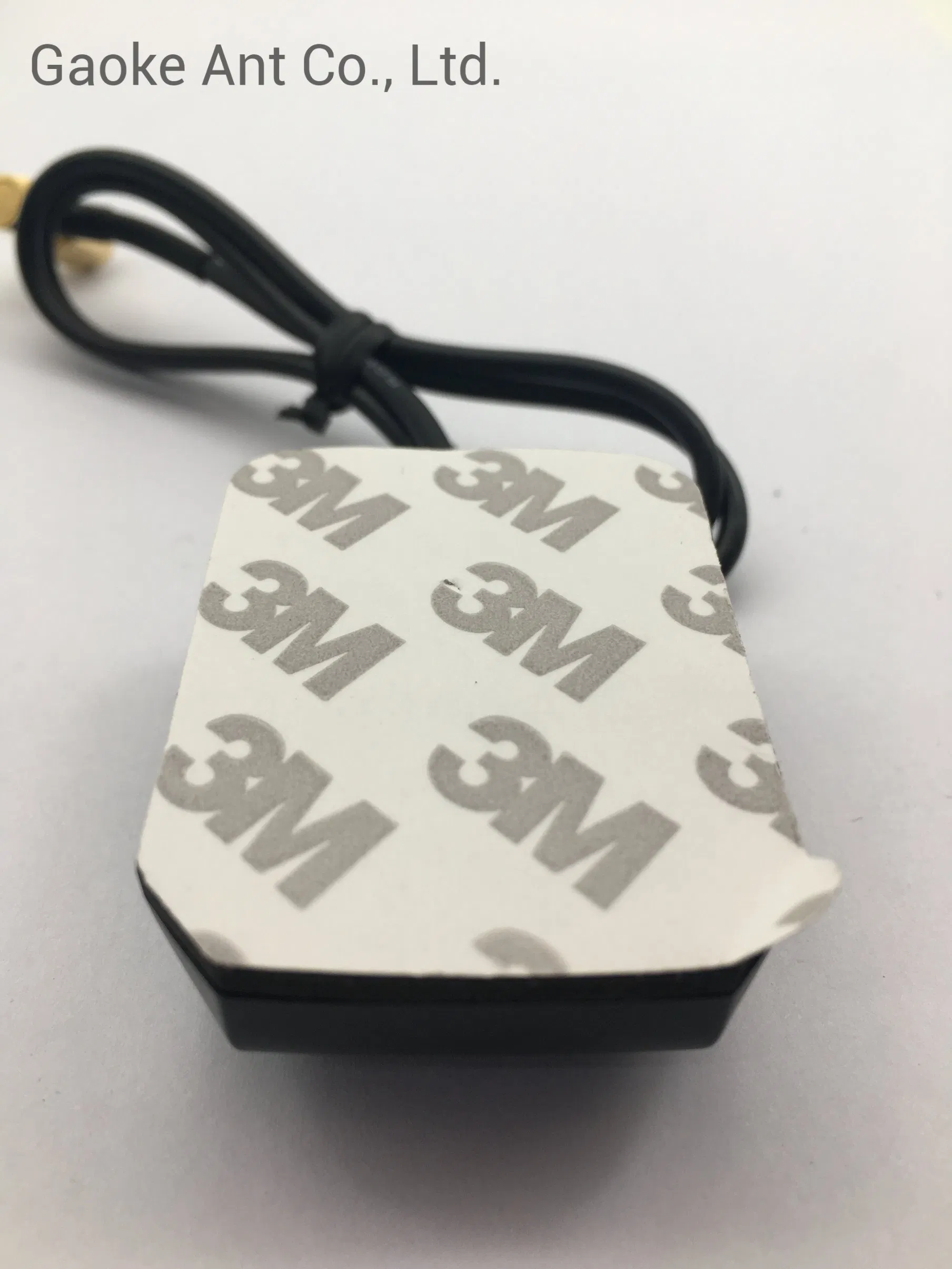

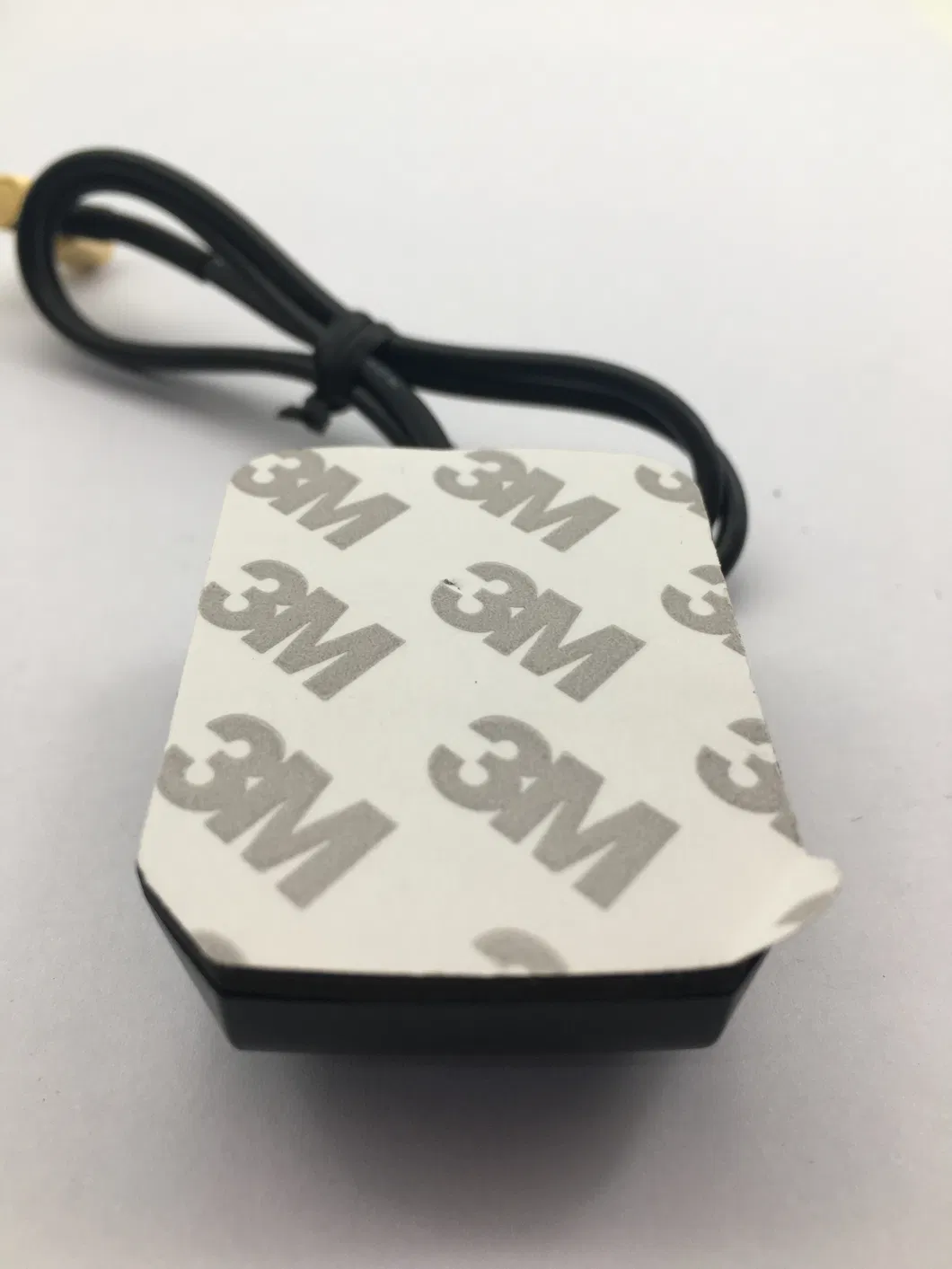

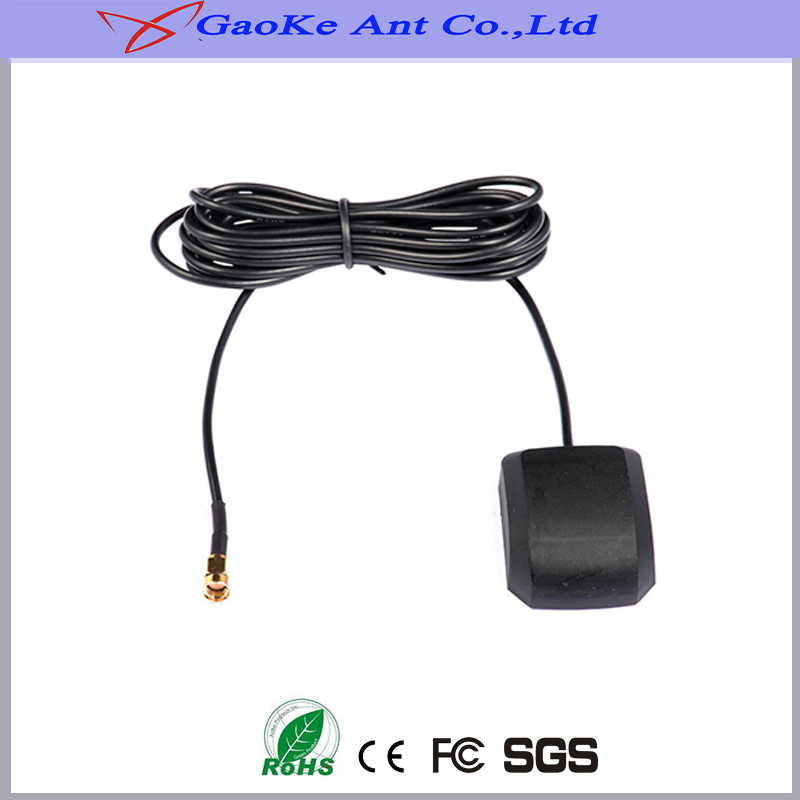

Size 48X37X19mm Waterproof Antenna with SMA Male Connector, Adhesive, 1575.42MHz GPS Antenna
Antenna technical parametersDesign SpecificationsTypicalUnitsAntenna formActive external antenna working Frequency1575.42±2MHzMHzGain≤3.0dBidBiAntenna efficiency55% VSWR≤2.0 PloriaztionRC Pol Axial Ratio≤3.0 Radiation patternOMNI Impedance50ΩΩPowe......
Send Inquiry
Product Description
Antenna technical parameters
Amplifier characteristic
| Design Specifications | Typical | Units |
| Antenna form | Active external antenna | |
| working Frequency | 1575.42±2MHz | MHz |
| Gain | ≤3.0dBi | dBi |
| Antenna efficiency | 55% | |
| VSWR | ≤2.0 | |
| Ploriaztion | RC Pol | |
| Axial Ratio | ≤3.0 | |
| Radiation pattern | OMNI | |
| Impedance | 50Ω | Ω |
| Power handling | 33dbm | dbm |
| Interface | SMA Male RG174-3M | |
| Overal dimensions | 48.5x37x19mm | mm |
| Weight | ≤120g | g |
| Operatin Temp | -40ºC~85ºC | ºC |
| Storing Temp | 15ºC~30ºC | ºC |
| NO | Item | Specifications |
| 1 | Frequency range | 1575.42±2 |
| 2 | Amplifier gain | 28dB±3 |
| 3 | V.S.W.R | ≤2.0 |
| 4 | Noise figure | ≤2.0 |
| 5 | Dc voltage | 3~5V |
| 6 | Dc current | ≤20mA |
