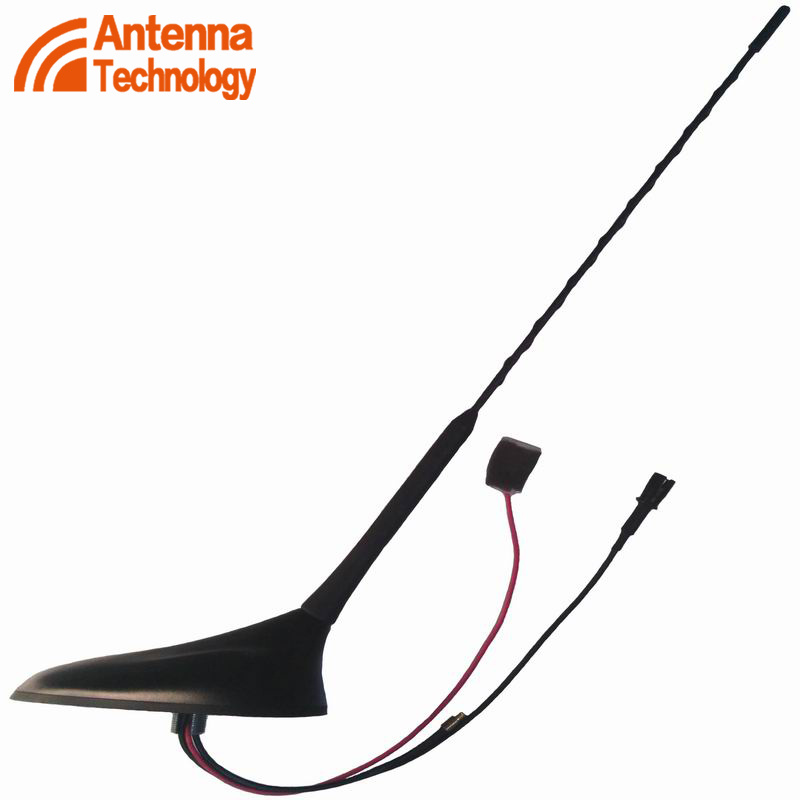

Radio GPS GSM Combination Antenna for Multifunction Band

Product Description

company information

Antenna Technology is a high-teach company in Guangdong Province. It is professionally engaged in designing, manufacturing and selling Car Antenna and mobile communication products, we always keep an eye on your demands and the developing trend of this industry, and have established a complete products system of car antenna.
Our company has 10 years experience in manufacturing car antenna.The superior engineers provide precondition for product innovation, perfect production and testing equipment provide the quality guarantee for our products.
As the international enterprise, we are aiming at bringing customers the highest quality products to satisfy your expectation and needs, a large group of skilled technician work hard in order to increase the benefit for customers.

specification

Origin	China
Brand	ATC
Model No	ATC-M02
Warranty	3 years
AM/FM Specification
V.S.W.R	2:01
Output Impedance	75ohms
GPS Specification
Frequency	1575.42±1.023MHz
Polarization	RHCP
LNA Gain	28±2dB
Patch	at 90 degree 2dBi Min. at 20degree -5dBi Min
Noise figure	1.6dB Max
Output Impedance	50 Ohms
V.S.W.R	1.5Max
Axial ratio	90 degree 4.0dB Max
Opearting Voltage	3-5V
Power consumption	25mA Max
GPRS Specification
Frequency	GSM:890-960MHz
	DCS:1710-1880MHz
	CDMA:824-896MHz
VSWR	890-960MHz Max:2.0
VSWR	1710-1880MHz Max:2.0
Antenna Gain	>2dBi
Output Impedance	50 ohms
Coax Cable	50 ohms, RG174U 5 meters
