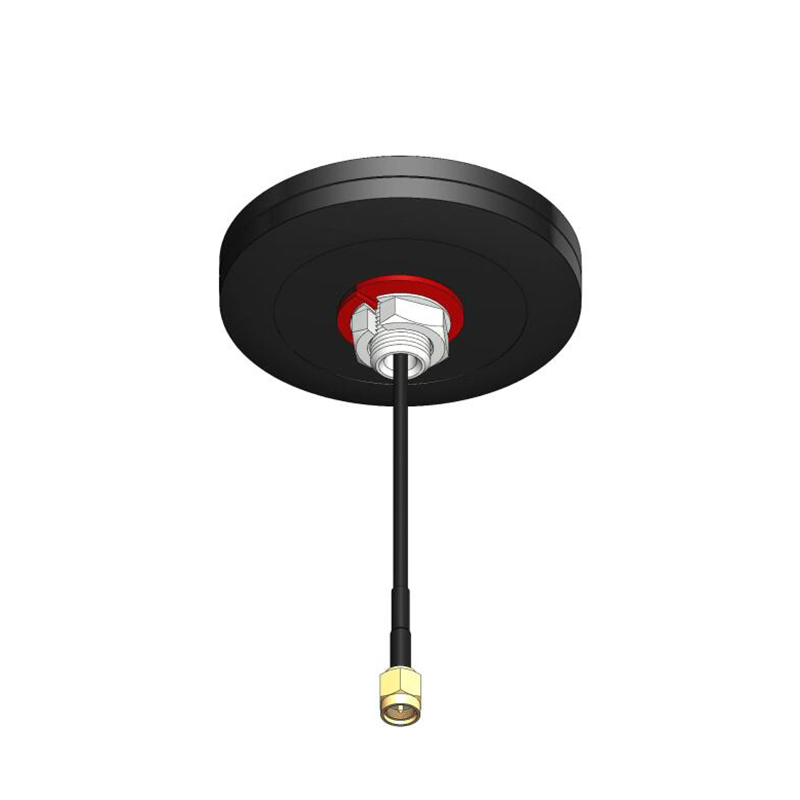

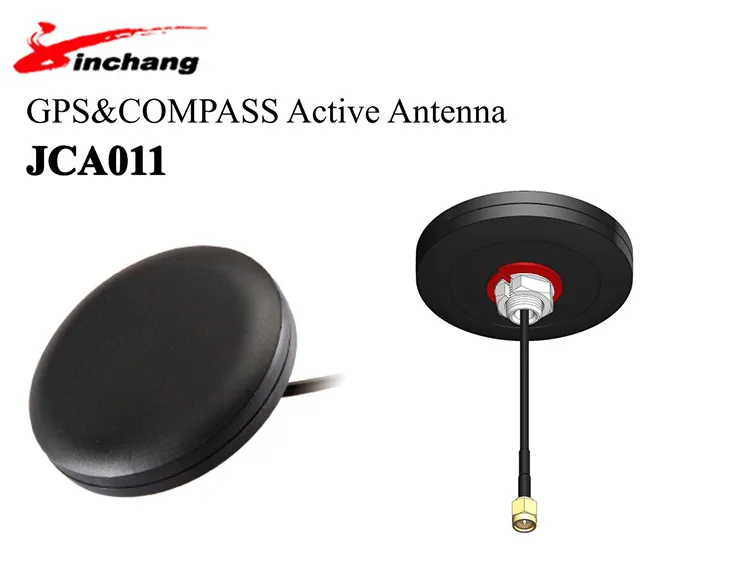

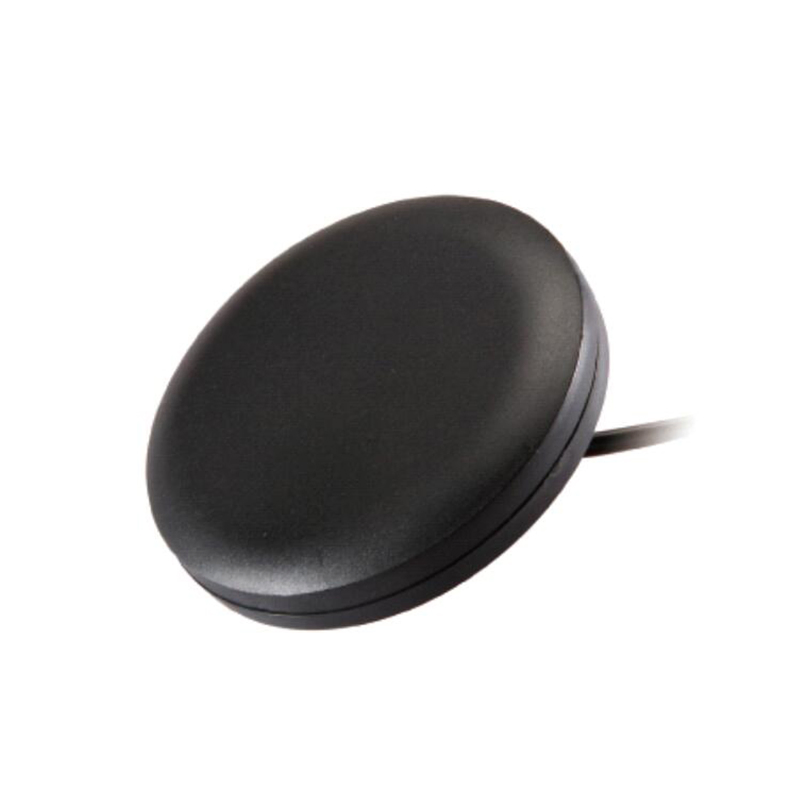

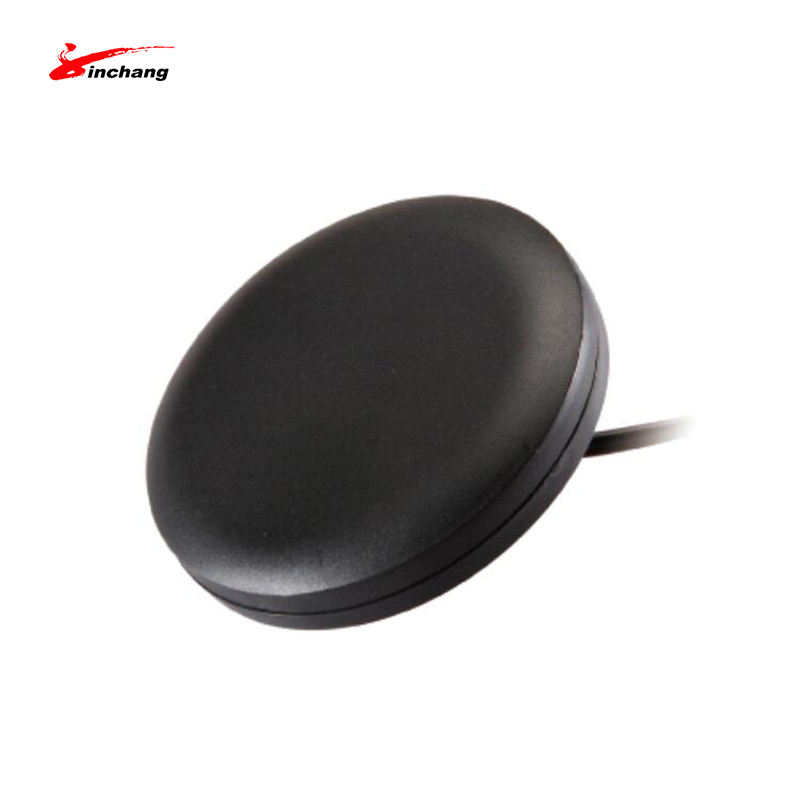

Jca011 Free Sample GPS Compass Active GPS External Antenna with MCX Connector
JCA011 Free Sample Gps Compass Active Gps External Antenna With Mcx Connector Product DescriptionProduct ParametersItemSpecificationsAntennaCenter Frequency1568±1MHzBand WidthCF±10MHzPolarizationRHCPGain5dBicV.S.W.R<1.5Impendance50ΩAxial Ratio3dB(max)Dimension35*35......
Send Inquiry
Product Description
Item | Specifications | |
Antenna | Center Frequency | 1568±1MHz |
Band Width | CF±10MHz | |
Polarization | RHCP | |
Gain | 5dBic | |
V.S.W.R | <1.5 | |
Impendance | 50Ω | |
Axial Ratio | 3dB(max) | |

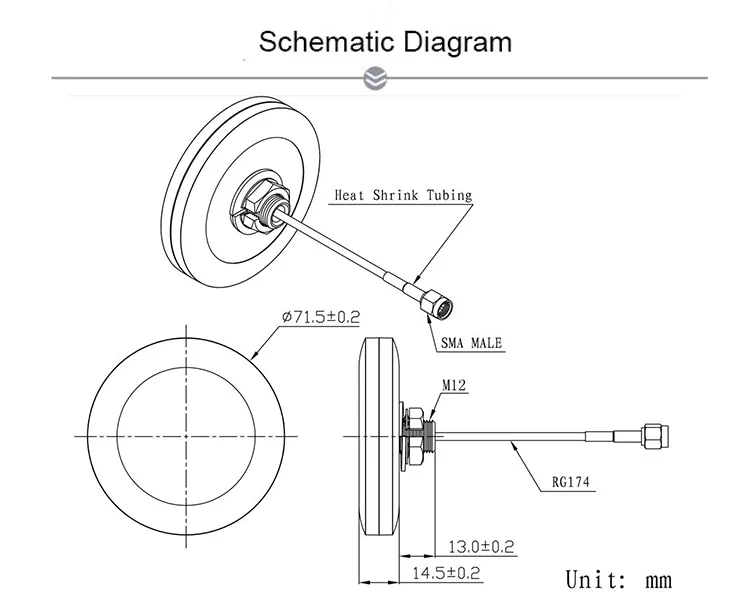

Dimension | 35*35*3mm | |
LNA | Gain | 28±2dB |
Noise Figure | <1.5 | |
Filter Insertion Loss | <3dB | |
Ex-band Attenuation | 35dB@CF±50MHz/50dB@CF±100MHz | |
Supply Voltage | 3~5V DC | |
Current Consumption | 12~26mA | |
V.S.W.R | <2.0 | |
Mechanical | Cable | RG174 |
Connector | SMA/MCX/FAKRA or others | |
Radome Material | ABS | |
Mounting Method | Magnet/Adhesive | |
Environmental | Operating Temperature | -40ºC~+85ºC |
Relative Humidity | Up to 95% | |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
Environmentally Friendly | ROHS Compliant | |
Advantage:
2,Technical advantage:high gain, low attenuation, signal receiving ability 30 engineers have helped us develop our
current selection and trained our 200 production workers to ensure they stay on top of the latest technology.
OEM&ODM
1,R & D, design, Packing, size, color
2,Magnetic, adhesive, or screwing mouting as per customer's installation requirement.
3,Can meet your unique requirement, for example waterproof, salt spray proofing, UV protect and so on.
Fast dilivery
1-4 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.
Repairing and maintanance:
Replacement or maintanance for 1 year as quality guarantee
Q: Are you a manufacturer or a trading company?
A: We have been professional antenna manufacturer for 20 years.
Q: Can I get one sample?
A: Yes, sample is for free.
Q: Have gps gsm combo antenna 100% assembles well in stock?
A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 1-4 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A: T/T, Paypal, western union etc.
Q: Where is your factory located? Can I visit your factory?
A: Factory address: #398 Zhenye Road, Jiaxing Economic Development Zone, Nanhu District, China. Just call us,
we will pick you up with no delay.
Q: How long of the warraty?
A: One year and can repair for the whole life.
