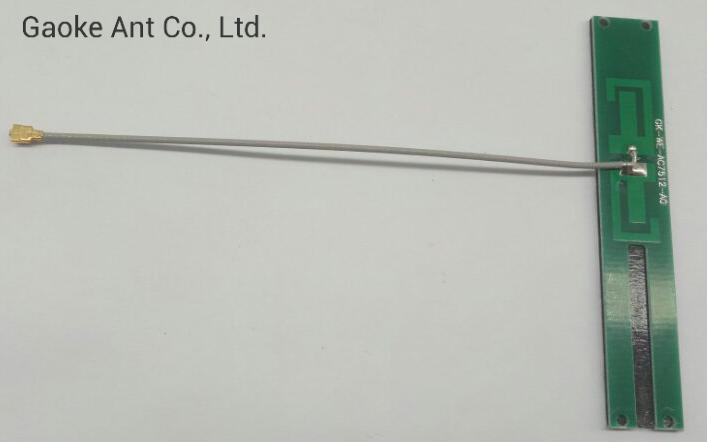

High Gain PCB Ufl Connector 4G Internal Antenna
Antenna technical parameters:Design SpecificationsTypicalWorking Frequency824-960MHz,1710-2690MHzGain≤1.5dBiAntenna efficiency30%VSWR≤5.0@1710-2690MHzPloriaztion L PolRadiation pattern OmniImpedance50ΩPower handling33dBmInterfaceIPEX/ RF1.13-100mmOveral dimensions74.5x12.5x3.......
Send Inquiry
Product Description
Antenna technical parameters:
Antenna performance test
1.V.S.W.R
2.Return loss
| Design Specifications | Typical |
| Working Frequency | 824-960MHz,1710-2690MHz |
| Gain | ≤1.5dBi |
| Antenna efficiency | 30% |
| VSWR | ≤5.0@1710-2690MHz |
| Ploriaztion | L Pol |
| Radiation pattern | Omni |
| Impedance | 50Ω |
| Power handling | 33dBm |
| Interface | IPEX/ RF1.13-100mm |
| Overal dimensions | 74.5x12.5x3.2mm |
| Weight | 2.0g |
| Operatin Temp | -40ºC~85ºC |
| Storing Temp | -40ºC~85ºC |

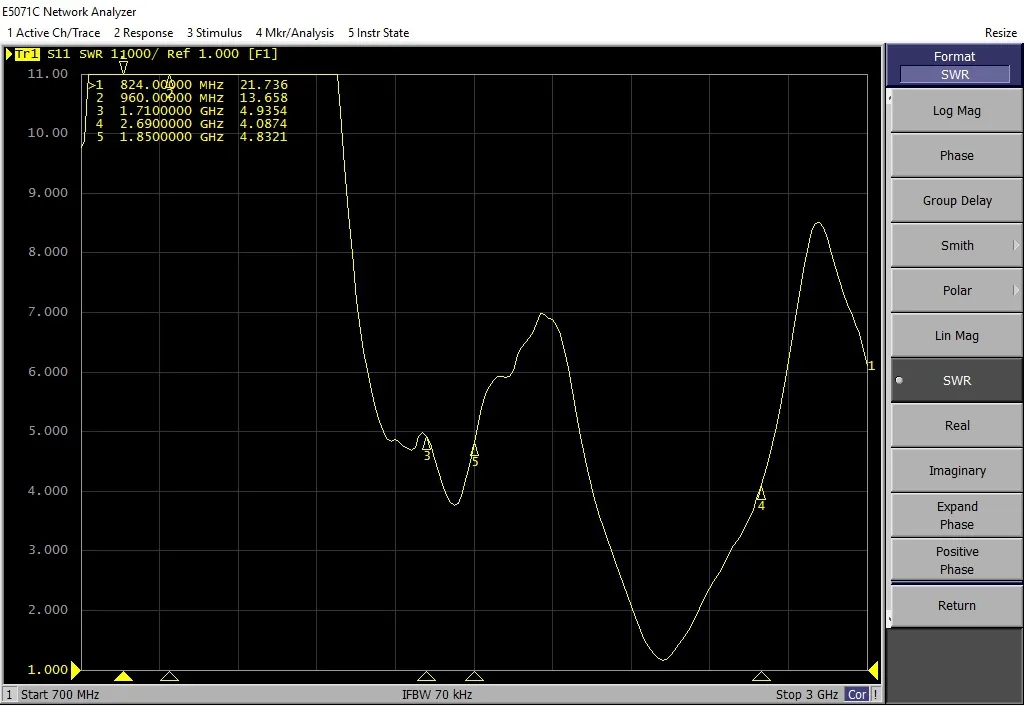

1.V.S.W.R

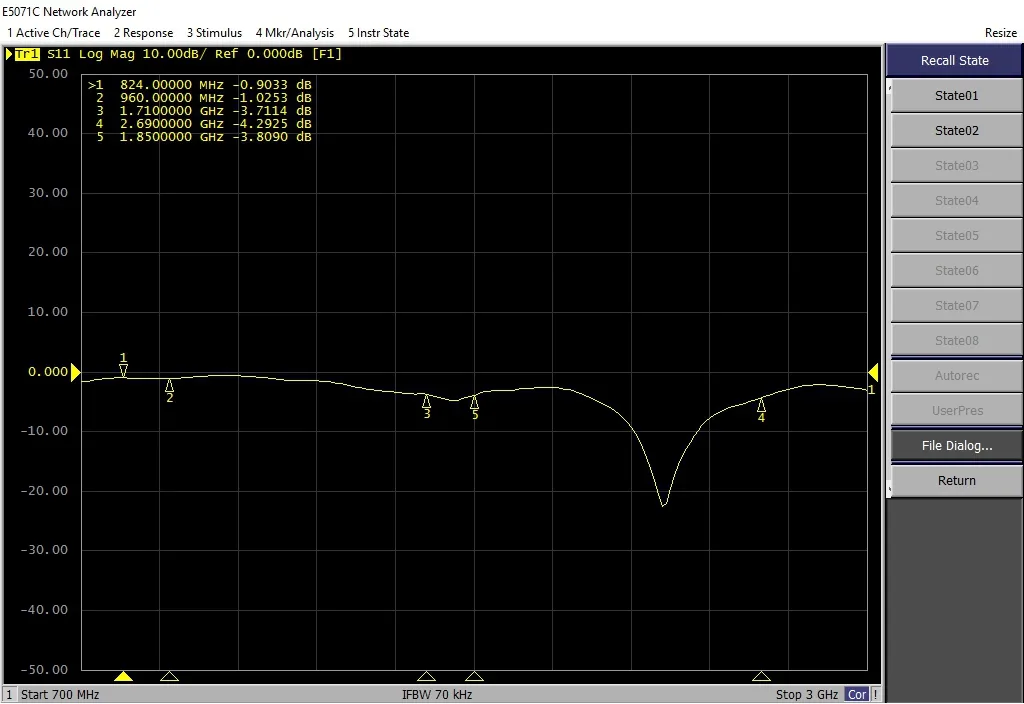

2.Return loss
