GSM Flat Antenna High Quality Antenna GSM Antenna
GSM Flat Antenna High Quality Antenna GSM AntennaAntenna Performance NO.ItemSpecifications1Range of Receiving Frequency824~960MHz 1710~2400MHz2V.S.W.R(in Center Frequency)≤2.03Gain (Zenith)(dBi typ)>2.04RadiationOmnidirectional5Power Capacity506PolarizationPerpendicular7Connector TypeSMA g......
Send Inquiry
Product Description

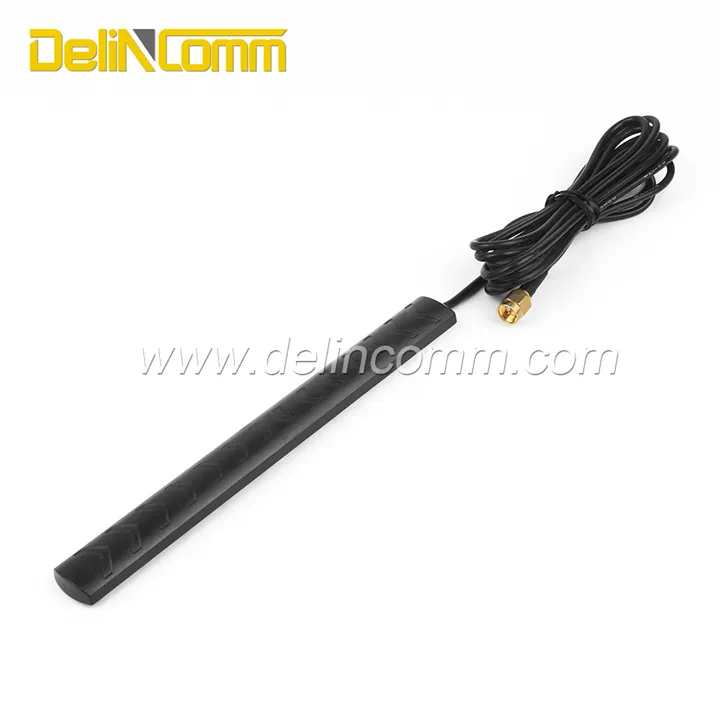

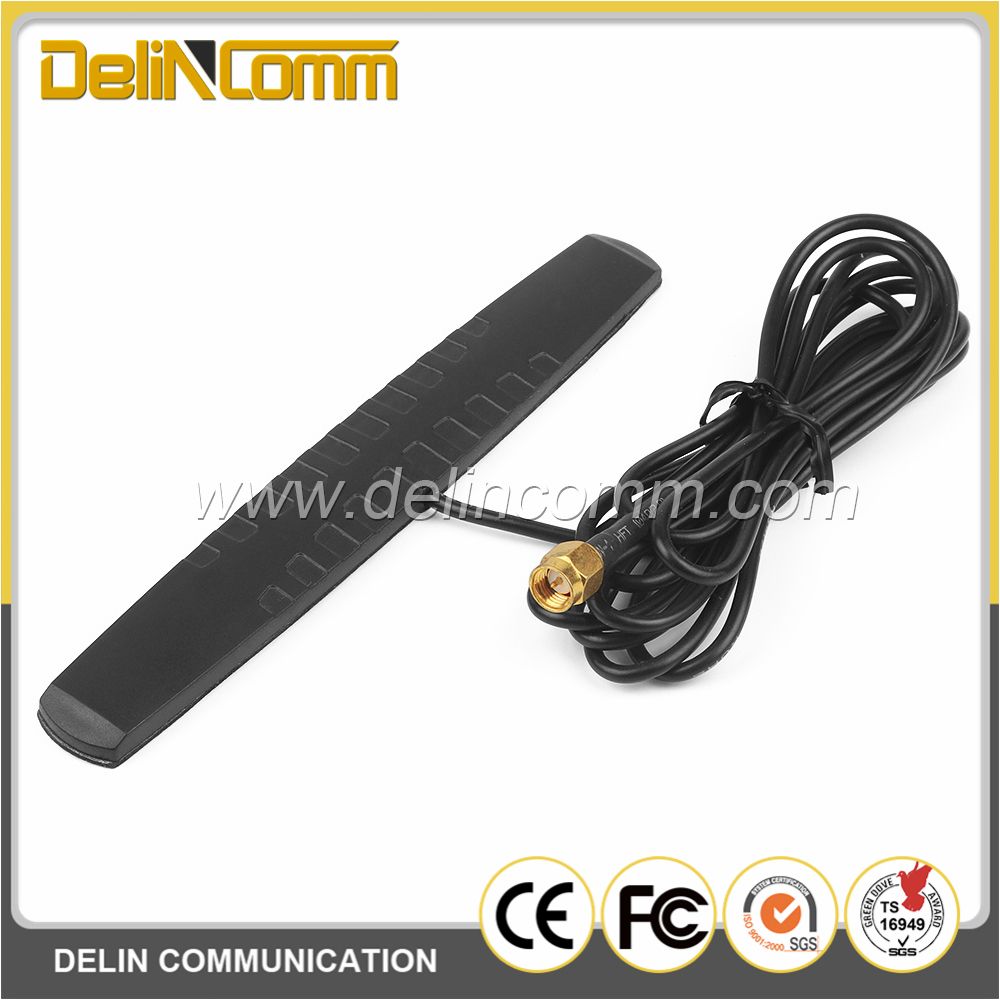

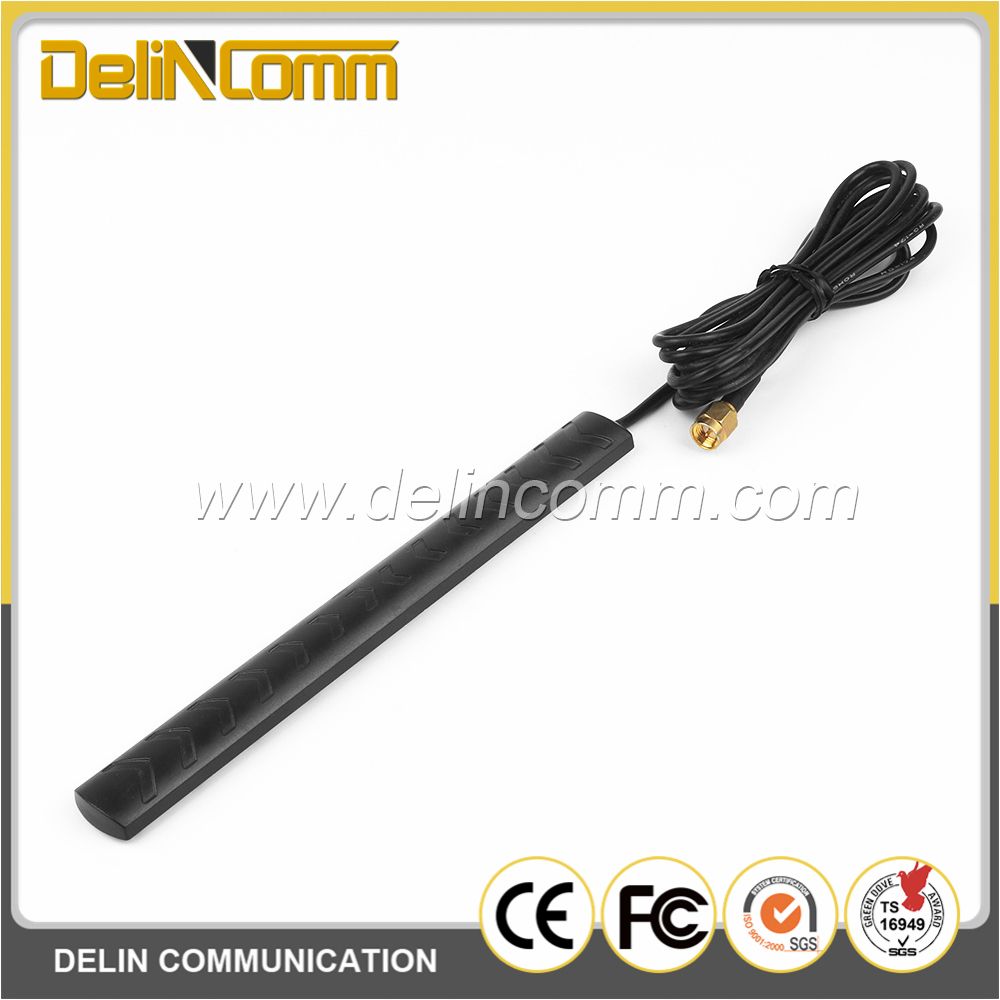

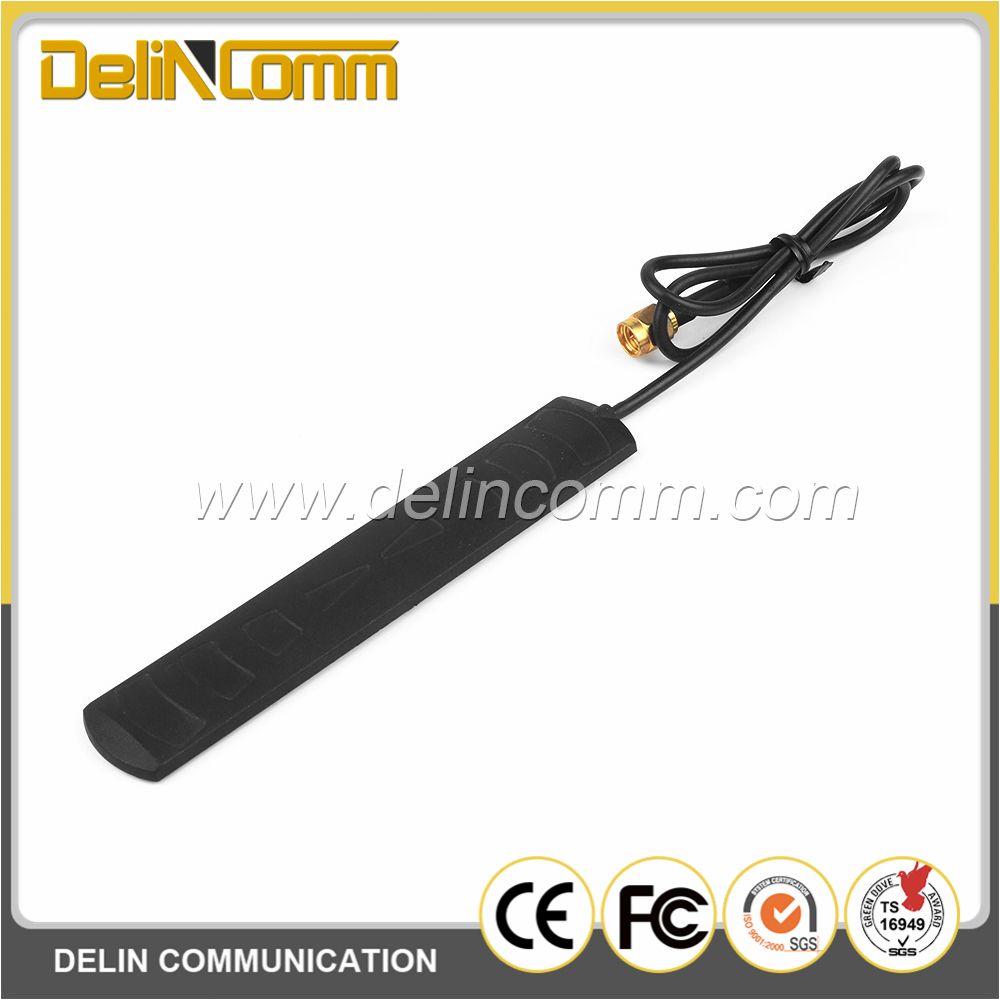

GSM Flat Antenna High Quality Antenna GSM Antenna
Antenna Performance
1. Materials and Coatings
2. Electrical Performance
3.Mechanical Behavior Character
Antenna Performance
| NO. | Item | Specifications |
| 1 | Range of Receiving Frequency | 824~960MHz 1710~2400MHz |
| 2 | V.S.W.R(in Center Frequency) | ≤2.0 |
| 3 | Gain (Zenith)(dBi typ) | >2.0 |
| 4 | Radiation | Omnidirectional |
| 5 | Power Capacity | 50 |
| 6 | Polarization | Perpendicular |
| 7 | Connector Type | SMA gold plated straight male head |
| 8 | Size(mm) | 120*20*5 |
| 9 | Color | black |
| 10 | Weight(gram) | ≥30 |
1. Materials and Coatings
| Order Number | Part Name | Material Quality | Cladding Material | Remarks |
| 1 | Inner Conductor | Brass Wire | Gold-plating | Hard Gold |
| 2 | Dielectric | Teflon | ||
| 3 | Hull | Yellow Metal(HPb59-1) | Gold-plating | Hard Gold |
2. Electrical Performance
| Order Number | Surveillance Project | Qualification | Remarks |
| 1 | Characteristic Impedance | 50Ω | |
| 2 | Temperature Range | -65~+165ºC | |
| 3 | Frequency Range | 0~12GHZ | |
| 4 | Dielectric Strength | 1000V(rms) | |
| 5 | Contact Resistance | inner conductor≤3mΩouter conductor ≤2mΩ | |
| 6 | Insulation Resistance | ≥5000MΩ | |
| 7 | V.S.W.R. | ≤1.25(flexible cable) | |
| 8 | Salt Spray Test (HRS) | 24 |
3.Mechanical Behavior Character
| Order Number | Mechanical Behavior Character | Qualification | Remarks |
| 1 | mechanical endurance | ≥500times |
