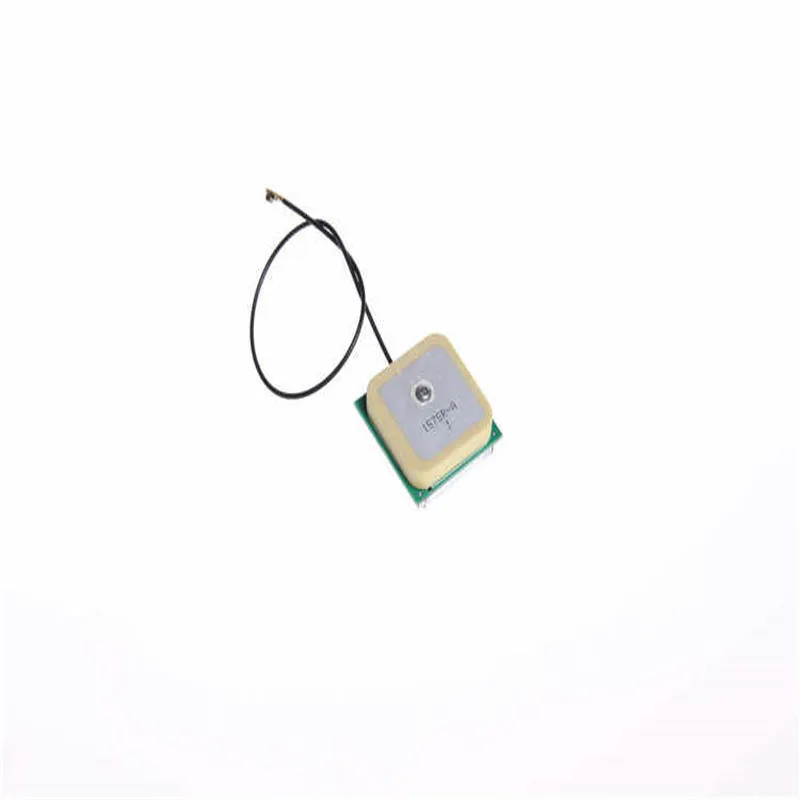

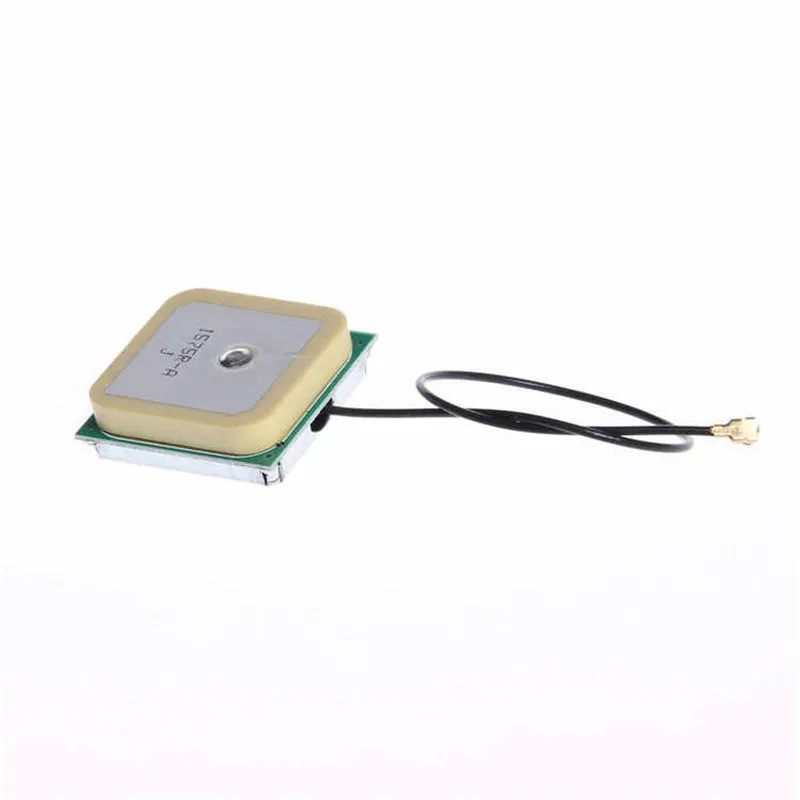

GPS/ Glonass Internal Antenna 25*25 046
GPSGlonass Internal AntennaGL046Electrical IndexFrequency-MHz1575.42 -1602Gain-dBi1.0(Zenith)VSWR≤1.5LNA Gain-dBi28±2Nominal Impedance-Ω50PolarizationRHCPAxial Ratio3dB(max)Noise Figure<1.5Filter Insertion Loss<3dBSupply Voltage2.2~5V DCCurrent Consumption5~15mAMax.......
Send Inquiry
Product Description
| GPSGlonass Internal Antenna | |
| GL046 | |
| Electrical Index | |
| Frequency-MHz | 1575.42 -1602 |
| Gain-dBi | 1.0(Zenith) |
| VSWR | ≤1.5 |
| LNA Gain-dBi | 28±2 |
| Nominal Impedance-Ω | 50 |
| Polarization | RHCP |
| Axial Ratio | 3dB(max) |
| Noise Figure | <1.5 |
| Filter Insertion Loss | <3dB |
| Supply Voltage | 2.2~5V DC |
| Current Consumption | 5~15mA |
| Max. Power-W | 50 |
| Connector | IPEX or UFL |
| Mechanical Index | |
| Cable Length | RF1.13,100mm |
| Antenna Dimension-mm | 25×25×7 |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
| Ingress Protection | IP67(exclude cable outlet) |
| Temperature-ºC | -40~+85 |
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
Cable/Connector Advice
* Only use low loss cables for cellular installations as the cable quality is as important as the antenna.Global Technology cables are designed to provide optimum performance.
* Do not crimp or damage cable during installation.
* Do not bend cable through an extreme radius.
* Take care to tighten all fittings.
* Waterproof any exposed connectors.
Which Antenna Do I Need?
* Gain Describes the shape of the radiation from an antenna.
* Use a higher gain antenna for better performance in open flat terrain.
* Use a lower gain antenna for better performance in rough mountainous terrain or city areas.
* We recommend the use of a lower gain antenna for the communications in vehicle convoy situations.
* Glass mount antennas are ideal for built up city areas where signal strength is higher.
* High gain antennas are better suited for regional areas where long range is required.
* Fixed site directional antennas send all the signal in on direction-they need to be rotated and/or titled until the strongest cell site signal is obtained during installation.
* Fixed site OMNI directional antennas are idea when reasonable signal is available in the area.This is an easier installation option.
