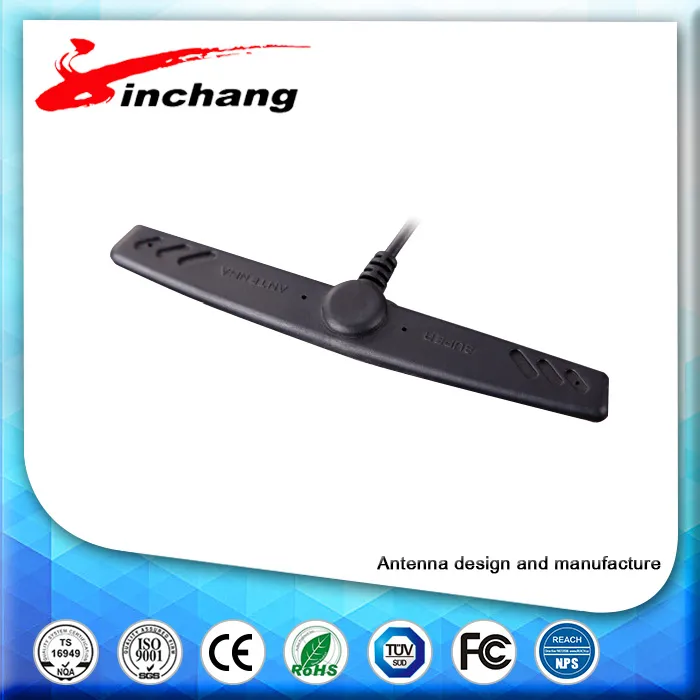

Free Sample High Quality 824~960 MHz/1710~1990 MHz GSM Antenna
Gsm Antenna:Frequency: 824~894/1710~1990MHz880~960/1710~1990MHz1920~2170MHzV. S. W. R: <3Band Width: -5 to +5MHzImpedance: 50ohmGain(Without cable): 2dBiPolarization Type: Vertical or HorizontalCable Length: RG 174 3m/5m or othersConnector: SMA/MMCX or others EnvironmentalOperating Temperature-40......
Send Inquiry
Product Description
Gsm Antenna:
Frequency: 824~894/1710~1990MHz
880~960/1710~1990MHz
1920~2170MHz
V. S. W. R: <3
Band Width: -5 to +5MHz
Impedance: 50ohm
Gain(Without cable): 2dBi
Polarization Type: Vertical or Horizontal
Cable Length: RG 174 3m/5m or others
Connector: SMA/MMCX or others
Frequency: 824~894/1710~1990MHz
880~960/1710~1990MHz
1920~2170MHz
V. S. W. R: <3
Band Width: -5 to +5MHz
Impedance: 50ohm
Gain(Without cable): 2dBi
Polarization Type: Vertical or Horizontal
Cable Length: RG 174 3m/5m or others
Connector: SMA/MMCX or others
| Environmental | Operating Temperature | -40~+85 |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant |
