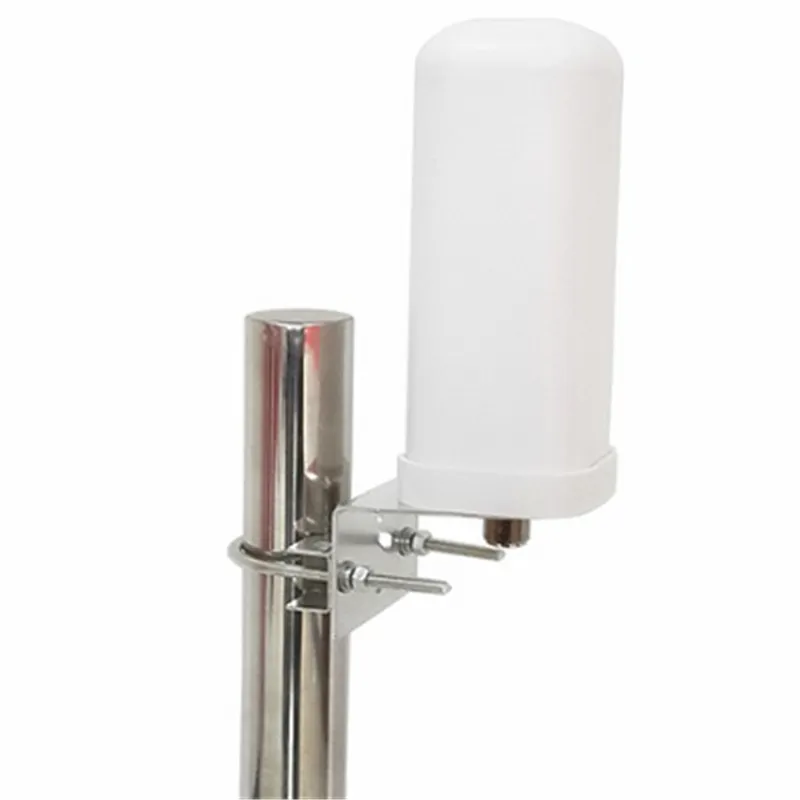

Broadband Omni Antenna with 1710 -2700MHz
Applications:1,2G/3G/WLAN/LTE Wireless System.Features:1,Broadband;2,Public Wireless Hotspot. Electrical SpecificationsFrequency Range698-960MHz1710-2700MHzVSWR≤1.8≤1.5Gain3dBi4.5dBiHorizontal beam width360°Vertical beam width55°PolarizationVerticalInput Impedance50&a......
Send Inquiry
Product Description
Applications:
1,2G/3G/WLAN/LTE Wireless System.
Features:
1,Broadband;
2,Public Wireless Hotspot.
| Electrical Specifications | ||
| Frequency Range | 698-960MHz | 1710-2700MHz |
| VSWR | ≤1.8 | ≤1.5 |
| Gain | 3dBi | 4.5dBi |
| Horizontal beam width | 360° | |
| Vertical beam width | 55° | |
| Polarization | Vertical | |
| Input Impedance | 50Ω | |
| Maximum input power | 100W | |
| Lightning protection | DC Ground | |
| Mechanical Specifications | ||
| Input connector type | N-K | |
| Connector place | Bottom | |
| Dimensions | 190×66×66mm | |
| Antenna weight | 0.35kg | |
| Radome material | ABS | |
| Radome color | White | |
| Operating temperature | -40°c~60°c | |
| Rated Wind Velocity | 60 m/s | |
| Mounting hardware | ¢35~¢60 | |
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, Western Union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
