Product Description

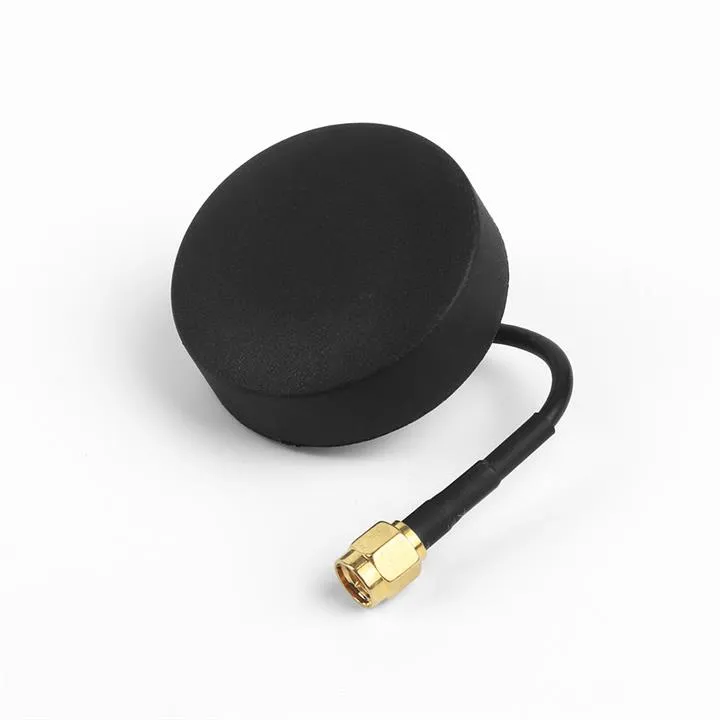

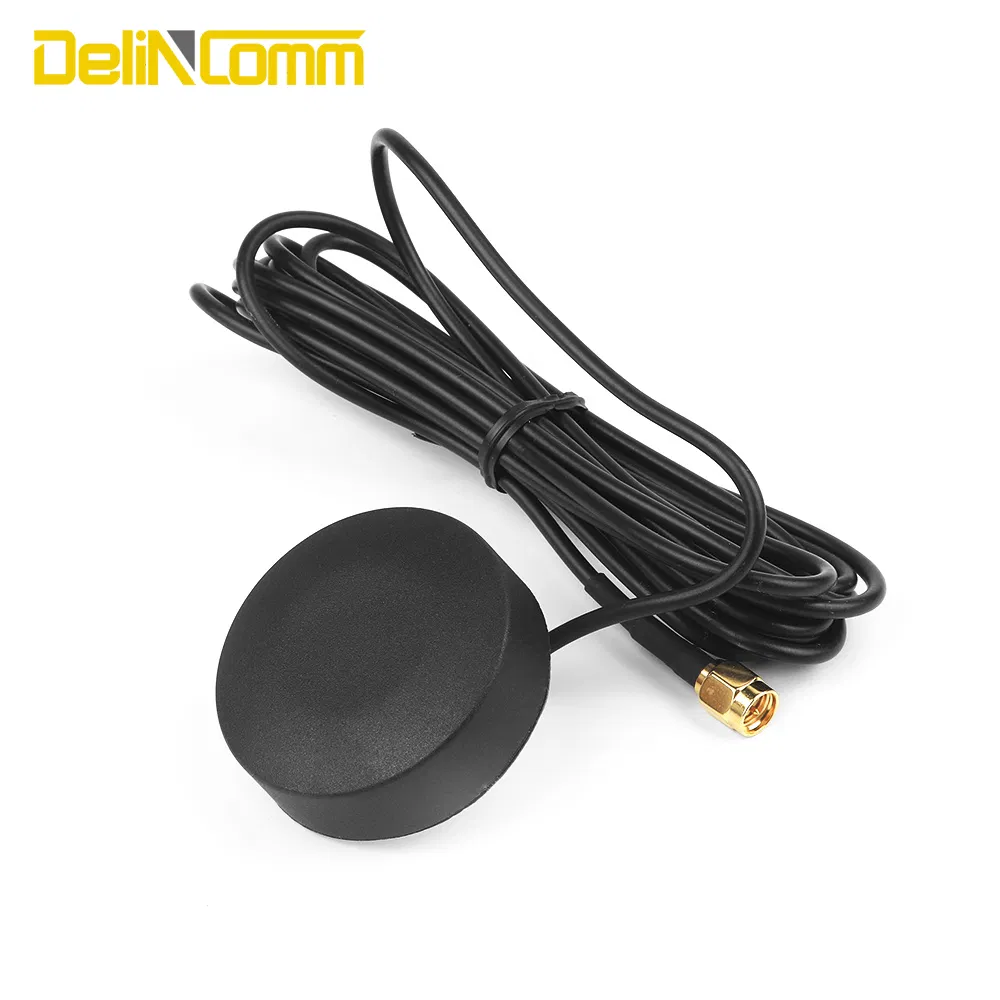

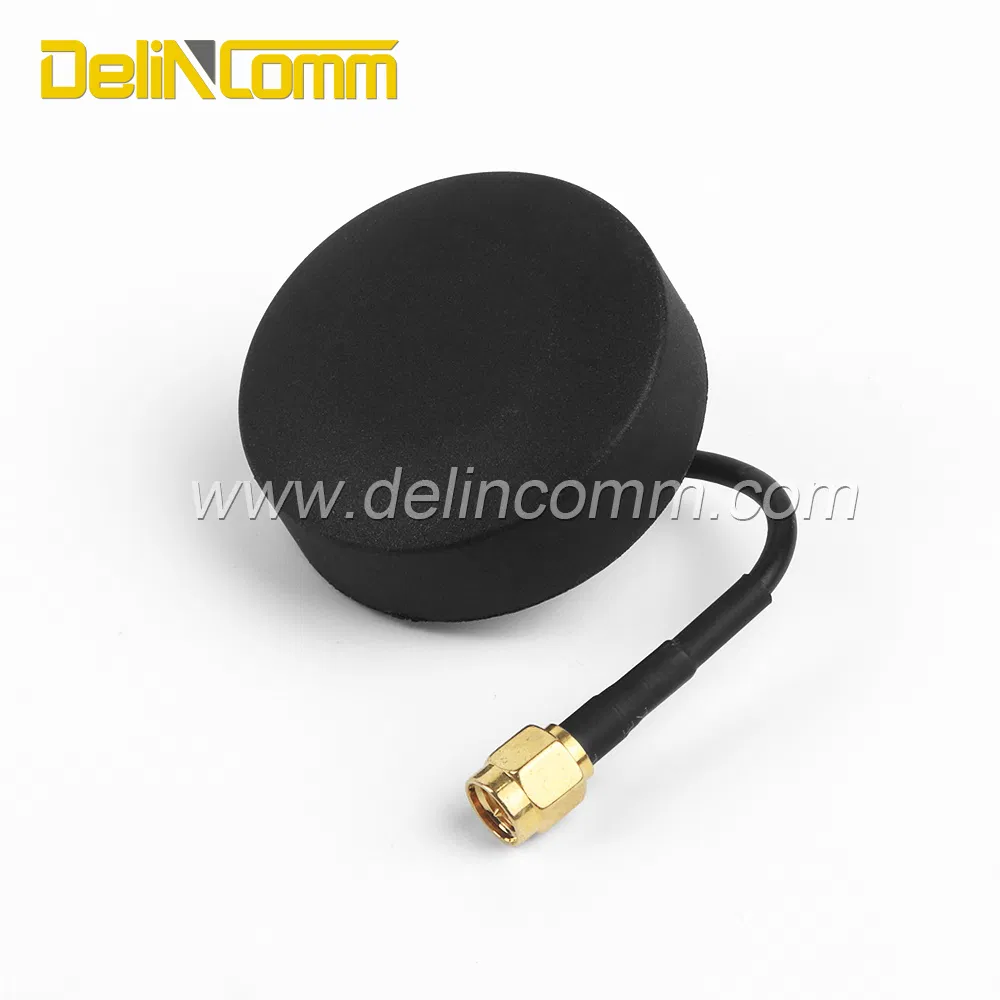

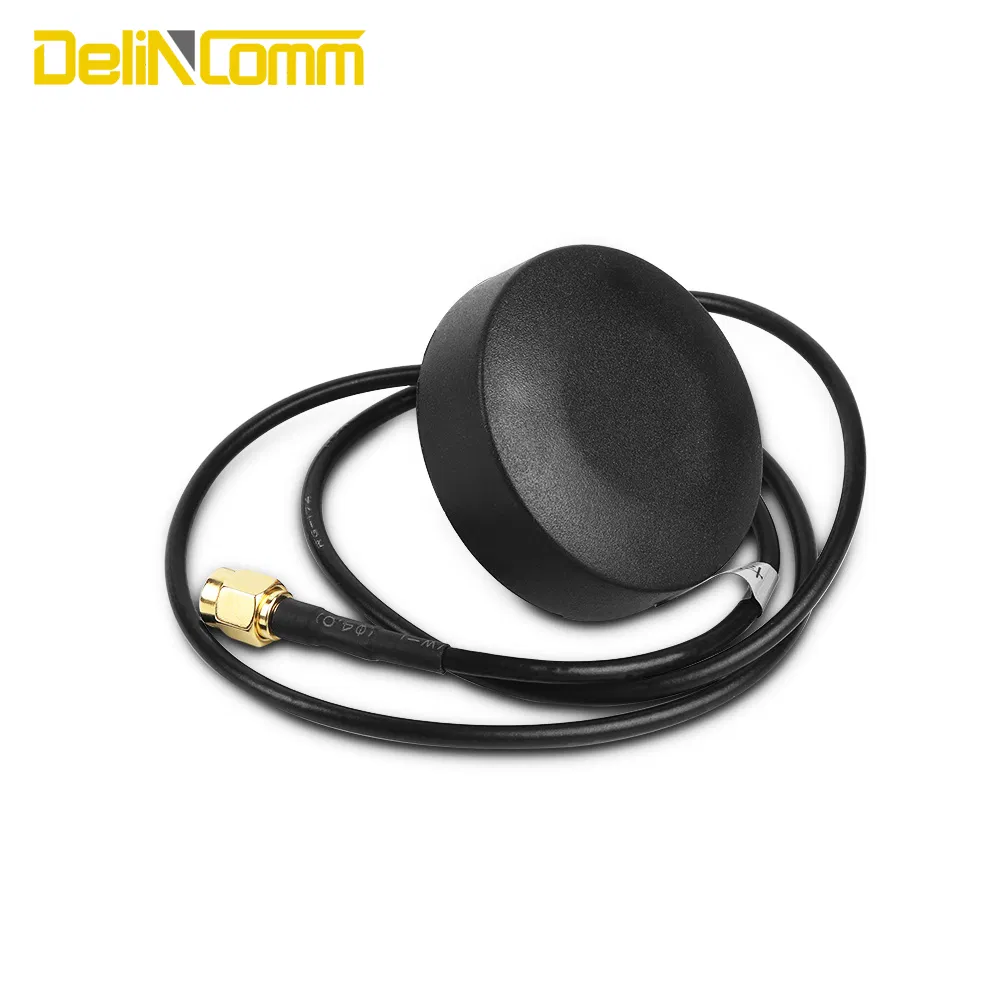

Active GPS&Glonass Antenna Auto GPS&Glonass Antenna GPS Antenna
Mechanical Specifications
Conditions
Antenna Characteristics
Amplifier Characteristics
Mechanical Specifications

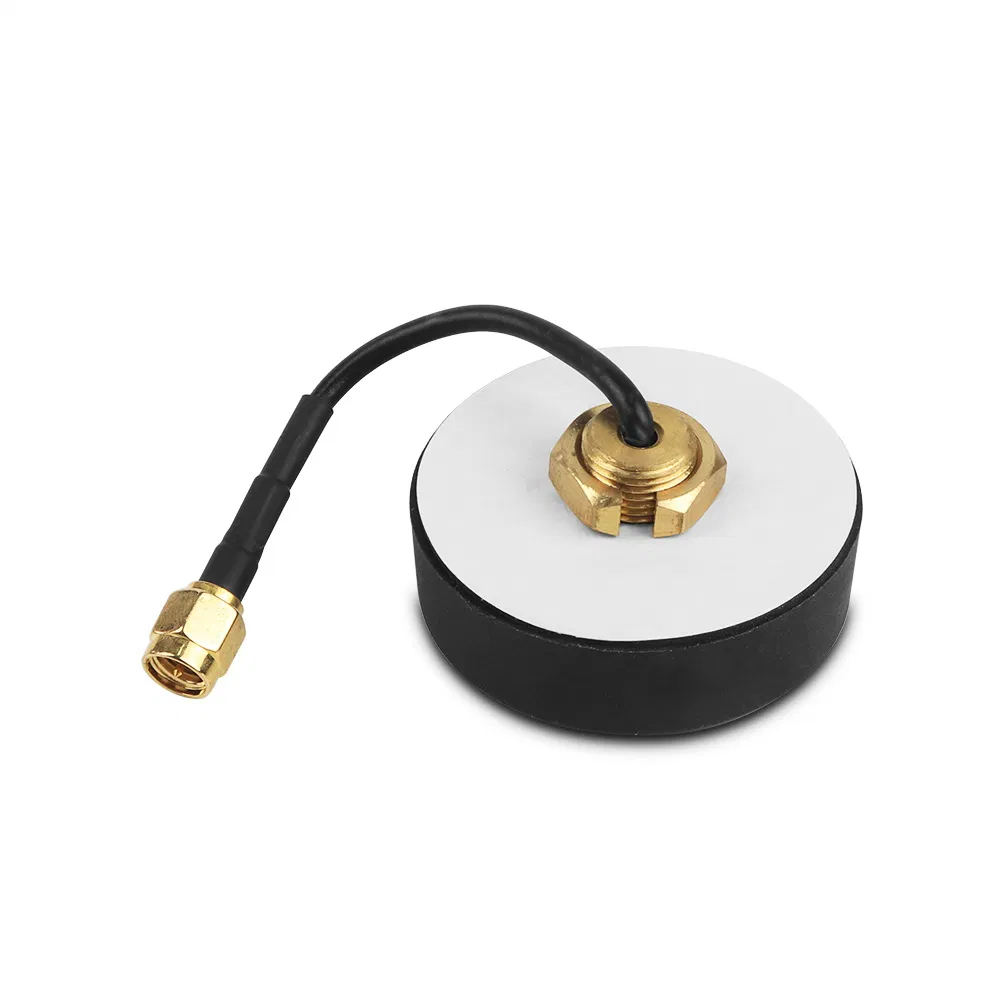

| Size (mm) | ø46.6*15.6 mm | Mounting | Screwing |
| Weight(g) | <58 | Connector | SMA or other |
| Color | Black | Cable | RG174 - 0.27m |
Conditions
| Working Conditions | Temperature:-40ºC~+85ºC |
| Humidity: 95%~100% | |
| Storage Conditions | Temperature:-40ºC~+85ºC |
| Humidity: 95%~100% |
Antenna Characteristics
| No. | Item | Specifications |
| 1 | Range of Receiving Frequency(MHz) | GPS:1575.42/GLONASS:1600± 3 |
| 2 | V.S.W.R | ≤1.5 |
| 3 | Gain | 3.0 |
| 4 | Radiation Pattern | 3.0dB |
| 5 | Polarization | RHCP |
| 6 | Impedance(Ω) | 50 |
| 7 | Antenna Efficiency | 45% |
Amplifier Characteristics
| No. | Item | Specifications |
| 1 | Range Of Receiving Frequency | GPS:1575.42/GLONASS:1600± 3 |
| 2 | LAN Gain | 28±1 dB |
| 3 | V.S.W.R. | ≤2.0 |
| 4 | Noise Figure | <2.0 |
| 5 | Supply Voltage | 3~5V |
| 6 | Current Consumption | ≤20mA |
