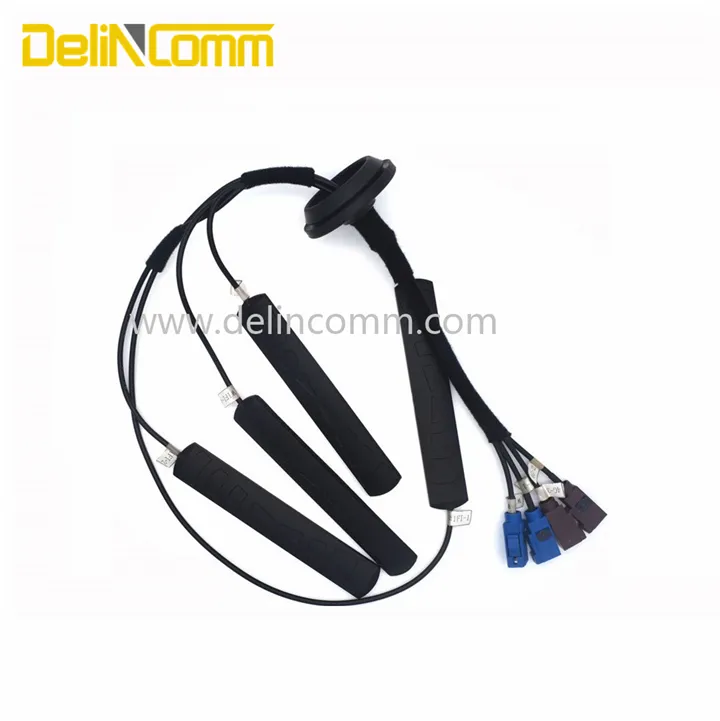

824~960/1710~2170/2300~2620MHz 4G Lte Antenna with Fakara Connector
1. WIFI Antenna CharacteristicsNOItemSpecifications1Range of Receiving Frequency(MHz)2400~2500MHz2V.S.W.R(in Center Frequency)≤2.03Gain (Zenith)(dBi typ)(with 70mmSquare GND plane)>2.04Radiation DirectionOmnidirectional5Power Capacity(W)506PolarizationVertical7Connector FAKRA Straight head......
Send Inquiry
Product Description
1. WIFI Antenna Characteristics
| NO | Item | Specifications |
| 1 | Range of Receiving Frequency(MHz) | 2400~2500MHz |
| 2 | V.S.W.R(in Center Frequency) | ≤2.0 |
| 3 | Gain (Zenith)(dBi typ) (with 70mmSquare GND plane) | >2.0 |
| 4 | Radiation Direction | Omnidirectional |
| 5 | Power Capacity(W) | 50 |
| 6 | Polarization | Vertical |
| 7 | Connector | FAKRA Straight head(Blue) |
| 8 | Size(mm) | 120*20*4 |
| 9 | Shell Color | Black |
| 10 | Cable | RG-174,500/260mm |
2. 4G Antenna Characteristics
| NO | Item | Specifications |
| 1 | Range of Receiving Frequency(MHz) | 824~960/1710~2170/2300~2620MHz |
| 2 | Antenna Directivity | Class dipole |
| 3 | Gain (Zenith)(dBi typ) | ≤2.0 |
| 4 | V.S.W.R | ≤2.0 |
| 5 | Standard Impedance(Ohm) | 50 |
| 6 | Connector | FAKRA Straight head (Purple) |
| 7 | Maximum input power | 20 |
| 8 | Polarization | Linear polarization |
| 9 | Size(mm) | 80*16*3.5mm |
| 10 | Shell Color | Black |
| 11 | Cable | RG-174, 270/150MM |
3. Work Condition:
Temperature:-40ºC~+80ºC
Humidity: 10%~90%
4. Storage Condition:
Temperature:-45ºC~+85ºC
Humidity: 10%~90%

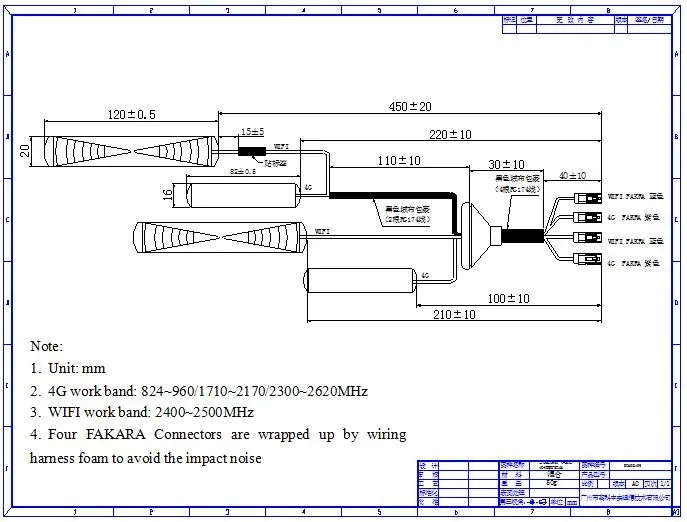

5. Antenna Dimensions
